Digilent MCC 128 16-bit, Analog Input DAQ HAT for Raspberry Pi

DigilentSKU: RB-Dig-286
Manufacturer #: 6069-410-001

Price  :
Sale price $199.99

Shipping calculated at checkout

Stock  :
Only 2 units left

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Digilent MCC 128 16-bit, Analog Input DAQ HAT
  • Designed for Raspberry Pi (Not Included)
  • Offers a 16-bit, high-speed voltage measurement DAQ HAT
  • Provides single-ended and differential input modes
  • Onboard sample buffers allow high-speed acquisition

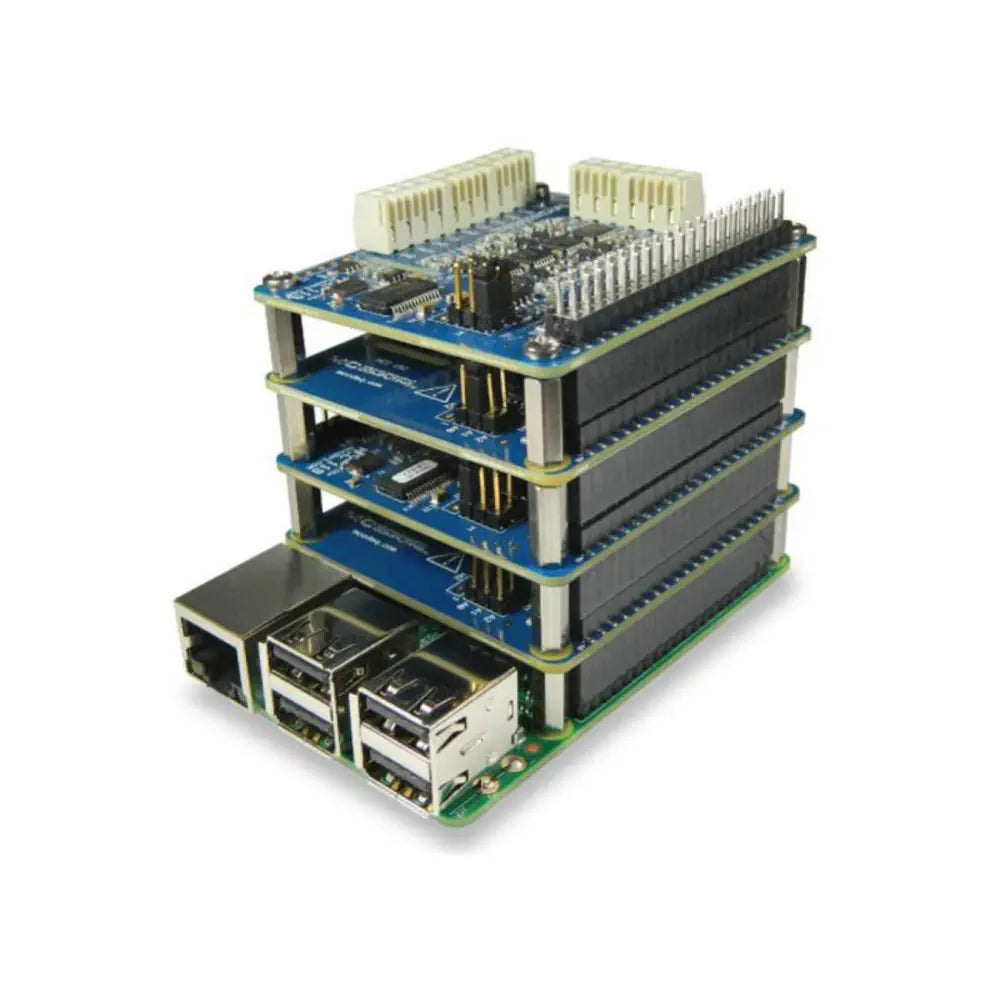

  • Stack up to eight MCC HATs onto a single Raspberry Pi

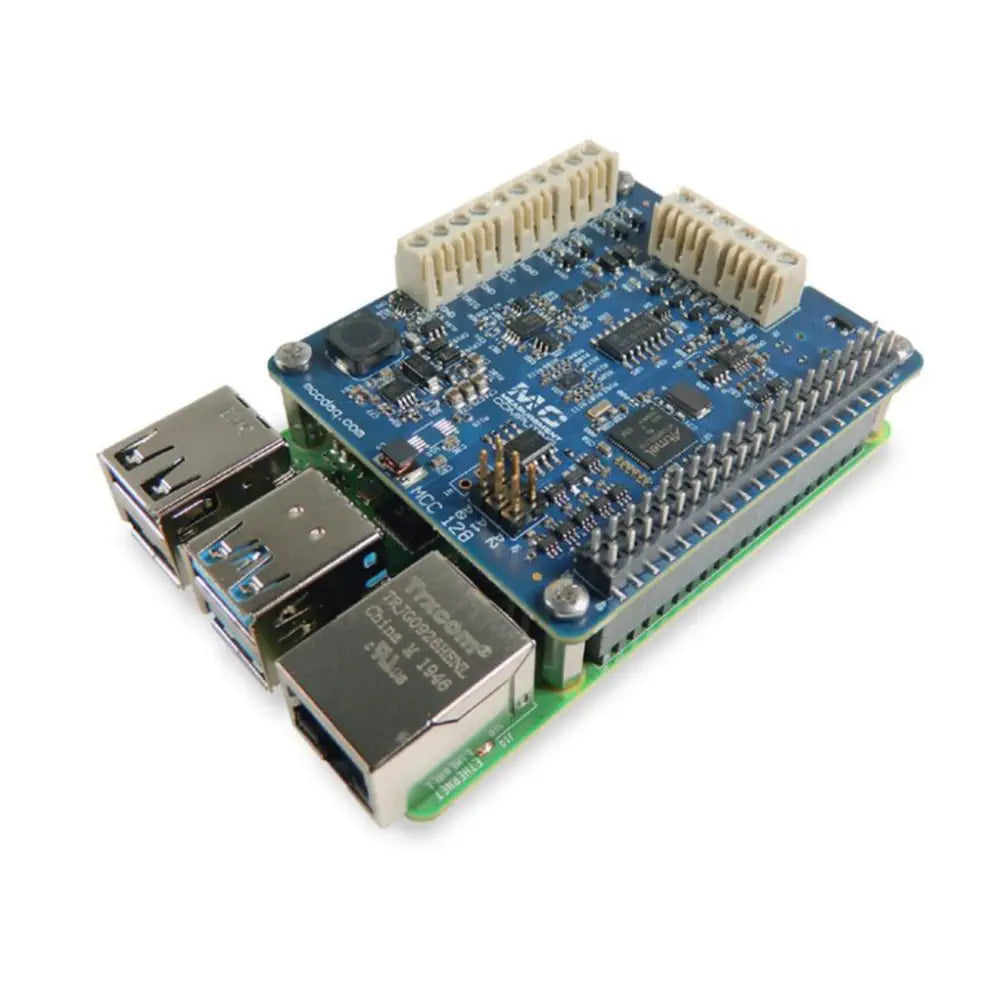

The Digilent MCC 128 16-bit, Analog Input DAQ HAT for Raspberry Pi is a voltage HAT (Hardware Attached on Top) board designed for use with Raspberry Pi.

The MCC 128 HAT provides 8 SE/4 DIFF analog inputs for voltage measurements. Up to eight MCC HATs can be stacked onto one Raspberry Pi. A HAT is an add-on board with a 40W GPIO (general purpose input/output) connector that conforms to the Raspberry Pi HAT specification.

  • 1x Digilent MCC 128 16-bit, Analog Input DAQ HAT for Raspberry Pi

Size

  • 65 x 56.5 x 12 mm / 2.56 x 2.22 x 0.47 inch (L x W x H)
  • A/D converter type: Successive approximation
  • ADC resolution: 16 bits
  • Number of channels: 8
  • Input voltage ranges: ±10 V, ±5 V, ±2 V, ±1 V
  • Input impedance: >1 G Ω
  • Input bias current: ± 200 pA, typ
  • Input bandwidth, small-signal (-3 dB): 220 kHz
  • Maximum working voltage: Input range relative to AGND: ±10.1 V max
  • Crosstalk: Adjacent channels, DC to 10 kHz: -70 dB
  • Input coupling: DC
  • Recommended warm-up time: 1 min
  • Supply current, 5 V supply: Typical: 85 mA | Maximum: 135 mA
  • Operating temperature: 0 to 55 °C
  • Storage temperature: -40 to 85 °C max
  • Relative humidity: 0% to 90% non-condensing
  • Software: MCC DAQ HAT Library
  • Supported Operating Systems: Linux / Raspbian
  • Programming API: C, C++, Python
