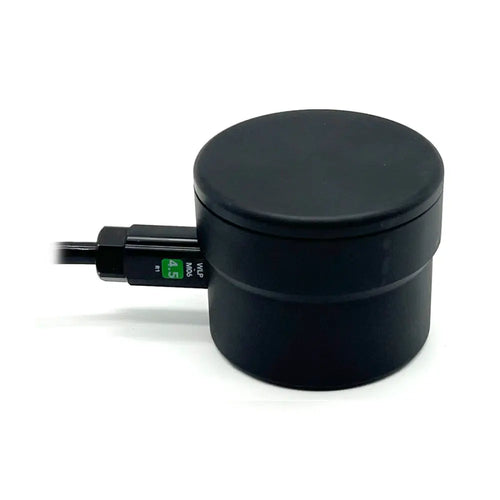

BlueRobotics Ping2 Sonar Altimeter and Echosounder

BlueRoboticsSKU: RB-Blu-259
Manufacturer #: BR-101684

Price  :
Sale price $410.00

Shipping calculated at checkout

Stock  :
Only 2 units left

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • BlueRobotics Ping2 Sonar Altimeter and Echosounder
  • Underwater distances: up to 100 m (328 ft)
  • Feaures a multipurpose single-beam echosounder
  • Provides a powerful tool for marine robotics
  • Open-source software interface
  • Can be used as an altimeter for ROVs and AUVs
  • Supply Voltage: 4.5 - 5.5 V

The BlueRobotics Ping2 Sonar Altimeter and Echosounder is a single-beam echosounder that measures distances up to 100 meters (328 feet) underwater. A 25-degree beam width, 300-meter (984-foot) depth rating and an open-source software interface make it a powerful tool for marine robotics.

The Ping sonar is a multipurpose single-beam echosounder. It can be used as an altimeter for ROVs and AUVs, for bathymetry work aboard a USV, as an obstacle avoidance sonar, and for other underwater distance measurement applications. Ping2 combines a compact form factor and 300-meter depth rating with an open-source user interface and Arduino, C++, and Python development libraries to create a powerful new tool for marine robotics!

An echosounder, like the Ping, is one of the simplest forms of underwater sonar. It operates by using a piezoelectric transducer to send an ultrasonic acoustic pulse into the water and then listens back for echoes to return. With that information, it’s able to determine the distance to the strongest echo, which is usually the ocean floor or a large object. It can also provide the full echo response (echo strength versus time) which can be plotted like the display of a fishfinder sonar.

The Ping uses a 115 kHz transducer frequency, away from those used on most boat echo sounders to avoid interference. It has a measurement range of 100 meters (328 feet) and a measurement beamwidth of 25 degrees, perfect for applications on a rocking boat or for obstacle avoidance. An advanced bottom-tracking algorithm runs on the device to determine the distance to the seafloor, even in complicated situations with multiple echoes.

  • 1x Ping2 Sonar with pre-installed Cable and M10 WetLink Penetrator
  • 1x Ping Mounting Bracket
  • 1x 4-position Female Header to 6 positions the JST-GH Cable Adapter
  • 4x M3x5 Button Head Cap Screw
  • 2x M5x16 Button Head Cap Screw
  • 1x -013 Bulkhead O-Ring
  • 1x M10 Penetrator Nut

Size

  • 71.1 x 47 x 41 mm / 2.80 x 1.85 x 1.60 inch (L x W x H)
  • Cable Length: 875 mm / 34.5 inch

Electrical

  • Supply Voltage: 4.5 - 5.5 V
  • Logic Level Voltage: 3.3 V (5 V tolerant)
  • Current Draw: 100 mA (typical) | 900 mA (peak)

Communication

  • Signal Protocol: TTL Serial (UART)
  • Available Firmware Baud Rates: 115200 bps (default) 9600 bps
  • Message Protocol: Ping Protocol
  • Message Subsets: common, ping1d

Cable

  • Cable: CAB-PUR-4-24AWG
  • Conductor Gauge: 24 AWG
  • Wires: Black - Ground, Red - Vin, White - TX (out), Green - RX (in)

Acoustics

  • Frequency: 115 kHz
  • Source Level: 198 dB re 1 uPa at 1 m
  • Beamwidth (-3 dB from peak): 25 degrees
  • Typical Minimum Range: 0.3 m
  • Typical Usable Range: 100 m
  • Range Resolution: 0.5% of the range
  • Range Resolution at 50 m (waterfall range, not measured range): 50 cm
  • Range Resolution at 2 m (waterfall range, not measured range): 1 cm

Physical

  • Depth Rating: 300 m
  • Temperature Range: 0 - 30 °C
  • Mounting Bracket Screw: M5x16 mm
  • Weight in Air (w/ cable): 187 g
  • Weight in Water (w/ cable): 100 g
