Lynxmotion SSC-32U Bluetooth Servo Controller

• Controls up to 32 servo motors
• Comes preassembled

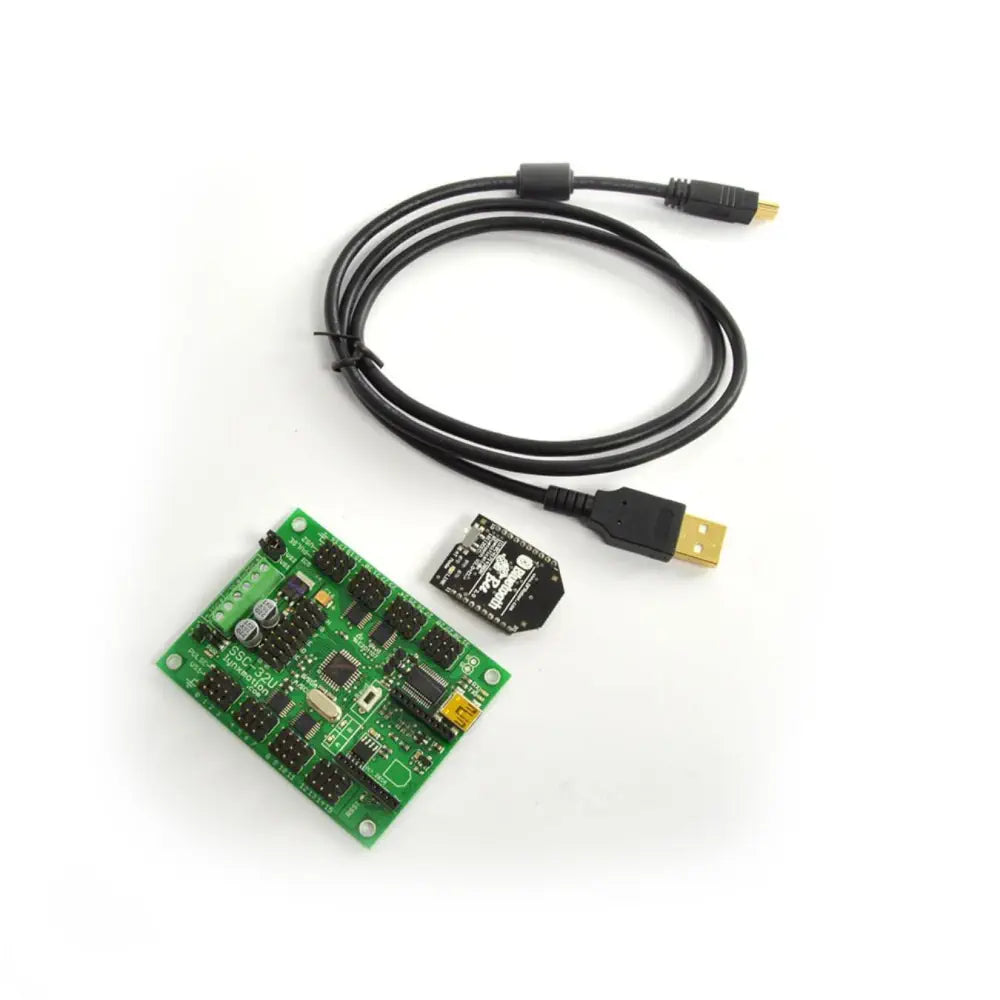

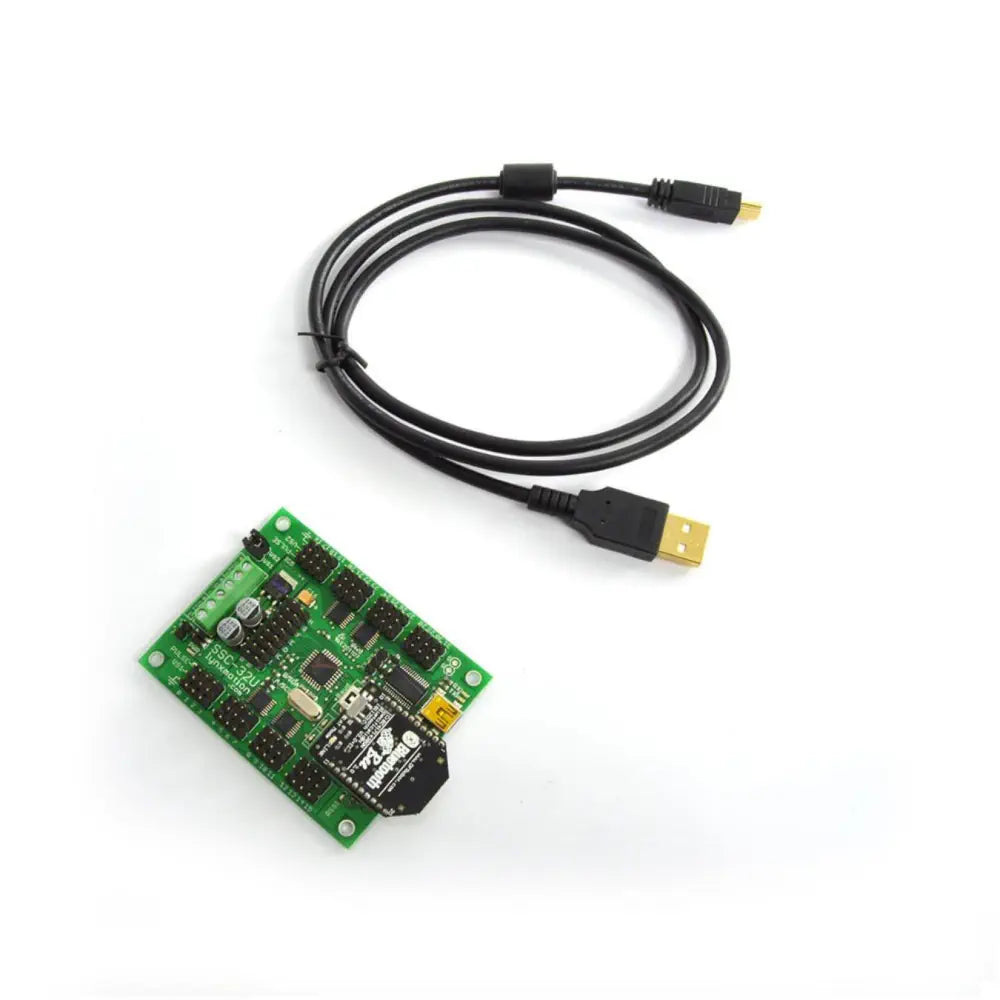

• USB interface (cable included), Xbee socket, and TTL serial
• Bidirectional communication with Query commands
• Large capacitors to prevent brownouts
• Includes Bluetooth Bee module (Model may vary)

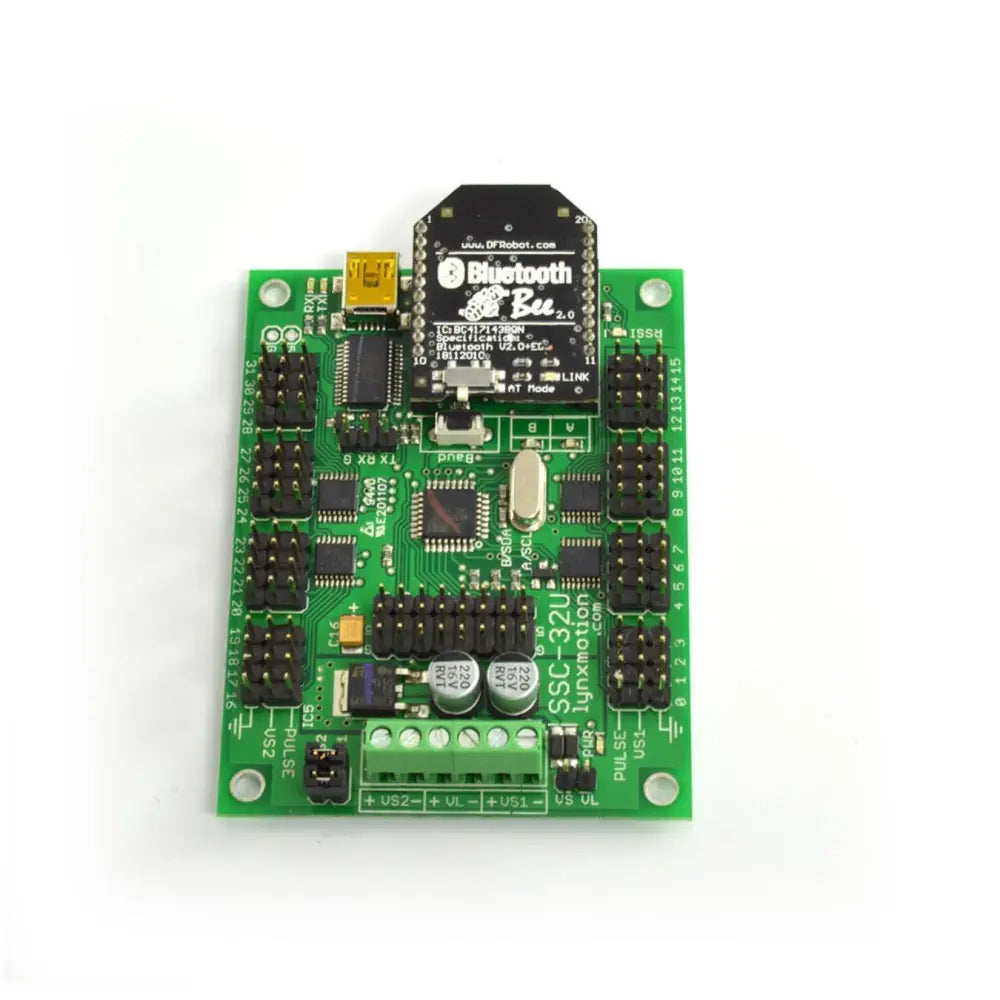

The Lynxmotion SSC-32U Bluetooth Servo Controller is a Bluetooth version of the very popular SSC-32 servo controller board.  It has a USB port, an Xbee socket with Bluetooth Bee (included), and improved power circuit for building single-battery robots.

Lynxmotion SSC-32U Servo Controller
The Lynxmotion SSC-32U Servo Controller is a small preassembled servo controller with some big features. It has high resolution (1uS) for accurate positioning, and extremely smooth moves. The range is 0.50mS to 2.50mS for a range of about 180°. The motion control can be immediate response, speed controlled, timed motion, or a combination. A unique "Group Move" allows any combination of servos to begin and end motion at the same time, even if the servos have to move different distances. This is a very powerful feature for creating complex walking gaits for multi servo walking robots. The servo's position or movement can be Queried to provide feedback to the host computer.

There is even a 12 servo Hexapod sequencer built in. This allows complete control of all aspects of the alternating tripod gait simply by transferring a few values from the host controller. Any output pin can be used as a TTL level output. There are 8 analog inputs pins for reading sensor values, and 6 of them can be used as static or latched digital inputs, so you don't have to worry about missing a short event.

The new SSC-32U board has improved power and communication management. The board still has three terminal blocks, but the new power circuit means that most of the time you will only need to use VS1. With the new board, the logic circuits have large capacitors to protect against brownouts, and the logic has auto power select so the VL=VS1 jumper isn't needed anymore. For communication, in addition to having USB on-board, the SSC-32U has an Xbee socket for easy use with wireless devices such as XBees and Bluetooth.

Features:

• 32 channels of 1uS resolution servo control
• Bidirectional communication with Query commands
• Synchronized, or "Group" moves
• 12 Servo Hexapod Gait Sequencer built in
• MiniSSC-II emulation, like having 4 of them

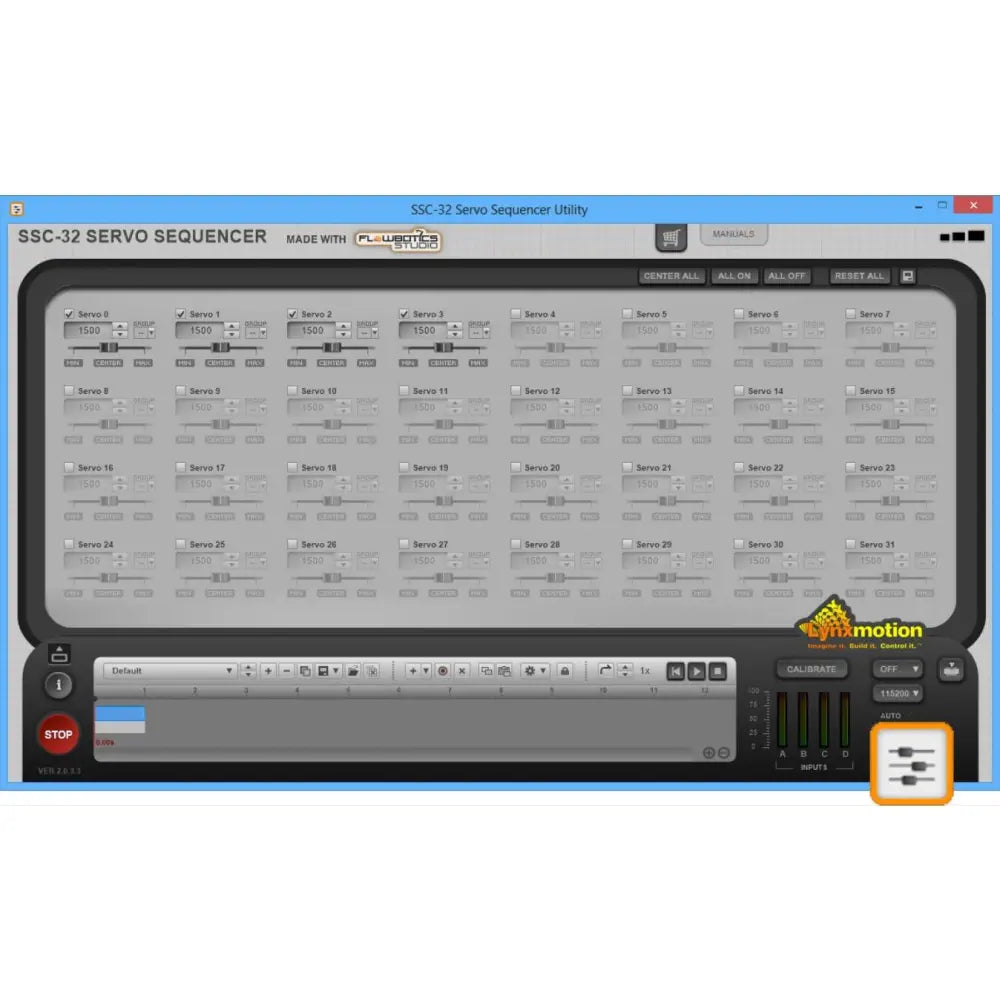

SSC-32 Servo Sequencer Utility (created using FlowBotics Studio)

The Lynxmotion SSC-32 Servo Controller board can be easily controlled with the new SSC-32 Servo Sequencer Utility. It is available as a free downloadable utility which makes it easy to experiment with robotics and animatronics. It can be found in the Useful Links section.

This utility is an example of the type of program which can be built using FlowBotics Studio (Download) , which includes this program as an open source demo project. The SSC-32 Servo Sequencer Utility program enables you to easily move servo motors, calibrate their position, store and playback motion sequences, upgrade the SSC-32 firmware and more.
