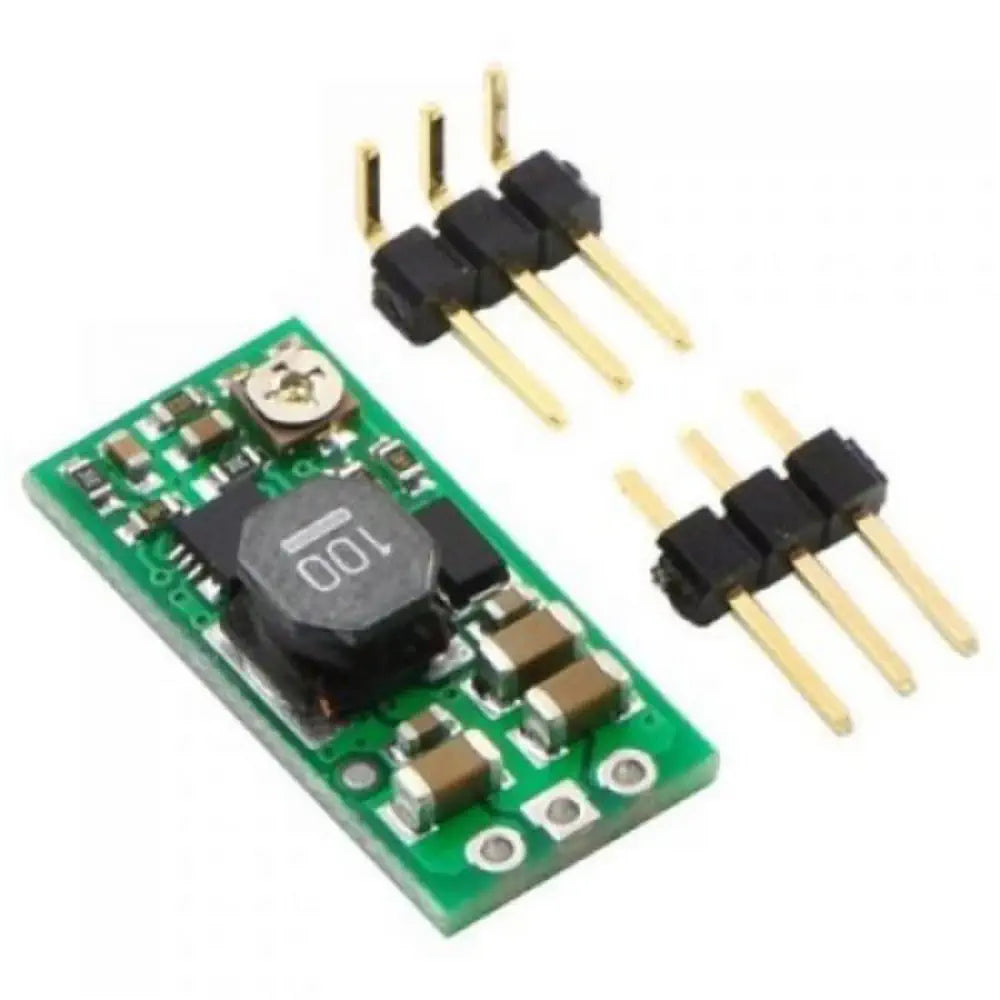

Pololu 2.5-9.5V Adjustable Boost Regulator

PololuSKU: RB-Pol-117
Manufacturer #: 791

Price  :
Sale price $14.95

Shipping calculated at checkout

On Demand See due date

This is an On Demand item and is not normally stocked. We will order it for you along with our next purchase from the supplier.

* Delays depend on the order frequency from each supplier and the approximate arrival date is indicated in the due date. Returns are not accepted on On Demand and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Adjustable switching DC-DC converter
  • Input voltage: 1.5V to 16V
  • Selectable output voltage: 2.5V - 9.5V
  • Integrated over-temperature and over-current shutoff

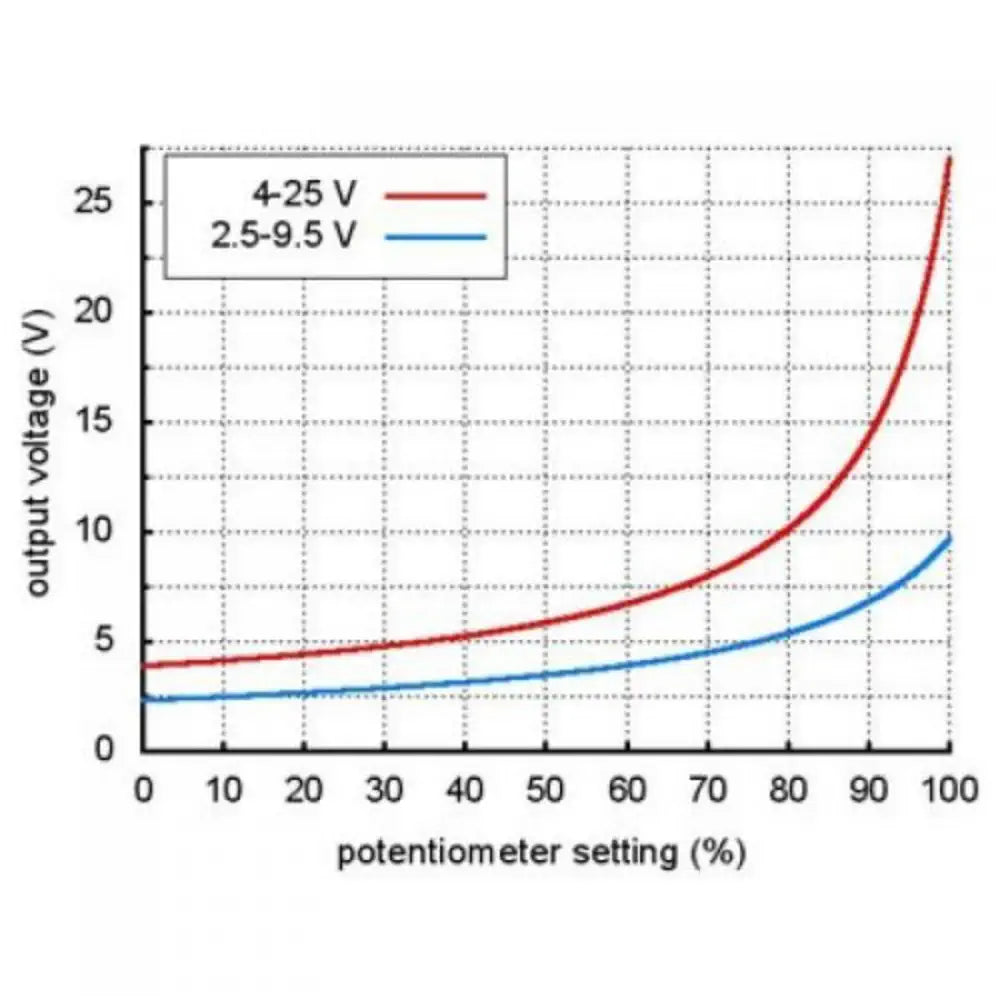

This powerful Pololu 2.5-9.5V Adjustable Boost Regulator can generate an output voltage as high as 9.5V from an input voltage as low as 1.5V. A trimmer potentiometer lets you set the boost regulator's output voltage to a value between 2.5V and 9.5V.

It is a very flexible switching regulator (also called a switched-mode power supply, SMPS, or DC-to-DC converter) that can generate voltages higher than its input voltage. Manufacturer also offers another adjustable range of approximately 4V to 25V. The output voltage can be set using the trimmer potentiometer in the upper-right corner of the board. The input voltage range is 1.5V to 16V (the input voltage should be kept below the output voltage). The integrated 2A switch allows for output currents high enough to drive small motors, as in Pololu's 3pi robot, and allows large voltage gains, such as obtaining 24V from two NiMH or NiCd cells. This regulator features a typical efficiency of 80-90% when doubling voltage and with 100-500 mA output.

Application examples:

  • Powering 5V or 3.3V systems from lower-voltage batteries
  • Powering 5V subsystems (e.g. sensors) in lower-voltage (e.g. 3.3 V) systems
  • Achieving consistent actuator operation when powered by fluctuating batteries
  • Powering high-brightness LEDs or a large number of LEDs in series

Pololu 2.5-9.5V Adjustable Boost Regulator

Note: For high-volume applications, this product can be customized with fixed output voltages ranging from 2V to 30V.

  • Dimensions: 10.7mm x 22.4mm x 5.8mm (0.42" x 0.88" x 0.23")
  • Weight without header pins: 1.6g (0.06oz)

PDF File

  • Input voltage: 1.5 V to 16 V
  • Output adjustable from 2.5 V to 9.5 V or 4 V to 25 V
  • 750 kHz switching frequency
  • 2A switch (and input) limit
  • Integrated over-temperature and over-current shutoff

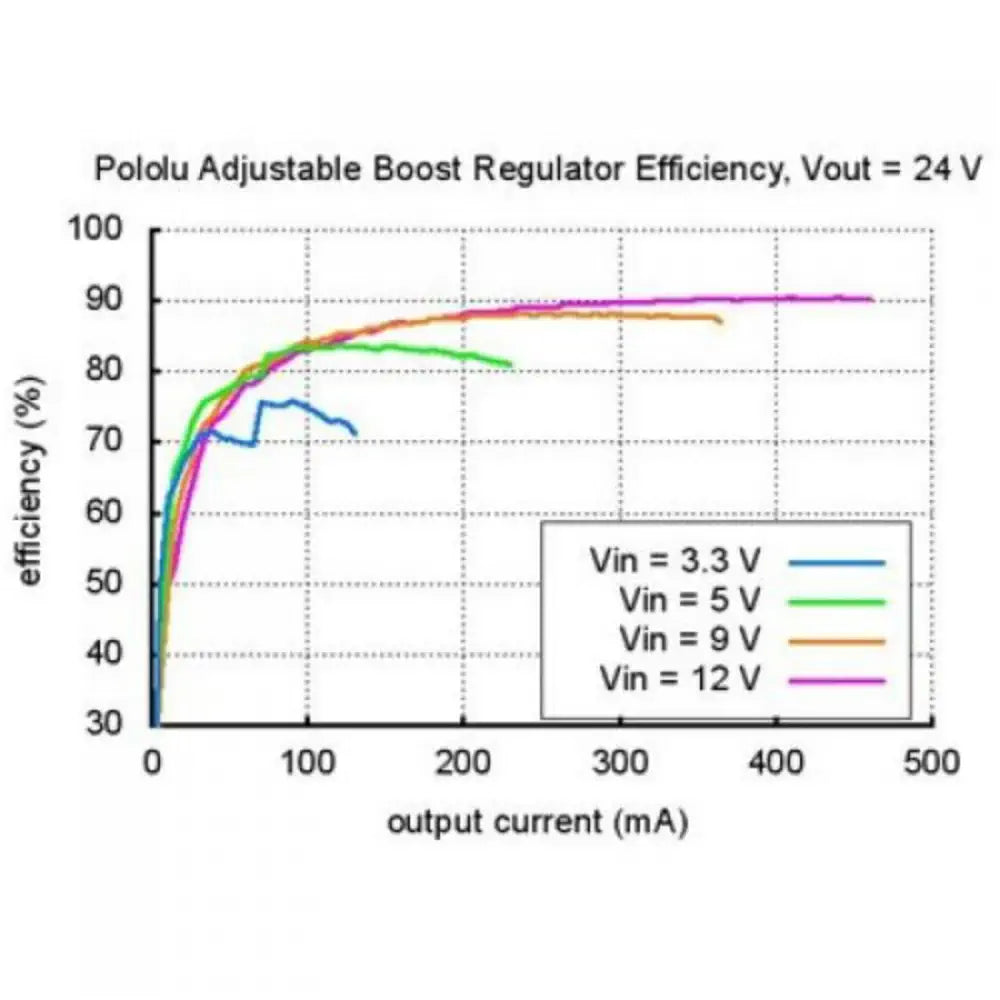

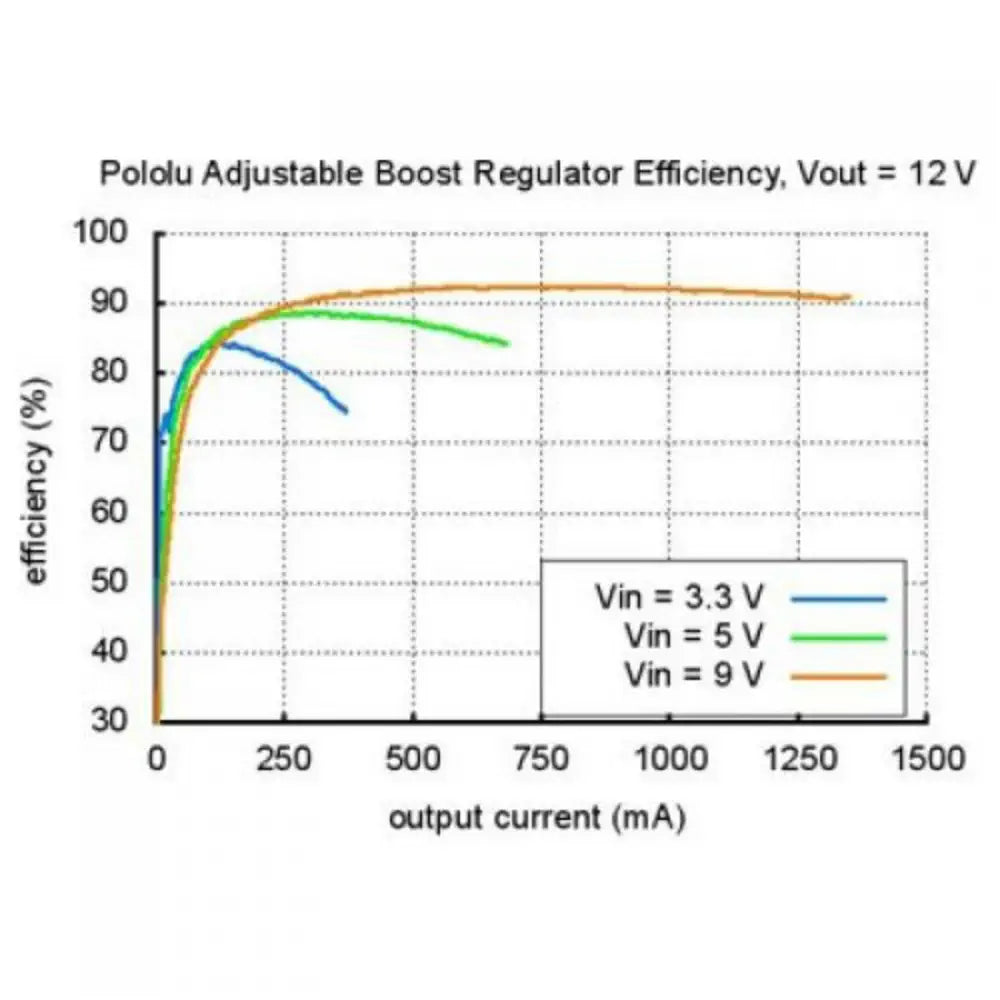

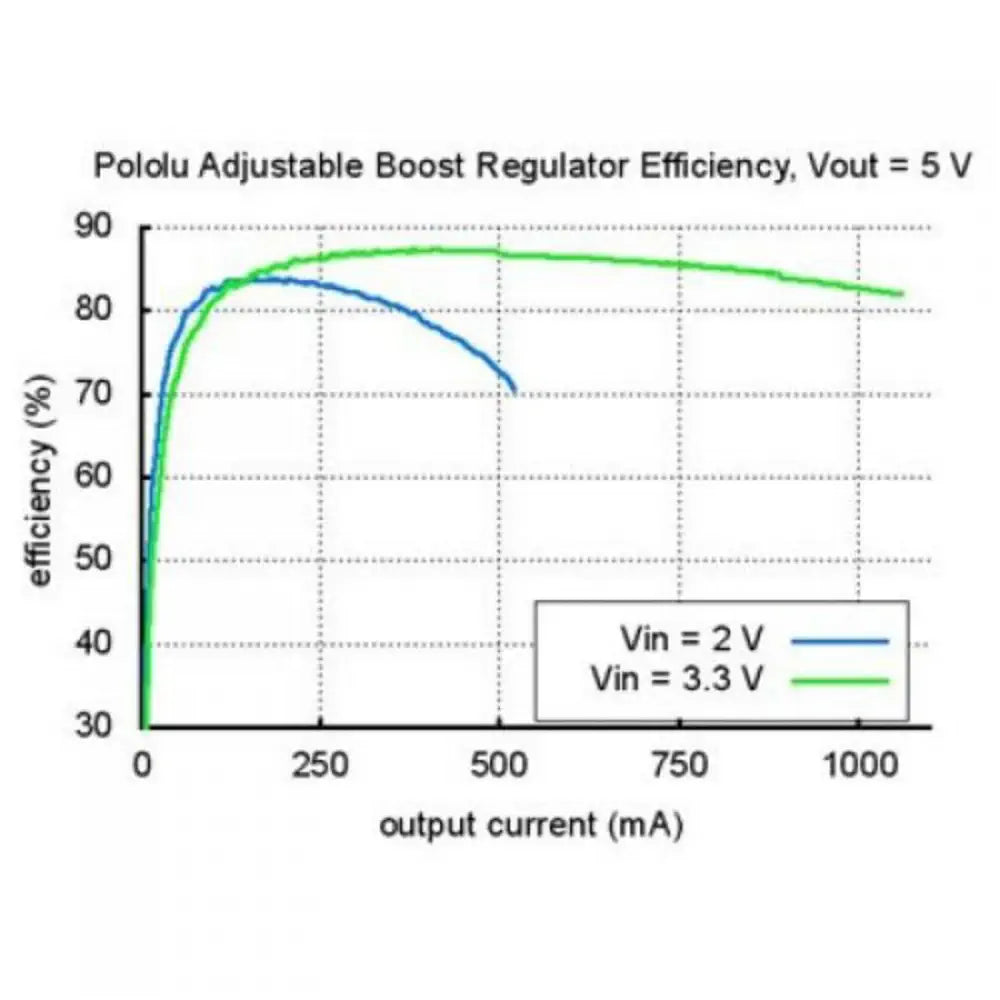

  • Typical efficiency of 80-90% when doubling voltage and with 100-500 mA output

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
J
Jonathan
Definitely pay attention to the tuning!

Be sure to tune the output using a < 2V source (e.g. a AA battery) before connecting the actual input source. I bought two, and the first one I tuned with an input of around 5V... an hour later the IC must have shorted internally because it glowed bright and released a lot of the magic smoke :)

A
Andre
Works perfectly

Works exactly as stated, instructions and silkscreen make it foolproof. Great for prototyping!
