Pololu Step-Down Voltage Regulator 3.3V 3.7A D30V30F3

PololuSKU: RB-Pol-1071
Manufacturer #: 4891

Price  :
Sale price $12.95

Shipping calculated at checkout

Stock  :
Only 1 unit left

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Pololu Step-Down Voltage Regulator 3.3V 3.7A D30V30F3
  • Efficient power conversion
  • Supports 3A to 4.5A output
  • Low dropout voltage
  • Protective features included
  • Compact and versatile design

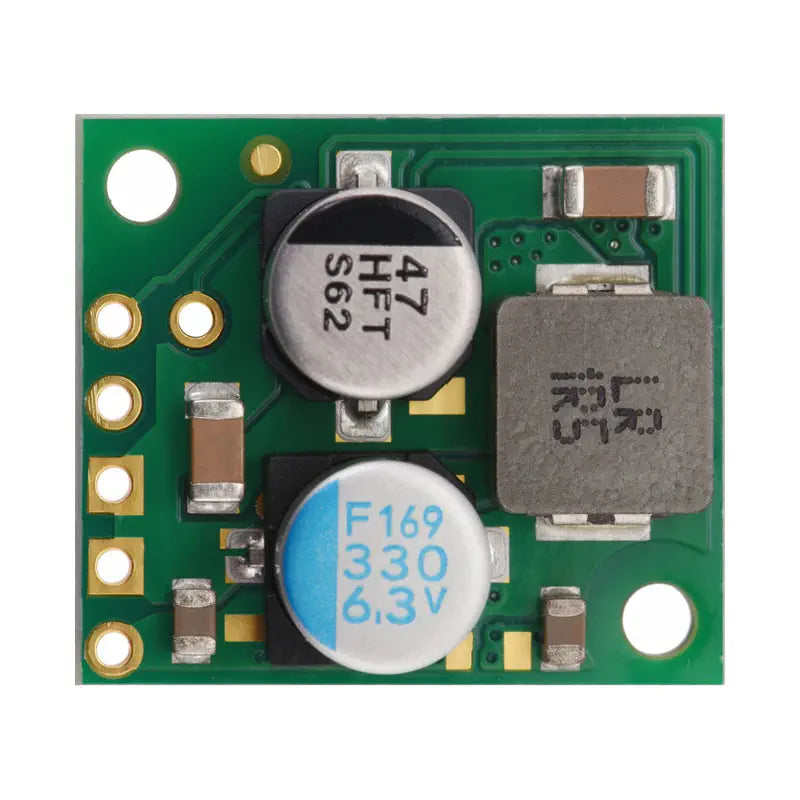

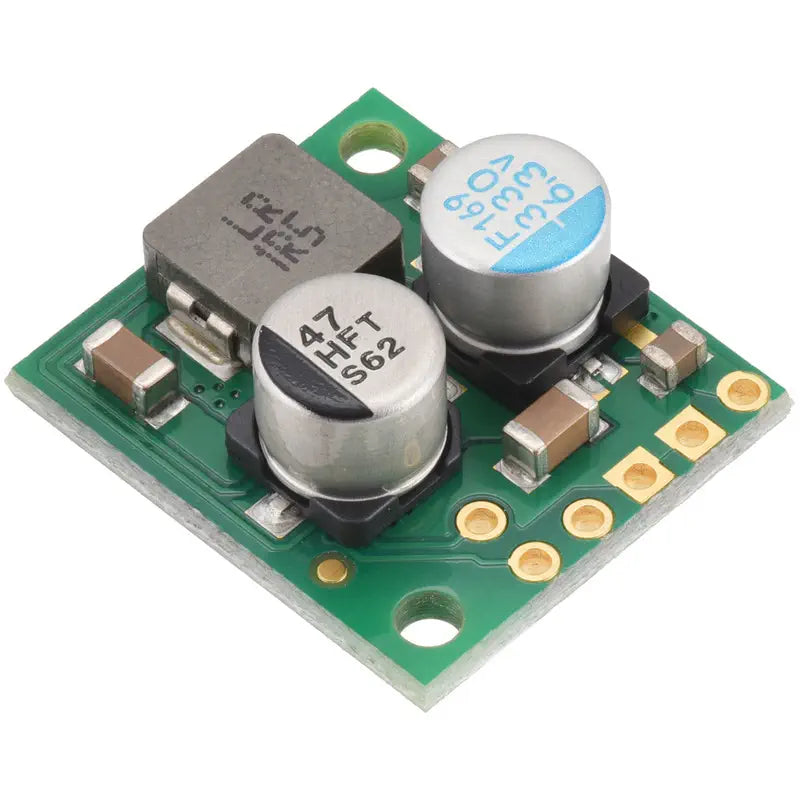

The Pololu Step-Down Voltage Regulator 3.3V 3.7A D30V30F3 is a synchronous buck voltage regulator that efficiently produces lower output voltages from higher input voltages up to 45 V. These regulators are part of the D30V3x series, which are more efficient than linear voltage regulators, particularly when there is a significant difference between the input and output voltages. The regulators are capable of supporting continuous output currents that vary with the input and output voltages.

The D30V30Fx family offers fixed output voltages from 3 V to 15 V, while the adjustable versions, namely the D30V30MAx and D30V33MAx, allow for precise output voltage settings via an 11-turn potentiometer. Some models also feature an adjustable low-voltage cutoff. The D30V30MAx is more compact due to its double-sided assembly, whereas the D30V33MAx can handle slightly higher currents due to its larger surface area and includes larger through-holes for terminal blocks.

These regulators are equipped with several protective features, including reverse voltage protection up to 40 V, input under-voltage lockout, over-current protection, short-circuit protection, and thermal shutdown to prevent overheating. Additionally, a soft-start feature limits inrush current and ensures a gradual increase in output voltage upon startup.

The D30V30F3 model specifically provides a fixed 3 V output voltage with 4% accuracy and can typically support a maximum continuous output current between 3 A and 4.5 A. It boasts a high efficiency rate, which varies depending on the input voltage, output voltage, and load. The regulator also features a very low dropout voltage, a switching frequency of approximately 700 kHz under heavy loads, and a power-save mode that enhances light load efficiency by reducing the switching frequency. The low quiescent current, enable input with precise cutoff threshold, "power good" output, and frequency spread spectrum operation are additional characteristics that contribute to the regulators performance.

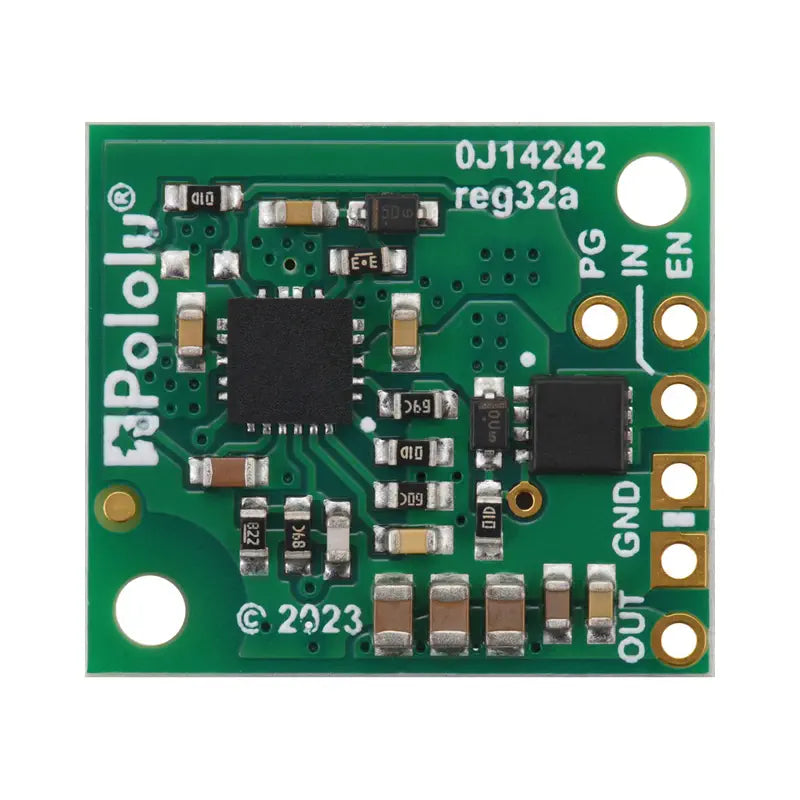

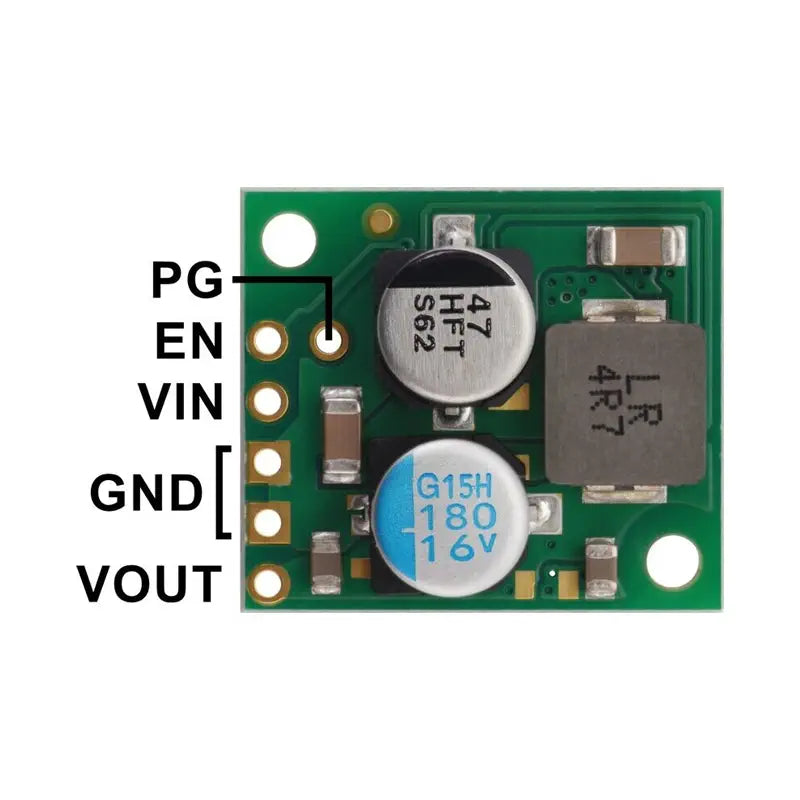

The regulator includes six connections: power good (PG), enable (EN), input voltage (VIN), output voltage (VOUT), and two ground (GND) connections. The "power good" indicator is an open-drain output that signals when the output voltage is outside the nominal range, and the regulator can be put into a low-power state through the EN pin. The input voltage powers the regulator, and the regulated output voltage is provided at VOUT.

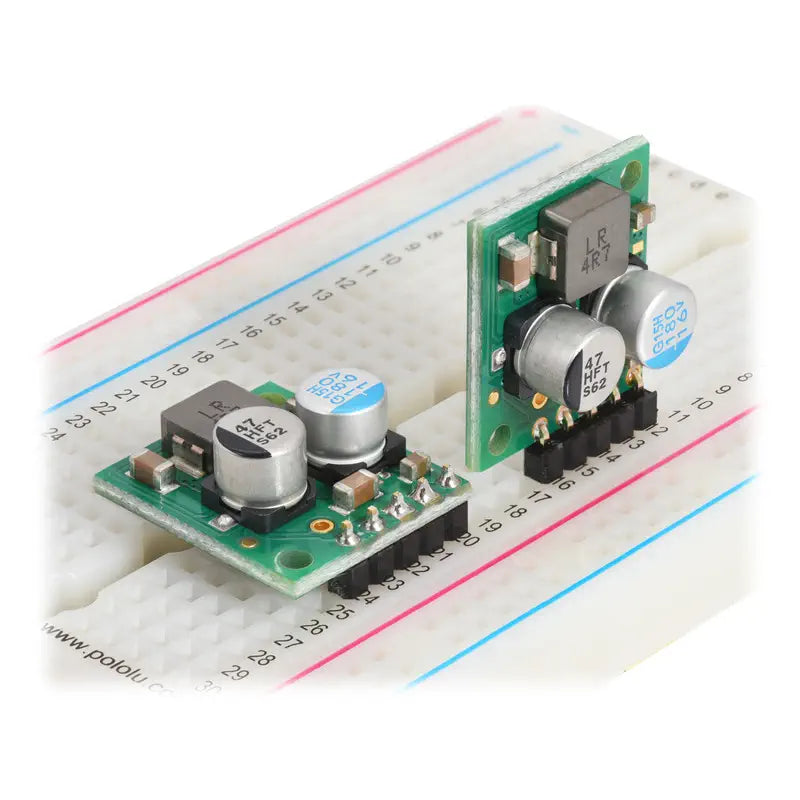

The compact size of the regulator and the arrangement of the six connection through-holes on a 0.1" grid make it compatible with various prototyping arrangements. The package includes a straight male header strip and a right-angle male header strip for ease of connection.

During normal operation, this product can get hot enough to burn you. Take care when handling this product or other components connected to it.

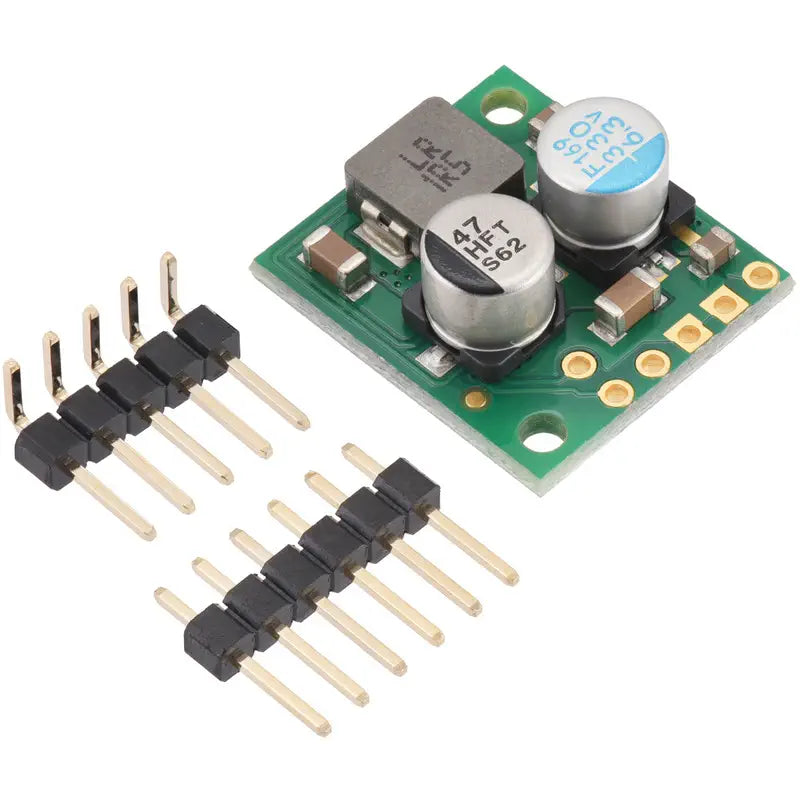

  • 1x Pololu Step-Down Voltage Regulator 3.3V 3.7A D30V30F3
  • 1x 6x1 Straight male header strip
  • 1x 5x1 Right-angle male header strip

Included with the regulator is one pin of the straight header which can optionally be separated with a pair of flush cutters and soldered into PG.

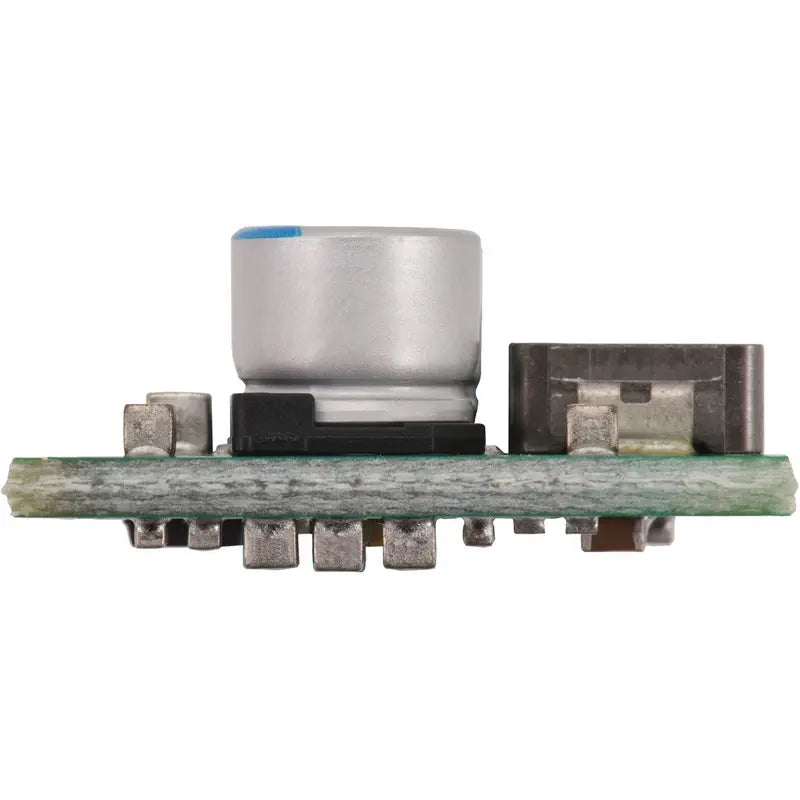

  • 0.7 x 0.8 x 0.355 inch / 17.8 x 20.3 x 9 mm (L x W x H)
  • Input voltage: 3 V to 45 V (minimum input subject to dropout voltage considerations)
  • Output voltage: 3 V with 4% accuracy
  • Typical maximum continuous output current: 3 A to 4.5 A
  • Typical efficiency of 80% to 95%
  • Very low dropout voltage
  • Switching frequency: ~700 kHz under heavy loads
  • Power-save mode for increased light load efficiency
  • Low quiescent current
  • Enable input with the precise cutoff threshold for disconnecting the load
  • “Power good” output indicates when the regulator cannot maintain the output voltage
  • Frequency spread spectrum operation to lower peak EMI noise
  • Under-voltage lockout protection
  • Soft-start feature to limit inrush current
  • Integrated reverse-voltage protection up to 40 V, over-current and short-circuit protection, over-temperature shutoff
  • Two 0.086-inch mounting holes for #2 or M2 screws
  • Weight: 3.3 g
