SparkFun Thing Plus Dual-Port Logging Shield

Save $2.99
Sparkfun ElectronicsSKU: RB-Spa-2111
Manufacturer #: DEV-19217

Price  :
Sale price $26.96 Regular price $29.95

Shipping calculated at checkout

Returns are not accepted on Special Order and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • SparkFun Thing Plus Dual-Port Logging Shield
  • Versatile dual-port logging shield for Thing Plus/Feather boards
  • Fast read and write speeds up to 35 MBytes/second
  • Supports FAT32, exFAT, and NTFS on cards up to 32GB
  • Easy mode switching with simple I2C commands

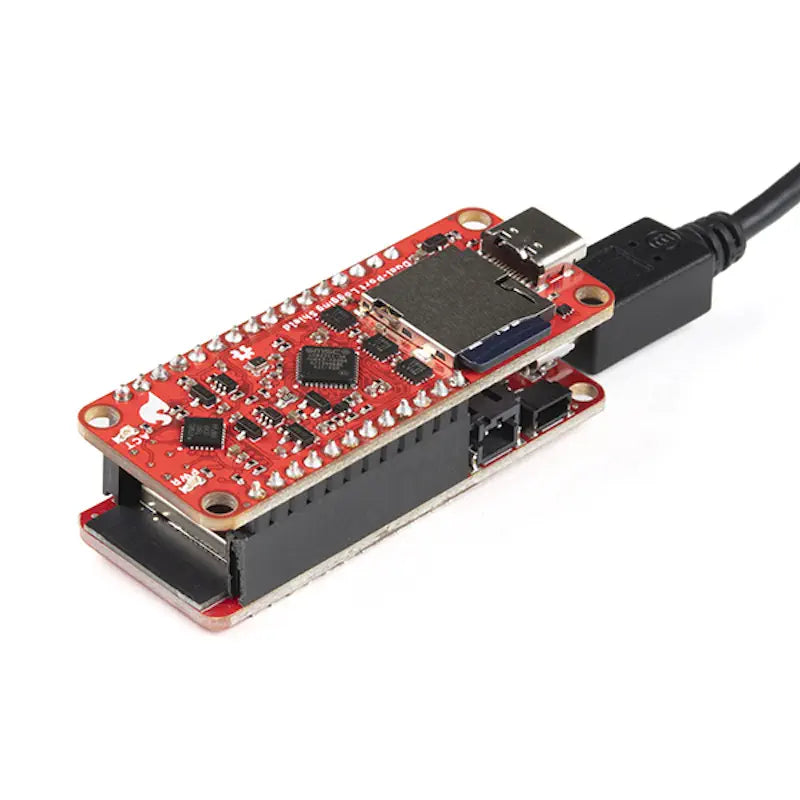

The SparkFun Thing Plus Dual-Port Logging Shield is a Thing Plus/Feather-compatible board designed to enable access to a microSD card via both SPI and USB-C interfaces. This versatile shield can be mounted on or under a Thing Plus board, providing the ability to log data to and read data from the microSD card using a preferred Arduino SD library.

In addition to SPI access, the shield can be connected to a computer through a USB-C port, allowing for read and write speeds of up to 35 MBytes/second. The actual write speed is dependent on the card, but tests have shown speeds around 20 MB/s.

An ATtiny841 microcontroller on the shield serves as an arbiter, automatically switching the Dual-Port Logging Shield into SPI mode when the Thing Plus is powered up. This enables the Arduino code to access the microSD card as usual. When powered via USB-C from a computer, the ATtiny841 puts the shield into SDIO "thumb drive" mode, allowing for quick data transfer.

If both the Thing Plus and computer are connected simultaneously, the ATtiny841 can be given simple commands over I2C to switch between the two modes. The ATtiny can also be configured to default to either SPI mode or SDIO "thumb drive" mode when both power sources are active.

Please note that the USB2241, which provides the USB interface, supports FAT32, exFAT, and NTFS on cards up to 32GB. Cards larger than 32 GB are not supported.

  • 1x SparkFun Thing Plus Dual-Port Logging Shield

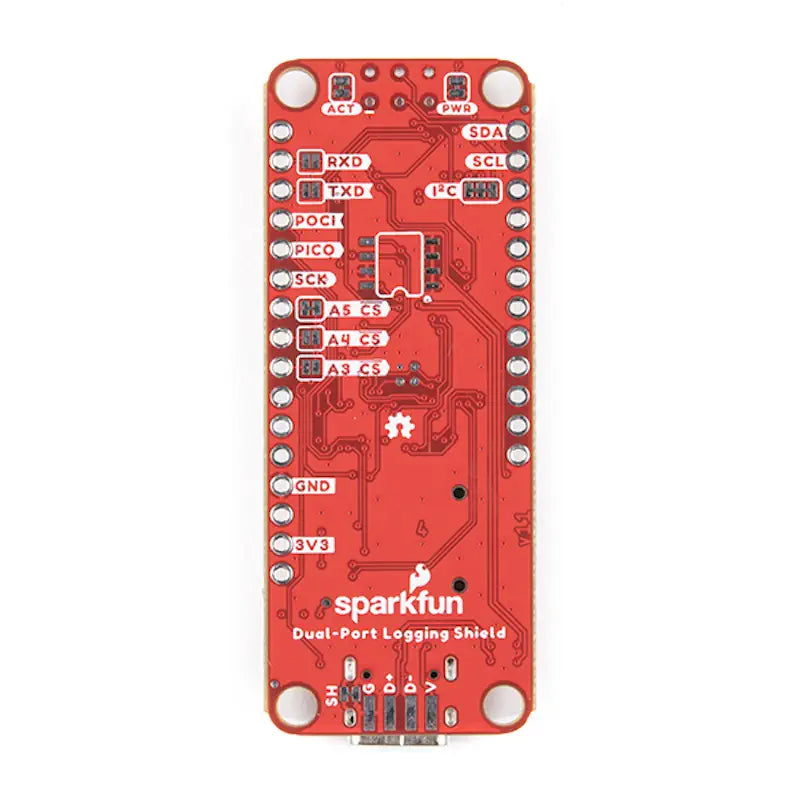

  • Thing Plus / Feather-compatible footprint and breakout pins
  • ATtiny841 microcontroller
  • USB2241 Ultra Fast USB 2.0 Media Controller
    • Supports cards up to 32GB
    • Supports FAT32, exFAT and NTFS
    • Read and write speed: up to 35 MBytes/second (card-dependent)
  • Push-push microSD socket
  • Simple I2C command set to switch modes and set the default mode
  • Can be powered by: Thing Plus / Feather 3.3V, USB-C 5V, or both
  • Full power control - Sleep current (PWR LED disabled): 300 µA
  • Power source voltage sensing
  • Activity LED (for SDIO thumb drive mode)
  • Power LED (configurable)
