Gravity Analog AC Current Sensor (20A)

DFRobotSKU: RB-Dfr-686
Manufacturer #: SEN0211

Price  :
Sale price $20.90

Shipping calculated at checkout

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Measures AC current without intrusive methods
  • Supports Gravity 3-Pin interface
  • Analog output
  • Use this sensor to measure AC motors, lighting equipment, air compressors or any other devices that use AC current

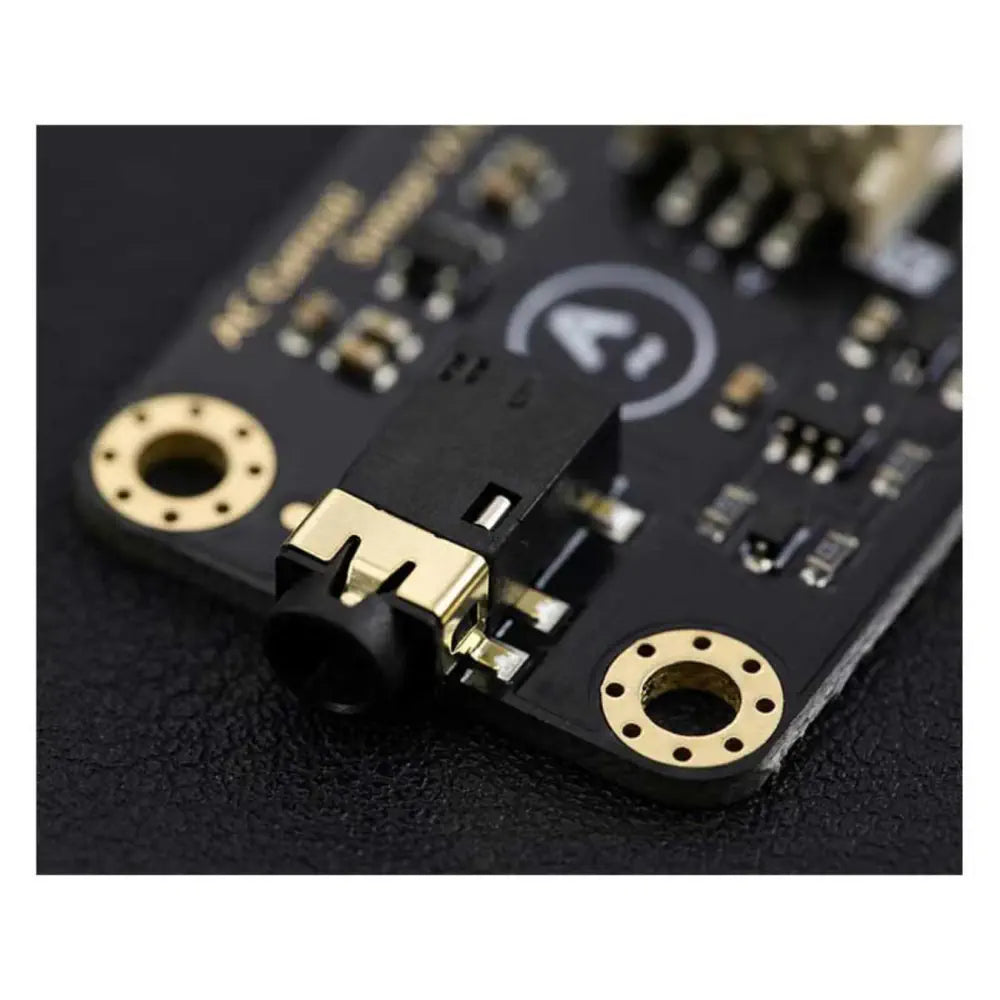

When you want to measure AC current it is impractical and hazardous to cut in to your live wiring. The Gravity Analog AC Current Sensor is a good solution to this problem. Using induction you can measure AC current without intrusive methods. Place your AC wire inside the unit, connect the unit to the sensor board using the 3.5mm jack connector and connect the sensor board to an analog input on your microcontroller.

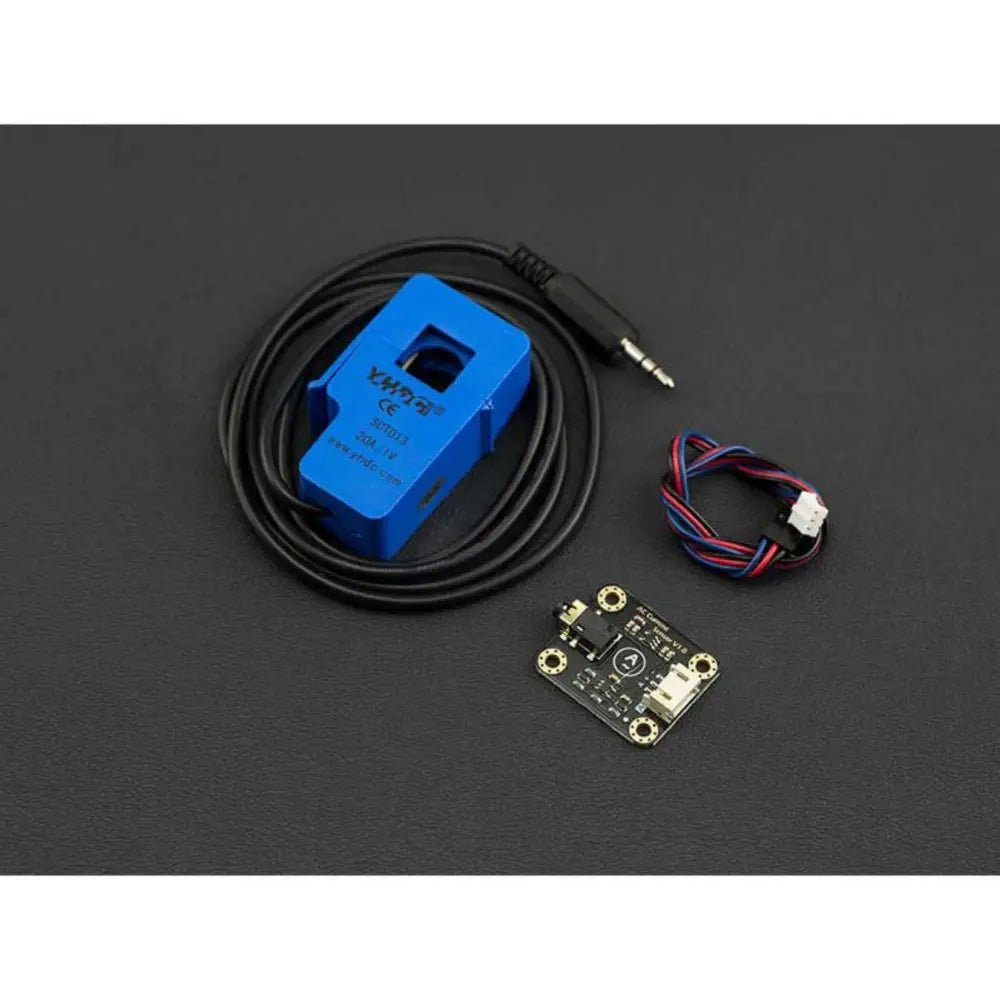

  • 1x - Analog AC Current Sensor

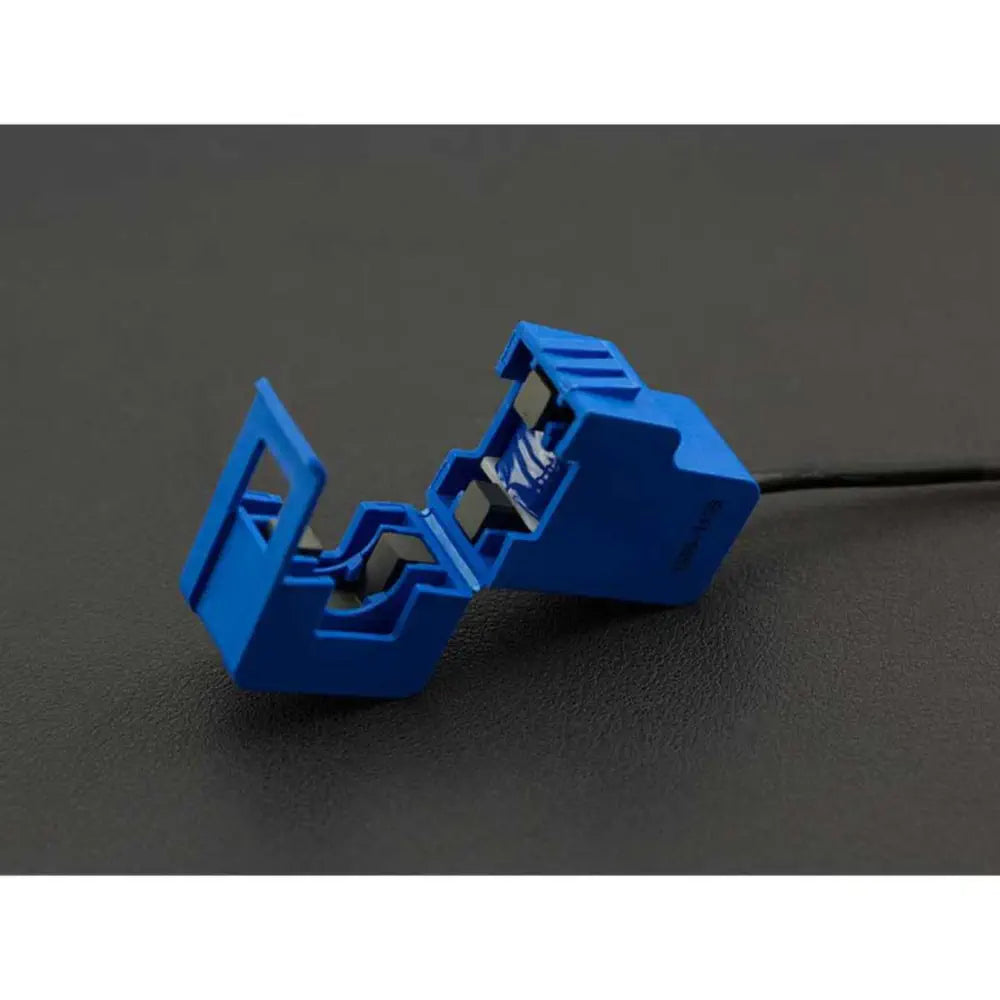

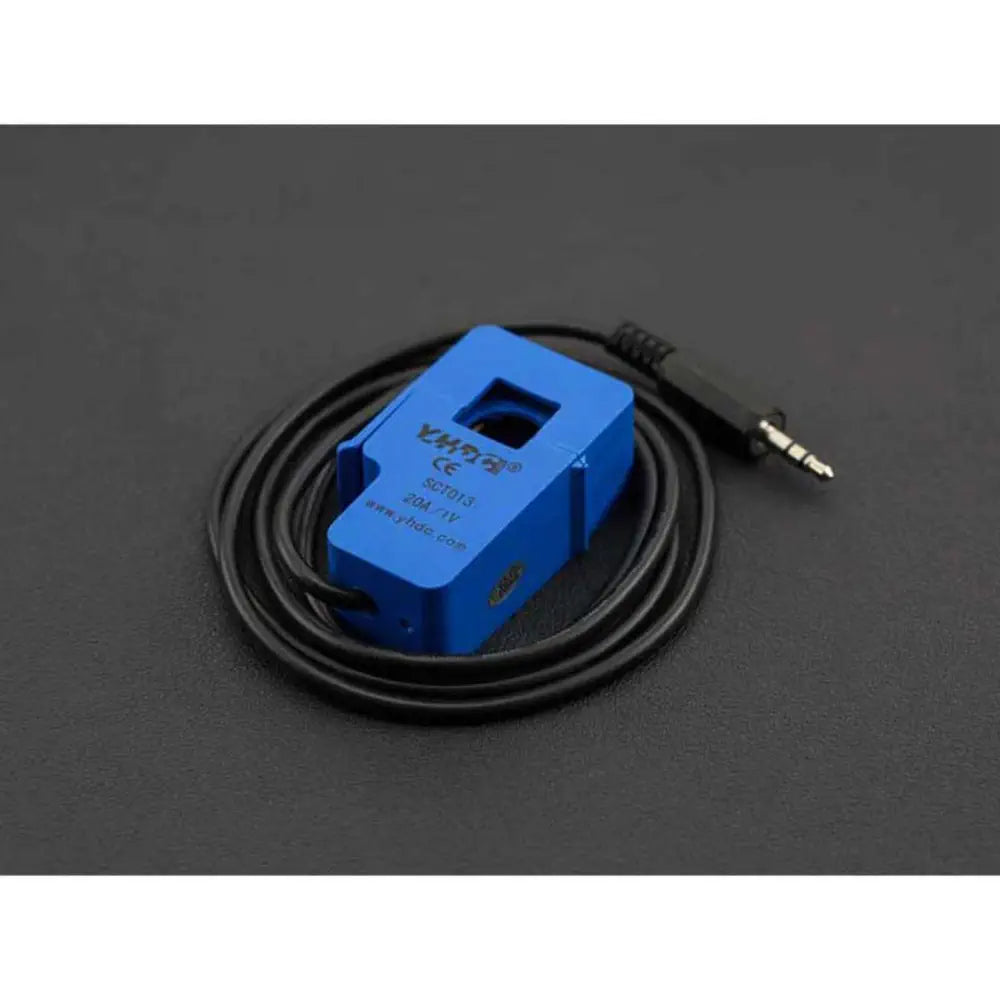

  • 1x - Open type AC transformer probe
  • 1x - Analog Sensor Cable

PDF File

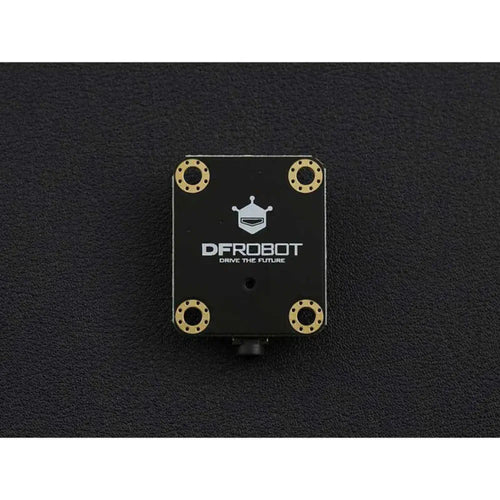

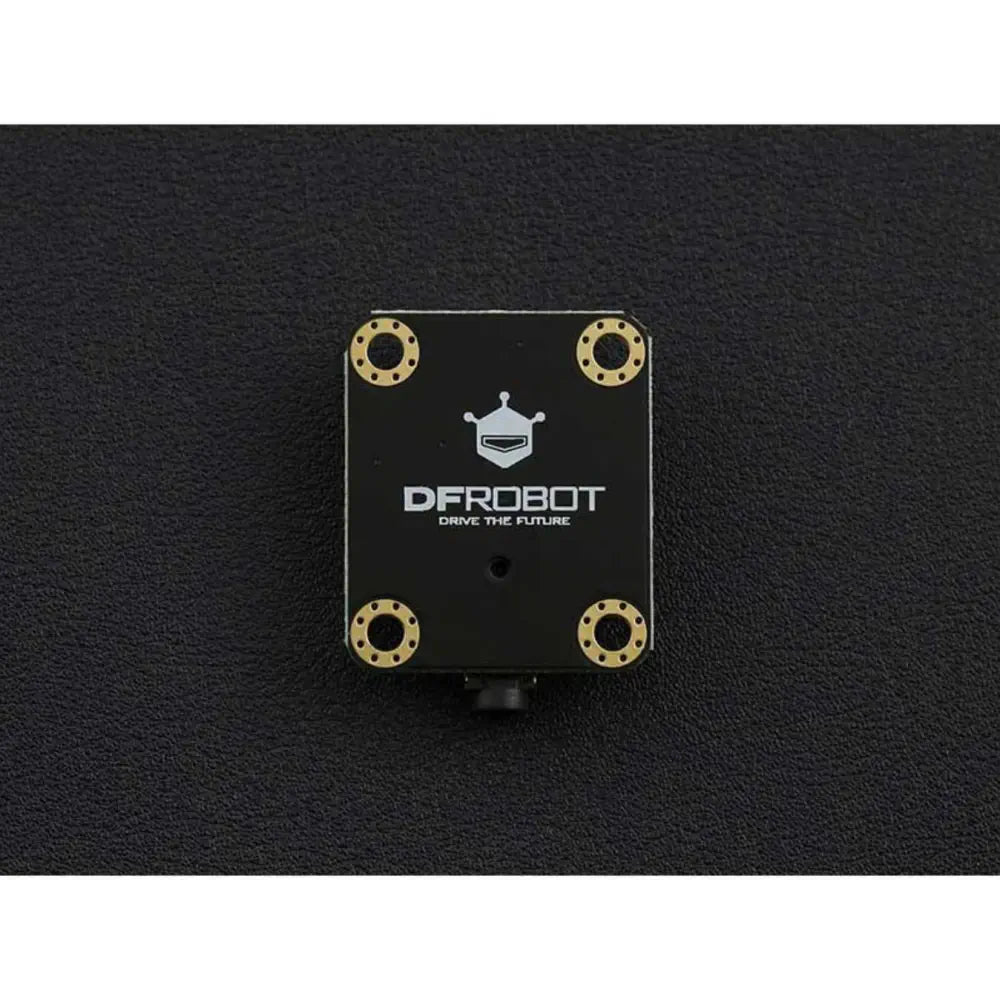

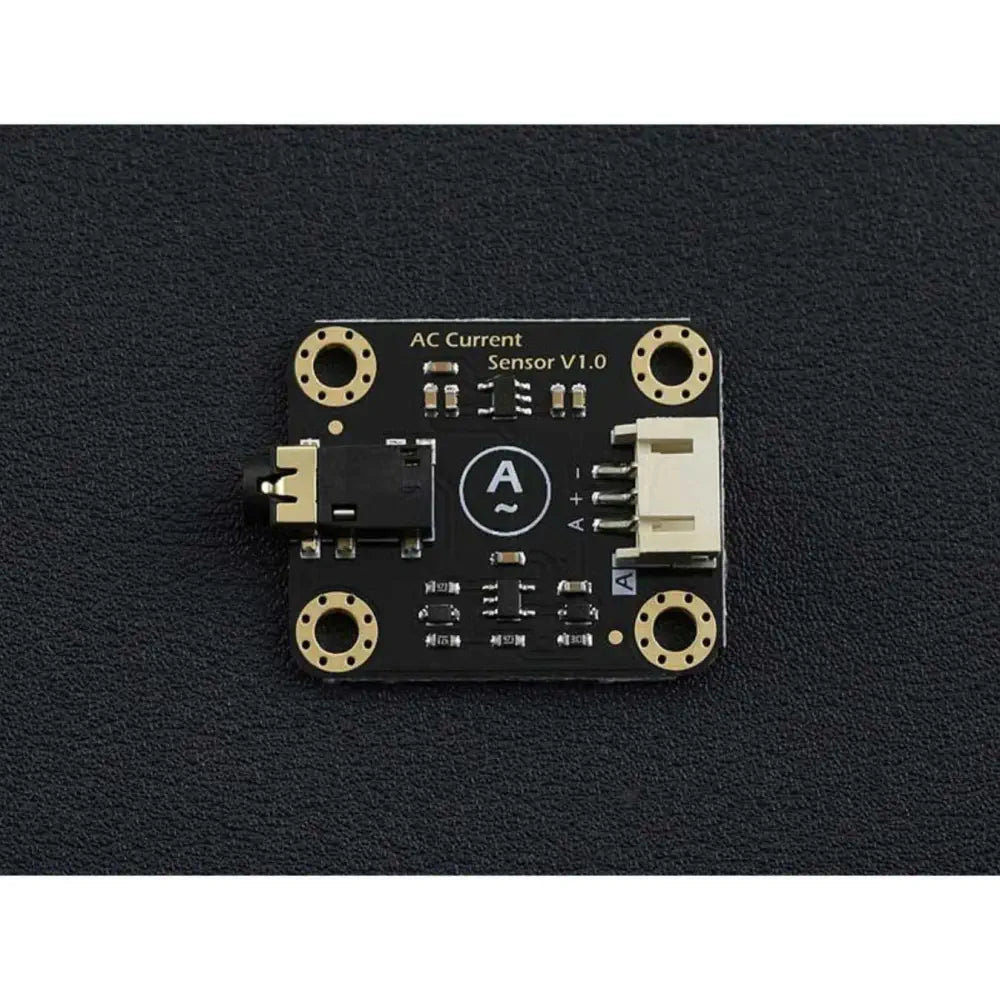

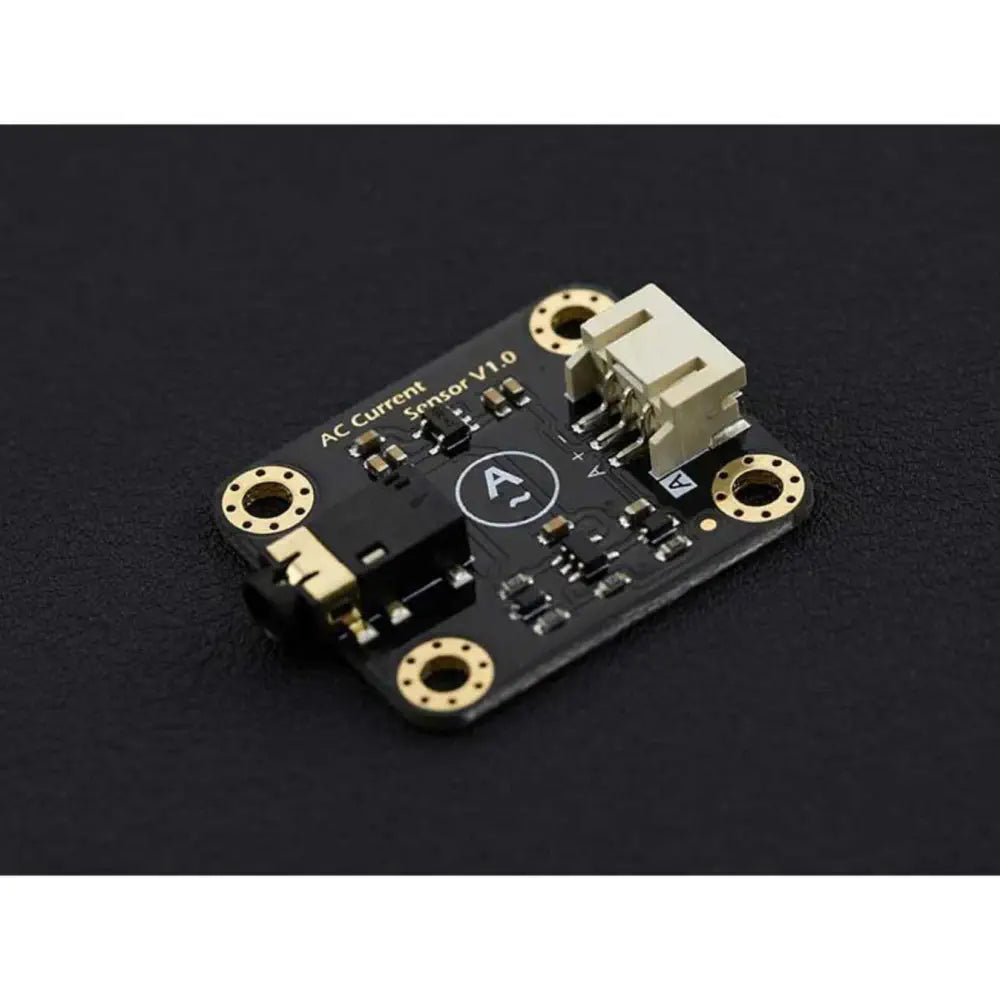

Module

  • Operating Voltage: 3.3V - 5.5V
  • Analog Output Voltage: 0.2V - 2.8V (DC)
  • AC Signal Input Range: 0 - 1V (AC)
  • Relative Error: + 3%
  • Interface: PH2.0-3P
  • Dimensions: 32 * 27 mm/1.26 * 1.06 inches

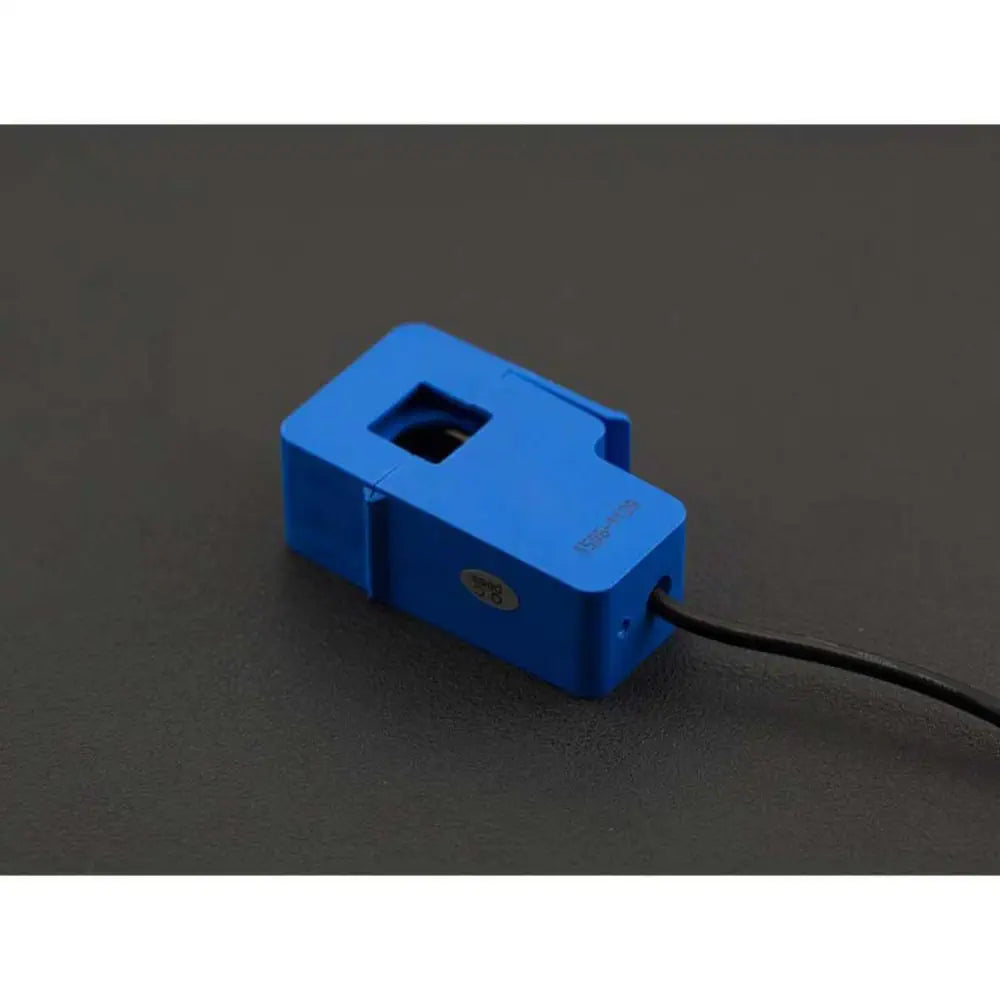

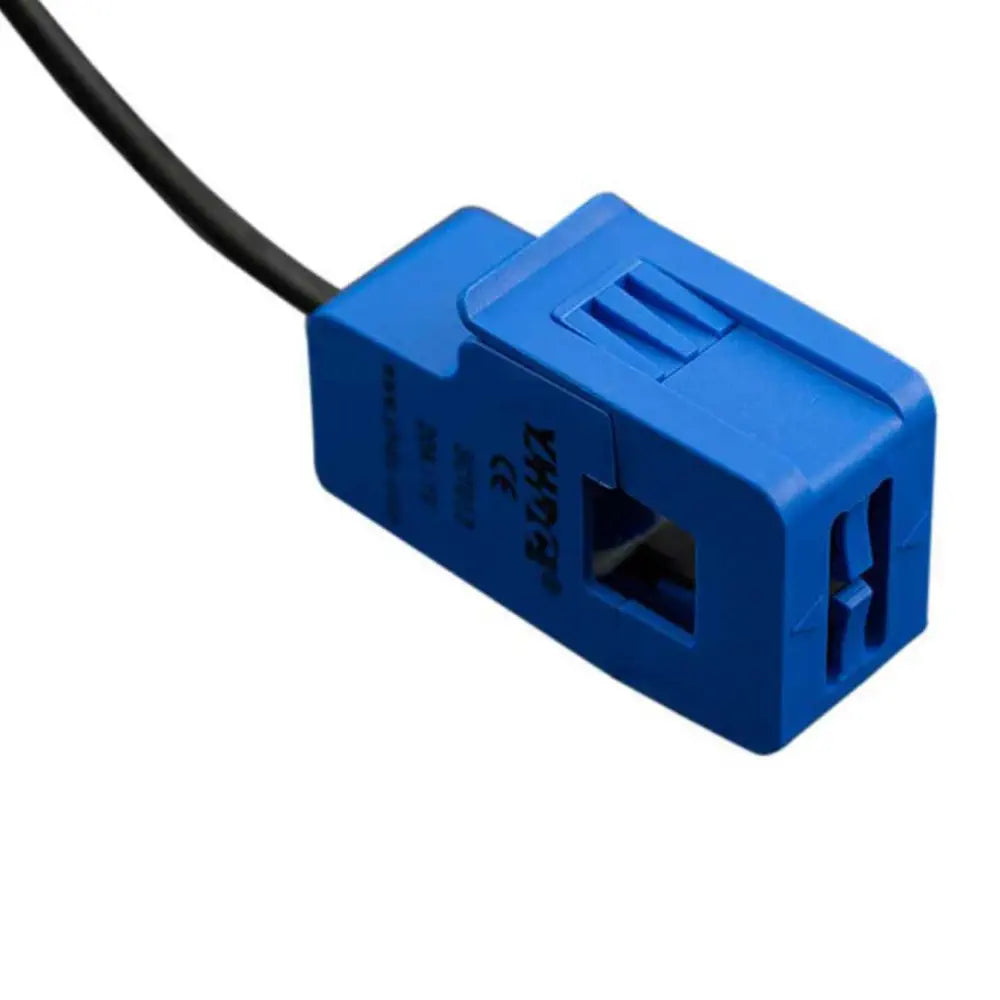

AC Current Sensor Probe

  • AC Measurement Range: 0 - 20A
  • AC Signal Output: 0 - 1V AC map onto 0-20 A
  • Non-linearity: ±3% (10% ~ 120% of the rated input current)
  • lead length: 1.5 meters
  • Opening and closing times: >= 1000 times
  • Working temperature: -25℃ to +70℃
  • Dimensions: 13 * 13mm/ 0.51 * 0.51 inches
