Cmod A7-35T Breadboardable Artix-7 FPGA Module

DigilentSKU: RB-Dig-206
Manufacturer #: 410-328-35

Price  :
Sale price $105.60

Shipping calculated at checkout

Stock  :
Only 2 units left

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • 512KB SRAM with an 8-bit bus and 8ns access times
  • 4MB Quad-SPI Flash
  • USB-JTAG Programming Circuitry
  • Powered from USB or external 3.3-5.5V supply connected to DIP pins
  • 20800 Look-up Tables, 41600 Flip-Flops and 225KB Block RAM

The Cmod A7-35T Breadboardable Artix-7 FPGA Module is a small, breadboard friendly 48-pin DIP form factor board built around a Xilinx Artix-7 FPGA. The board also includes a USB-JTAG programming circuit, USB-UART bridge, clock source, Pmod host connector, SRAM, Quad-SPI Flash, and basic I/O devices. These components make it a formidable, albeit compact, platform for digital logic circuits and MicroBlaze embedded soft-core processor designs using Xilinx's development software, Vivado.

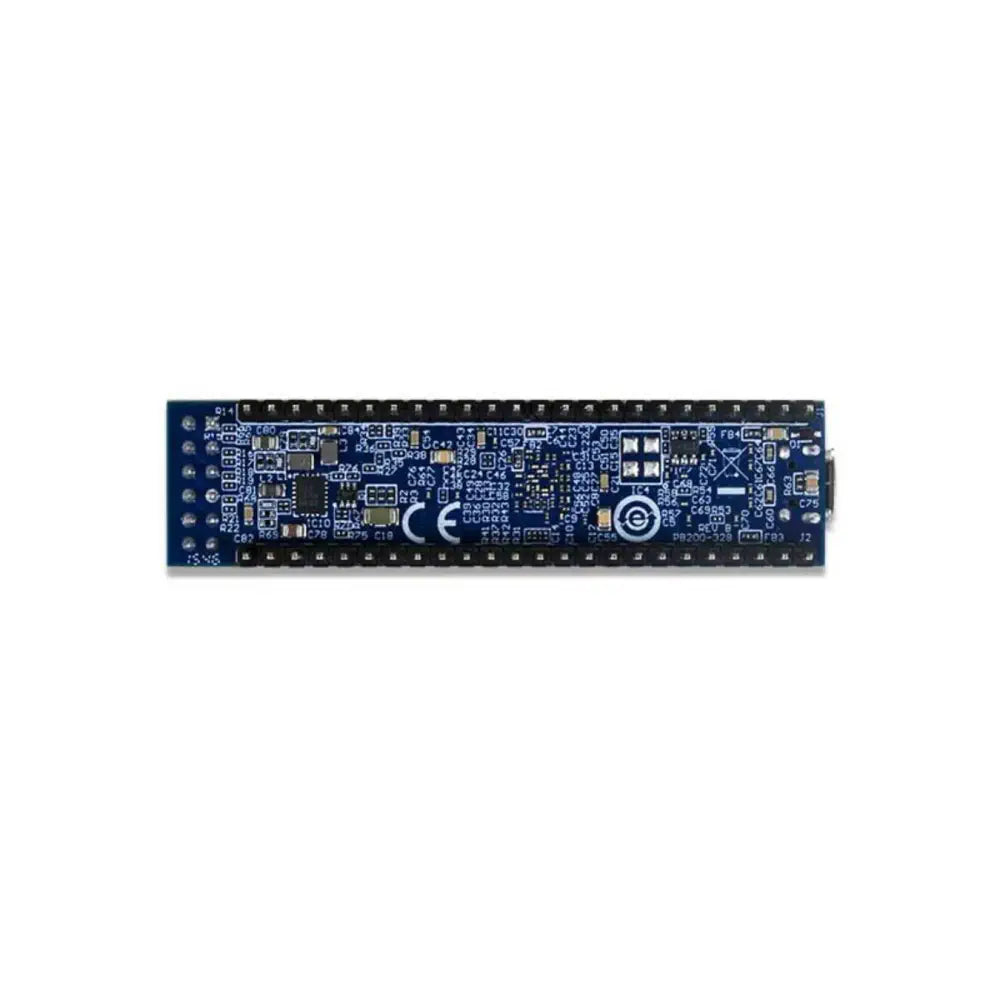

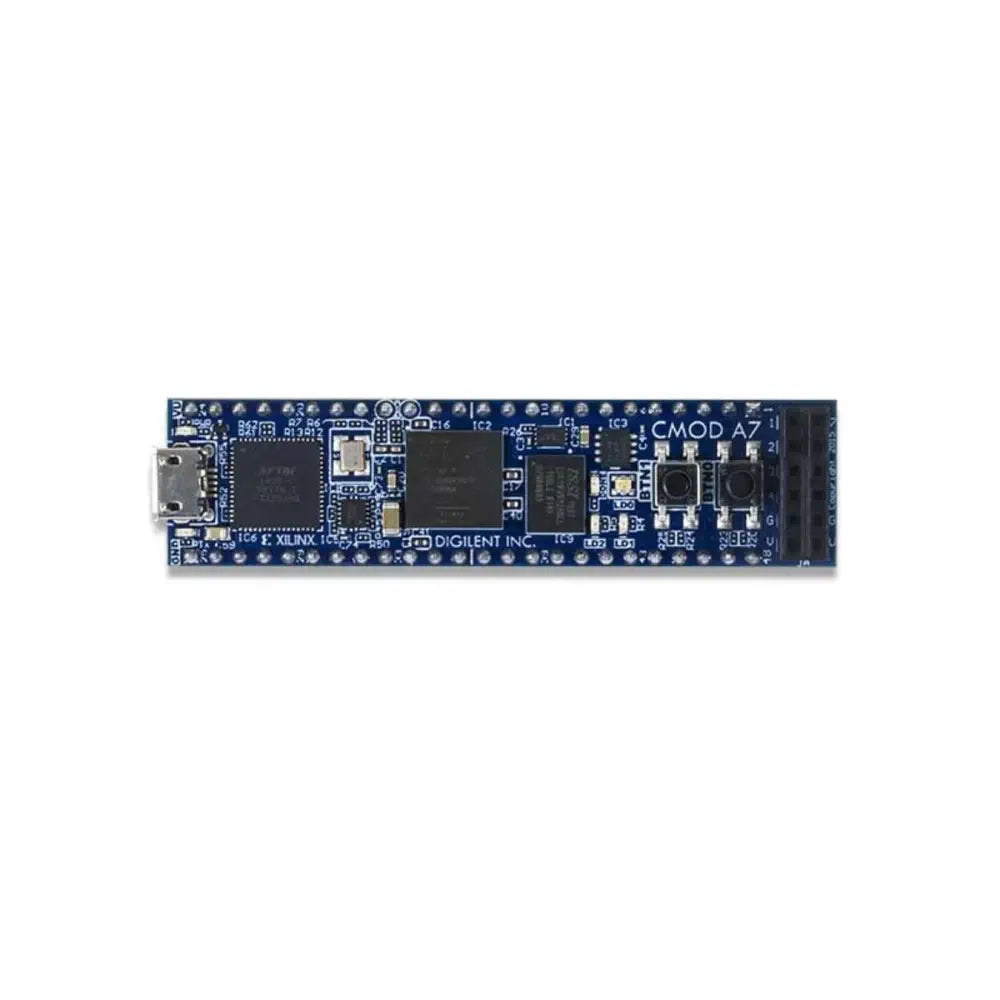

Cmod A7-35T Breadboardable Artix-7 FPGA Module- Click to Enlarge

There are 44 Digital FPGA I/O signals and two FPGA Analog inputs that are routed to 100-mil-spaced through-hole pins so that you can integrate your programmable logic design directly into a solderless breadboard circuit. At just 0.7” by 2.75”, it can also be loaded in a standard socket and used in embedded systems.

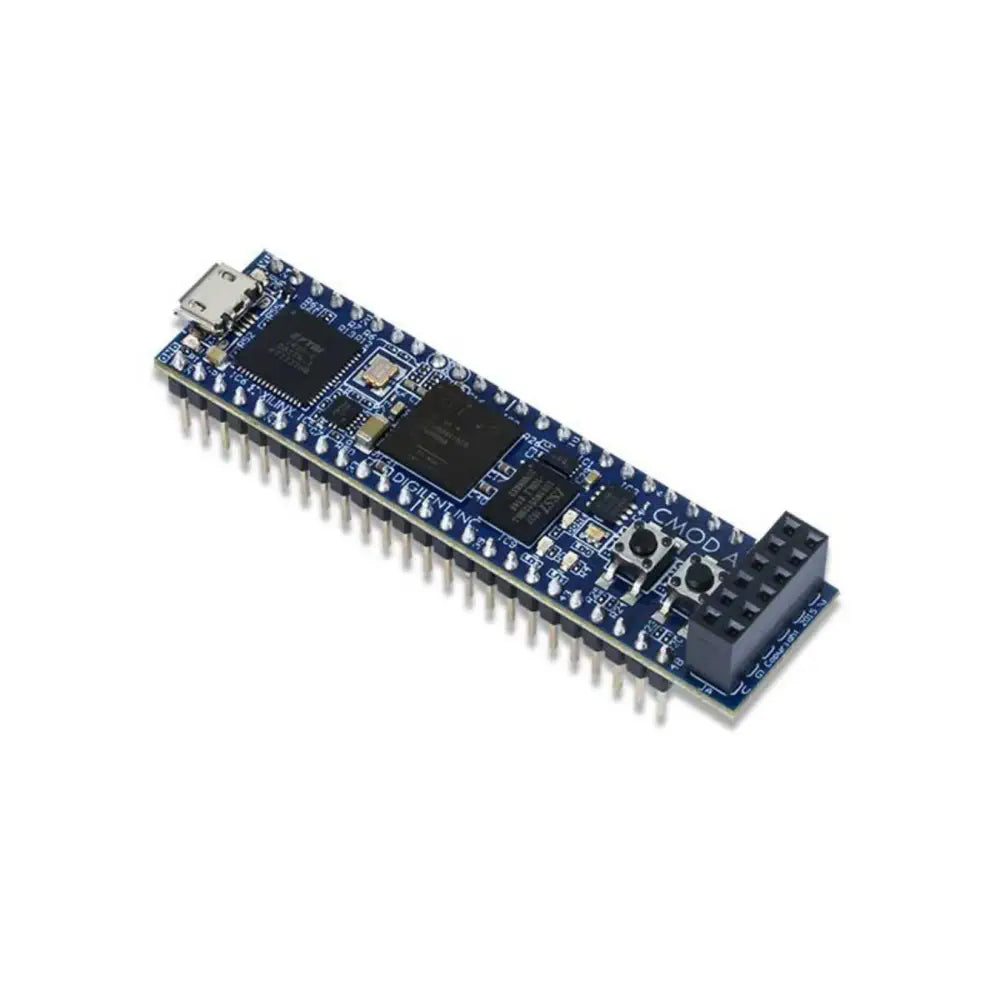

Cmod A7-35T Breadboardable Artix-7 FPGA Module- Click to Enlarge

PDF Files

System Connectivity

  • USB-UART bridge

Interaction and Sensory Devices

  • 2 LEDs
  • 1 RGB LED
  • 2 Push Buttons

Expansion Connectors

  • 48-pin DIP connector with 44 Digital I/O and 2 Analog inputs (0-3.3V)
  • One Pmod connector with 8 Digital I/O
