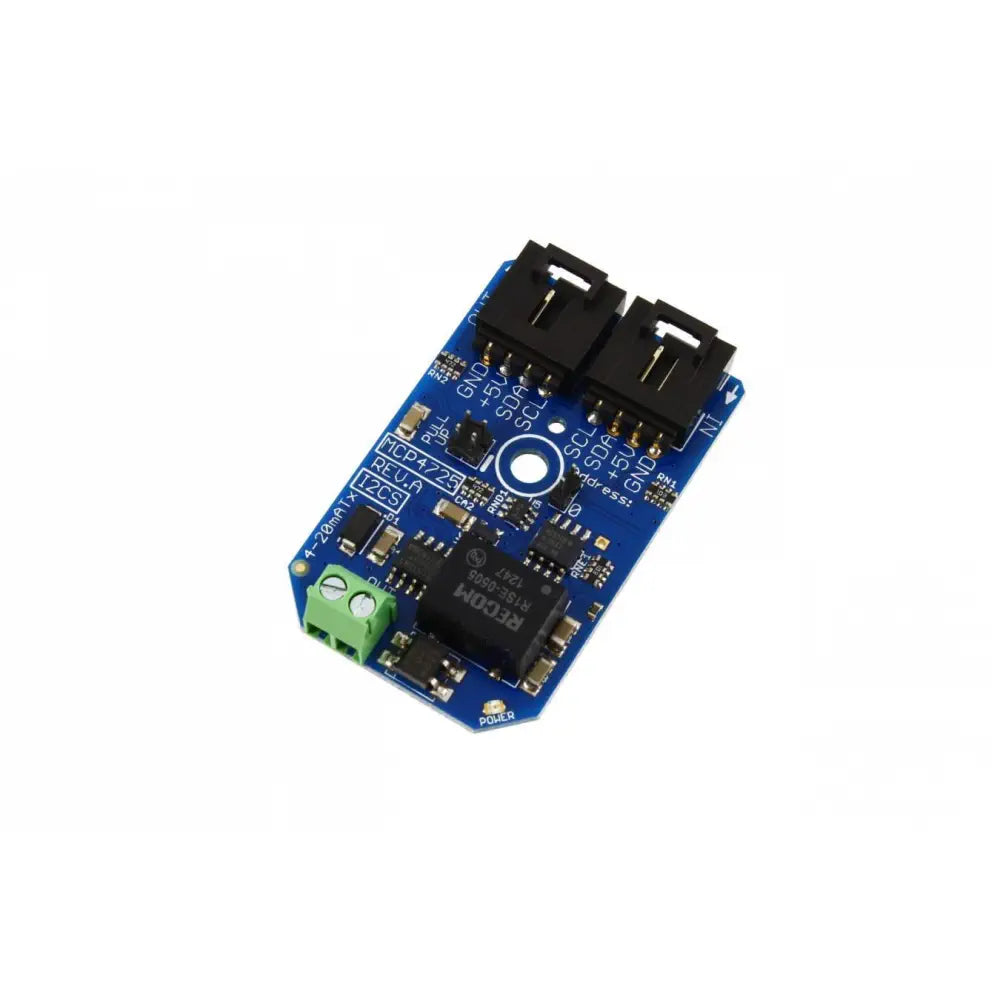

National Control Devices 1-Channel 4-20mA Current Loop Transmitter I2C Module

National Control DevicesSKU: RB-Ncd-28
Manufacturer #: PR33-26

Price  :
Sale price $65.95

Shipping calculated at checkout

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • 1-Channel 4-20mA Current Loop Transmitter I2C Mini Module
  • Powering NCD I2C Interface Devices
  • 12-Bit DAC MCP4725 / XTR115 4-20mA Current Loop
  • Unlimited I2C Expansion / Quad Channel Digital Isolator
  • One Channel 2 Wire 4-20mA Transmitter
  • Wide Loop Supply Range 7.5V to 36V

The National Control Devices 1-Channel 4-20mA Current Loop Transmitter I2C Mini Module converts I2C Data into a 4-20mA Output using a 12-Bit Digital to Analog converter (DAC). Uses an XTR115 4-20mA Current Loop Transmitter connected to an MCP4725 Digital to Analog Converter. The MCP4725 has one address jumper, allowing 2 devices can be connected at the same time on a single I2C bus.

National Control Devices 1-Channel 4-20mA Current Loop Transmitter I2C Module

It is also possible to connect more than 2 devices on one bus using the I2C multiplexer. The On-board XTR1115 4-20mA Current Loop Transmitter has a wide Loop supply range from 7.5V to 36V and on-board screw terminals which make it easy to connect. It also has a Vref exposed pad for external voltage reference with a preset Vref of 2.5V. A DAC value of about 670 will output 4mA of current; similarly, a value of about 3460 will output 20mA of current.

  • 1 x National Control Devices 1-Channel 4-20mA Current Loop Transmitter I2C Mini Module
  • 12-Bit DAC MCP4725
  • Quad Channel Digital Isolator
  • XTR115 4-20mA Current Loop Transmitter
  • One Channel 2 Wire 4-20mA Transmitter
  • 2 Devices On One I2C Bus
  • Ideal For Industrial Control
  • Wide Loop Supply Range 7.5V to 36V
  • 2 Wire, 4-20mA Current Loop Transmitter
  • Low Span Error
  • Low Non-linearity error

Compatibility

  • Arduino Micro I2C Shield, Arduino Nano I2C Shield, Arduino Uno I2C Shield, Arduino Due I2C Shield
  • Banana Pi I2C Shield
  • BeagleBone I2C Shield
  • Bluz I2C Shield (with power)
  • C.H.I.P. I2C Shield
  • NodeMCU ESP8266 I2C Shield, Adafruit Huzzah ESP8266 I2C Shield
  • Particle Photon WiFi I2C Shield, Particle Electron Cellular I2C Shield
  • Onion Omega I2C Shield
  • PyCom WiPy, WiPy2, and LoPy I2C Shield
  • Raspberry Pi I²C Interface Adapter, Raspberry Pi 2/3 I²C Interface Adapter, Raspberry Pi Zero I²C Interface Adapter
  • USB to I2C Converter, BridgeX5 Series Controller
