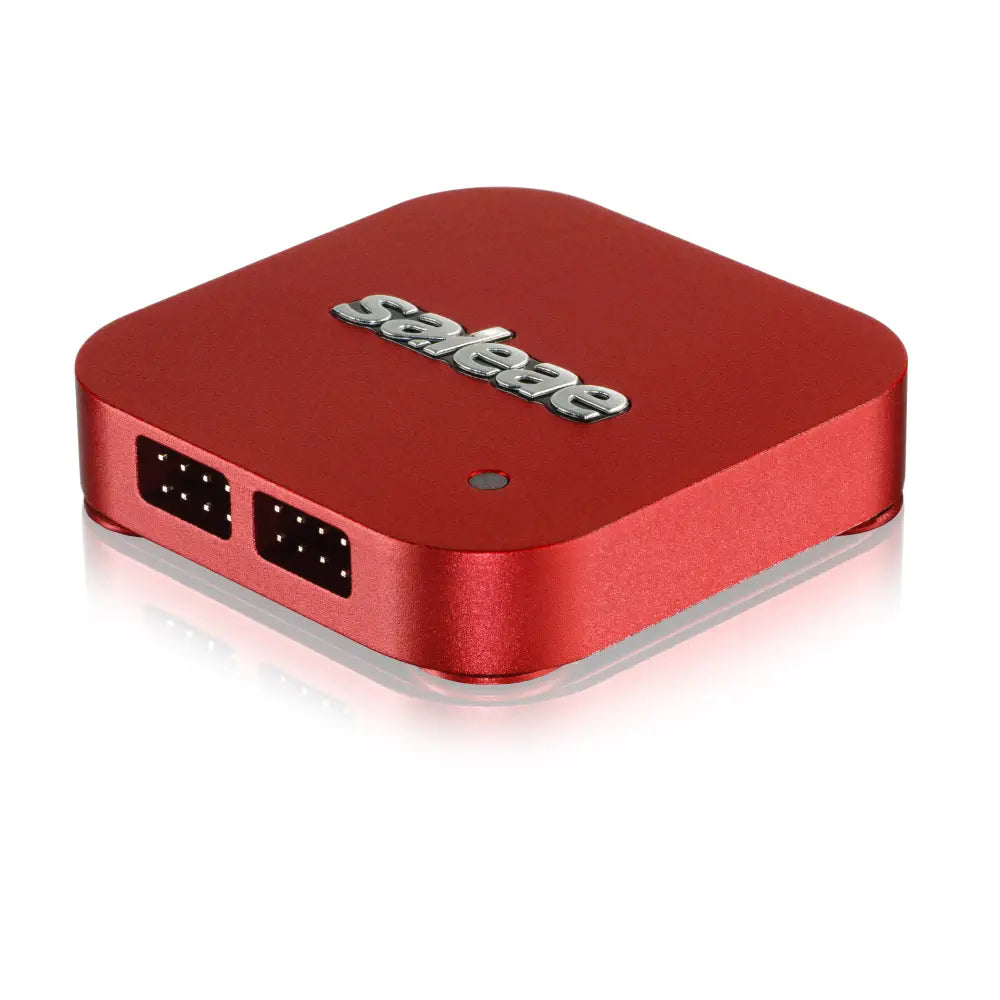

Saleae Logic 8 Logic Analyzer 8 Channels & 25MHz (Red)

SaleaeSKU: RB-Sal-12
Manufacturer #: SAL-00112

Price  :
Sale price $499.00

Shipping calculated at checkout

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Saleae Logic 8 Logic Analyzer (Red)
  • Versatile 8 channels & 25 MHz bandwidth
  • Impressive 100 MS/s digital sample rate
  • Wide 1.8V - 5.5V supported logic levels
  • Convenient USB 2.0 compatibility

The Saleae Logic 8 Logic Analyzer 8 Channels & 25MHz (Red) features a maximum sample rate that depends on the number of digital and analog channels used. With 8 channels, it offers 1 MΩ input impedance, 10 pF input capacitance, and a ± 25V input voltage range. The digital sample rate is 100 MS/s, and the digital bandwidth is 25 MHz. Additionally, it includes 10+ protocol analyzers, supported logic levels of 1.8V - 5.5V, and logic level thresholds of 0.6V / 1.2V.

The analog sample rate is 10 MS/s, with an analog bandwidth of 1 MHz, an analog input range of 10, and an analog voltage range of 0V to 5V. The device also features -50 dB analog AC coupling, -50 dB analog DC coupling, and comes with x2 test clips. It is compatible with USB 2.0.

  • 1x Logic Analyzer
  • 2x Test Lead Set
  • 2x Test Clips 8-Pack
  • 1x USB Cable and Carry Case

  • 53 x 53 x 12 mm / 2.1 x 2.1 x 0.46 inch

Inputs

  • Multi-Use (A/D/Both): 8
  • Input Resistance: 1 MΩ
  • Input Capacitance: 10 pF
  • Input Protection: ± 25 V

Digital

  • Sample Rate (max): 100 MS/s
  • Fastest Digital Signal: 25 MHz
  • Sample Depth (typical): 10+ Billion
  • Supported Logic Levels: 1.8 V - 5.5 V
  • Works with RS-232, 422/3, 485: Yes, directly
  • Threshold Voltages: 0.6 V low / 1.2 V high

Analog

  • Sample Rate (max): 10 MS/s
  • Bandwidth (-3dB): 1 MHz
  • Number of bits: 10 bits
  • Input Voltage Range: 0 V to 5 V
  • Attenuation at Nyquist: -50 dB or better
  • Channel-Channel Crosstalk: -50 dB or better

USB

  • USB Type: USB 2.0

Physical

  • Weight: 60 g
