Seeedstudio MiniDSO LA104 Logic Analyzer

SeeedStudioSKU: RB-See-684
Manufacturer #: 109990365

Price  :
Sale price $132.00

Shipping calculated at checkout

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Seeedstudio MiniDSO LA104 Logic Analyzer
  • 2.8’ Color LCD Screen / 4 Input Channels
  • 100MHz Max Sampling Rate
  • Programmable Output Type:PWM,SPI,I2C,UART
  • Built-In 8MB Flash Storage

The Seeedstudio MiniDSO LA104 Logic Analyzer is a compact, portable logic analyzer with a display screen. It is widely applied to a variety of industries and fields, such as automotive electronics, communication, power supplies, and computers.

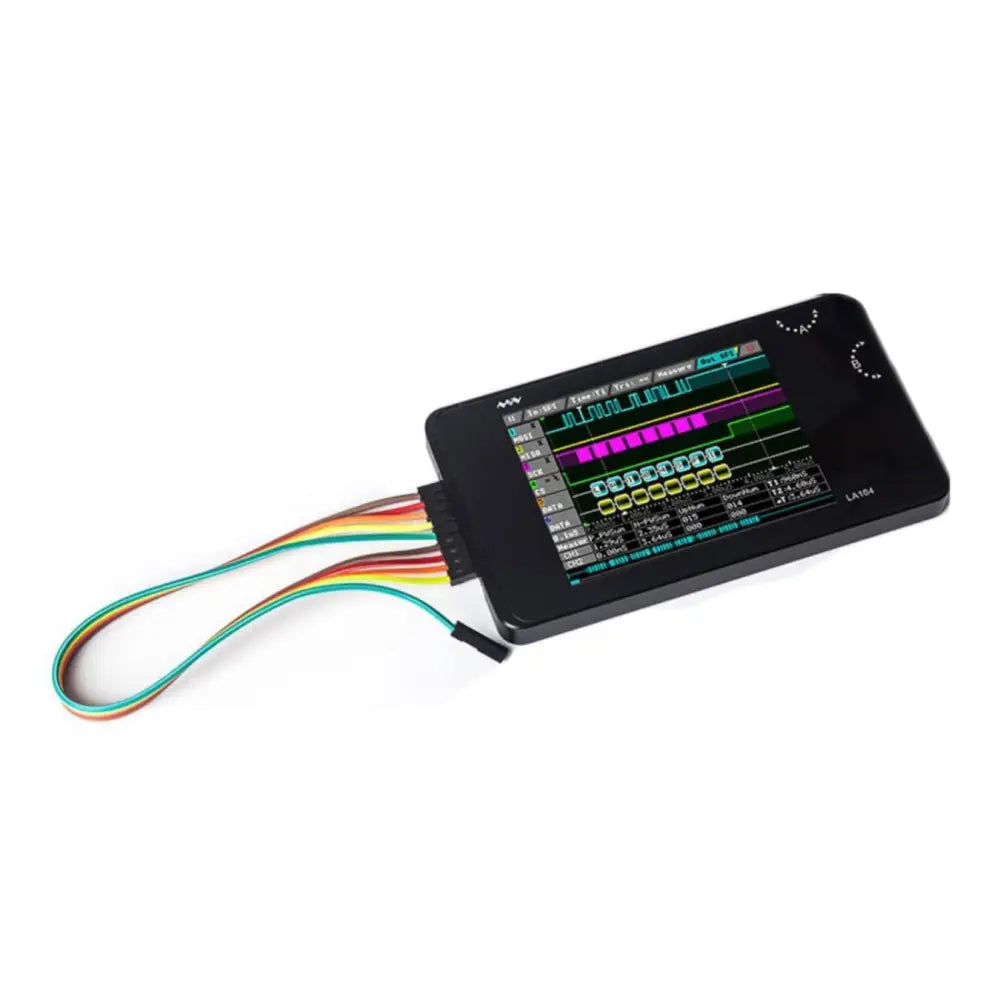

Seeedstudio MiniDSO LA104 Logic Analyzer- Click to Enlarge

The logic analyzer is used to analyze the logic relationship of digital systems, as it can collect and store multichannel digital signals and directly display their sequential relationship on the screen. The logic analyzer is equipped with the function of protocol analysis and can parse logic signal of the protocol's physical layer into data of the high layer protocol and display them on the screen.

  • 1 x Logic Analyzer
  • 5 x Hooks
  • 20 x Dupont Cables
  • 1 x Safety Instructions

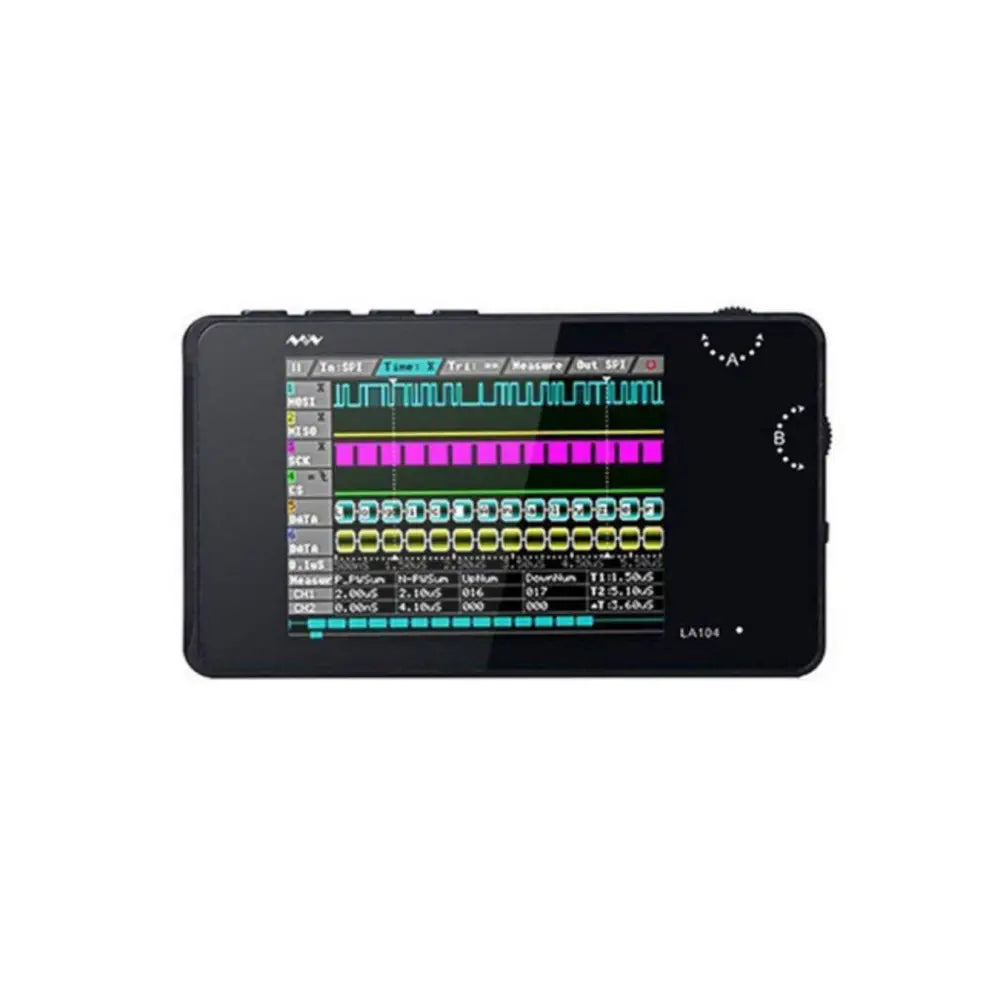

Seeedstudio MiniDSO LA104 Logic Analyzer

  • 150mm x 103mm x 40mm
  • G.W 175g, N.W 168g

Seeedstudio MiniDSO LA104 Logic Analyzer

Measuring Input Parameters

  • Channel: 4
  • Max Sampling Rate: 100M Sa/S
  • Min Captured Pulse width: 10ns
  • Input Voltage Range: 0-5V
  • Equivalent Input Impedance: 1MΩ
  • Threshold Voltage: 1.2-3V

Output Parameters

  • Programmable Output Channels: 4
  • Programmable Output Type: PWM,SPI,I2C,UART
  • Programmable Output Amplitude: 3V
  • 3V Power Output Channel: 1
  • Storage Built-in 8M Flash Storage
  • Battery Built-in 500mAh Lithium Battery
  • Display  2.8’ Color LCD Screen
