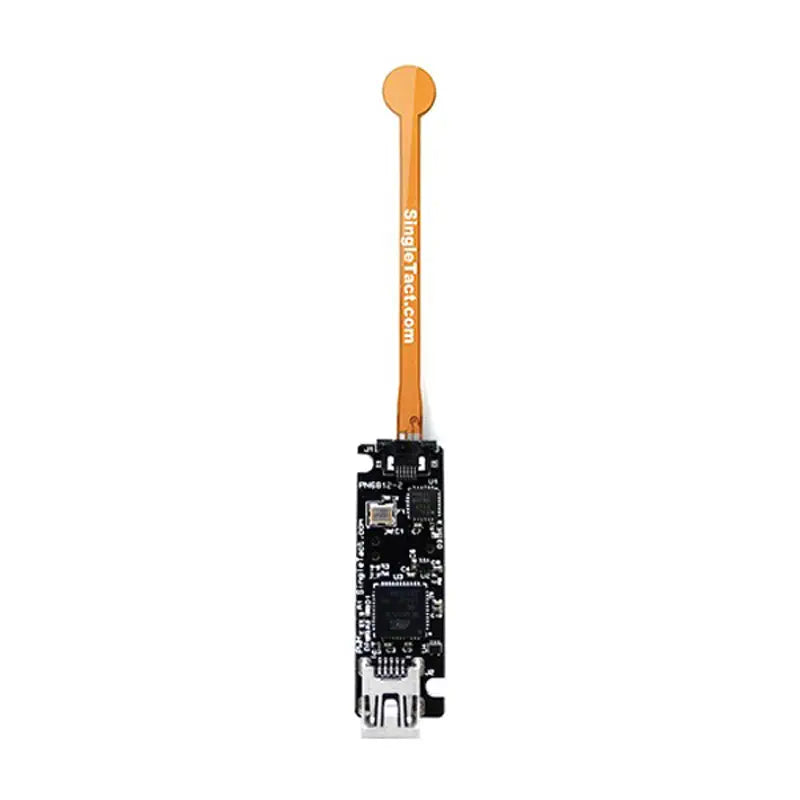

SingleTact Calibrated USB Capacitive Force Sensor 8mm 1N (0.22LB)

SingleTactSKU: RB-Pre-15
Manufacturer #: CSU8-1N

Price  :
Sale price $225.95

Shipping calculated at checkout

Stock  :
Only 1 unit left

Payments and Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Calibrated USB Capacitive Force Sensor 8mm 1N (0.22LB) by SingleTact
  • Provides high dynamic range and errors less than 1.0%
  • Ultra-thin force sensor
  • Simple analog 3-wire interface
  • RoHS Compliant
  • Supply Voltage: 3.7 - 5 V
  • Interface: I2C

The SingleTact Calibrated USB Capacitive Force Sensor 8mm 1N (0.22LB) is a single-element tactile pressure sensor that accurately and reliably quantifies applied force, that can be combined with either: a simple interface board offering a 0 to 2 V analog output for immediate Data Acquisition (DAQ) integration and an I2C based interface for integration into embedded systems, or a direct to PC USB solution for the simplest way to get started with tactile pressure sensors.

The SingleTact system interface board is the most common method for obtaining pressure information from the SingleTact pressure sensors.

Featuring both an analog and digital I2C interface in a compact form factor, the system interface board allows simple integration of SingleTact pressure sensors into embedded systems, analog controllers, and custom DAQ systems to fulfill any application.

  • 1x SingleTact Calibrated USB Capacitive Force Sensor 8mm 1N (0.22LB)

Size

  • 3.5 x 50 mm (L x H)
  • Sensor Thickness: 0.30 mm
  • Diameter: 8 mm
  • Cable length: 50 cm

Performance

  • Contact Surface Material: Polyimide
  • Force Resolution: <0.2% of Full Scale (FSR)
  • Maximum Force: 300% of FSR
  • Typical Repeatability Error: <1.0% (1 sigma of FS)
  • Operating Temperature: -40 °C < T < 85 °C
  • Temperature Sensitivity: <0.2%/° C
  • Linearity Error: <2.0%
  • Drift: 2% in 1 min, 4% in 10 min, at 50% FSR load
  • Hysteresis: <4.0%
  • Response Time: <1 ms (Measured using Oscilloscope)
  • Typical Baseline Capacitance: 8 mm 75 pF | 15 mm: 230 pF at 100 kHz
  • Typical Baseline Capacitance: 8 mm 2.2 pF | 15 mm: 5.5 pF at 100 kHz
  • ESD Sensitivity: Not sensitive to ESD
  • Material Grade: UL grade 94 V-1 or better

Electronics

  • Update Rate: >120 Hz
  • Analog Output: 0.5 - 1.5 V
  • Digital Interface: I2C (100kHz), 10-bit resolution
  • IO Voltage: 3.3 V
  • Supply Voltage: 3.7 - 5 V
  • Input Current: 2.7 mA
  • RoHS: Compliant
  • Operating Temperature: -40 °C < T < 85 °C
  • Sensor weight: 0.23 g
  • Electronics weight: 1.6 g
