Description

  • Educational PC Oscilloscope Soldering Kit by Whadda
  • Offers to build your own oscilloscope

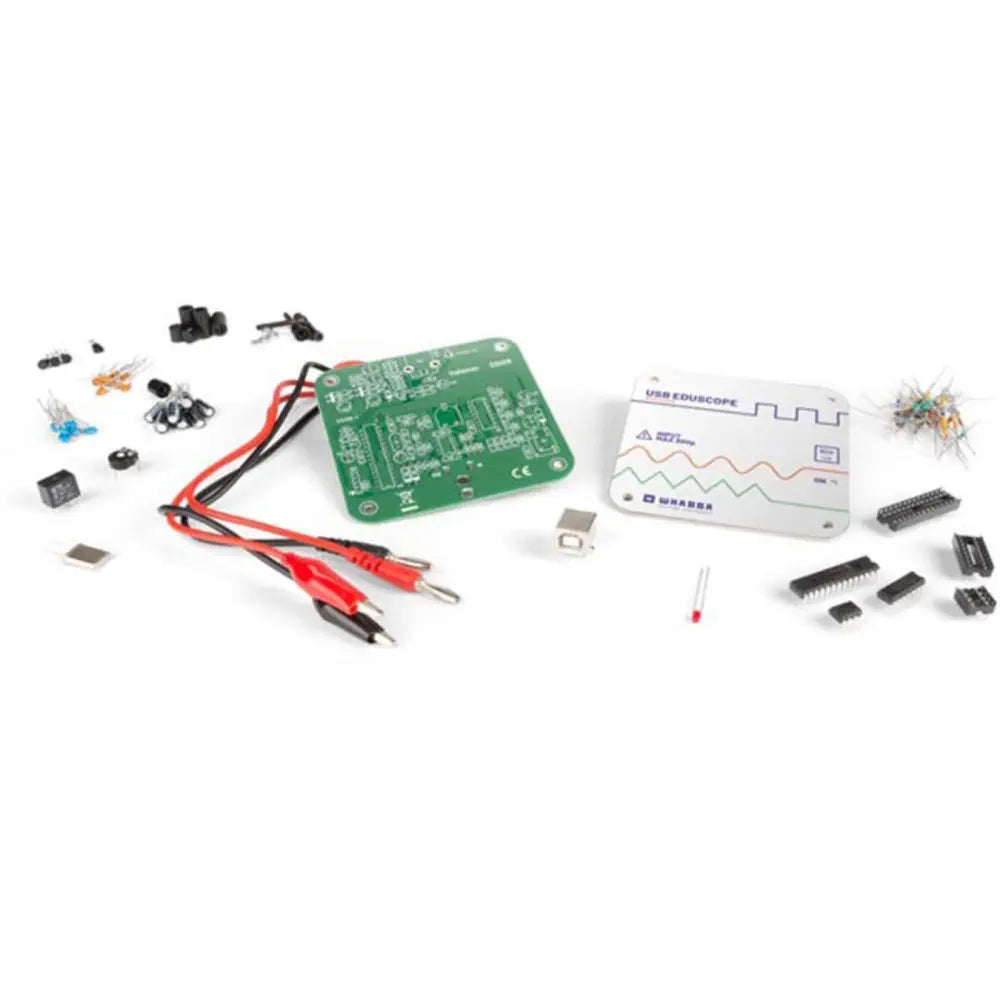

  • Comes complete with detailed instructions and test leads
  • Features of a full-blown oscilloscope
  • Small and easy to build kit
  • No external driver required

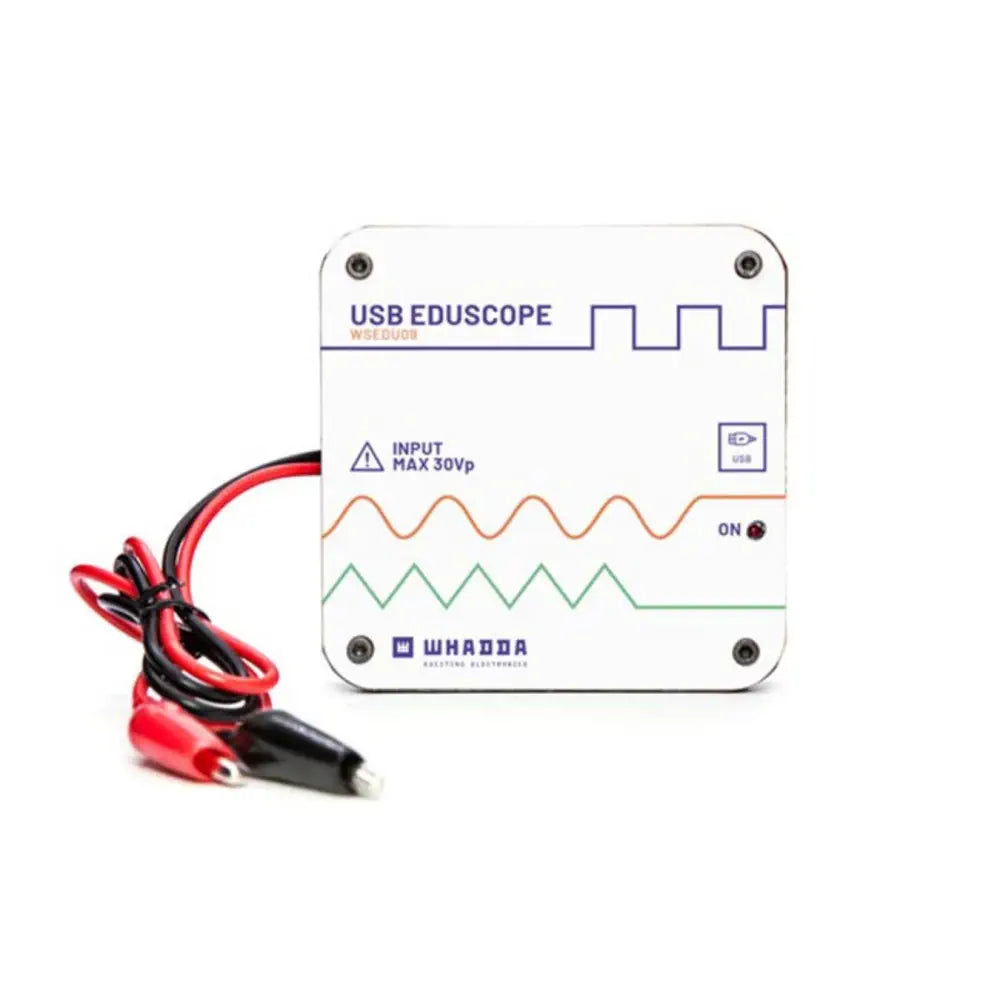

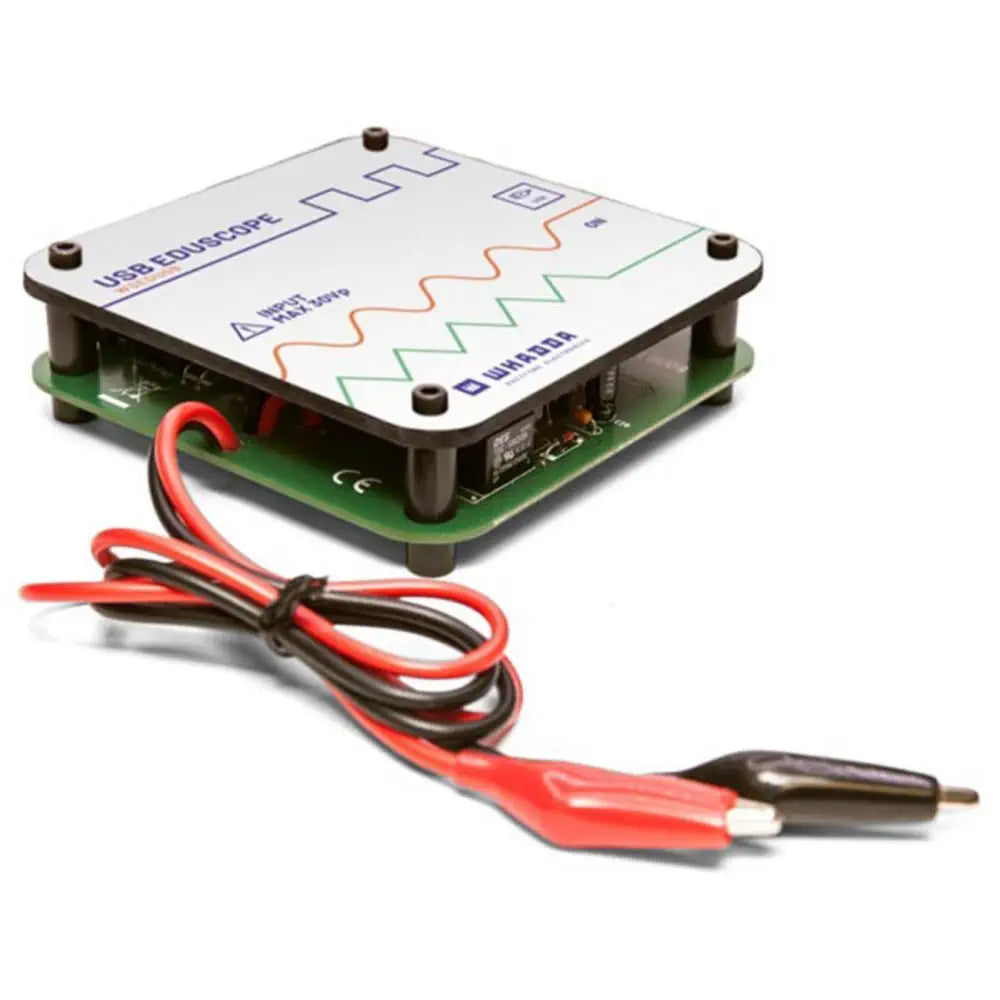

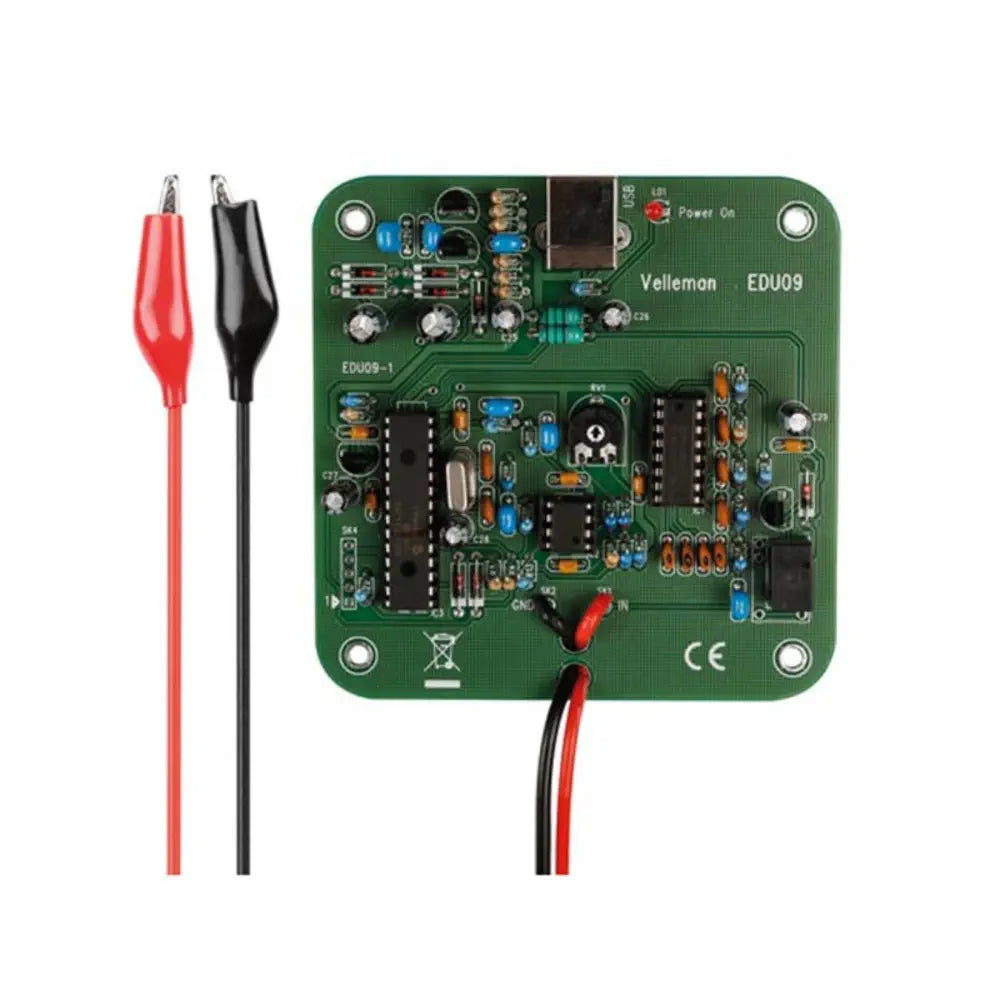

The Whadda Educational PC Oscilloscope Soldering Kit offers to build your own oscilloscope and use your PC to display your measurements.

This small and easy-to-build kit has all the features of a full-blown oscilloscope, just like our PCSU200 or PCSU1000. The kit comes complete with detailed instructions and test leads.

  • 1x Whadda Educational PC Oscilloscope Soldering Kit

Size

  • 94 x 94 mm / 3.7 x 3.7 inch

Oscilloscope

  • Bandwidth: DC to 200 kHz ± 3 dB
  • Input impedance: 100 kohm / 20 pF
  • Maximum input voltage: 30 V (AC + DC)
  • Time base: 10 µs to 500 ms per division
  • Input range: 100 mV to 5 V/division
  • Input sensitivity: 3 mV display resolution
  • Readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency
  • Record length: 1k samples
  • Sampling frequency: 62.5 Hz to 1.5 MHz
  • Sample history function
  • Auto set-up function
  • Pre-trigger function: on 0.1 ms/div 500 ms/div ranges
  • Persistence options: Colour graded, Variable and Infinite

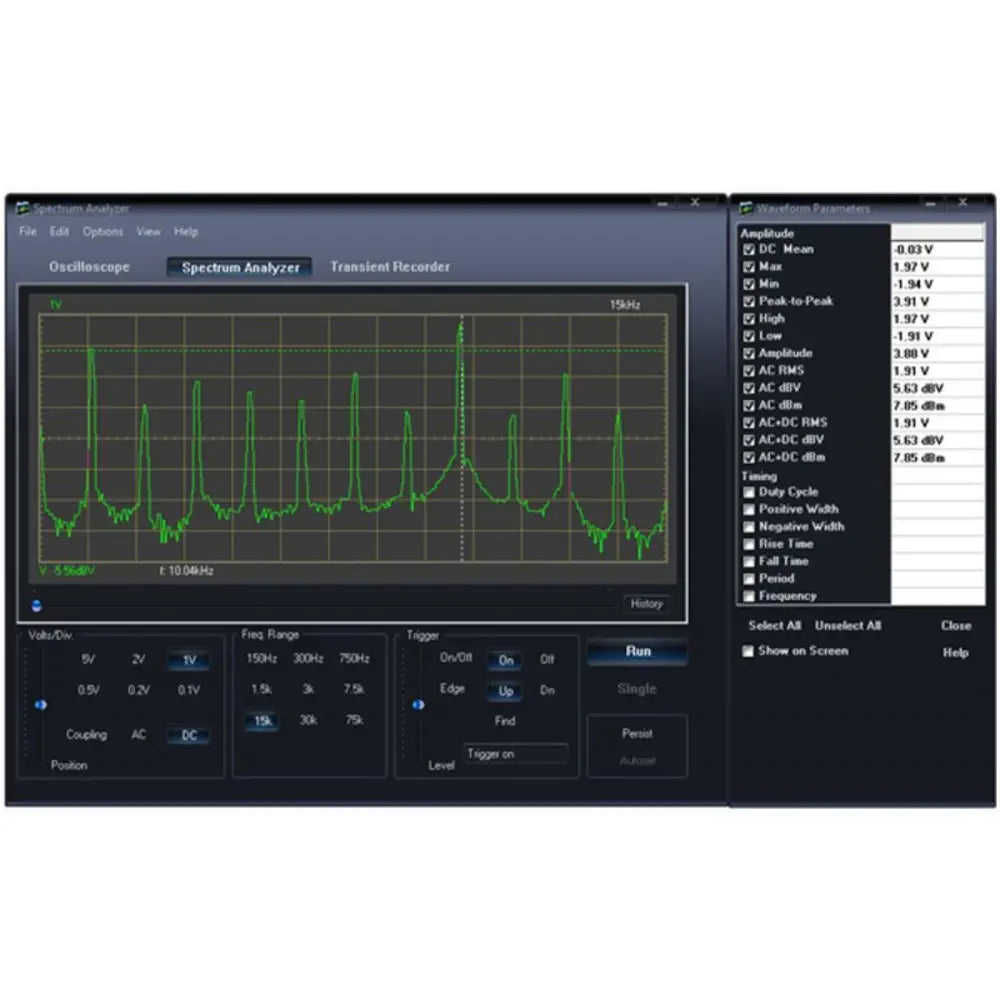

Spectrum analyzer

  • Frequency range: 0 - 150 Hz to 75 kHz
  • Operating principle: FFT (Fast Fourier Transform)
  • FFT resolution: 512 lines

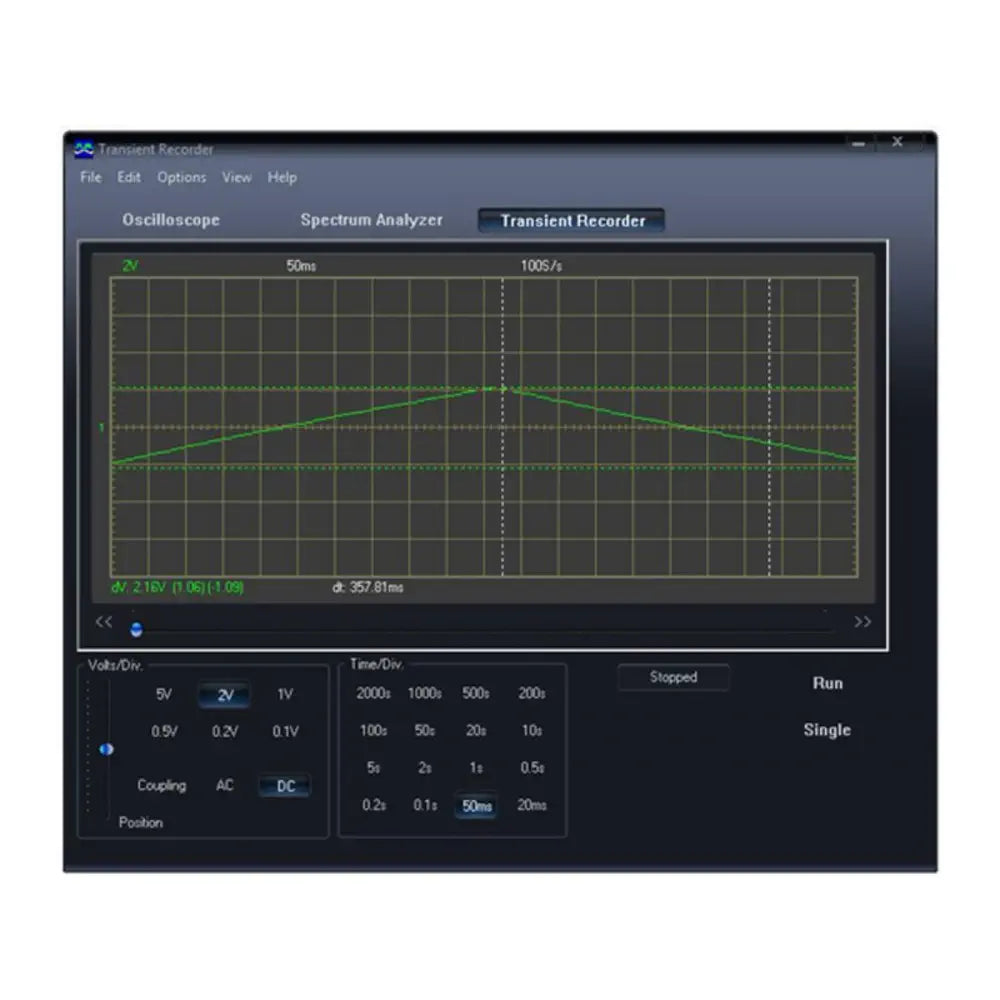

Transient recorder

  • Timescale: 20 ms/div to 2000 s/div
  • Max. recording time: 9.4 h/screen
  • Automatic storage of data
  • Record and display screens
  • Automatic recording for more than 1 year
  • Max. number of samples: 100/s
  • Min. number of samples: 1 sample/20 s

General information

  • Markers for: amplitude/voltage and frequency/time
  • Expert or basic mode selection in software
  • Input coupling: DC and AC
  • 8-bit resolution
  • Storage of display and data
  • Power supply through USB: +/- 200 mA
  • Uses Microsoft human interface device (HID) driver, no external driver is required

Minimum system requirements

  • IBM compatible PC
  • Windows XP, Vista, 7, 8, and 10
  • SVGA display card (min. 1024 x 768)
  • Mouse
  • Free USB port 1.1 or 2.0
