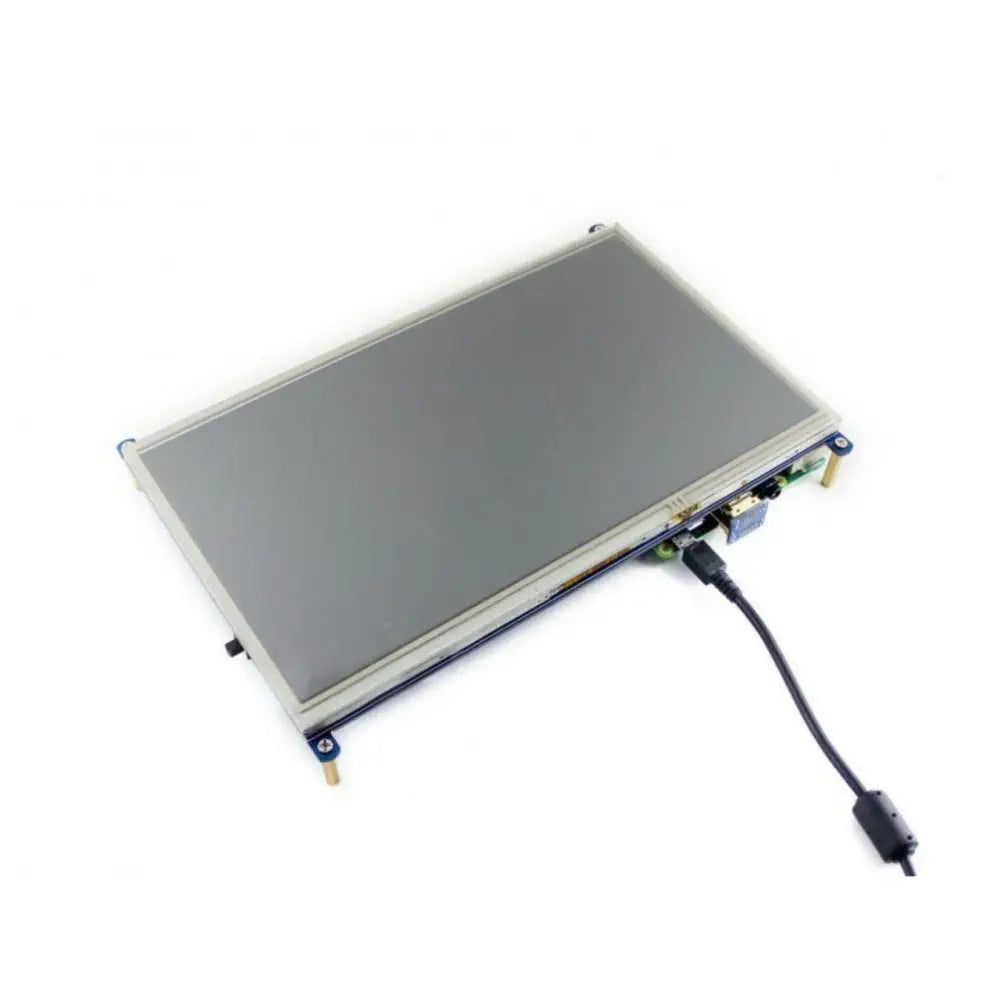

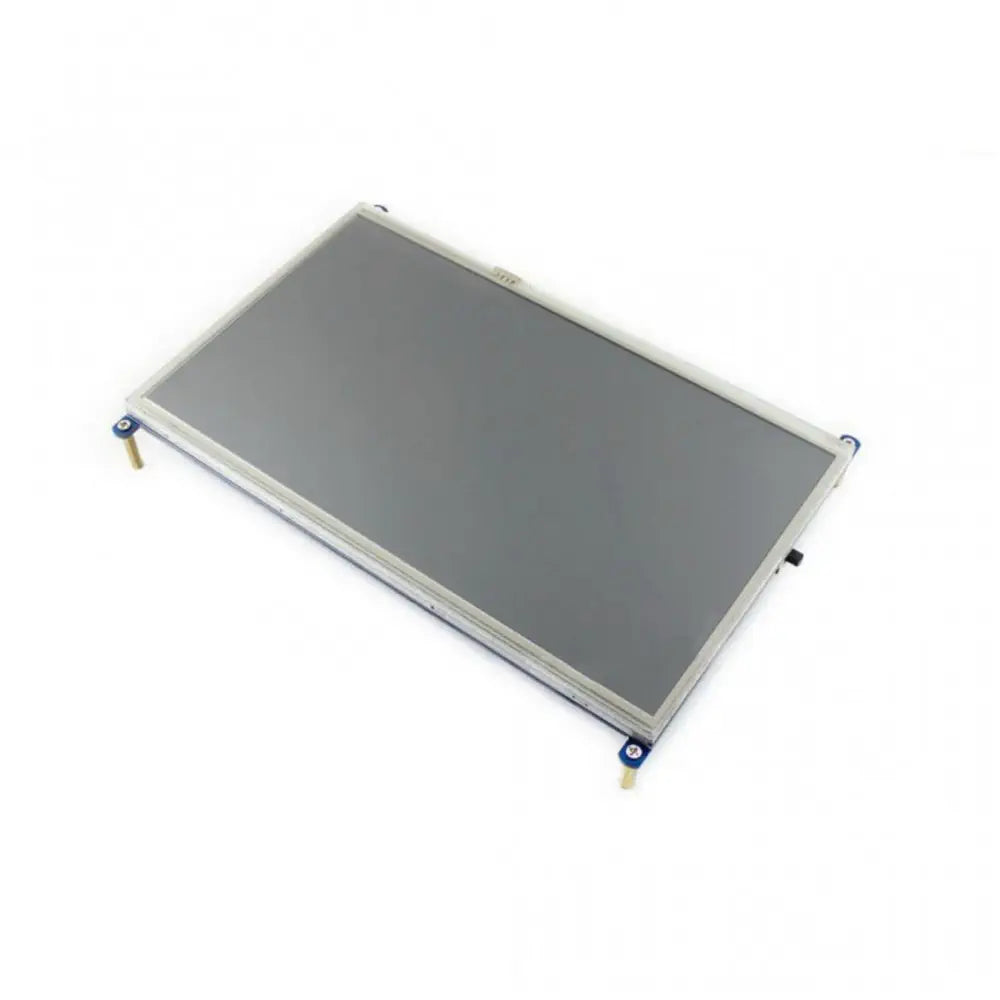

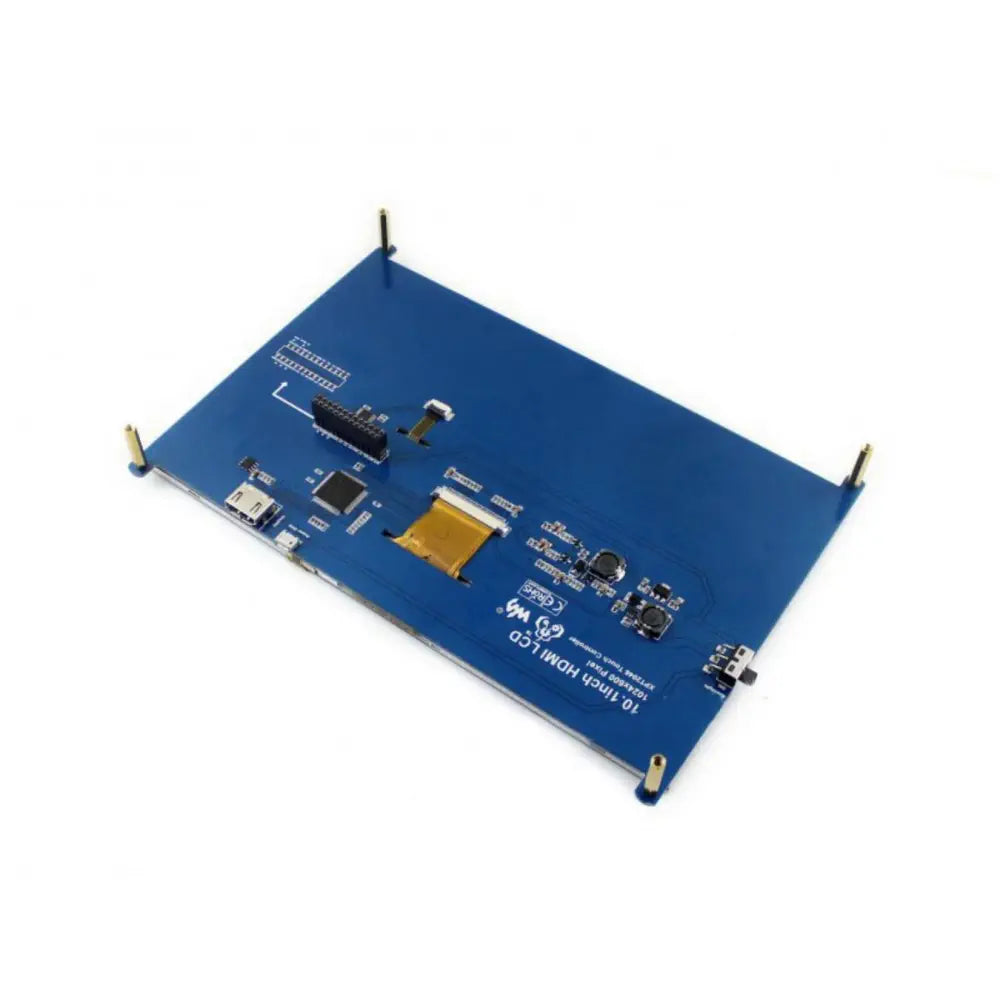

10.1" Resistive LCD Touch Screen w/ HDMI Interface

WaveshareSKU: RB-Wav-106
Manufacturer #: 11870

Price  :
Sale price $91.66

Shipping calculated at checkout

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • 1024×600 high resolution
  • Resistive touch control
  • Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
  • Drivers provided (works with your own Raspbian/Ubuntu directly)

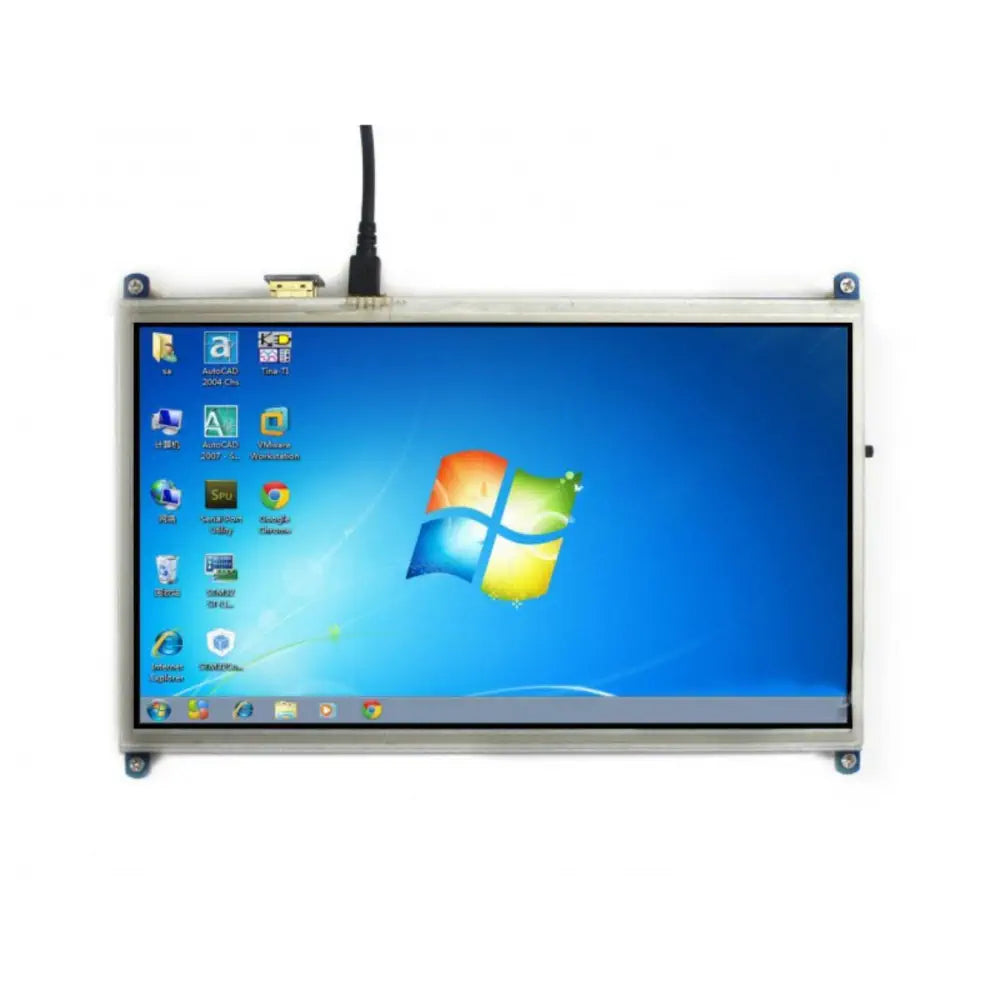

  • Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
  • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
  • Backlight can be turned off to lower power consumption

10.1" Resistive LCD Touch Screen w/ HDMI Interface

10.1" Resistive LCD Touch Screen w/ HDMI Interface

  • PIN NO - 1, 17: 3.3V (Power positive (3.3V power input))
  • PIN NO - 2, 4: 5V (Power positive (5V power input))
  • PIN NO - 3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24: NC (NC)
  • PIN NO - 6, 9, 14, 20, 25: GND (Ground)
  • PIN NO - 19: TP_SI (SPI data input of Touch Panel)
  • PIN NO - 21: TP_SO (SPI data output of Touch Panel)
  • PIN NO - 22: TP_IRQ (Touch Panel interrupt, low level while the Touch Panel detects touching)
  • PIN NO - 23: TP_SCK (SPI clock of Touch Panel)
  • PIN NO - 26: TP_CS (Touch Panel chip selection, low active)
