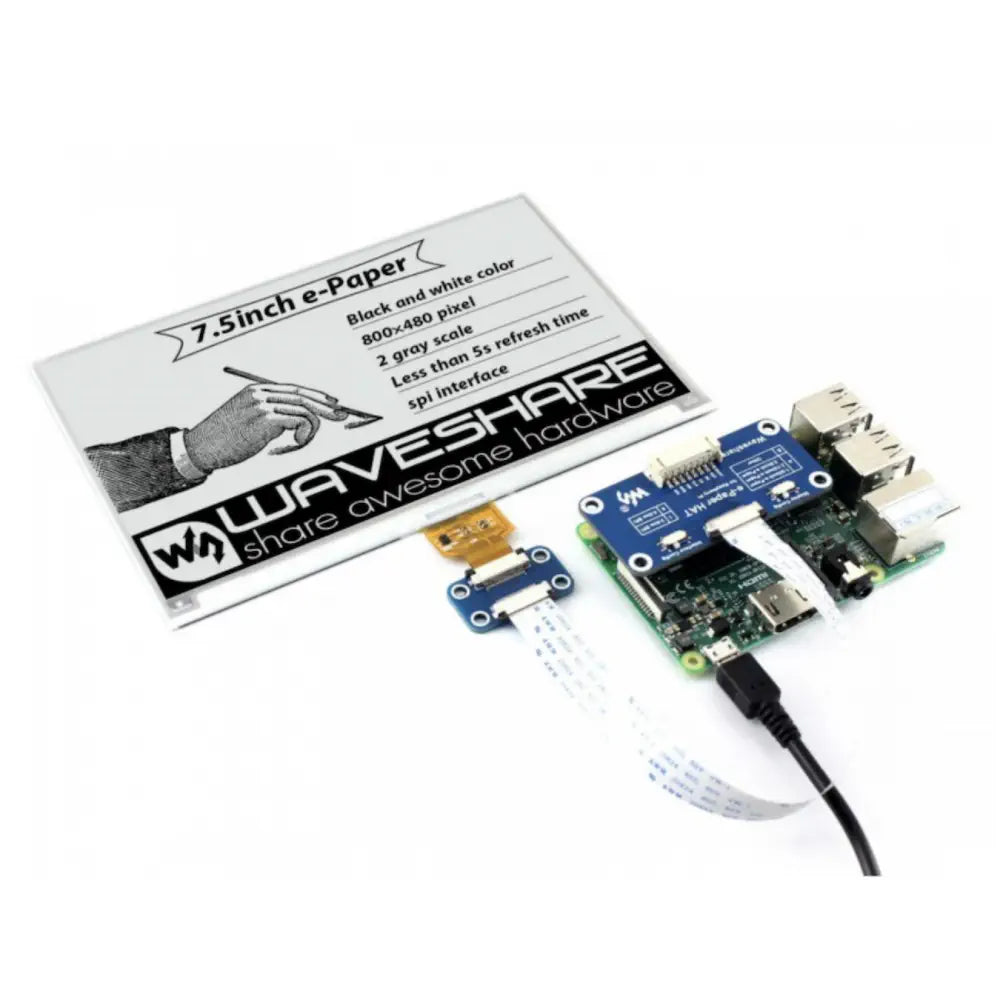

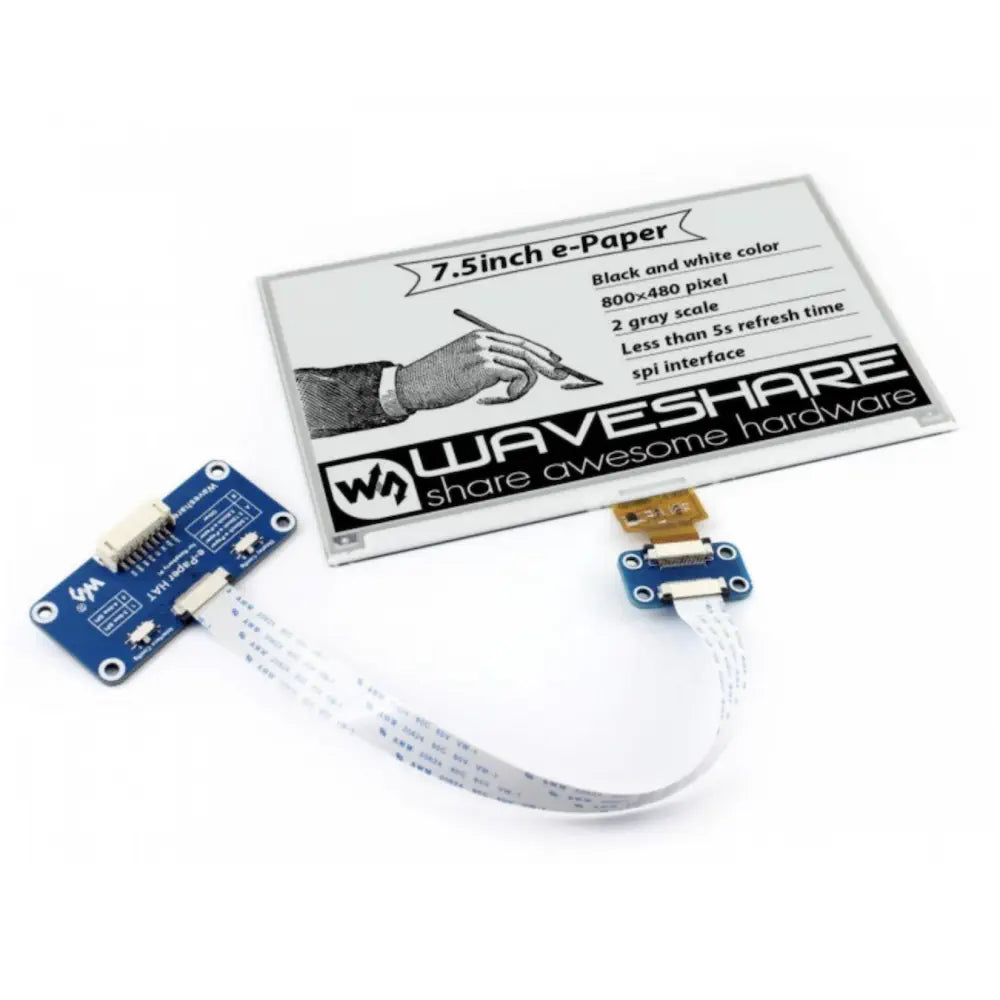

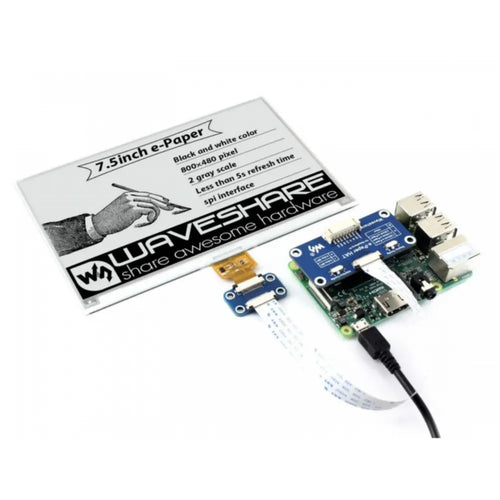

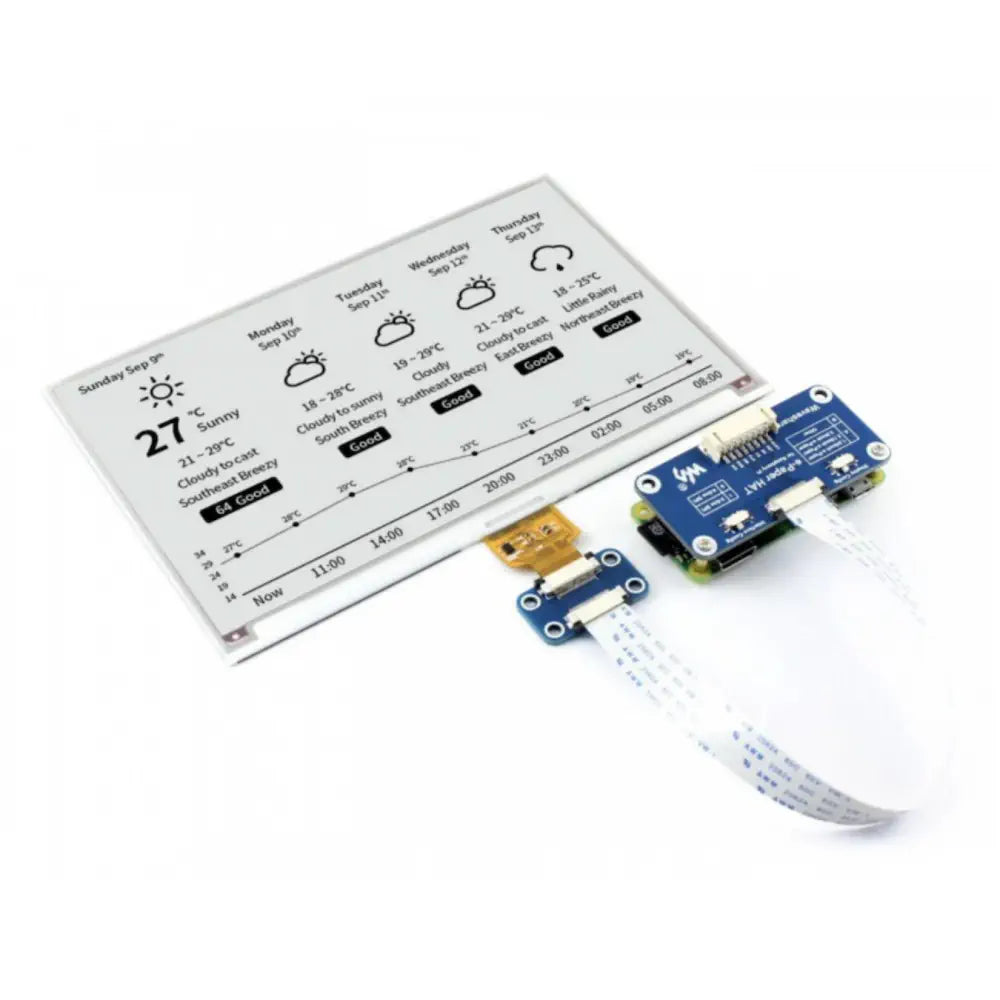

800x480, 7.5-inch E-Ink display HAT for Raspberry Pi

WaveshareSKU: RB-Wav-128
Manufacturer #: 13504

Price  :
Sale price $56.99

Shipping calculated at checkout

Stock  :
Only 2 units left

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • 800x480, 7.5-inch E-Ink display HAT for Raspberry Pi
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra-low power consumption, basically only for refreshing
  • Standard Raspberry Pi 40-PIN GPIO extension header
  • Supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual

This is an 800x480, 7.5-inch E-Ink display HAT for Raspberry Pi has embedded controller and can communicate via SPI interface. It displays only black and white.

Due to the advantages like ultra-low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instruments, and so on.

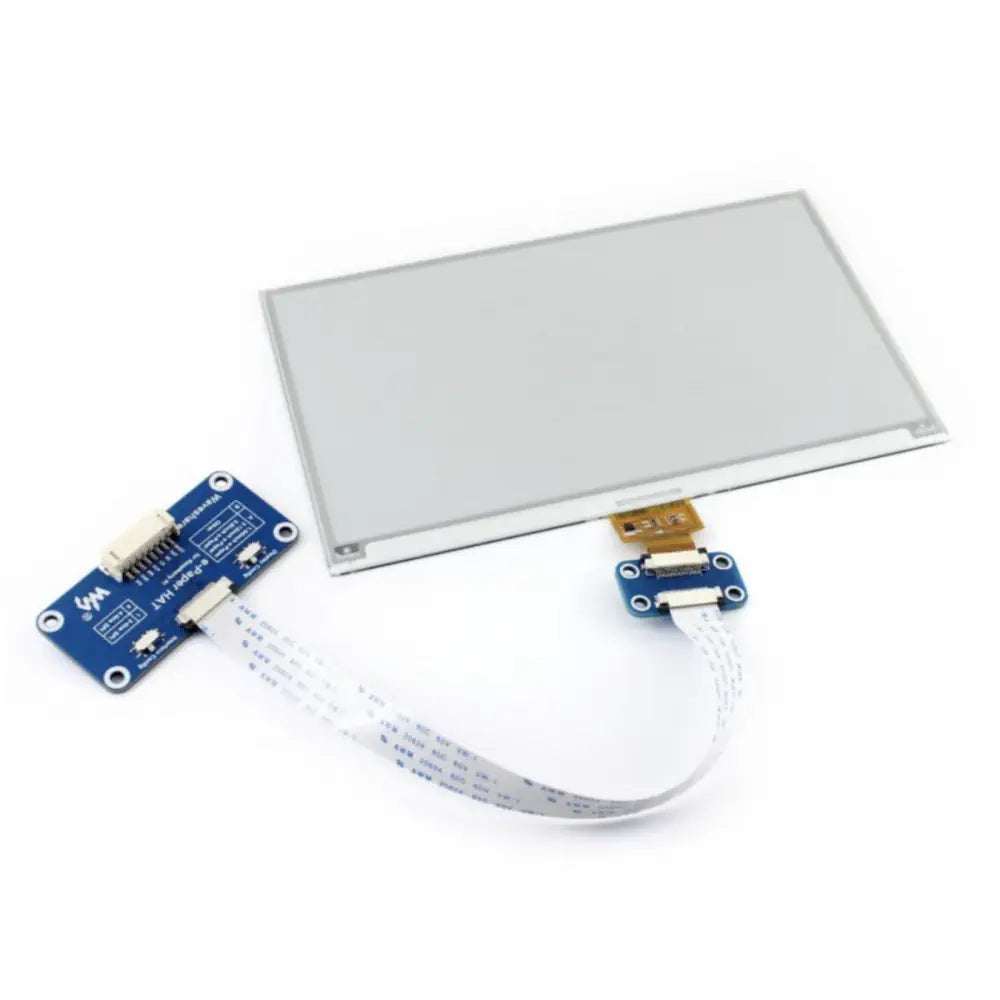

  • 1x 7.5inch e-Paper
  • 1x e-Paper Driver HAT
  • 1x RPi screws pack (2 pcs)
  • 1x PH2.0 20 cm 8-Pin

800x480, 7.5-inch E-Ink display HAT for Raspberry PiOutline dimension: 170.2 x 111.2 mm

  • Outline dimension: 170.2 x 111.2 mm
  • Display size: 163.2 x 97.92 mm
  • Operating voltage: 3.3 ~5 V
  • Interface: SPI
  • Dot pitch: 0.205 x 0.204
  • Resolution: 800 x 480
  • Display color: black, white
  • Grey scale: 2
  • Full refresh time: 5s
  • Refresh power: 38mW (typ.)
  • Standby power: <0.017 mW
  • Viewing angle: >170°

Symbols:

  • VCC: 3.3 ~5 V
  • GND: Ground
  • DIN: SPI MOSI pin
  • CLK: SPI SCK pin
  • CS: SPI chip selection, low active
  • DC: Data/Command selection (high for data, low for command)
  • RST: External reset, low active
  • BUSY: Busy status output, low active

Note: Revision V2 has been released on 2019.11, the resolution is upgraded to 800 x 480, from 640 x 384 of V1. The hardware and interface of V2 are compatible with V1, however, the related software should be updated.
