AMIS-30543 Stepper Motor Driver Carrier

PololuSKU: RB-Pol-397
Manufacturer #: 2970

Price  :
Sale price $19.95

Shipping calculated at checkout

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Standard step and direction control interface
  • Low-EMI PWM with SPI-selectable voltage slopes
  • Compatible with 5 V and 3.3 V microcontrollers
  • Integrated 5V regulator that can be used to supply an external microcontroller
  • Reverse voltage protection

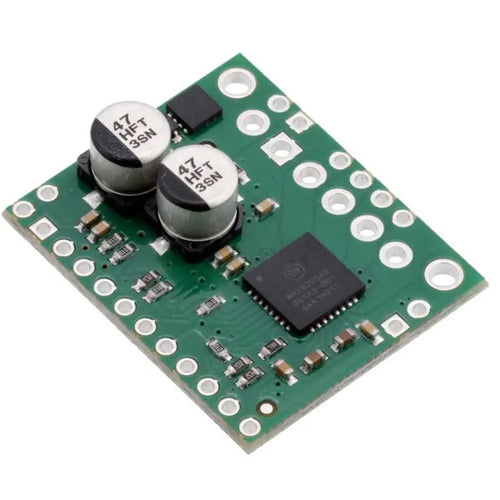

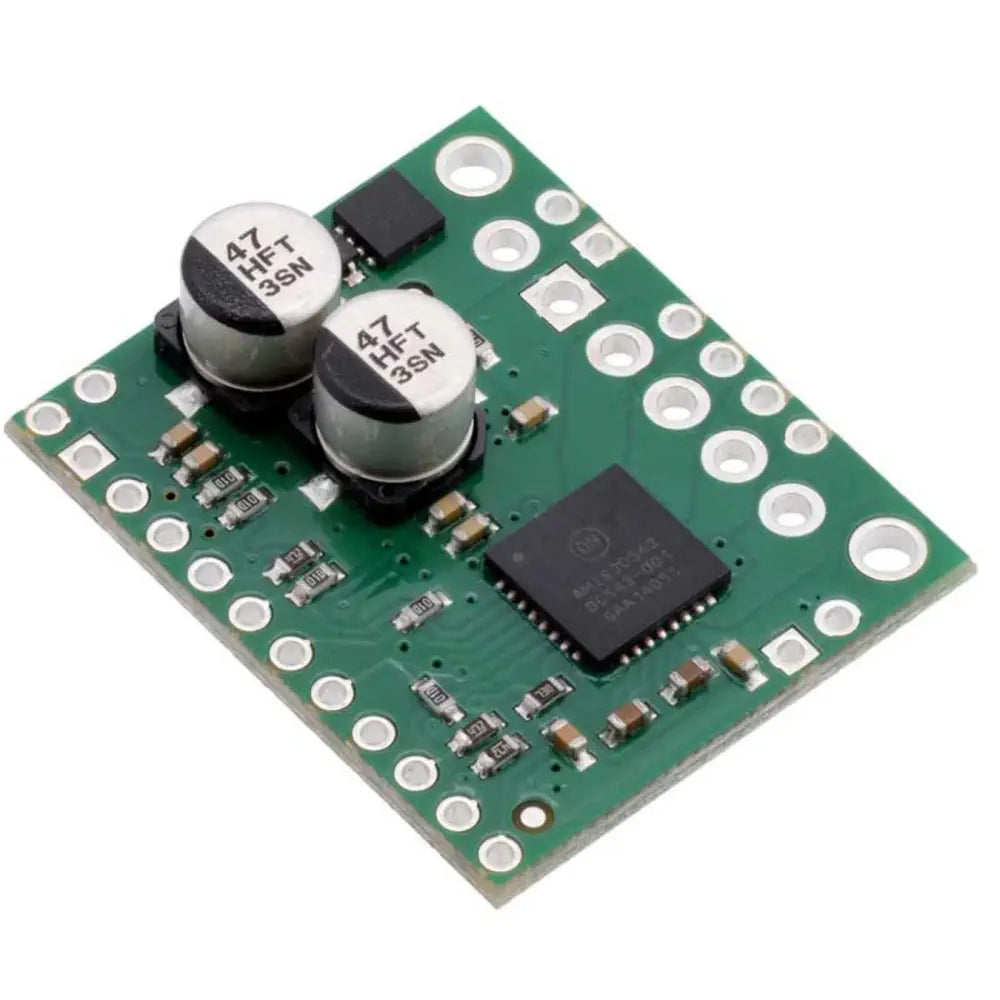

The AMIS-30543 Stepper Motor Driver Carrier is a breakout board for ON Semiconductor’s AMIS-30543 micro stepping bipolar stepper motor driver, which features SPI-adjustable current limiting, 11 step modes (from full-step through 1/128-step), back-EMF feedback that can be used for stall detection or optional closed-loop control, and over-current and over-temperature protection.

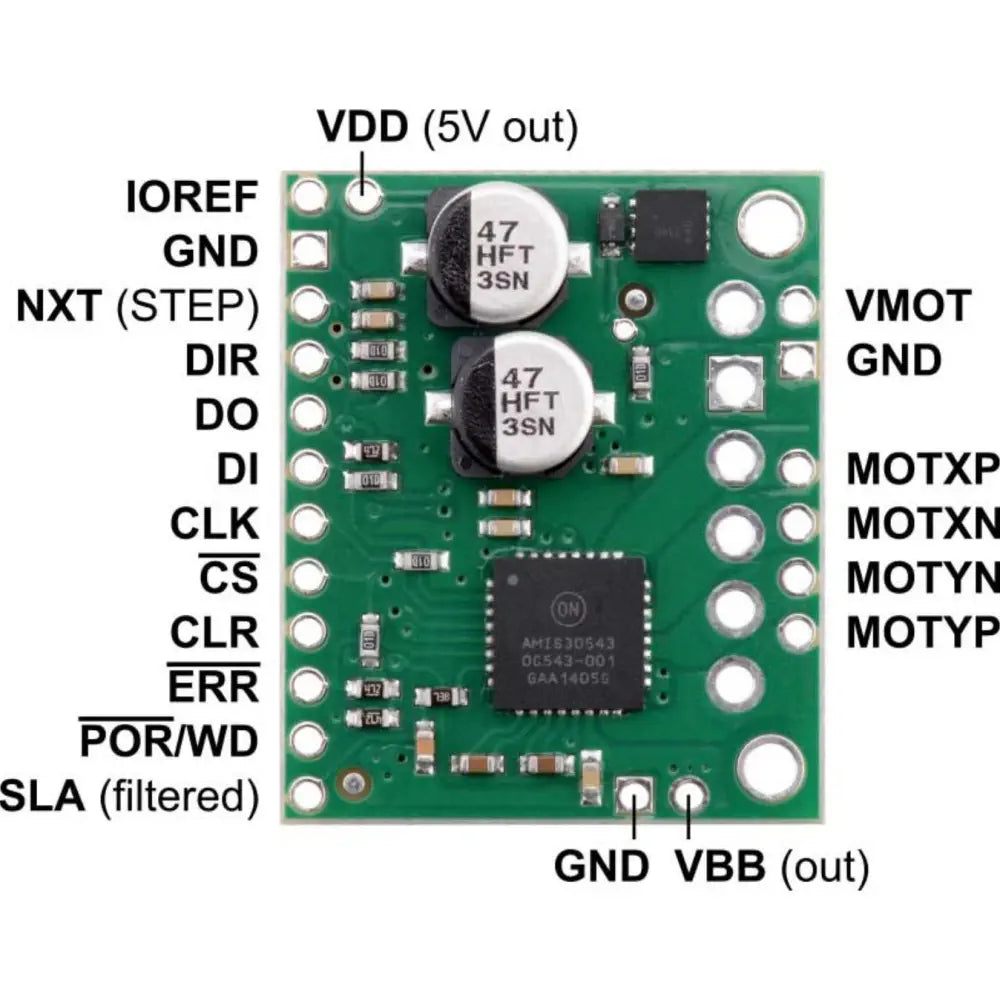

AMIS-30543 Stepper Motor Driver Carrier- Click to Enlarge

  • Size: 1.0″ × 1.2″
  • Weight: 4.0 g
  • Minimum operating voltage: 6 V2
  • Maximum operating voltage: 30 V
  • Continuous current per phase: 1.8 A3
  • Maximum current per phase: 3 A4
  • Minimum logic voltage: 2.5 V
  • Maximum logic voltage: 5.5 V
  • Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128
  • Reverse voltage protection?: Y

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
a
alan
Powerful driver with advanced features.

The SPI interface adds a lot of value to this stepper motor driver. You can set both micro-stepping and current limit through software. I use it to reduce current when the stepper is idle so it still retains position. The error output is also very nice because you can query the driver through SPI and receive detailed error information. Even warns you if the IC is nearing the temperature limit.
