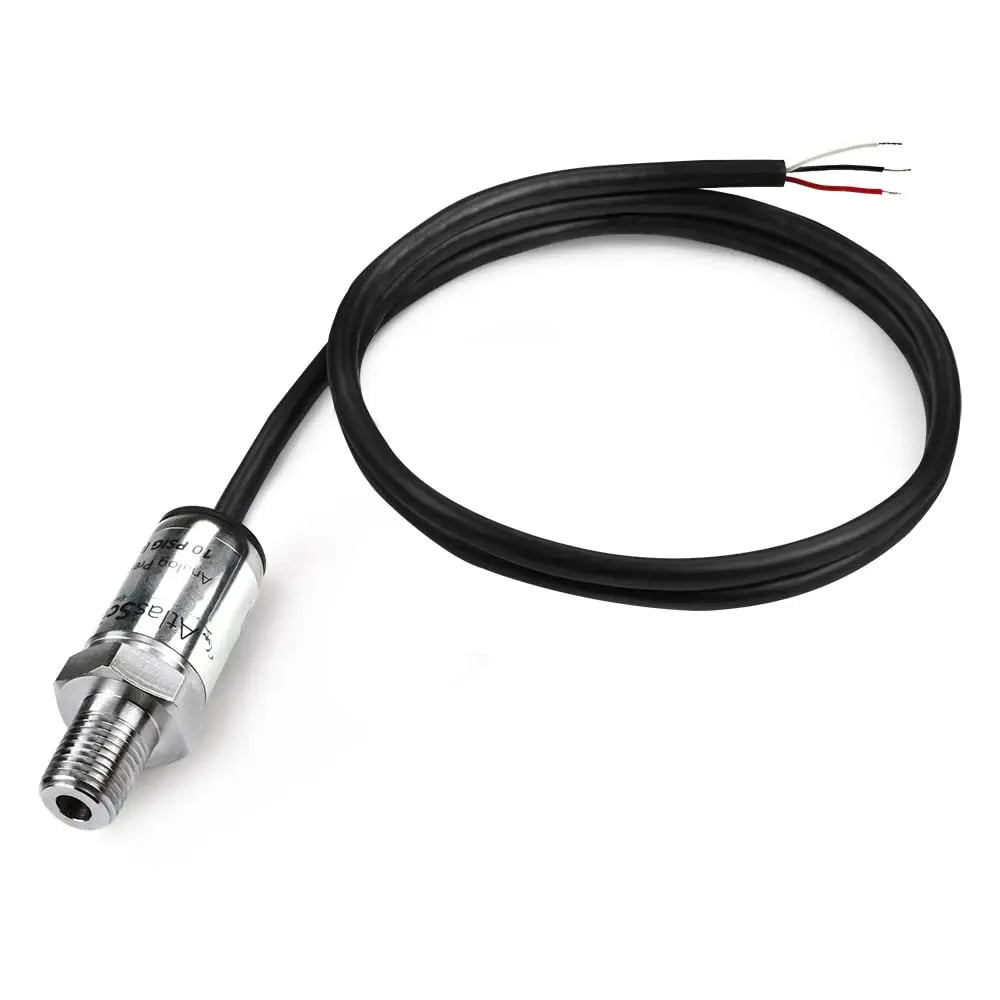

Atlas Scientific A-10 Analog Pressure Sensor

Atlas ScientificSKU: RB-Atl-162
Manufacturer #: A10-APS

Coming soon See due date

This item isn't available yet. Subscribe to our Email alert to be notified when it finally arrives in stock.

Description

  • Atlas Scientific A-10 Analog Pressure Sensor
  • Measures pressure in water, gas, and oil environments
  • Constructed with 304L Stainless Steel
  • Operates in -40°C to 105°C range
  • Features analog output 0.5 – 4.5 VDC
  • Burst pressure capacity of 300 PSI

The Atlas Scientific A-10 Analog Pressure Sensor is engineered to measure pressure through a piezoresistive semiconducting element. This sensor is versatile and can be employed in a range of applications, including the measurement of pressure in water, gas, and oil environments.

  • 1x Atlas Scientific A-10 Analog Pressure Sensor
  • Sensing area: 14.3 mm (0.56")
  • Body material: 304L stainless steel
  • Cable length: 0.9 meters
  • Connector: Tinned leads
  • Weight: 121.3 grams
  • Threading: 1/4 NPT
  • Sterilization: Chemical only
  • Analog output
  • VCC
  • Absolute maximum ratings: VCC 5.5 VDC
  • Output current: 0.45 mA
  • Operating temperature: -40°C to 105°C
  • Proof pressure: 30 PSI (206 kPa)
  • Burst pressure: 300 PSI (2,068 kPa)
  • 5V power consumption: 6 mA
  • Operating principle: Utilizes a piezoresistive semiconducting element
  • Atmospheric pressure: 1MΩ
  • 10 PSI (68.947 kPa): 500KΩ
  • Analog output: 0.5 – 4.5 VDC
  • Pressure to voltage: 0 PSI (atmosphere) 0.5V, 2 PSI 1.3V, 4 PSI 2.1V, 6 PSI 2.9V, 8 PSI 3.7V, 10 PSI 4.5V
  • Voltage to PSI equation: PSI = 2.5 x (Volts) - 1.25
  • Voltage to kPa equation: kPa = 17.237 x (Volts) - 8.6185
  • Note: May read slight negative pressure when not under pressure due to floating point error
