Description

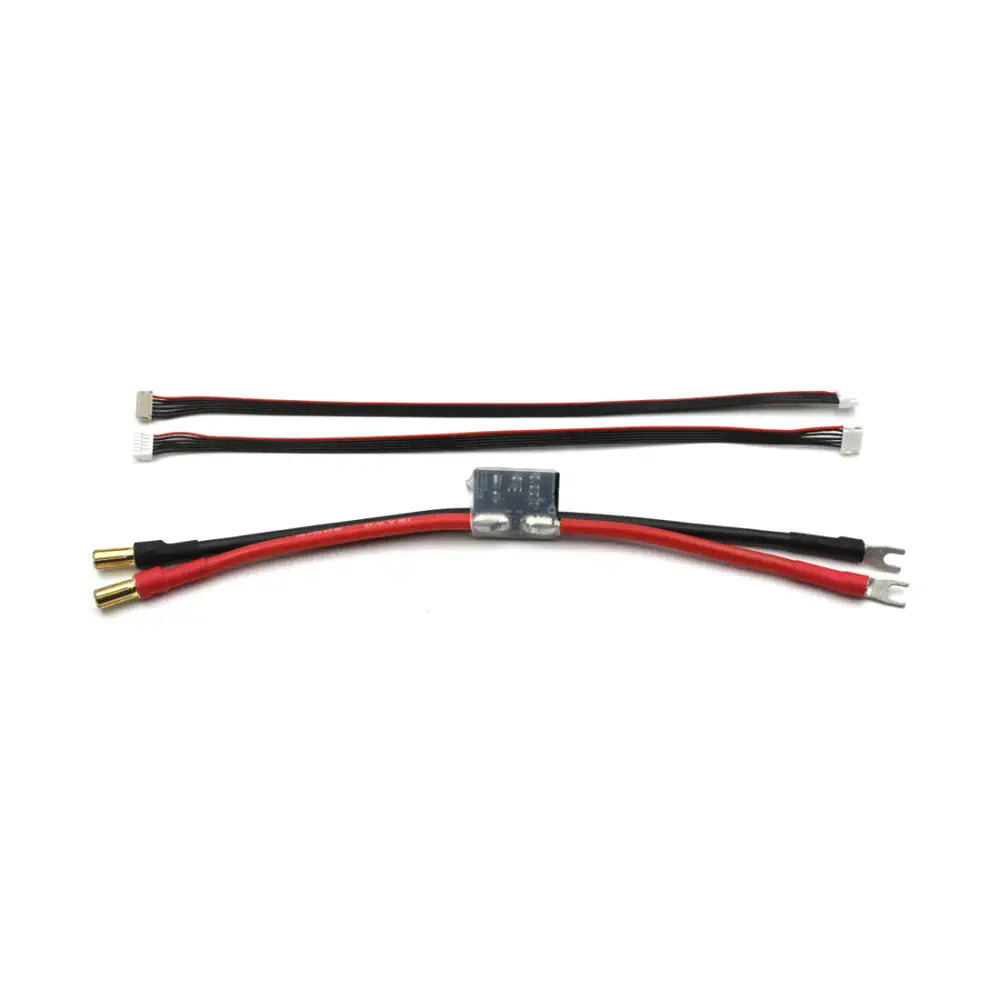

- 1x Power Sense Module with pre-installed 5.5mm bullet connectors and spade connectors
- 1x 200mm DF13 to JST-GH Cable
- 1x 200mm JST-GH to JST-GH Cable
Size
- 24 x 19 x 7 mm / 0.94 x 0.75 x 0.28 inch (L x W x H)
- DF13 to JST-GH cable length: 200 mm
- JST-GH to JST-GH cable length: 200 mm
Electrical
- Max Voltage Input: 25.2 V (6S)
- Max Current Sensing: 100 A (non-continuous)
- Voltage Sense Output: 11.0 V/V
- Current Sense Output: 37.8788 A/V (offset by 0.330 V)
- Output Connector: Non-insulated spades (S5-3.5SNB)
- Input Connector: 5.5 mm bullet connector
Power Pin Out
- Pin: 1 (red): Not Connected
- Pin: 2 (blk): Not Connected
- Pin: 3 (blk): Signal: Current | Volt: +3.3 V
- Pin: 4 (blk): Signal: Voltage | Volt: +3.3 V
- Pin: 5 (blk): Signal: GND | Volt: GND
- Pin: 6 (blk): Signal: GND | Volt: GND
