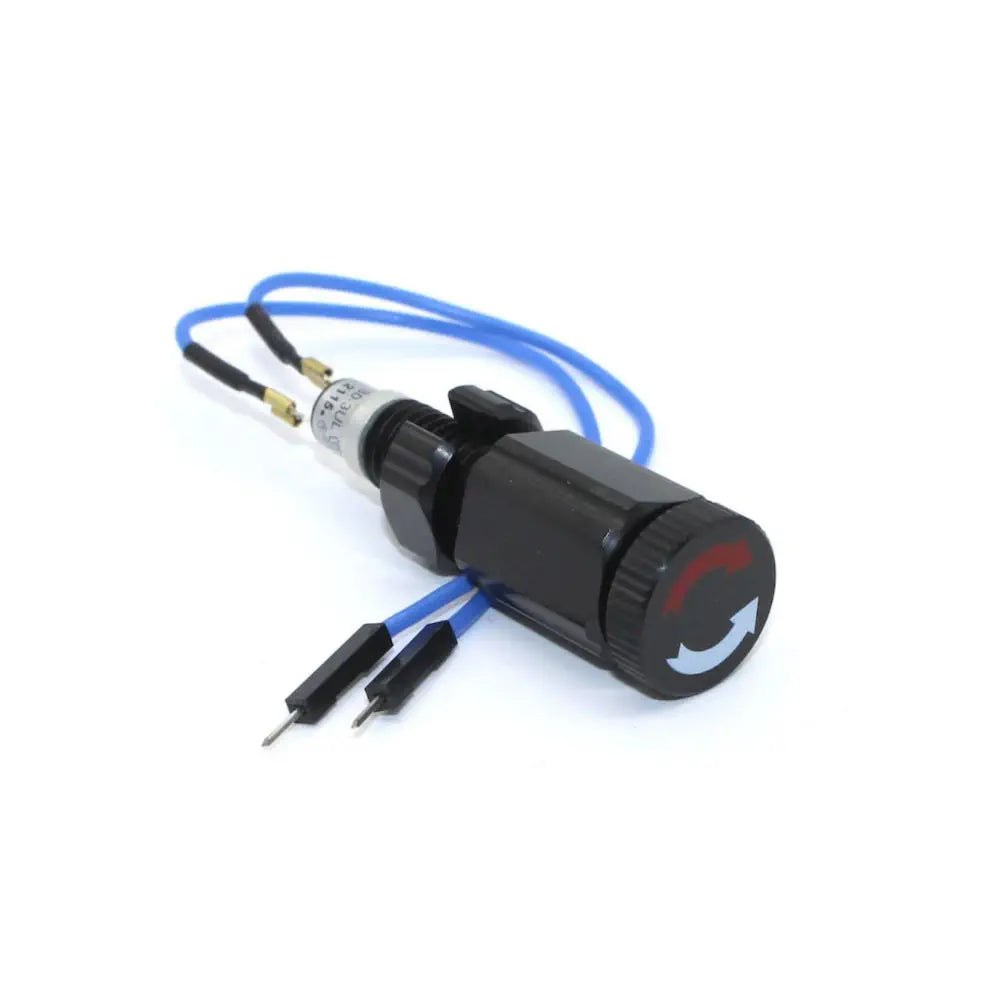

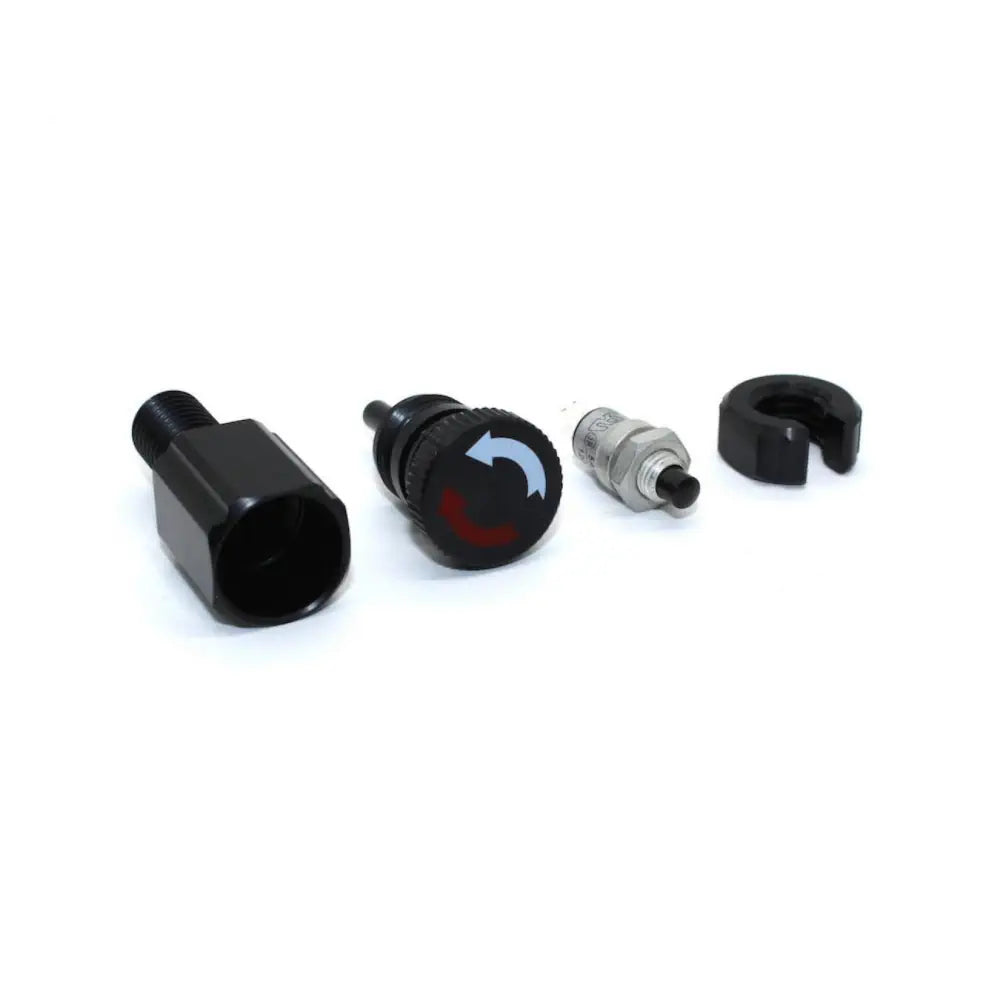

Description

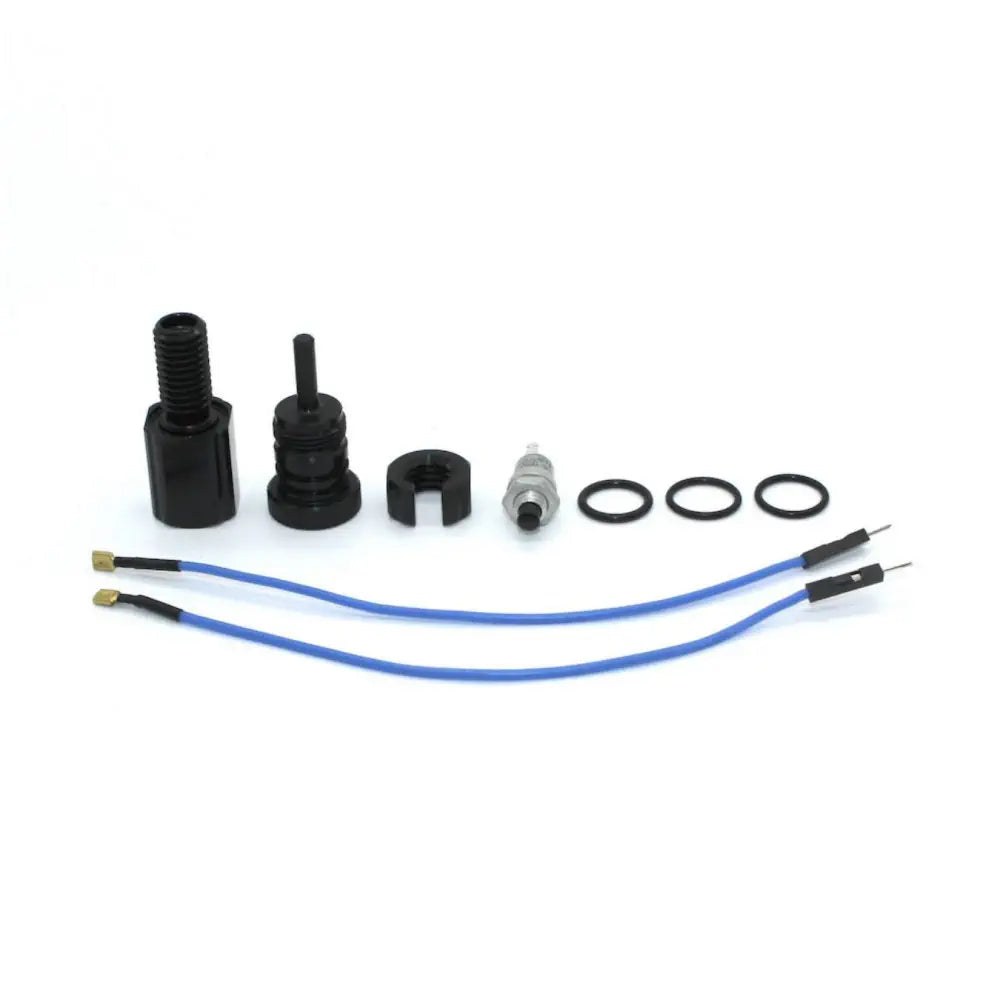

- 1x Switch Bulkhead
- 1x Switch Plug
- 1x M10 Nut
- 1x O-ring for Bulkhead
- 1x O-ring for Switch Plug
- 1x 30-3UL Button
- 2x Wire Lead

Size
- Recommended Through Hole Diameter: 10.2 mm
- Bulkhead Thread: M10 x 1.5
- Bulkhead Thread Length: 20 mm
- Bulkhead/Nut Wrench Flats: 16 mm / 5/8 inch
- Overall Assembled Height From Endcap: 25 mm
- Overall Outer Diameter: 18 mm
PDF File
Performance
- Maximum Rated Depth (seawater): 950 m / 3116 ft
- Design Lifetime¹: 3 years or 500 cycles to rated depth
- Temperature Rating (air): -25 to 60 °C / -13 to 140 °F
- Temperature Rating (water): 0 to 40 °C / 32 to 104 °F
Electrical
- Maximum Operating Voltage: 120 VAC / 26 VDC
- Maximum Operating Current: 5 A
- Wire Gauge: 22 AWG
- Turn ON: Clockwise / Red
- Turn OFF: Counter-Clockwise / Grey
- Switch Connector: TE Connectivity 61818-1
- Output Connector: 0.1 inch Male Header Pin
Tools
- Compatible Bulkhead Wrench: WL-M10-BULKHEAD-WRENCH
- Recommended Installation Torque: 3.5 N⋅m
Physical
- Recommended Through Hole Diameter: 10.2 mm
- Bulkhead Thread: M10 x 1.5
- Bulkhead Thread Length: 20 mm
- Bulkhead/Nut Wrench Flats: 16 mm
- Overall Assembled Height From Endcap: 25 mm
- Overall Outer Diameter: 18 mm
- Bulkhead O-ring Size: AS568-013 Buna-N 70A
- Plug O-ring Size: 1.5 x 11.5 mm Buna-N 70A
- Bulkhead/ Plug Material: 7075-T6 Anodized Aluminum
- Wetted Materials: Buna-N Rubber, Molykote 111 Compound, 7075-T6 Anodized Aluminum
- In Air Weight (No Nut): 20.5 g
- In Water Weight (No Nut): 14.7 g
