Description
- Capacity: 50kg
- Wheatstone bridge sensor
- Plugs into the
Phidgets PhidgetBridge Wheatstone Bridge Sensor Interface (w/ Enclosure) - RoHS compliant

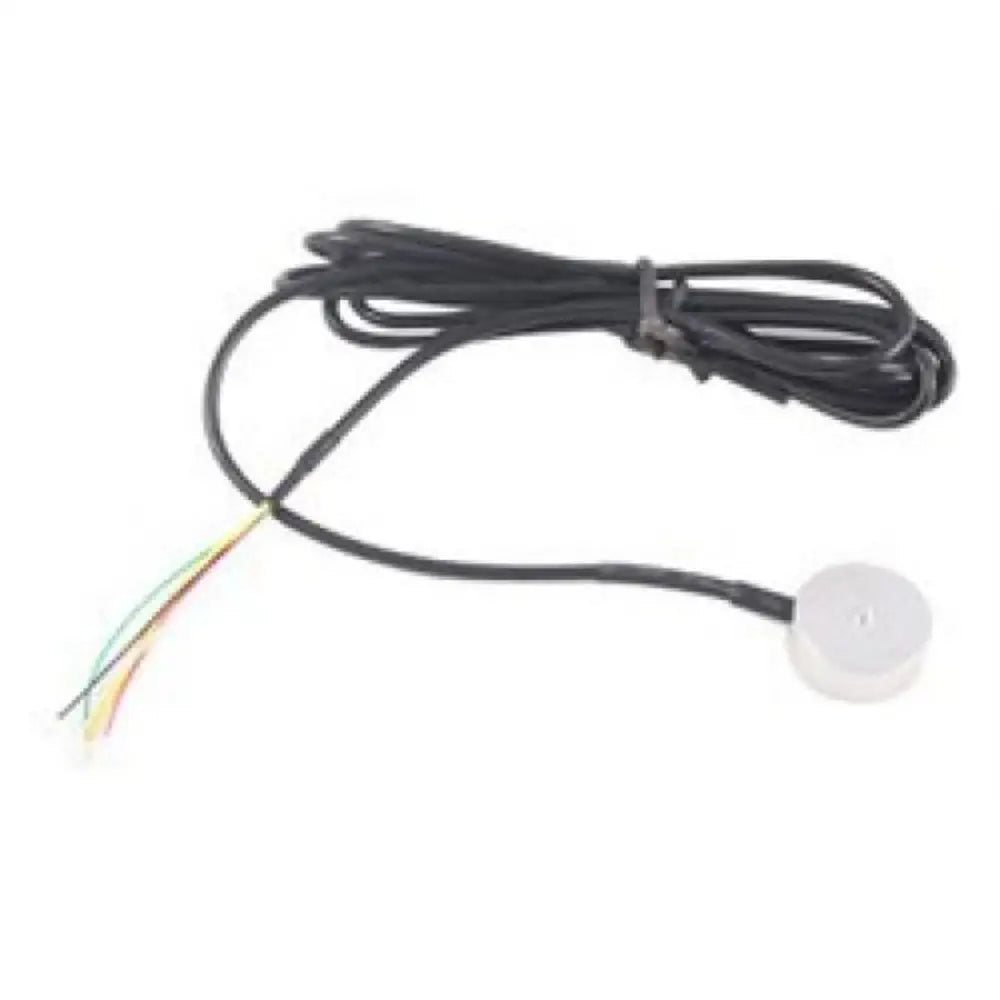

The 50 Kg Button Load Cell is used in applications that require a thin form factor. The bottom of the load cell is bolted, and force applied to the button on the top. By loading only the button, which is slightly rounded, the load cell is less sensitive to errors resulting from the load not pushing down exactly straight on the load cell. The electrical signal output by the load cell is very small and requires specialized amplification. Fortunately, the
Note: No calibration data is included with the sensor. To calibrate the sensor, you need to load the unit down with a few known weights. Then perform linear regression on the data points to obtain a functionrelating output mV/V and applied force.
PDF Files
Sensor Properties
- Sensor Type:Compression Load Cell
- Weight Capacity Max: 50 kg
- Maximum Overload: 60 kg
- Creep: 20 g/hr
- Zero Balance: ± 500 g
- Cell Repeatability Error Max: ± 100 g
- Cell Non-Linearity Max: 100 g
- Temperature Effect on Span: 2.5 g/°C
- Temperature Effect on Zero: 2.5 g/°C
Electrical Properties
- Rated Output: 1 mV/V
- Rated Output Error Max: 40 μV/V
- Output Impedance: 350 Ω
- Supply Voltage Min: 5 V DC
- Supply Voltage Max: 12 V DC
Physical Properties
- Compensated Temperature Min: -10 °C
- Compensated Temperature Max: 40 °C
- Operating Temperature Min: -20 °C
- Operating Temperature Max: 55 °C
- Cable Length: 3 m
- Cable Gauge: 30 AWG
- Material: Aluminium Alloy & Alloy Steel
- Screw Thread Size: M3x0.5
