Description

  • Calibrated Capacitive Force Sensor 8mm 100N (22lb)
  • Features a SingleTact Sensor and Interface Board
  • Provides a single element tactile pressure sensor
  • Is plugged with FFC connector
  • Supports the standard (100 Kbits/s) clock rate

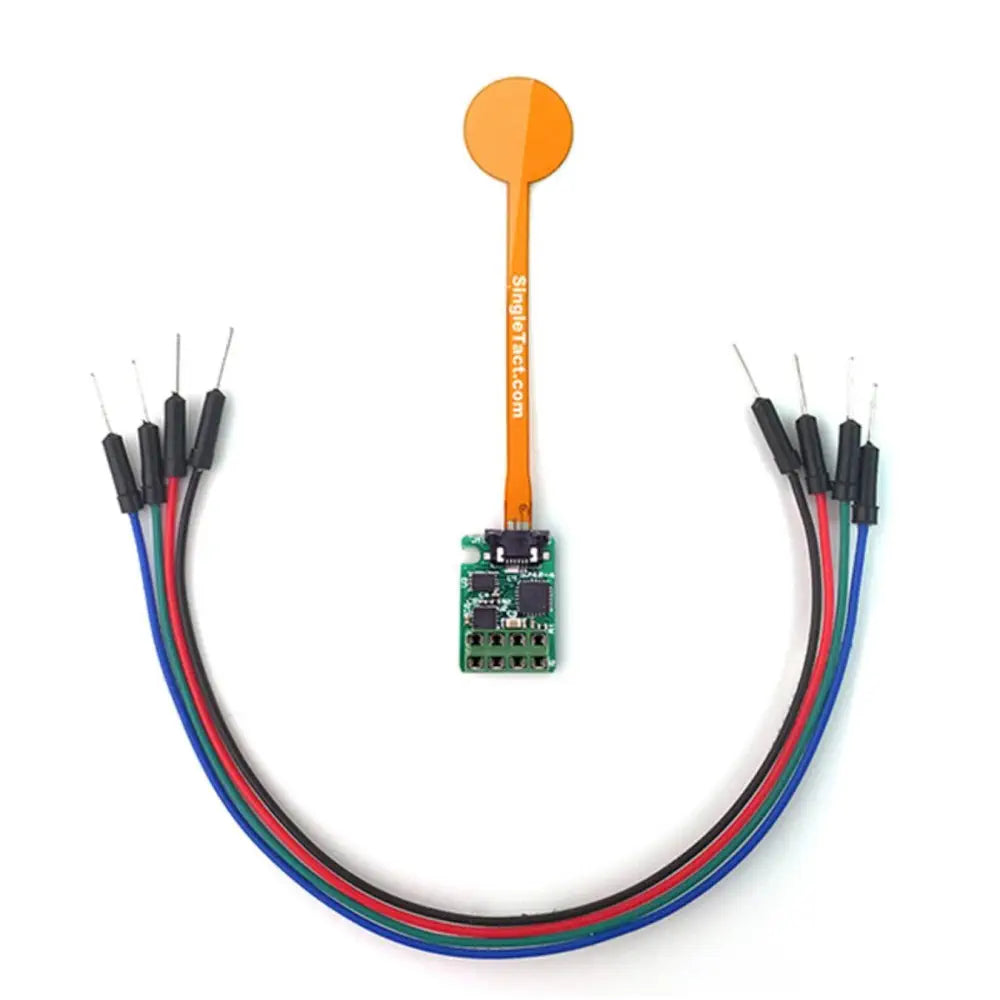

The Calibrated Capacitive Force Sensor 8mm 100N (22lb) is a single element tactile pressure sensor that accurately and reliably quantifies applied force combined with a simple interface board offering a 0 to 2V analog output for immediate Data Acquisition (DAQ) integration and an I2C based interface for integration into embedded systems.

Calibrated Capacitive Force Sensor 8mm 100N (22lb) - Click to Enlarge

The sensor is plugged into the FFC connector on the green interface board (with the sensor connector pads facing upward). The analog output swings from 0 to 2 V, with the valid working output ranging from 0.5 to 1.5 V. The SingleTact I2C interface supports the standard (100 Kbits/s) clock rate in 7-bit address mode.

Calibrated Capacitive Force Sensor 8mm 100N (22lb) - Click to Enlarge

Multiple sensor interfaces may be connected to a single I2C bus. The bus address of individual sensor interfaces can be configured by writing desired address value (4 to 127) via the I2C interface to register address 0 with an I2C Write Operation.

  • 1x 100N (22lbs) Sensor
  • 1x I2C board with Calibration
  • 4x Jumper wire

Calibrated Capacitive Force Sensor 8mm 100N (22lb) - Click to Enlarge

  • 50 x 3.5 mm

Sensor Performance

  • Typical Signal to Noise Ratio (SNR): 500:1
  • Force Resolution: < 0 2% of Full Scale (FS)
  • Typical Repeatability Error: < 1.0% (1 sigma of FS)
  • Operating Temperature: -40 - 200 °C
  • Temperature Sensitivity: Up to 0.2% / °C
  • Linearity Error: < 2.0%
  • Dirt: < 2% per logarithmic time scale
  • Hysteresis: < 4.0%
  • Response Time: < 1 ms (Measured using Oscilloscope)
  • Contact Surface Material: Polyimide
  • Sensor Thickness: 0.35 mm
  • Tail Length: 50 mm
  • Typical Baseline Capacitance: 8 mm: 75 pF; 15mm: 230 pF
  • Typical Capacitance Change: 8 mm: 2.2 pF; 15mm: 5.5 pF
  • ESD Sensitivity: Not sensitive to ESD
  • Material Grade: UL grade 94 V-1 or better

Electronic

  • Update Rate: >300 Hz
  • Analog Out: 0.5 - 1.5 V
  • Digital Interface: I2C (100 kHz)
  • IO Voltage: 3.3 V
  • Supply Voltage: 3.7 - 12 V
  • Input Current: 2.5 mA running at 3 MHz
  • Weight: Sensor 0.23 g / Electronics 1.6 g
  • RoHS: Compliant
  • Operating Temperature: -40 - 85 °C
