Description

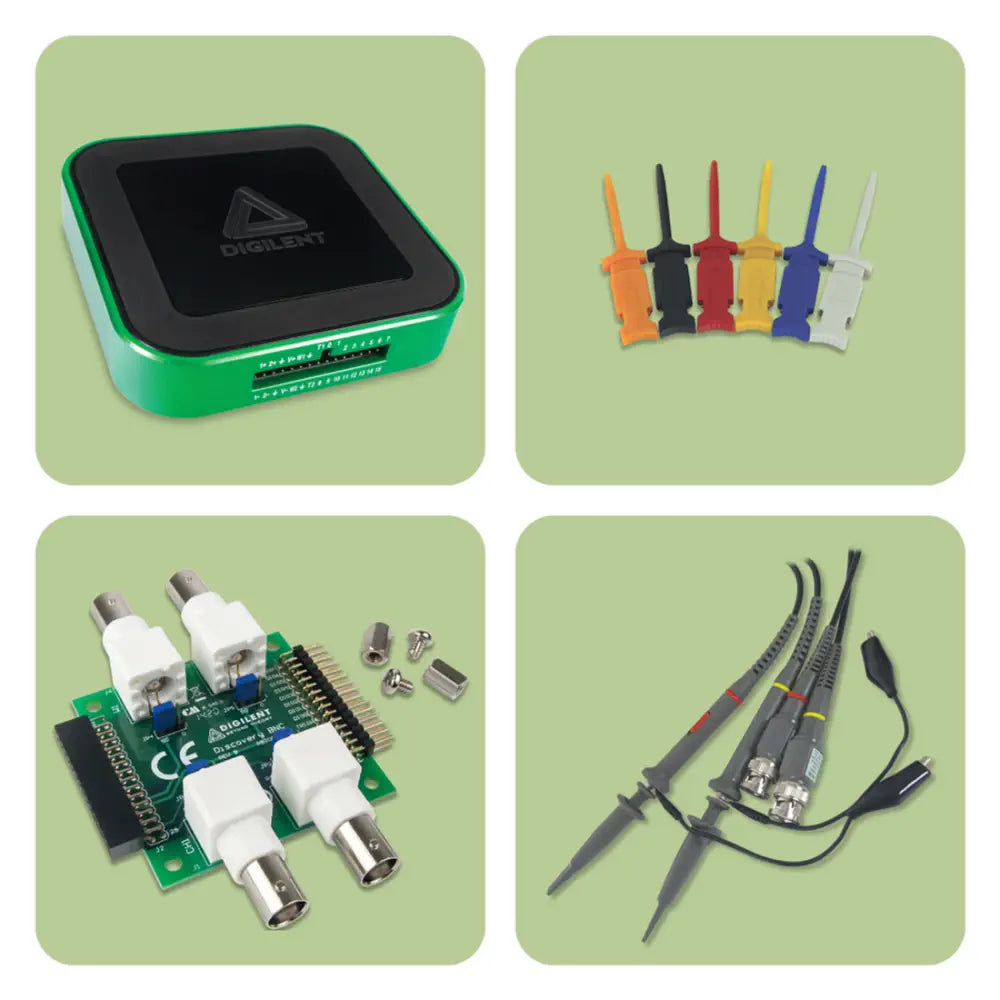

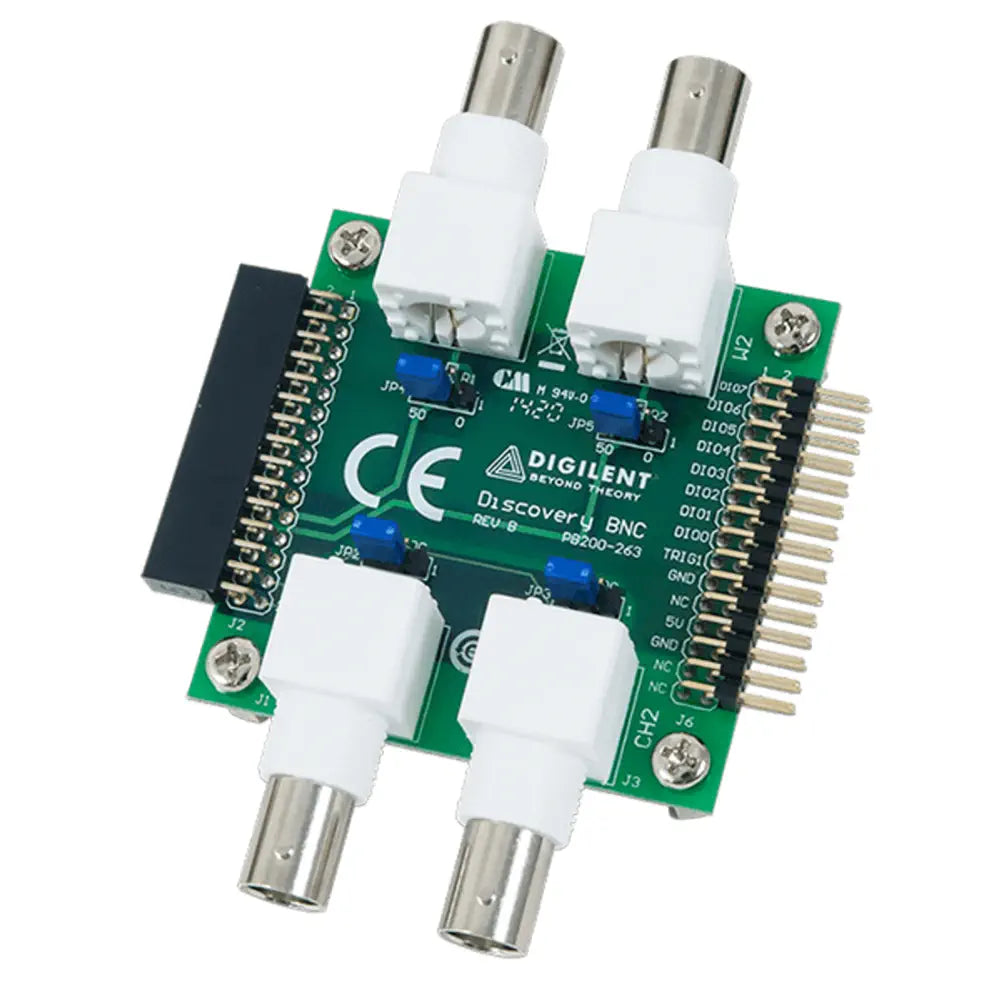

- 1x BNC Adapter Board
- 1x BNC Oscilloscope
- 10x Probe
- 6x Mini Grabber Test Clip

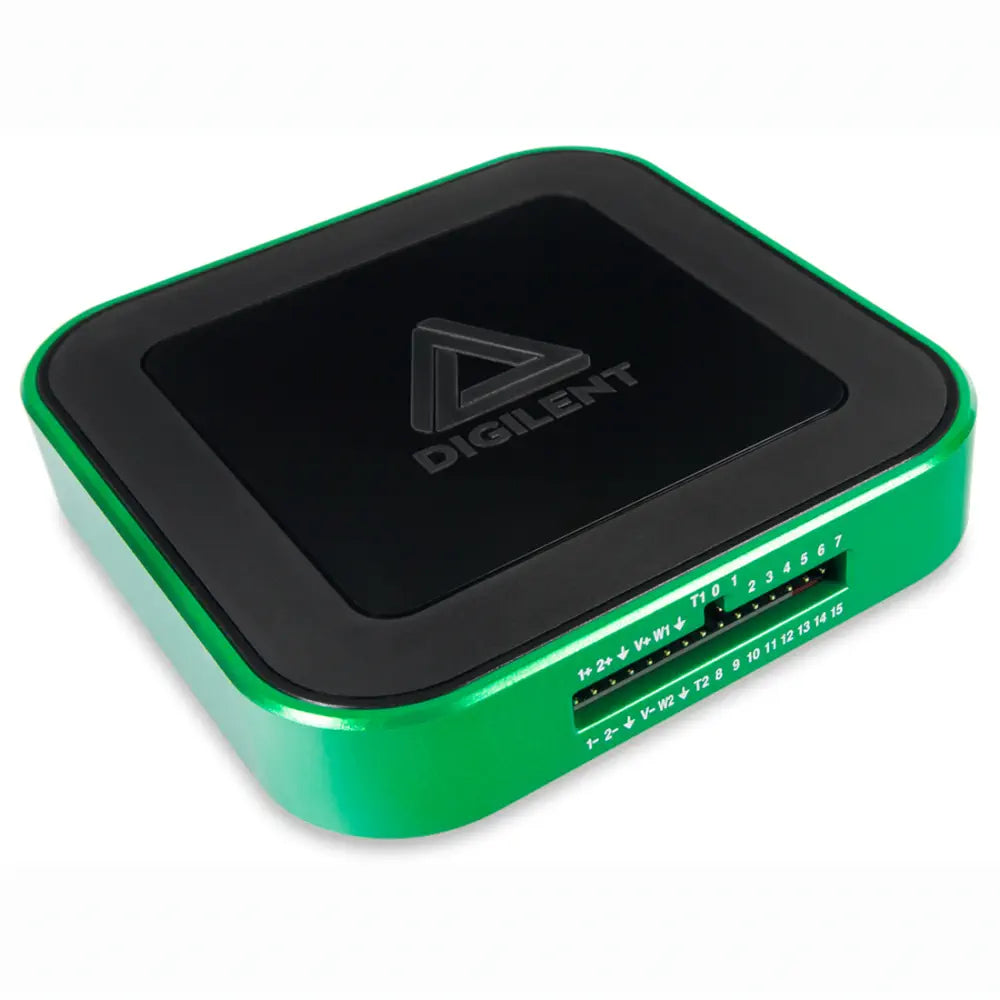

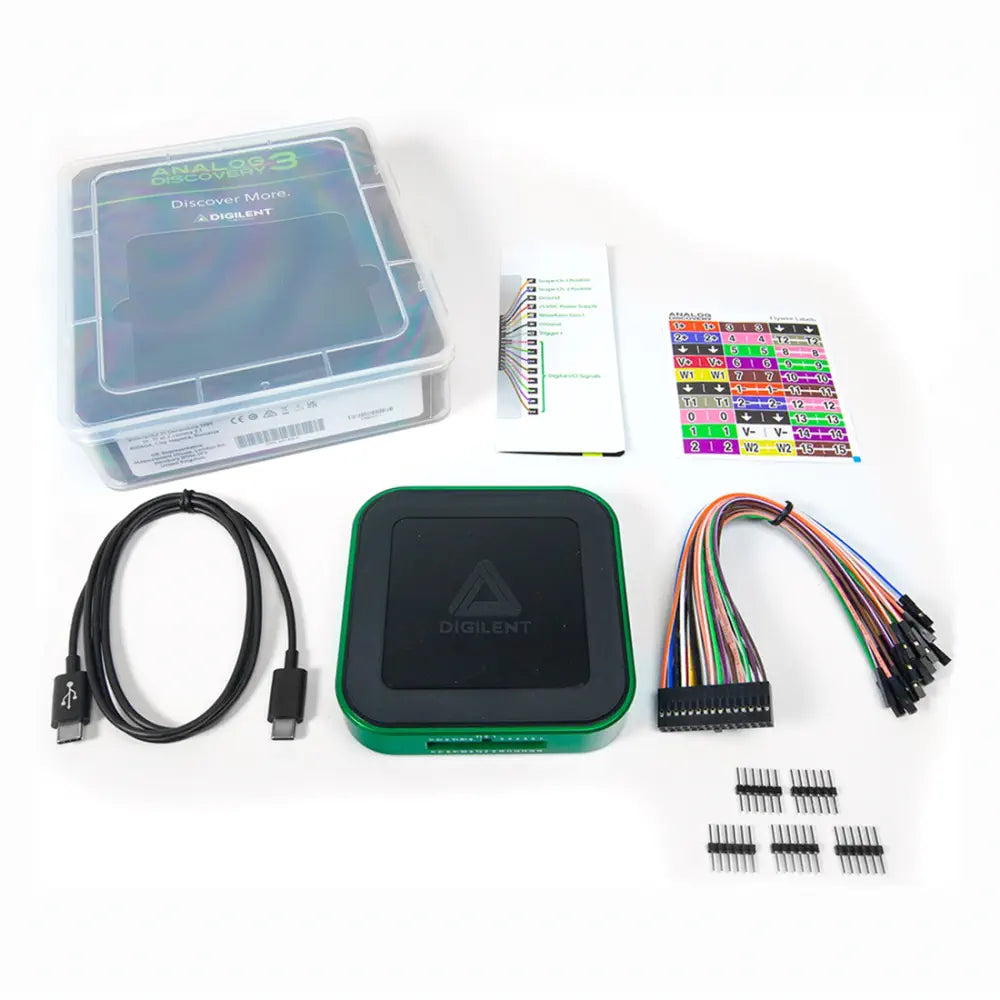

- 1x Analog Discovery 3
- 1x Plastic Project Box
- 1x USB-C to USB-C Programming Cable
- 1x 2x15 Flywire Signal Cable Assembly
- 5x 6-Pin Male Header
- 1x 30-Pin Flywire Label
Oscilloscope
- Channels: 2
- Resolution: 14-bit
- Sample Rate: Up to 125 MS/s
- Bandwidth: 9 MHz
- Input Impedance: 1 MΩ || 24 pF
- Voltage Range: ±25 V
- Max Buffer Size: 32,768 Samples/channel
Arbitrary Waveform Generator
- Channels: 2
- Resolution: 14-bit
- Sample Rate: Up to 125 MS/s
- Bandwidth: 9 MHz
- Voltage Range: ±5 V
- Max Buffer Size: 32,768 Samples/channel
- Supported Waveforms: Standard, Modulation Sweep, Custom
Programmable Power Supply
- Channels: 2
- Output Voltage: 0.5 V to 5 V or -0.5 V to -5 V
- Maximum Power: Up to 800 mA or 2.4 W per channel when using external power
Voltmeter
- Channels: 2 (Shared with Oscilloscope)
- DC: ±25 V
- AC: ±25 V
Data Logger
- Channels: 2 (Shared with Oscilloscope)
- Supported Measurements: DC, True RMS, AC RMS, Custom
Logic Analyzer
- Channels: 16
- Logic Level: 3.3 V CMOS, 5 V Tolerant
- Sample Rate: Up to 125 MS/s
- Max Buffer Size: 32,768 Samples/channel
Pattern Generator
- Channels: 16 (Shared with Logic Analyzer)
- Logic Level: 3.3 V CMOS
- Sample Rate: up to 125 MS/s
- Max Buffer Size: 32,768 Samples/channel
Static I/O
- Channels: 16 (Shared with Logic Analyzer)
- Virtual Devices: LEDs, Buttons, Switches, Sliders, Progress Bars, Seven Segment Displays
Spectrum Analyzer
- Channels: 2 (Shared with Oscilloscope)
- Frequency Range: 0 Hz up to 62.5 MHz
- Windowing Functions: Rectangular, Hamming, Hann, Blackman-Harris, Flat Top, Kaiser, and more
Network Analyzer
- Inputs / Outputs: Shared with Oscilloscope and Waveform Generator
- Frequency Sweep Range: 20 μHz to 9 MHz
- Frequency Steps: 1 to 10,001 steps
- Plots: Bode, Time, FFT, Nichols, Nyquist
Impedance Analyzer
- Inputs / Outputs: Shared with Oscilloscope and Waveform Generator
- Frequency Sweep Range: 20 μHz up to 31.25 MHz
- Frequency Steps: 1 to 10,001
- Plots: Impedance, Admittance, Inductance, Capacitance, and more
Protocol Analyzer
- Channels: 16 (Shared with Logic Analyzer)
- Supported Protocols: UART, SPI, I2C, CAN, CEC, JTAG, SWD, AVR
Script Editor
- Supported Instruments: All
- Language: JavaScript
Bidirectional External Triggers
- Channels: 2
- Supported Instruments: Scope, Wavegen, Logic, Patterns, Spectrum, Scripts
