Description

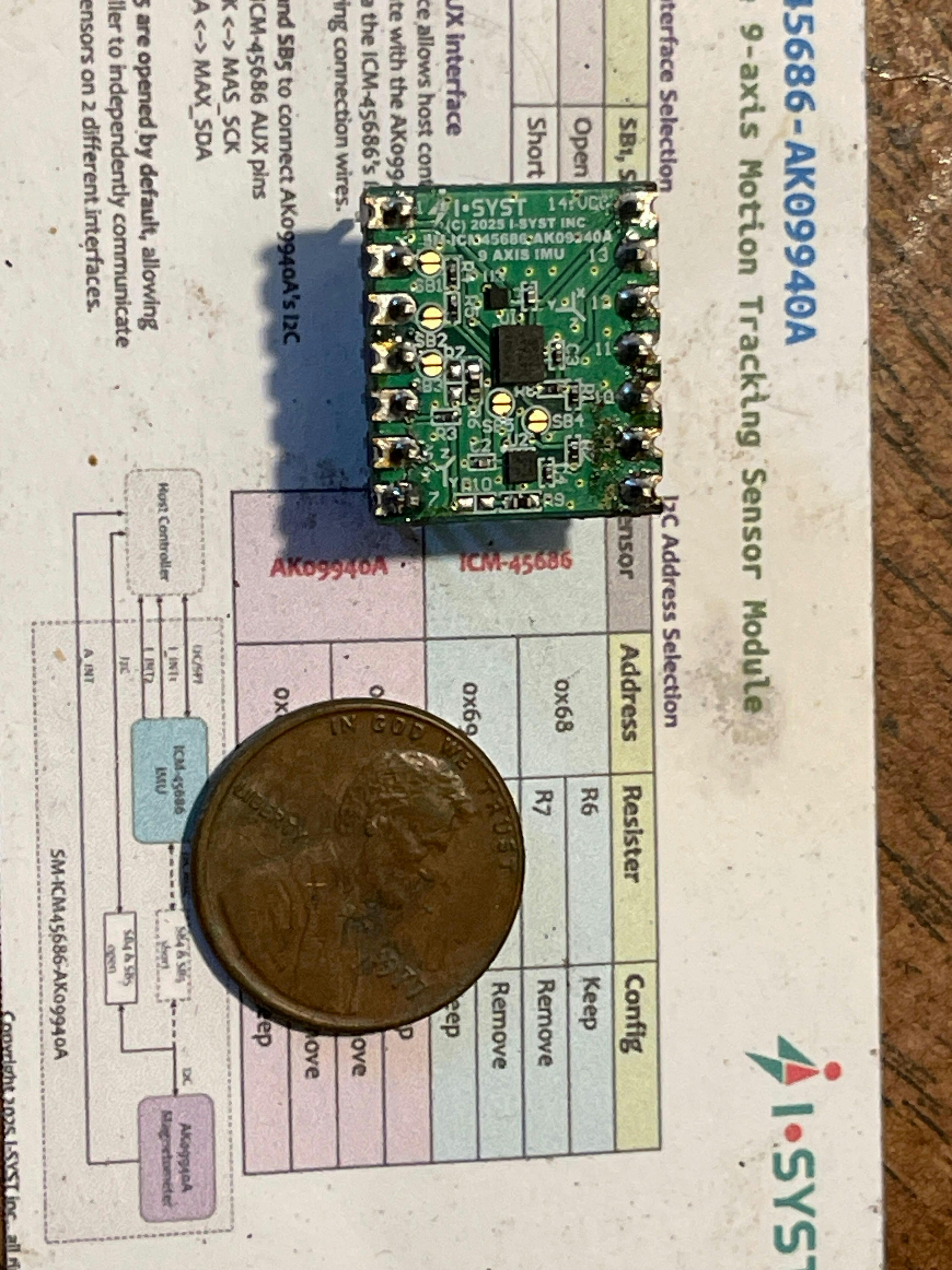

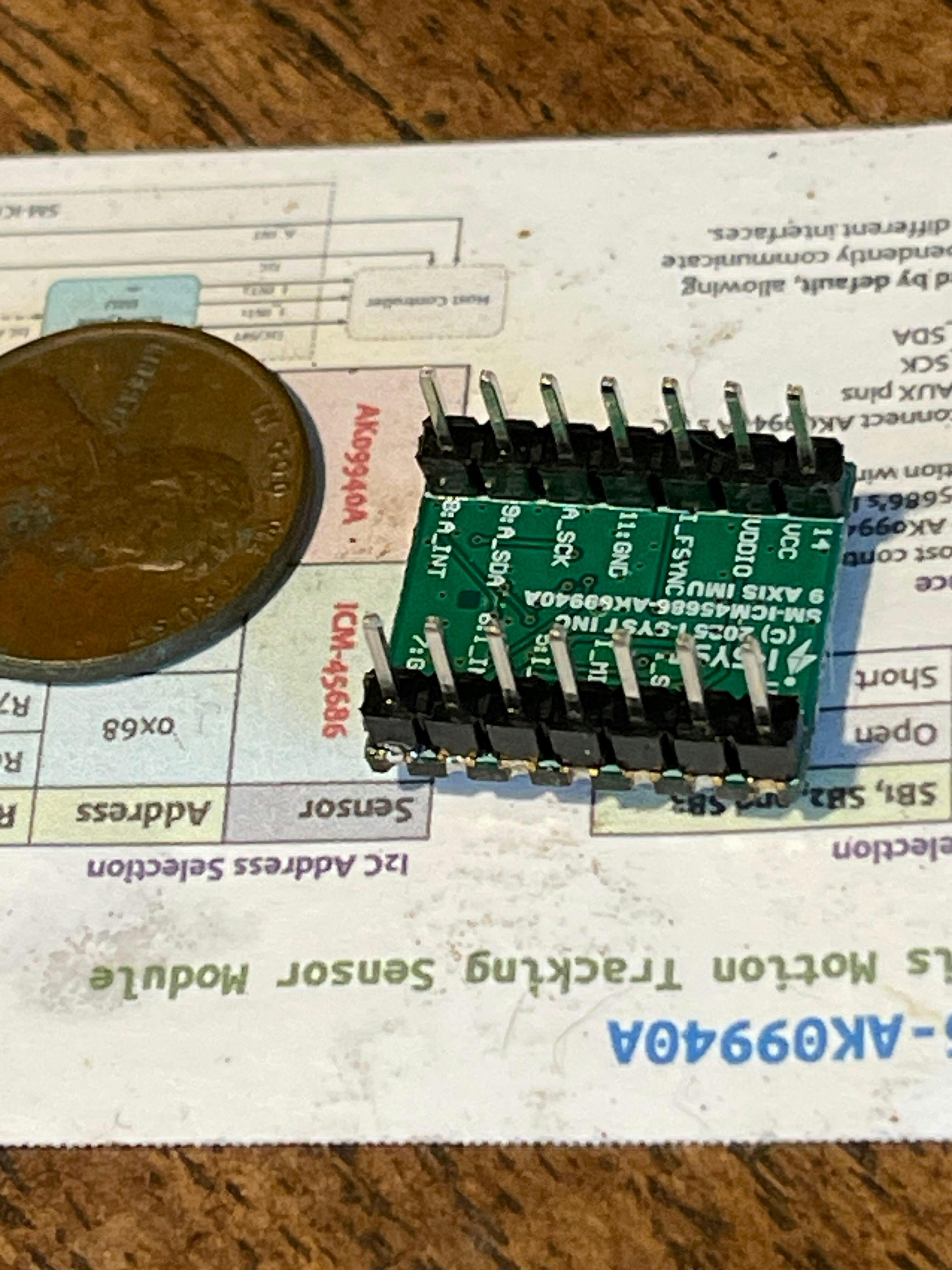

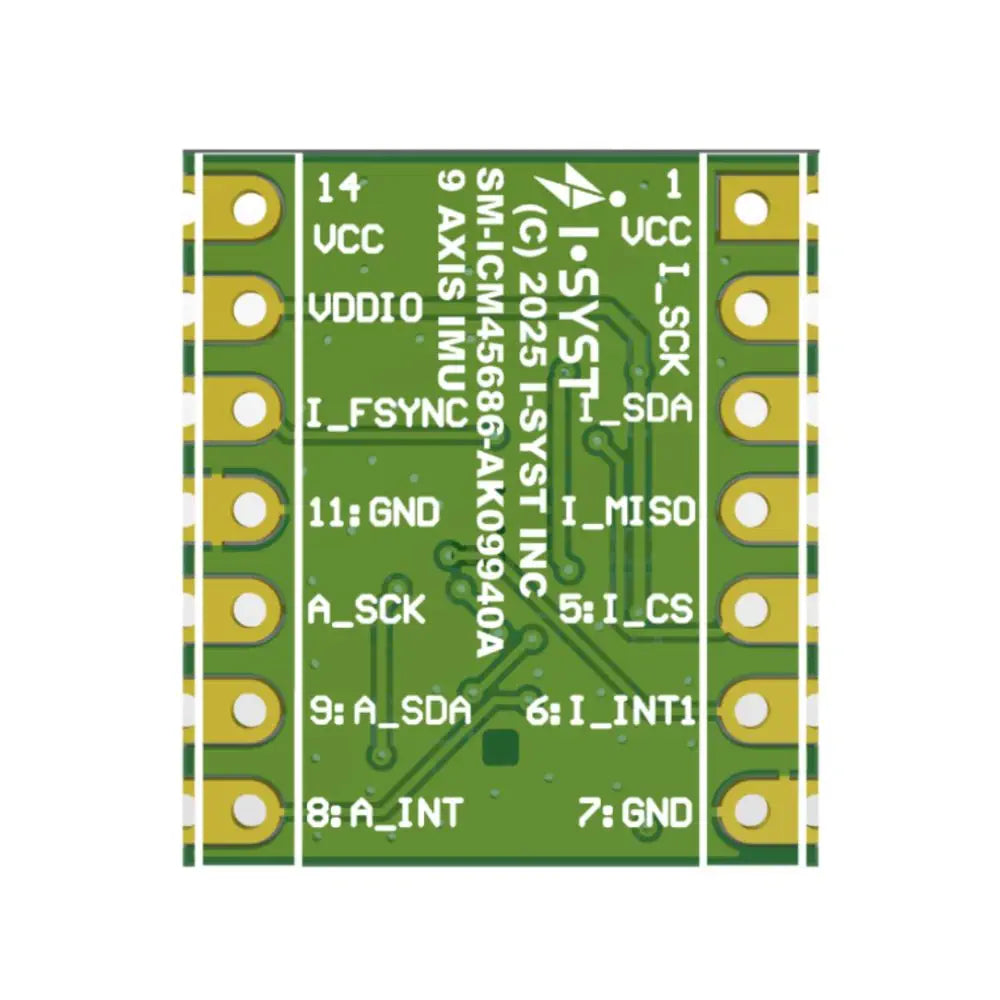

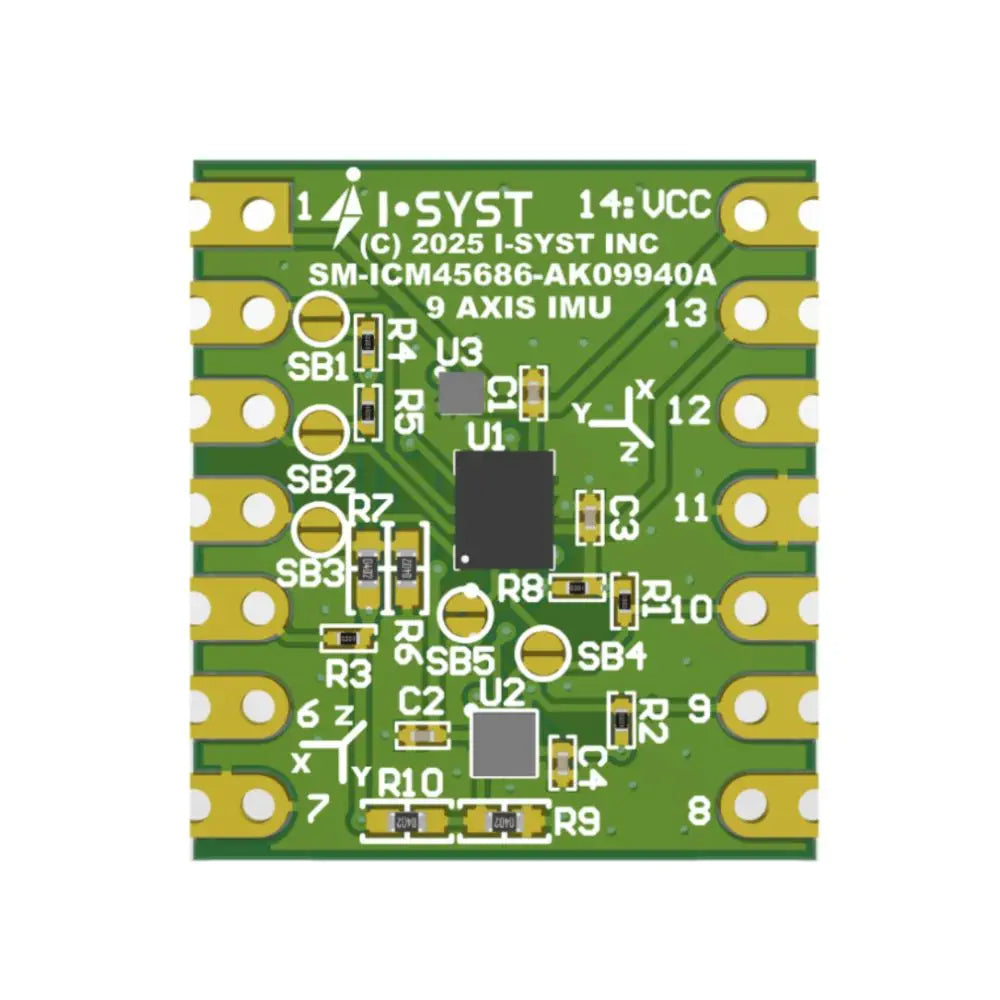

- 1x I-Syst 9-Axis MEMS Motion Tracking Sensor Module
- 16 x 18 mm
TDK ICM-45686 IMU
- 3-axis gyroscope
- Gyroscope range: ±15.625 to ±4000 degrees/sec
- Sensitivity scale factor: 8.2 to 2097.2 LSB
- Low noise: 3.8 mdps/√Hz
- Shock tolerance: 20,000g
- 3-axis accelerometer
- Accelerometer range: ±2g to ±32 g
- Sensitivity scale factor: 1024 to 16,384
- Low accelerometer noise: 70 μg/√Hz
- Configurable serial interface
- I2C @ 125 KHz, 400 KHz, 1 MHz, or
- SPI up to 24 MHz
- Low noise and low power modes support
- Output data rate
- Low noise mode: 12.5 Hz to 6400 Hz
- Low power mode: 1.5625 Hz to 400 Hz
- 2 programmable interrupt pins with 5 configurable interrupt events
- Wake-on-motion for low-power operation of host controller
- Dual interface (UI + AUX)
- Allowing host controller to communicate with another I2C/SPI device via the ICM-45686’s main serial interface
- Digital output temperature sensor
- Self-test
AKM AK09940A Magnetometer
- 3-axis magnetometer
- 18-bit data out for each 3-axis magnetic component
- Range ±1200 µT (max)
- Sensitivity 10 nT/LSB (max)
- Serial interface
- I2C @ 125 KHz (standard mode), 400 KHz (fast mode)
- SPI up to 24 MHz (not available on SM-ICM45686-AK09940A sensor module)
- 1 programmable interrupt pin for data-ready (DRDY) signaling
- Selectable sensor drive mode
- low-power drive
- low-noise drive
- ultra-low power drive
Operating voltage
- Supply voltage (VCC) range: 1.8V ~ 3.6V
- Interface voltage (VDDIO) range: 1.8 ~ 3.6V
Temperature range
- -30 ~ +85 ºC
