Description
- Custom AL5D robotic arm for Project Lead The Way (PLTW)
- Works perfectly with the free software

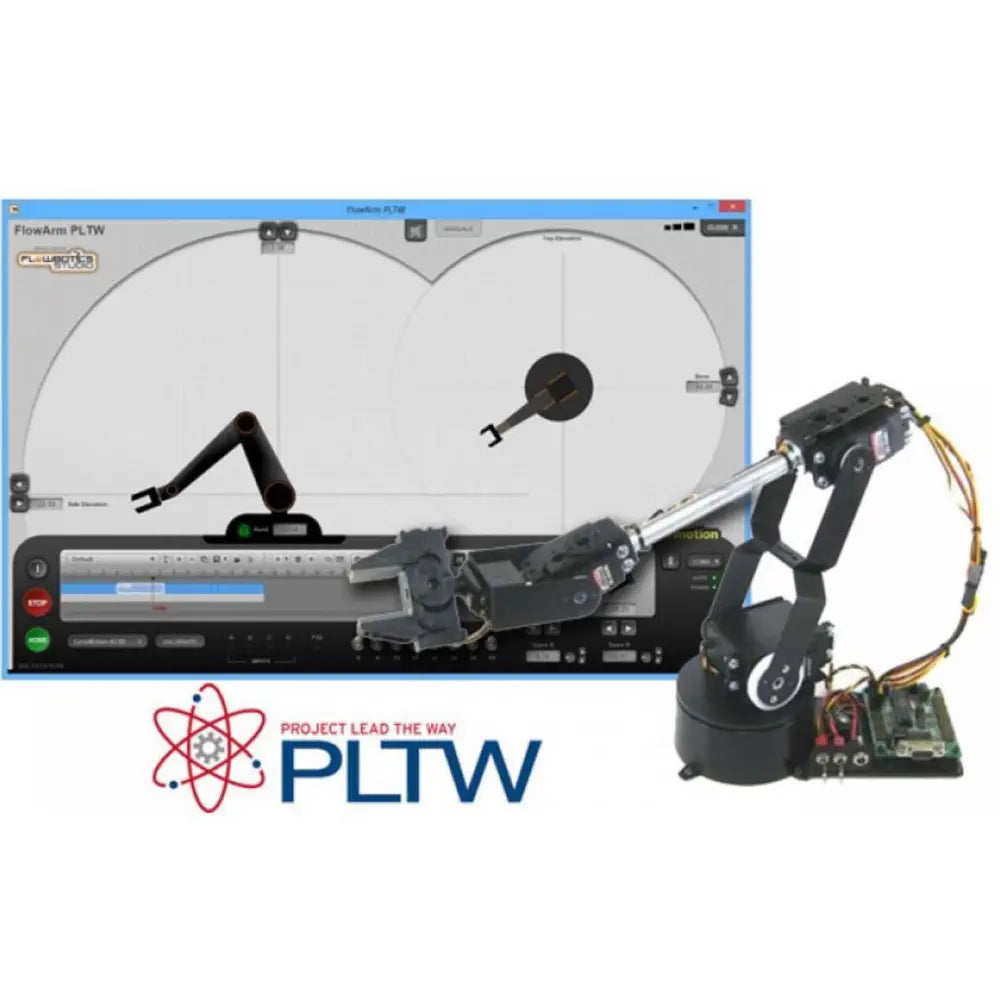

FlowArm PLTW (Download) - Advanced inverse kinematics positioning control using mouse

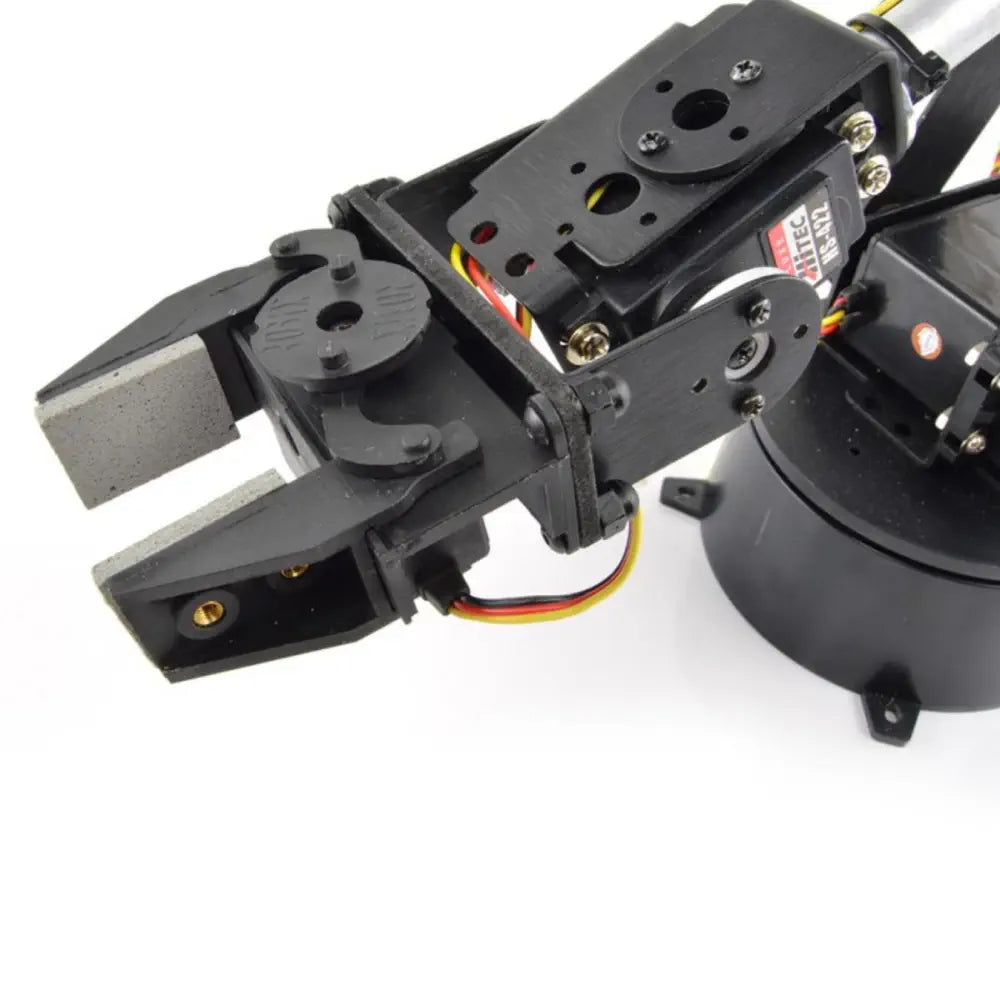

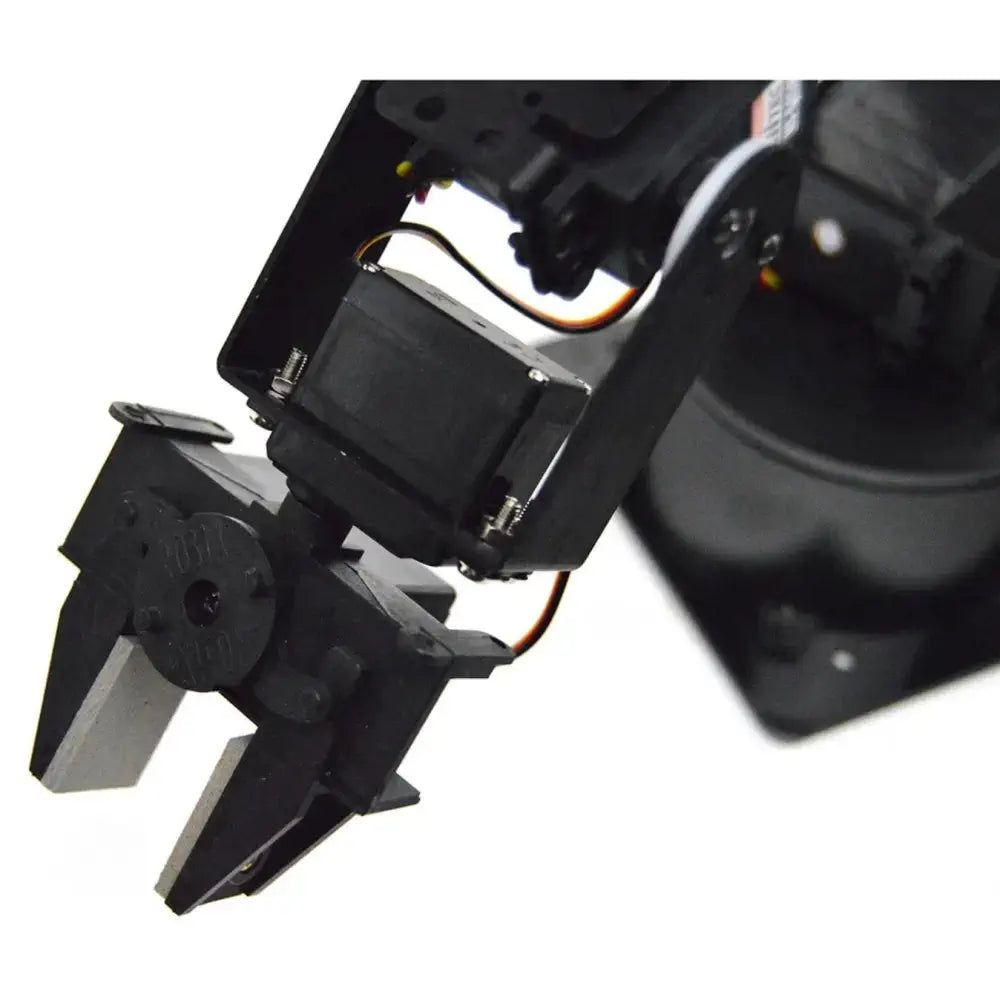

- Includes medium duty wrist rotate upgrade

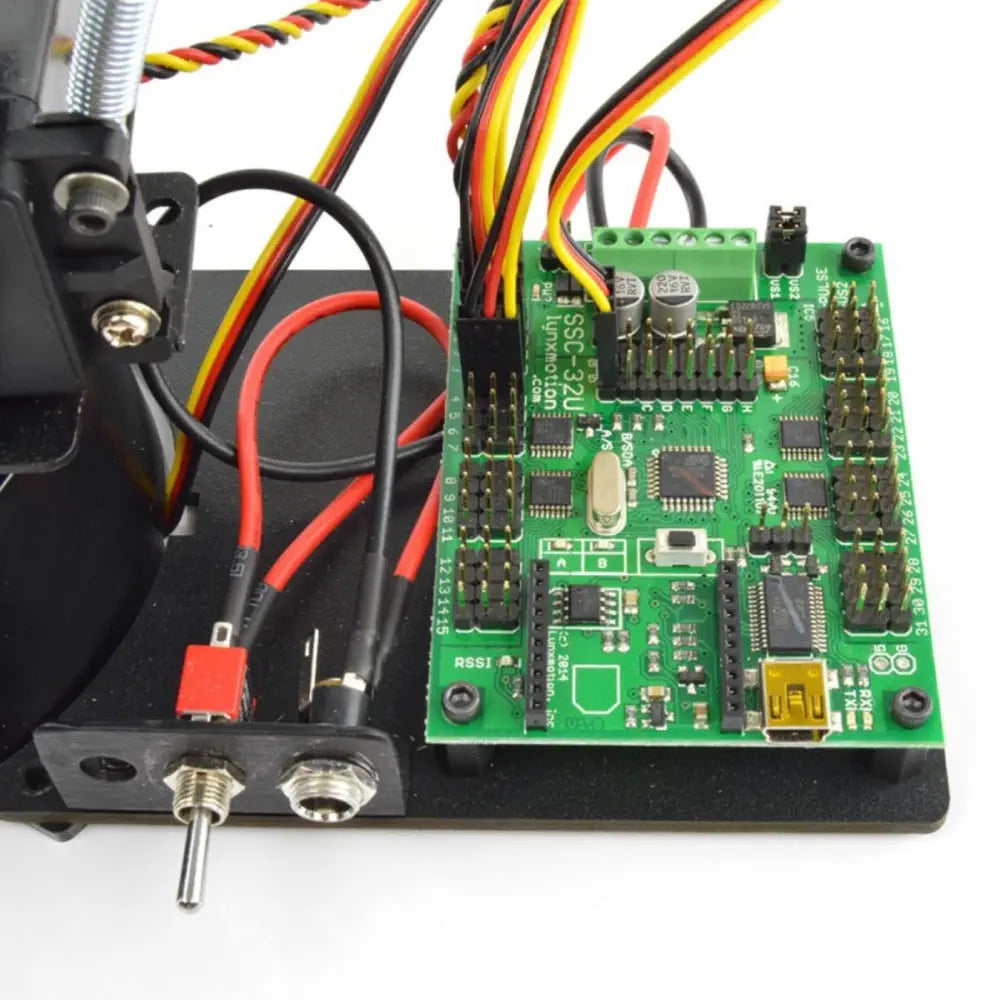

- Includes new SSC-32U servo controller board
- Includes everything you need to control the arm from a personal computer (USB port)
- Assembled version available Lynxmotion SES-V1 AL5D PLTW Robotic Arm (5 DoF) Assembled

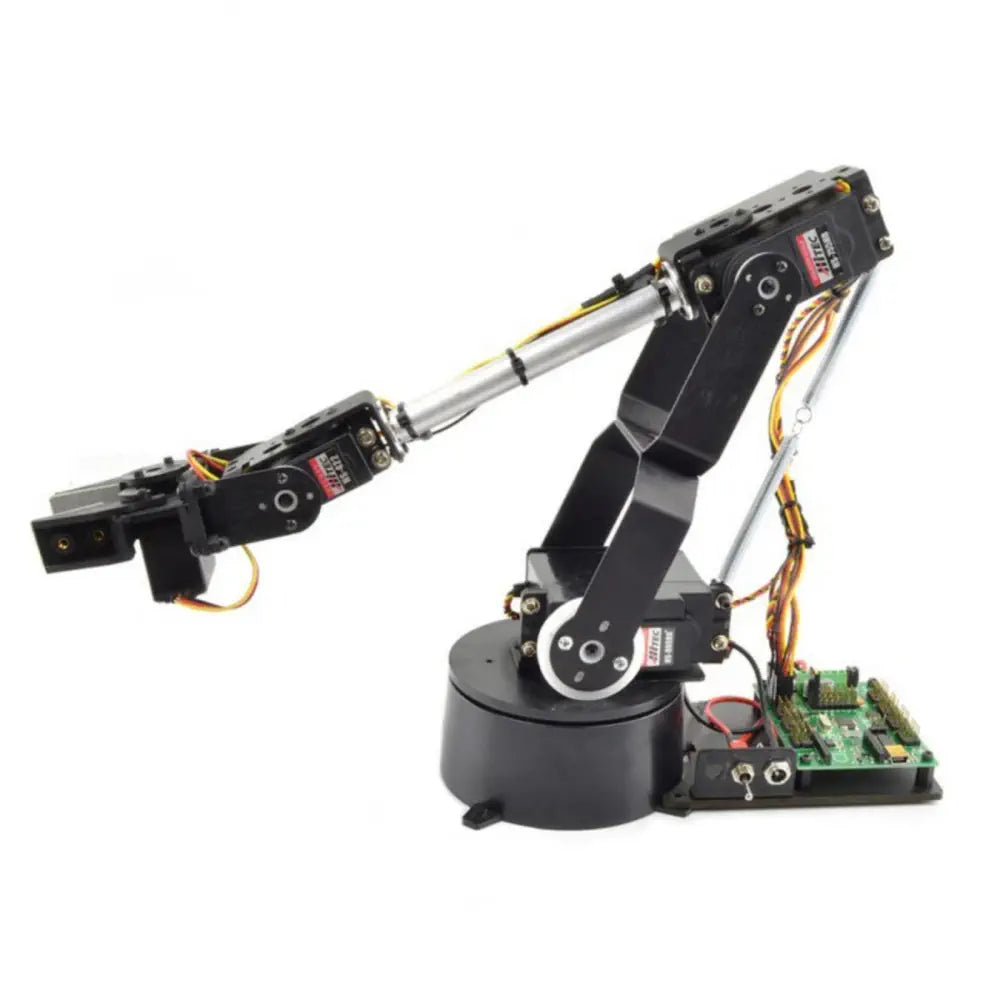

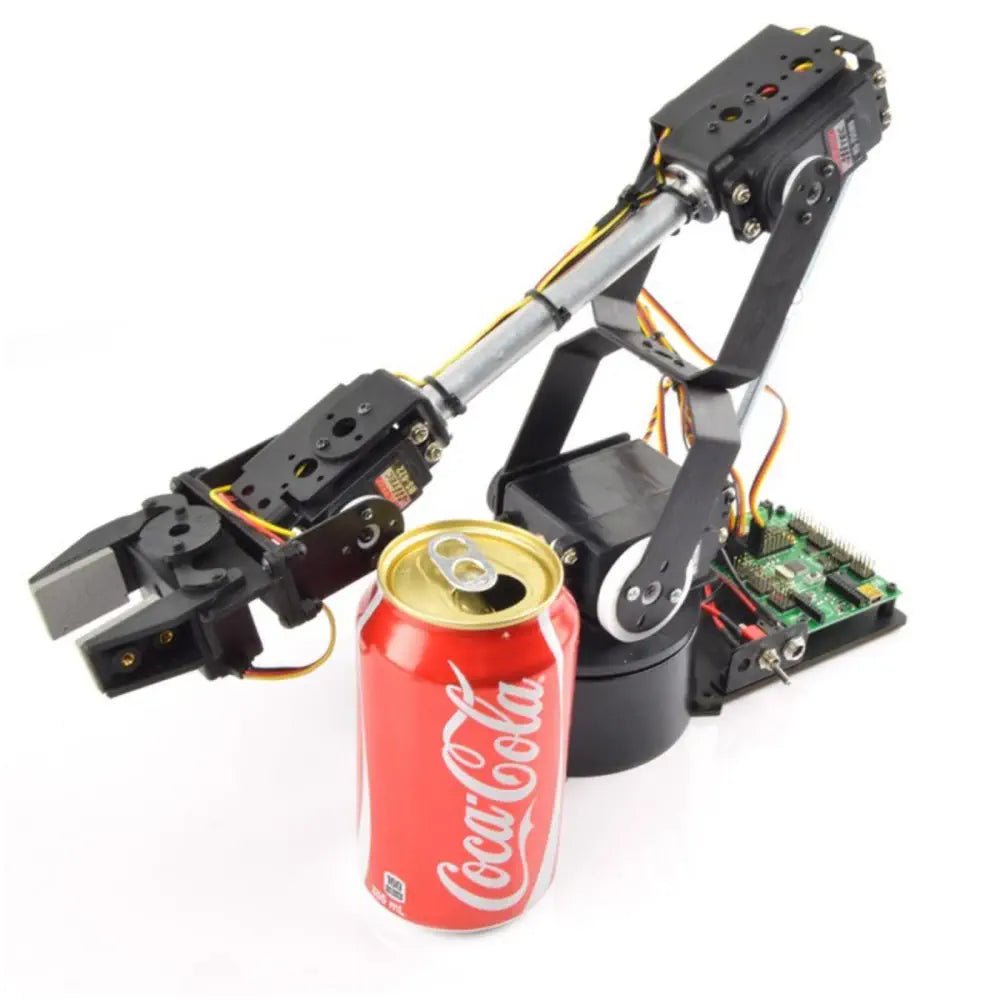

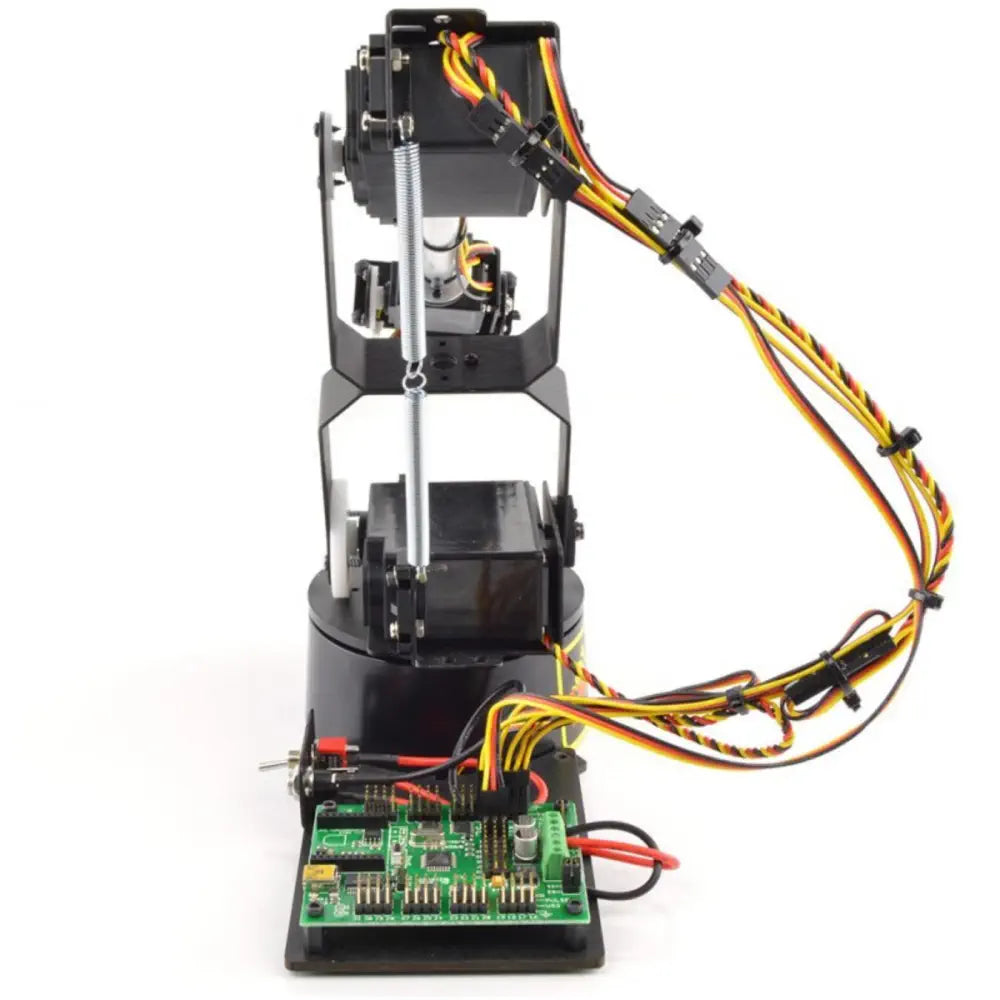

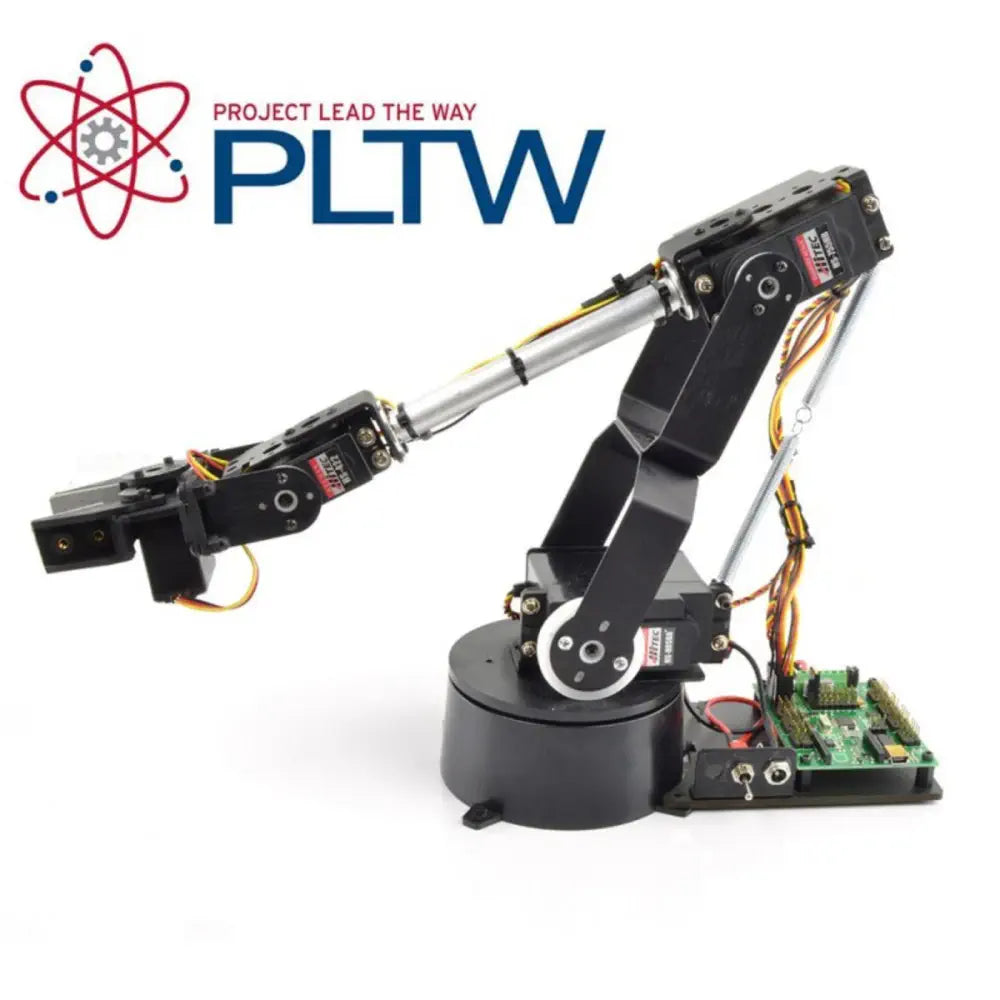

The Lynxmotion SES-V1 AL5D PLTW Robotic Arm (5 DoF) Kit is a package made specifically for PLTW schools. It includes a complete AL5D robotic arm, along with a medium duty wrist rotate upgrade, SSC-32U servo controller board and a USB cable. The SSC-32U board means no more USB-to-serial adapter and no more 9V battery.
The Lynxmotion AL5D 4 Degrees of Freedom Robotic Arm delivers fast, accurate, and repeatable movement. Lynxmotion designed an affordable system based on a time tested, rock solid design that will last and last. Everything needed to assemble and operate the robot is included in the kit, along with a medium duty wrist rotate, USB cable, extra servo cable and FlowArm PLTW software. The aluminum robotic arm is made using Lynxmotion's Servo Erector Set components for the ultimate flexibility and expandability. The kit consists of black anodized aluminum brackets, aluminum tubing and hubs, custom injection molded components, and precision laser-cut Lexan components.
Project Lead The Way (PLTW) is the nation's leading science, technology, engineering and math (STEM) solution and is used in over 5,000 schools across the U.S. The PLTW Computer Integrated Manufacturing (CIM) curriculum includes creating an assembly line and use of the Lynxmotion AL5D arm. This software was created so students would have full control of the arm without having to spend significant time programming, and integrate it easily into a larger manufacturing / assembly system.
- Distance (base-to-elbow axis) = 5.75"
- Distance (elbow-to-wrist axis) = 7.375"
- Height (arm parked) = 7.25"
- Height (reaching up) = 19"
- Median forward reach = 20.25"
- Gripper opening = 1.25"
- No of axis = 5 + Gripper (wrist rotate included)
- Servo motion control = local closed loop

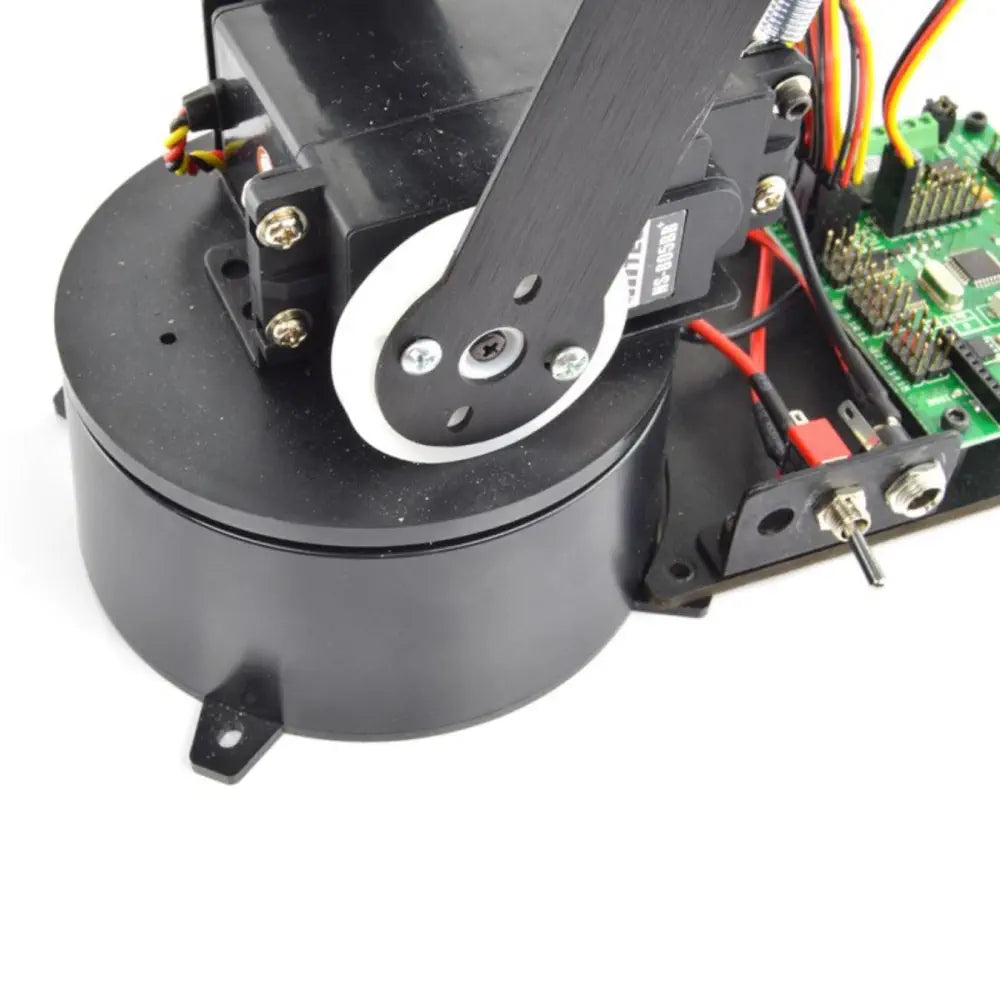

- 1 x HS-485HB in the base
- 1 x HS-805BB (or equivalent large scale servo) in the shoulder
- 1 x HS-755HB in the elbow
- 1 x HS-645MG in the wrist
- 1 x HS-422HB in the gripper
- Lift weight (arm extended) = approx. 11 oz
- Weight = 32 oz
- Range of motion per axis = 180 degrees
- Accuracy of motion per axis = 0.09 degrees (with SSC-32U)
- Servo voltage = 6V DC
- Wrist rotate option includes 1x HS-422 Servo Motor
- Assembly Guides are provided online
- FlowArm PLTW compatible with Windows XP SP2 (with .NET Framework), Windows 7, 8, 10 and 11. Requires internet connection.
- Minimum requirements for Windows XP: 2 GHz (single core), 1 GB RAM, and 1024x768 resolution.
