Description
Inputs (Arduino Mega included)
36 Inputs:
- (16x) Analog Inputs (0-10Vdc) / Digital Inputs (5-24Vdc) configurable by software.
- (20x) Isolated Digital Inputs (5-24Vdc)
Outputs (Arduino Mega included)
22 Outputs:
- (22x) Isolated Digital Outputs (5-24Vdc) / (8 of which) PWM configurable by software.
- (8 of which) Analog Outputs (0-10Vdc)
Communications

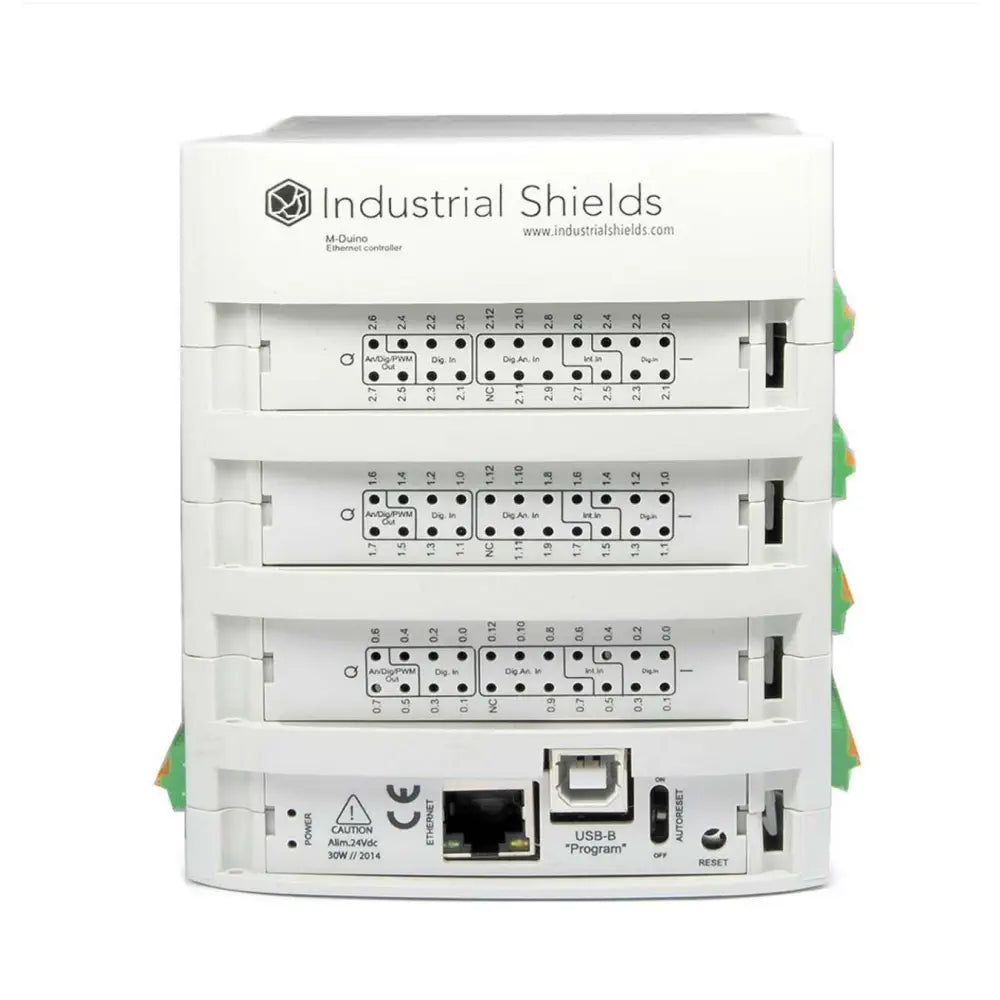

- (1x) Ethernet port.
- (1x) USB port (type B).
- (1x) I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
- (3x) TTL ports.
- -(1x) RS-232 port.
- (1x) HALF/FULL Duplex RS-485 port.
- (1x) SPI external port (Using MOSI,MISO, SS pins of Arduino)
- TCP IP / Modbus TCP. / Modbus RTU
- WebServer capacity
- Industrial Protocols
Technical
- RTC (Real Time Clock. NOTE: I2C port used. See pinout modification)
- µSD Socket
- 100x75x115mm

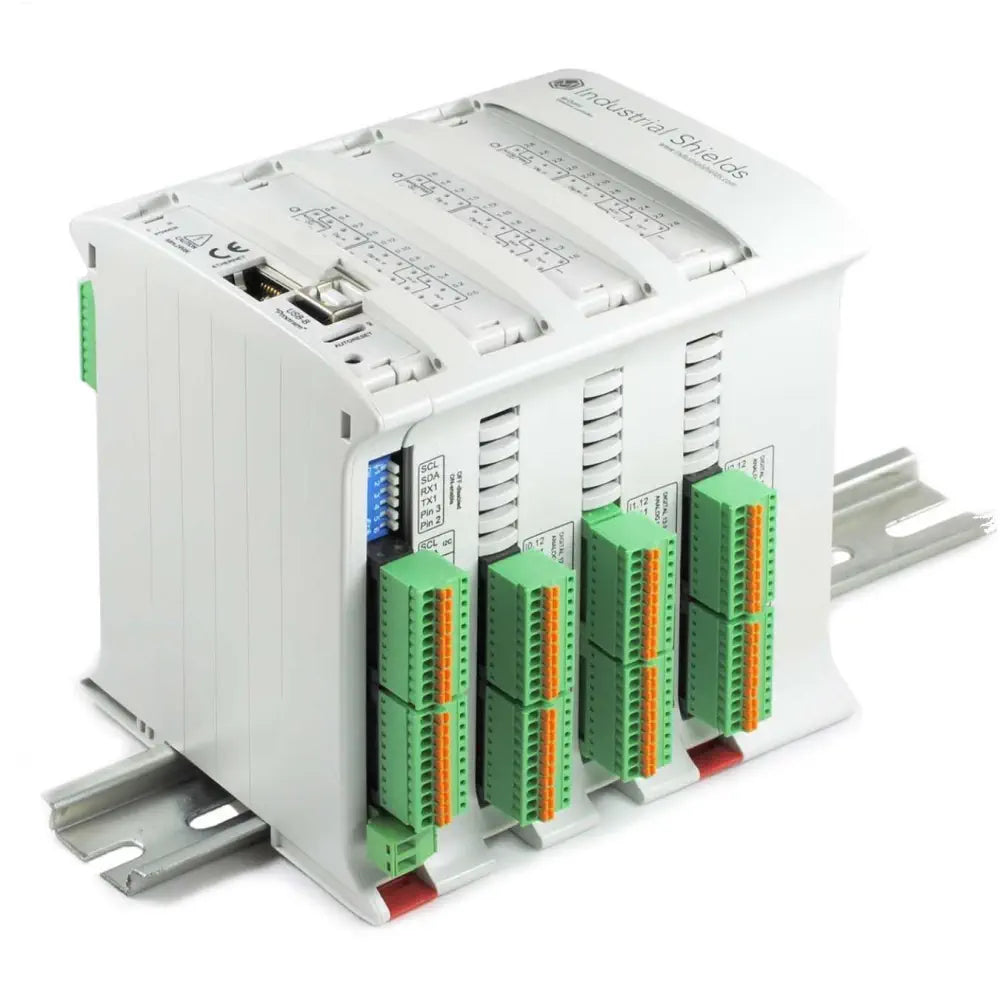

- DIN Rail mounting.
- Max consum.: 1.2A
- Flash Memory: 256kB (8kB for bootloader)
- SRAM: 8kB
- EEPROM: 4kB
- Clock Speed: 16MHz
- Rx,Tx pins are not abailable using RS485. For SPI you need to choose another pin for Select Function (You can choose, SDA, SCL, Rx, Tx, Pins of Arduino)
