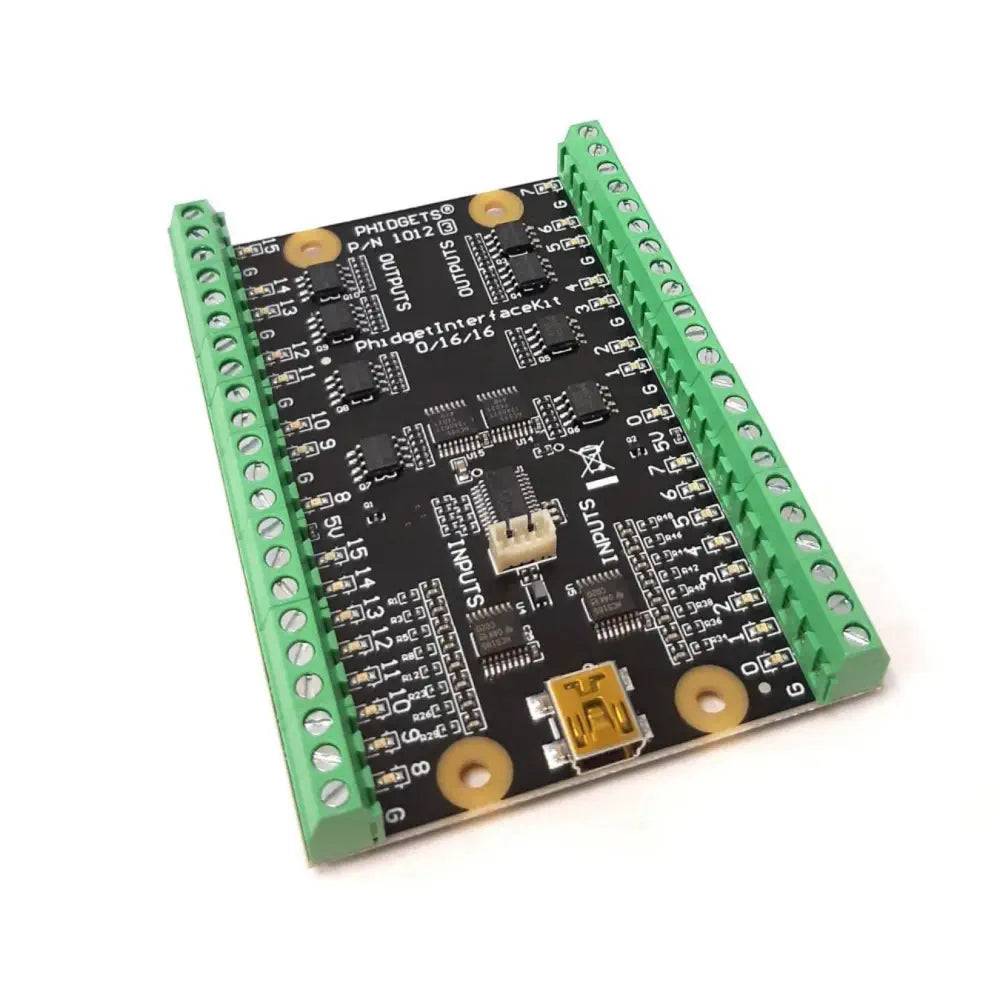

PhidgetInterfaceKit 0/16/16

PhidgetsSKU: RB-Phi-503
Manufacturer #: 1012_3

Price  :
Sale price $95.00

Shipping calculated at checkout

Stock  :
In stock, 3 units

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • PhidgetInterfaceKit 0/16/16
  • Controlled By: USB (Mini-USB)
  • Current Consumption Min: 14 mA
  • Number of Digital Inputs: 16
  • Digital Input Impedance: 33 kΩ
  • Used to check the state of switches and push buttons

The PhidgetInterfaceKit 0/16/16 is used to check the state of switches and push buttons, and/or to switch relays, solenoids, and LEDs.

Digital Inputs: The Digital Inputs are activated by an external voltage source, triggering on a wide voltage range: 4 to 30VDC. They provide built-in filtering, to eliminate false triggering from electrical noise. They can be used to convey the state of on/off devices, such as push buttons, limit switches, relays.

Digital Outputs: The Open Collector Digital Outputs can be used to directly control substantial devices, switching up to 30VDC at up to 2 Amps. The Output acts as a switch to ground, so the circuit you're switching will need an external power supply. Each output is protected from transient voltages typical when switching inductive devices - relays, solenoids, motors. The Outputs can be used to directly control devices requiring substantial power such as incandescent lights, high power LEDs, relays, solenoids, motors.

Note: The 1012_3 is functionally the same as the 1012_2B, but some of the specifications have changed due to components shortages changing the parts used.

Hardware mounting kit:

  • 4x M3 Bolt (2 cm Length)
  • 4x Plastic Spacer (5 mm Length)
  • 4x M3 Nut

Board

  • Controlled By: USB (Mini-USB)
  • API Object Name: Digital Input, DigitalOutput
  • USB Voltage Min: 4.6 V DC
  • USB Voltage Max: 5.5 V DC
  • Current Consumption Min: 14 mA
  • Current Consumption Max: 500 mA
  • Available External Current: 394 mA
  • Recommended Wire Size: 16 - 26 AWG
  • USB Speed: Low Speed
  • Operating Temperature Min: 0 °C
  • Operating Temperature Max: 70 °C

Digital Inputs

  • Number of Digital Inputs: 16
  • Digital Input Impedance: 33 kΩ
  • Low Voltage Max (False): 900 mV DC
  • High Voltage Min (True): 4.2 V DC
  • Low Voltage Trigger Length Min: 16 ms
  • High Voltage Trigger Length Min: 4 ms
  • Digital Input Voltage Max: ± 30 V DC
  • Digital Input Update Rate: 125 samples/s

Relay Properties

  • Number of Relays: 16
  • Series Resistance: 50 mΩ
  • Open Collector Voltage Max: 30 V DC
  • Digital Output Current Sinking Max: (per channel) 2 A
