Description

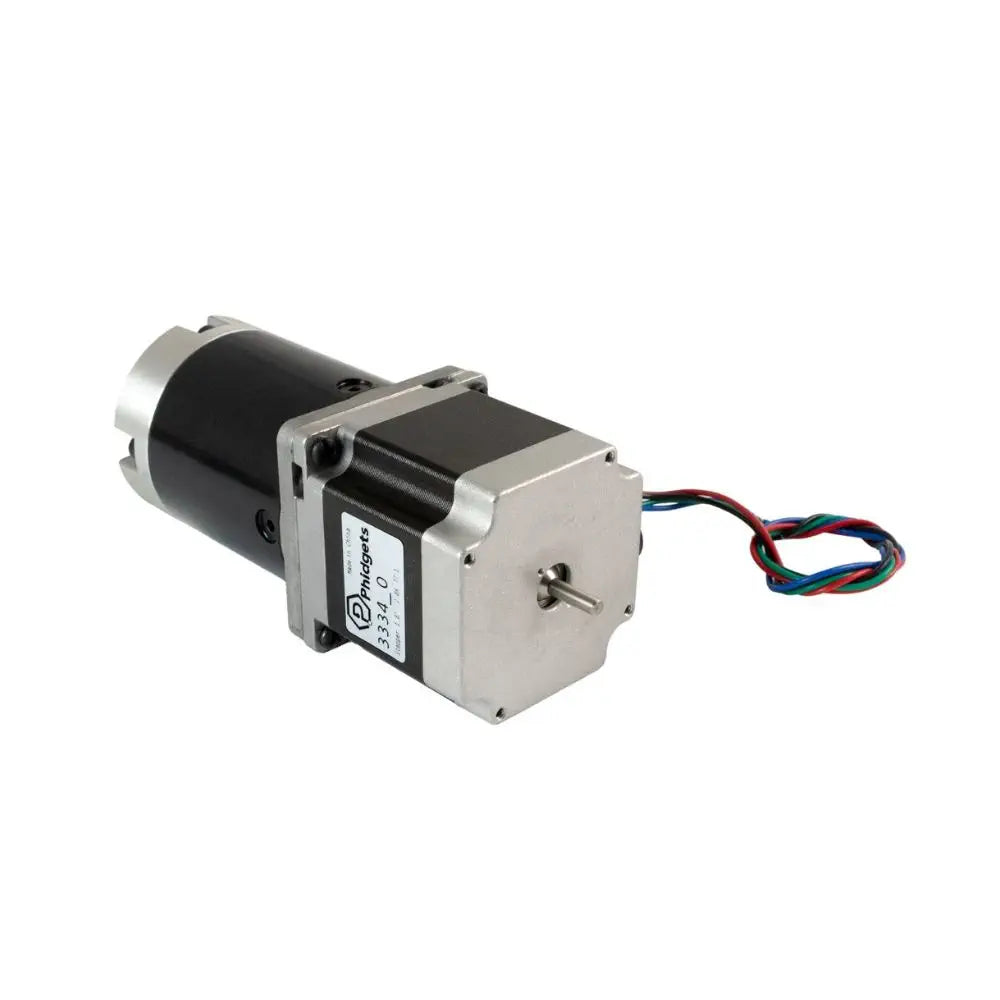

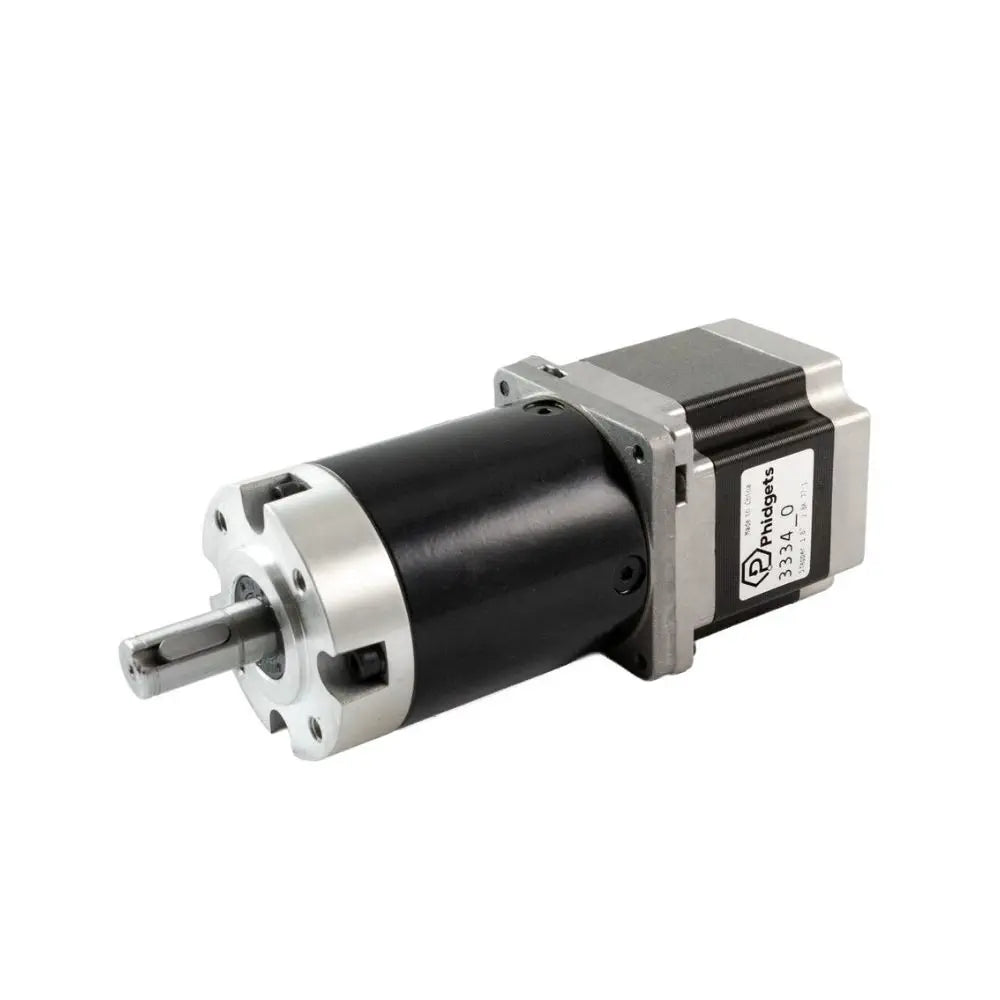

- 1x Phidgets NEMA-23 Bipolar Stepper Motor 1.8deg, 2.8A, 77:1
- Shaft diameter: 12mm
- Rear shaft diameter: 3.9mm
- Weight: 1.5kg
PDF Files
Motor Properties
- Motor Type: Bipolar Stepper
- Manufacturer Part Number: 57STH56-2804B / 56JXS300K77
- Step Angle: 1.8°
- Step Accuracy: ±5%
- Holding Torque: 240 kg·cm
- Rated Torque: 240 kg·cm
- Maximum Motor Speed: 10 RPM
Electrical Properties
- Recommended Voltage: 24 V DC
- Rated Current: 2.8 A
- Coil Resistance: 900 mΩ
- Phase Inductance: 2.5 mH
Physical Properties
- Shaft Diameter: 12 mm
- Keyway Width: 4 mm
- Rear Shaft Diameter: 3.9 mm
- Mounting Plate Size: NEMA-23
- Weight: 1.5 kg
- Number of Leads: 4
- Wire Length: 300 mm
Gearbox Properties
- Gearbox Type: Planetary
- Gear Ratio: 76 49⁄64 : 1
- Backlash Error: 1 1⁄2°
- Maximum Strength of Gears: 240 kg·cm
- Shaft Maximum Axial Load: 100 N
- Shaft Maximum Radial Load: 250 N
