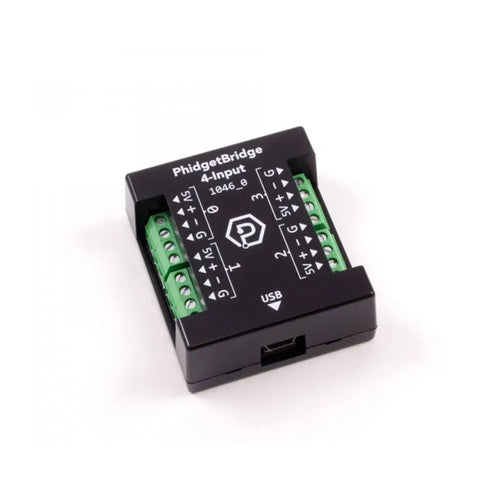

Phidgets PhidgetBridge Wheatstone Bridge Sensor Interface (w/ Enclosure)

PhidgetsSKU: RB-Phi-378
Manufacturer #: 1046_0B

Price  :
Sale price $90.00

Shipping calculated at checkout

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Connects up to four Wheatstone Bridge based sensors
  • Great interface for Load Cells and Strain Gauges
  • Bridge Data Rate: 8 ms-1000 ms
  • Comes pre-assembled in a plastic shell enclosure
  • Can only be used by a device with a USB port / not meant to be used with microcontrollers (such as Arduino)

The Phidgets PhidgetBridge Wheatstone Bridge Sensor Interface (w/ Enclosure) is needed to measure the output from a load cell. You can connect up to four load cells or strain gauges.The minimum data rate is 8ms though the board has a maximum sample rate of 122 samples a second (slightly less than the 125 an 8ms rate would have you believe).

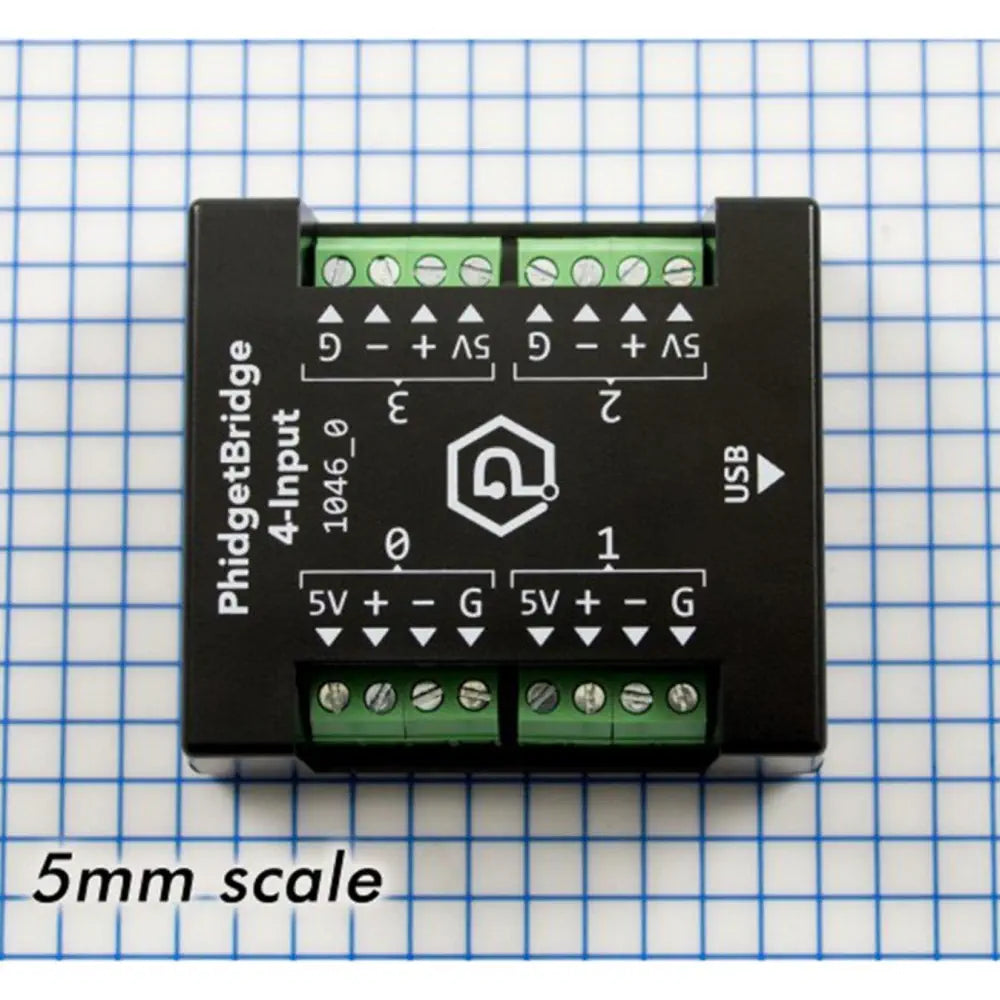

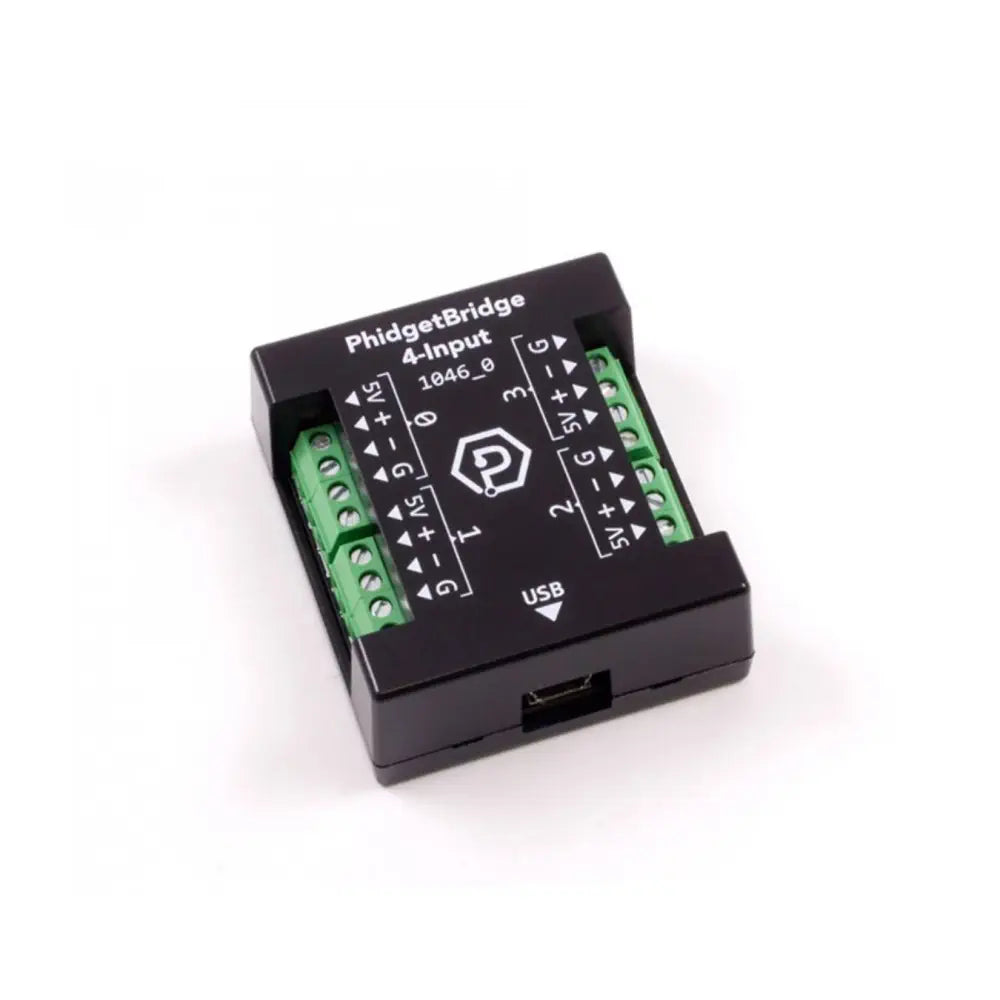

Phidgets PhidgetBridge Wheatstone Bridge Sensor Interface (w/ Enclosure)- Click to Enlarge

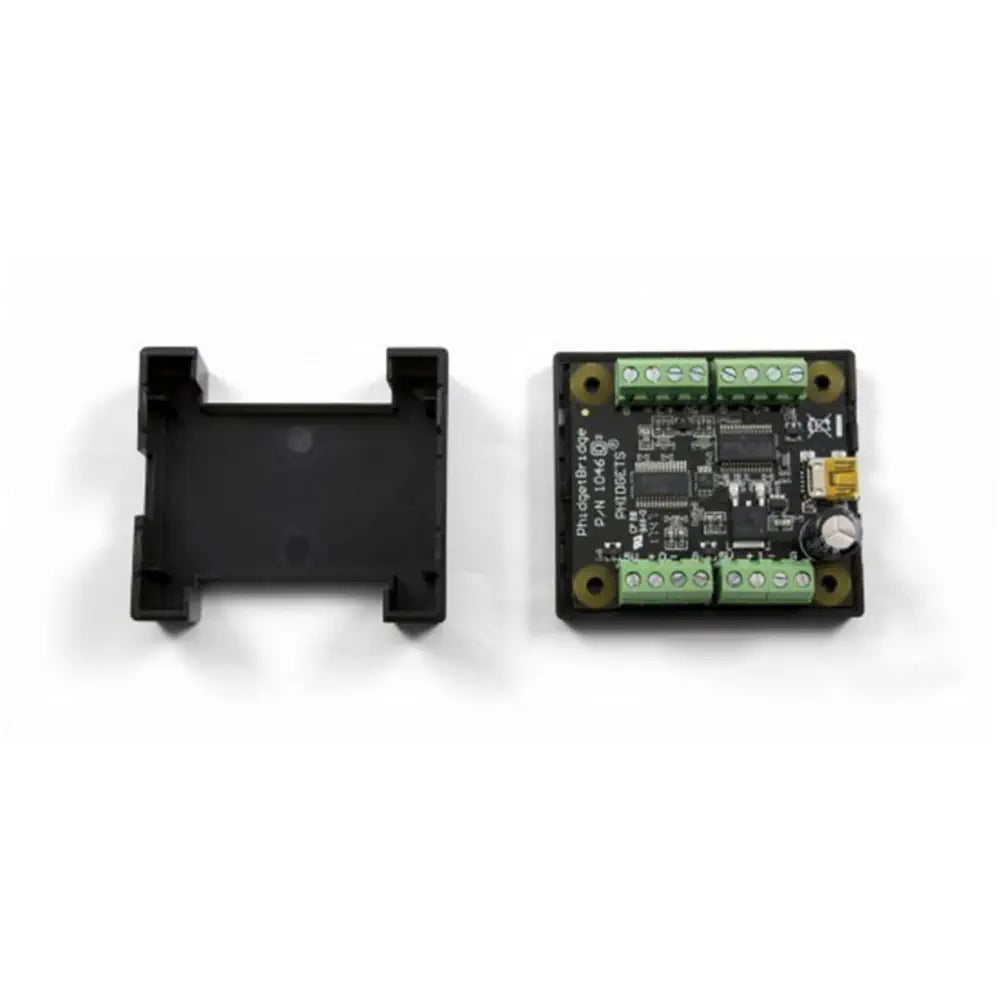

It comes pre-assembled in a plastic shell enclosure. Strain gauges are ideal for situations where you want to monitor the strain in a material that's already a part of your project. By attaching strain gauges in a strategic way, you can effectively turn a load-bearing member into a custom load cell.

  • Phidgets PhidgetBridge Wheatstone Bridge Sensor Interface (w/ Enclosure)

*Note: The product does not include a hardware mounting kit or cables. The plastic shell enclosure comes pre-assembled.

Board

  • Controlled By: USB
  • API Object Name: Bridge
  • Number of Bridge Inputs: 4
  • Bridge Data Rate Min: * 8 ms
  • Bridge Data Rate Max: 1000 ms
  • Bridge Input Current Max: ± 3 nA
  • Differential Voltage Resolution: 24 bit

Electrical Properties

  • USB Voltage Min: 4.5 V DC
  • USB Voltage Max: 5.3 V DC
  • USB Speed: Full Speed
  • Current Consumption Min: 35 mA
  • Current Consumption Max: 500 mA
  • Available External Current: 465 mA
  • Input Voltage Limit Min: Ground + 0.25V DC
  • Input Voltage Limit Max: 5V Supply - 0.25V DC

Physical Properties

  • Recommended Wire Size: 16 - 26 AWG
  • Operating Temperature Min: 0 °C
  • Operating Temperature Max: 70 °C
