Description

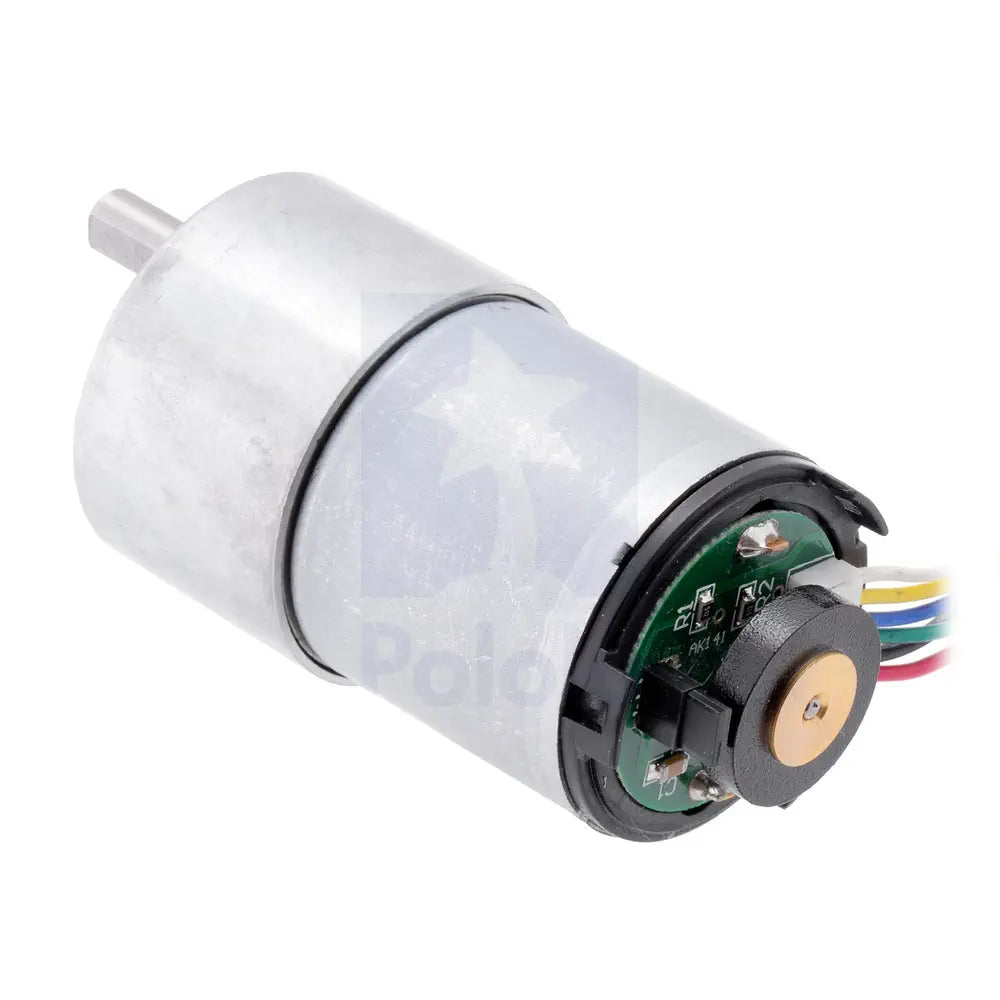

- 1x Two-channel Hall effect encoder
- 1x Magnetic disk on a rear protrusion of the motor shaft

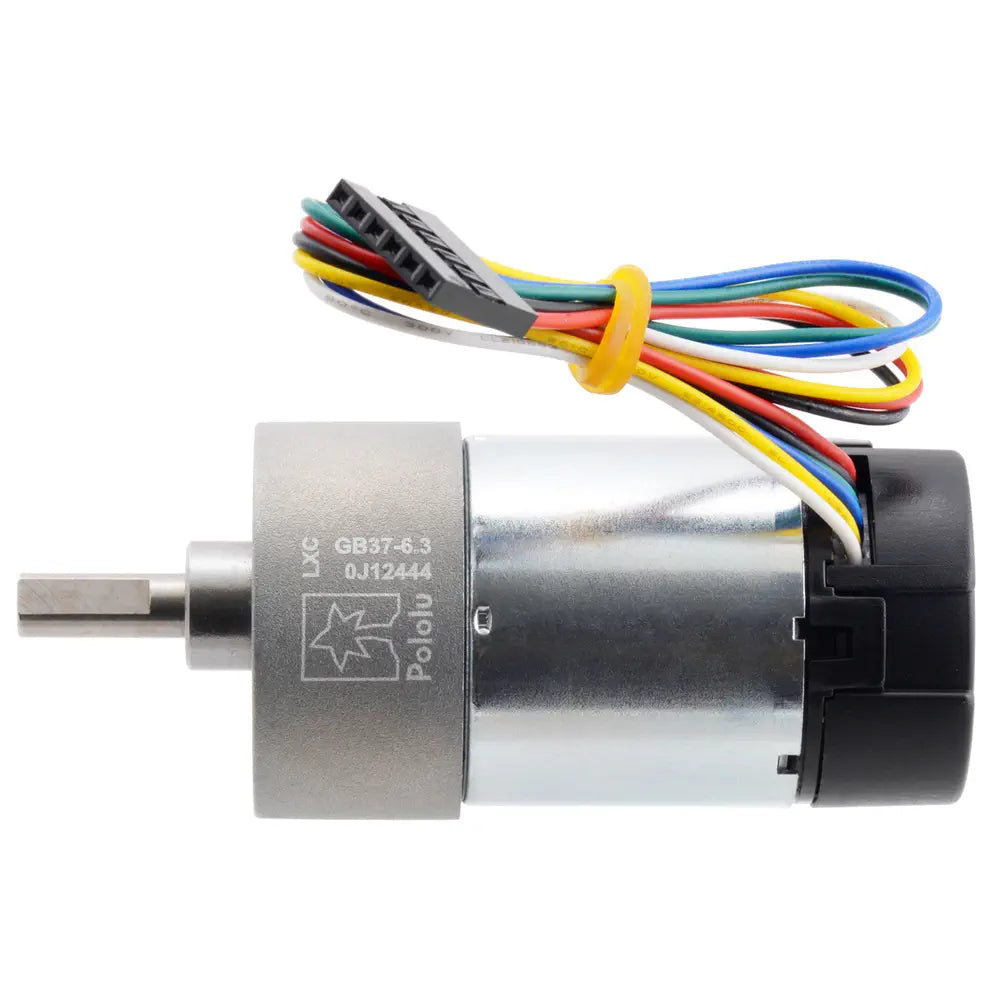

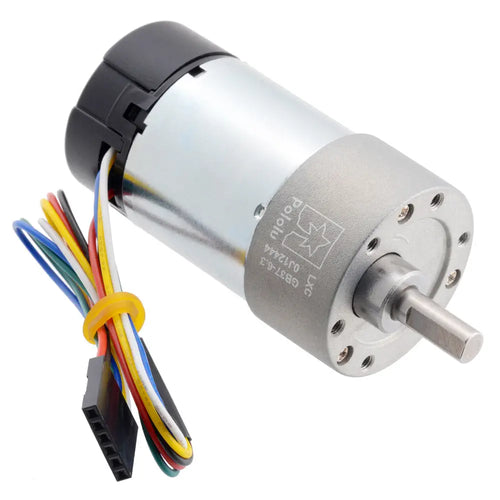

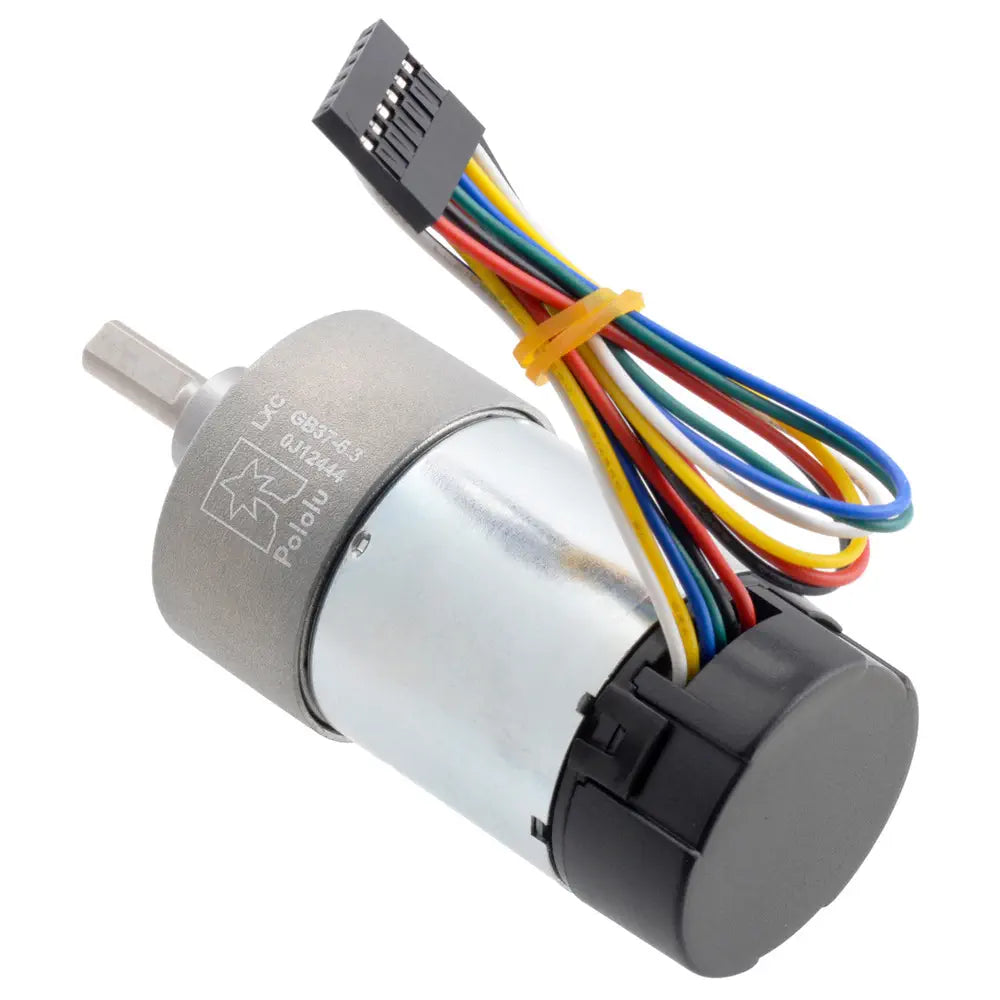

- 1x Motor/encoder with six color-coded, 8" (20 cm) leads terminated by a 1x6 female header with a 0.1" pitch

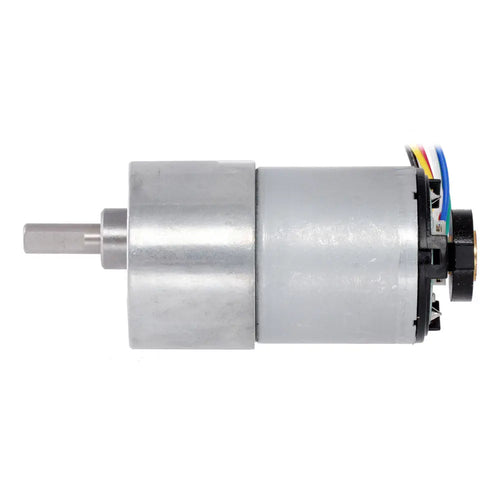

- 37 x 65 mm (D x L)
- Shaft diameter: 6 mm

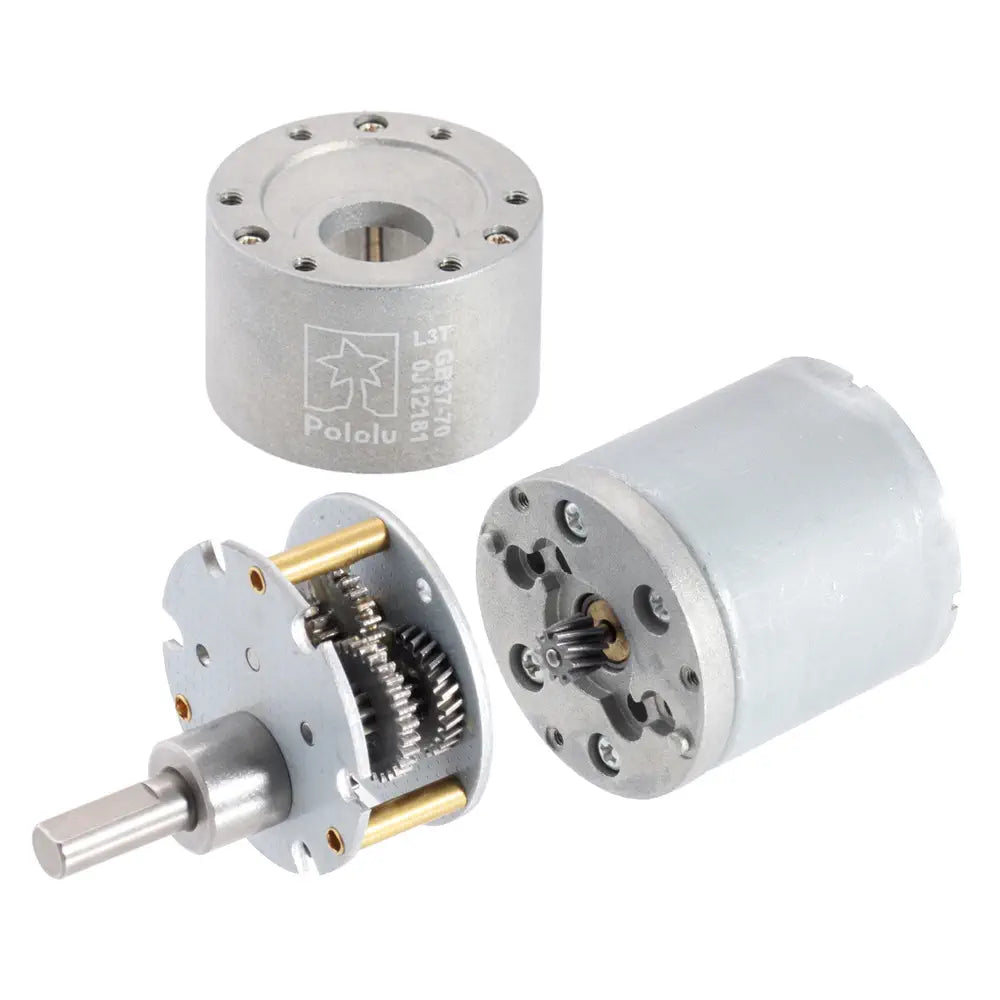

- Gear ratio: 6.25:1
- Voltage: 24 V
- No-load speed at 24V: 1600 rpm
- No-load current at 24V: 0.1 A
- Stall current at 24V: 3 A
- Stall torque at 24V: 3.5 kg·cm
- Max output power at 24V: 14 W
- Weight: 190 g
Performance at maximum efficiency
- Max efficiency at 24V: 53 %
- Speed at max efficiency: 1300 rpm
- Torque at max efficiency: 0.55 kg·cm
- Current at max efficiency: 0.58 A
- Output power at max efficiency: 7.4 W
Connections:
- 1x Red lead for motor power (connects to one motor terminal)
- 1x Black lead for motor power (connects to the other motor terminal)
- 1x Green lead for encoder GND
- 1x Blue lead for encoder Vcc (3.5 – 20 V)
- 1x Yellow lead for encoder A output
- 1x White lead for encoder B output
