Description

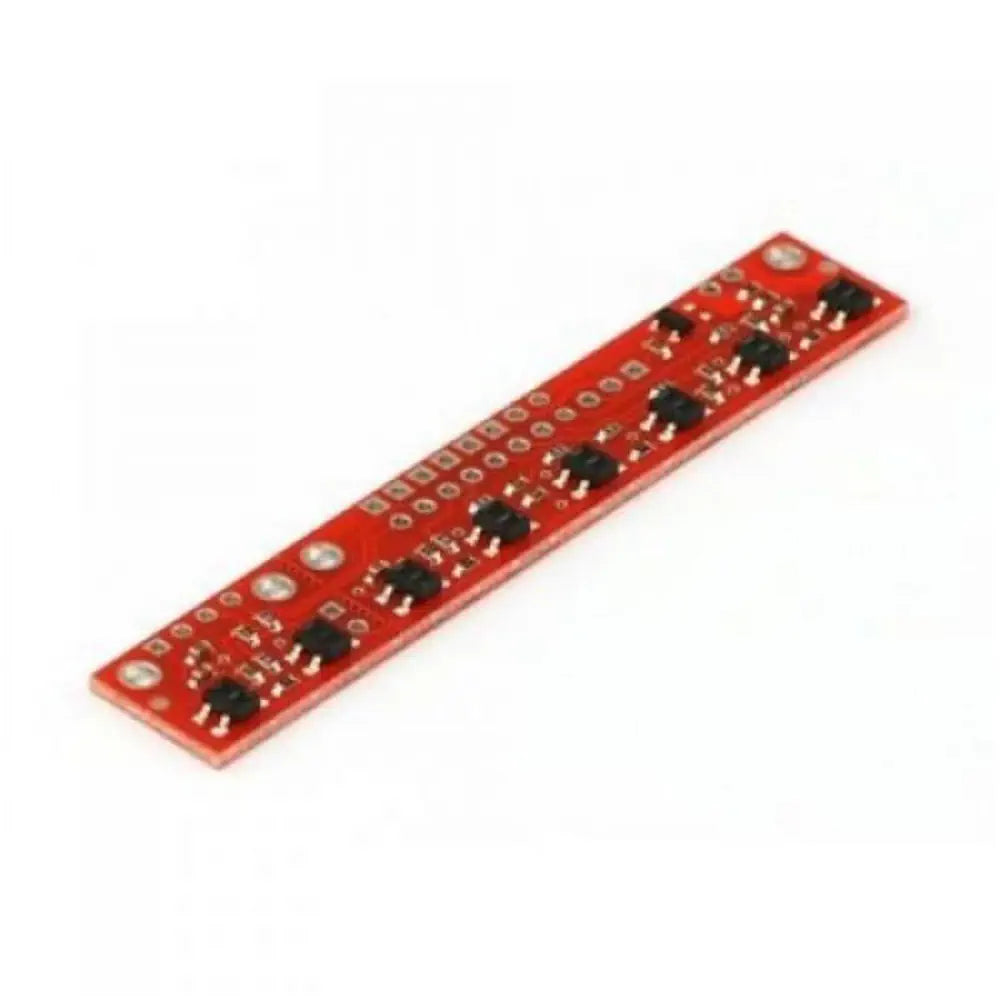

Infrared phototransistor based reflectance sensor array
3.3V to 5V operation
Measures only 2.95" x 0.5" x 0.125" and weighs 3.09 grams
The Pololu QTR-8A Reflectance Sensor Array has 8 IR LED/phototransistor pairs mounted on a 0.375" pitch, making it a great detector for a line-following robot. Pairs of LEDs are arranged in series to halve current consumption, and a MOSFET allows the LEDs to be turned off for additional sensing or power-savings options. Each sensor provides a separate analog voltage output.
The QTR-8A reflectance sensor array is intended as a line sensor, but it can be used as a general-purpose proximity or reflectance sensor. The module is a convenient carrier for eight IR emitter and receiver (phototransistor) pairs evenly spaced at intervals of 0.375" (9.525 mm). Each phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0 V and VIN (which is typically 5 V) as a function of the reflected IR. Lower output voltage is an indication of greater reflection.
The outputs are all independent, but the LEDs are arranged in pairs to halve current consumption. The LEDs are controlled by a MOSFET with a gate normally pulled high, allowing the LEDs to be turned off by setting the MOSFET gate to a low voltage. Turning the LEDs off might be advantageous for limiting power consumption when the sensors are not in use or for varying the effective brightness of the LEDs through PWM control.
The LED current-limiting resistors for 5 V operation are arranged in two stages; this allows a simple bypass of one stage to enable operation at 3.3 V. The LED current is approximately 20-25 mA, making the total board consumption just under 100 mA.
Breaking the Module in Two: If you don't need or cannot fit all eight sensors, you can break off two sensors and still use all 8 sensors as two separate modules, as shown above. The PCB can be scored from both sides along the perforation and then bent until it snaps apart. Each of the two resulting pieces will function as an independent line sensor.

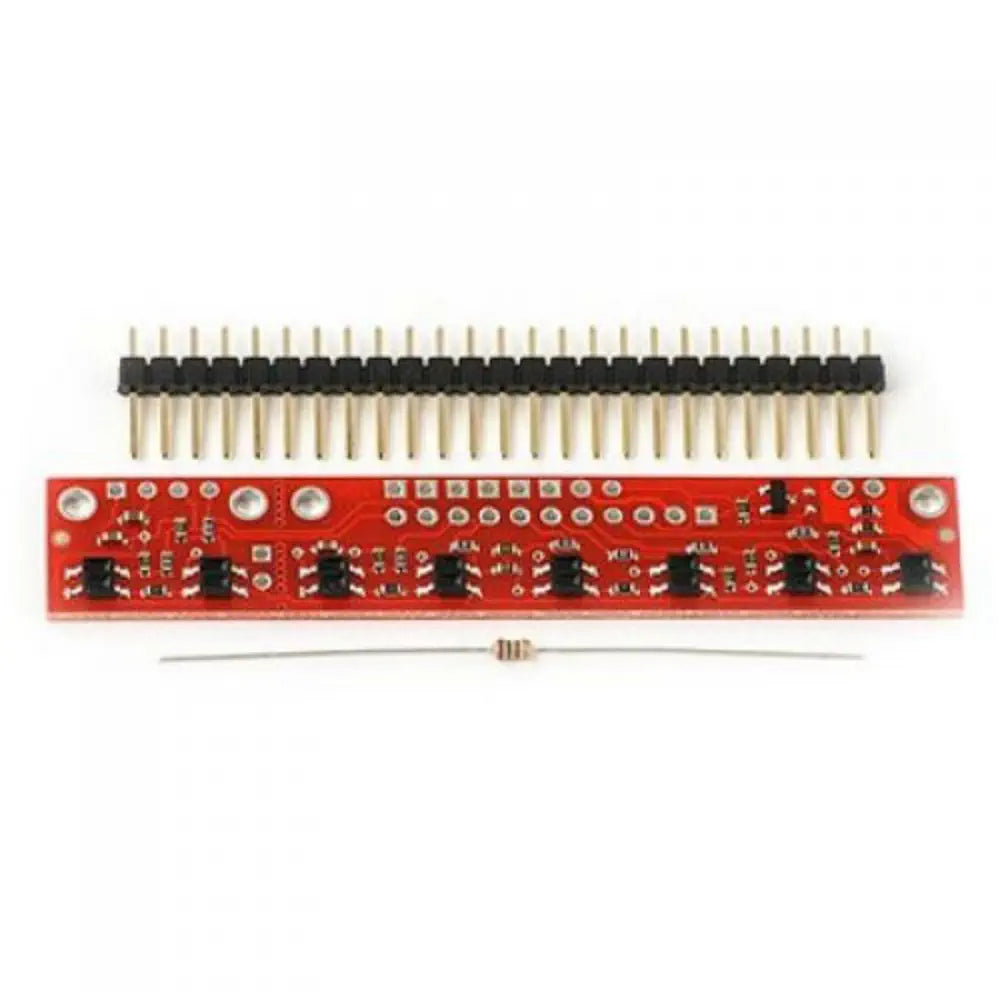

This module ships with a 25-pin 0.1" header strip and a 100 Ohm through-hole resistor as shown above
Size: 2.95'' x 0.5'' x 0.125'' (without Header Pins installed)
This sensor module has 8 IR LED/phototransistor pairs, each sensor provides a separate analog voltage output. You can break off two sensors and still use all 8 sensors as two separate modules. Really good for line follower robots.
