RobotShop Perimeter Wire Generator and Sensor Soldering Kit

RobotShopSKU: RB-Lci-06
Manufacturer #: PGS-KT

Price  :
Sale price $9.95

Shipping calculated at checkout

Stock  :
In stock, 435 units

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Signal generator and sensor soldering kit for a perimeter wire
  • Detection wave frequency can be varied with the on-board potentiometer
  • Can be interfaced with Arduino (0-5V analog output)
  • Perfect for DIY lawnmower robots
  • Requires soldering
  • Perimeter wire is not included

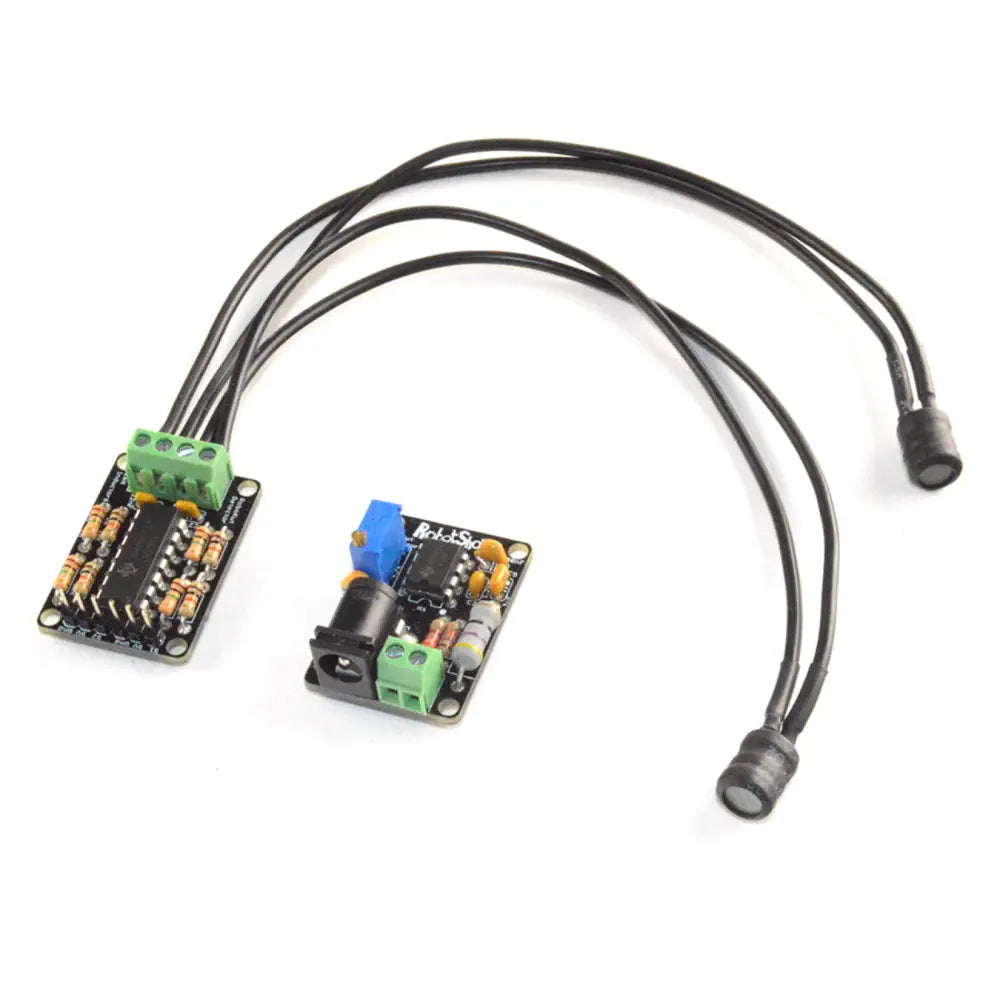

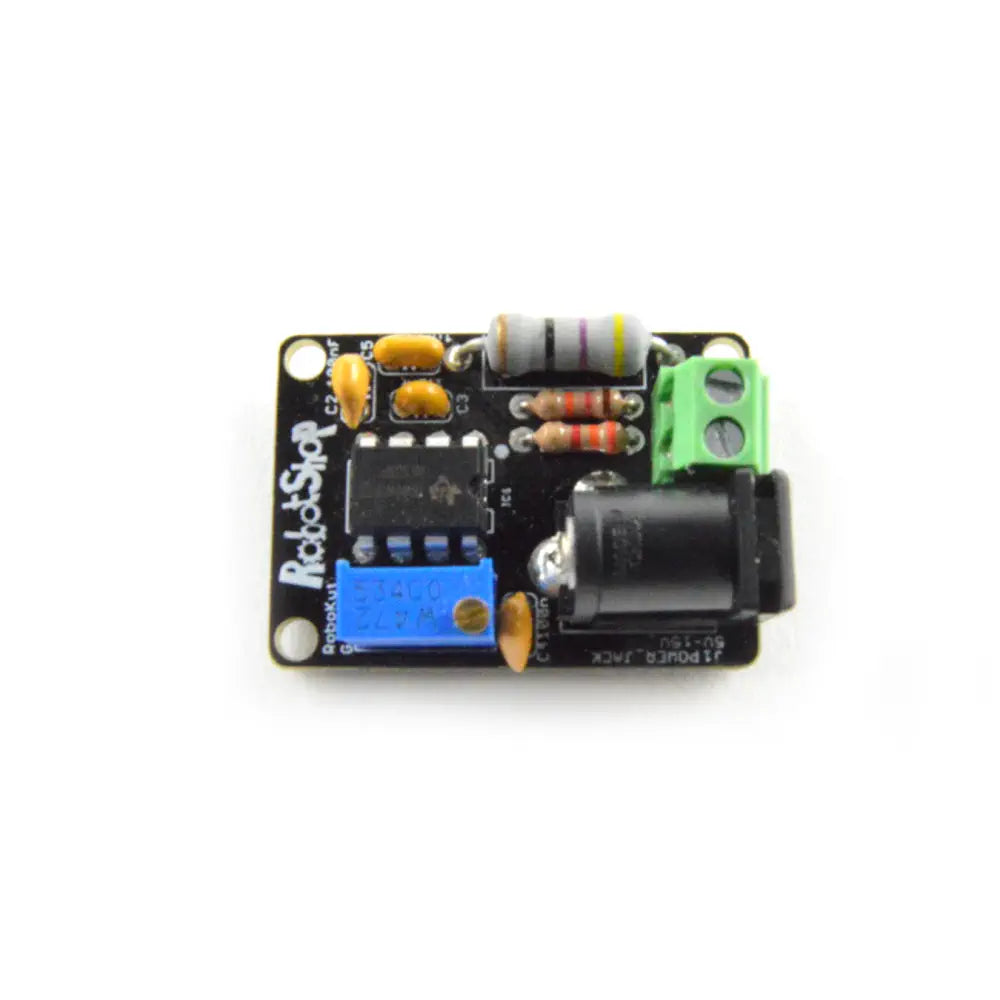

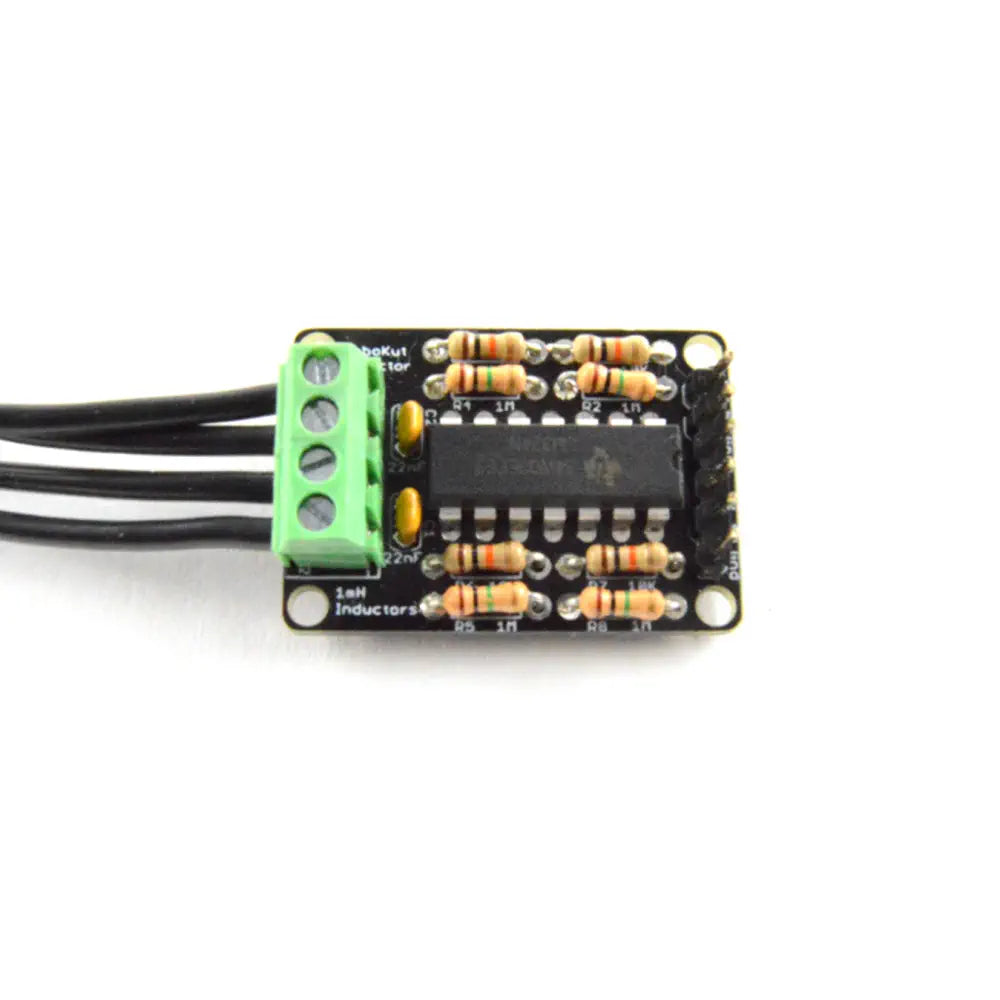

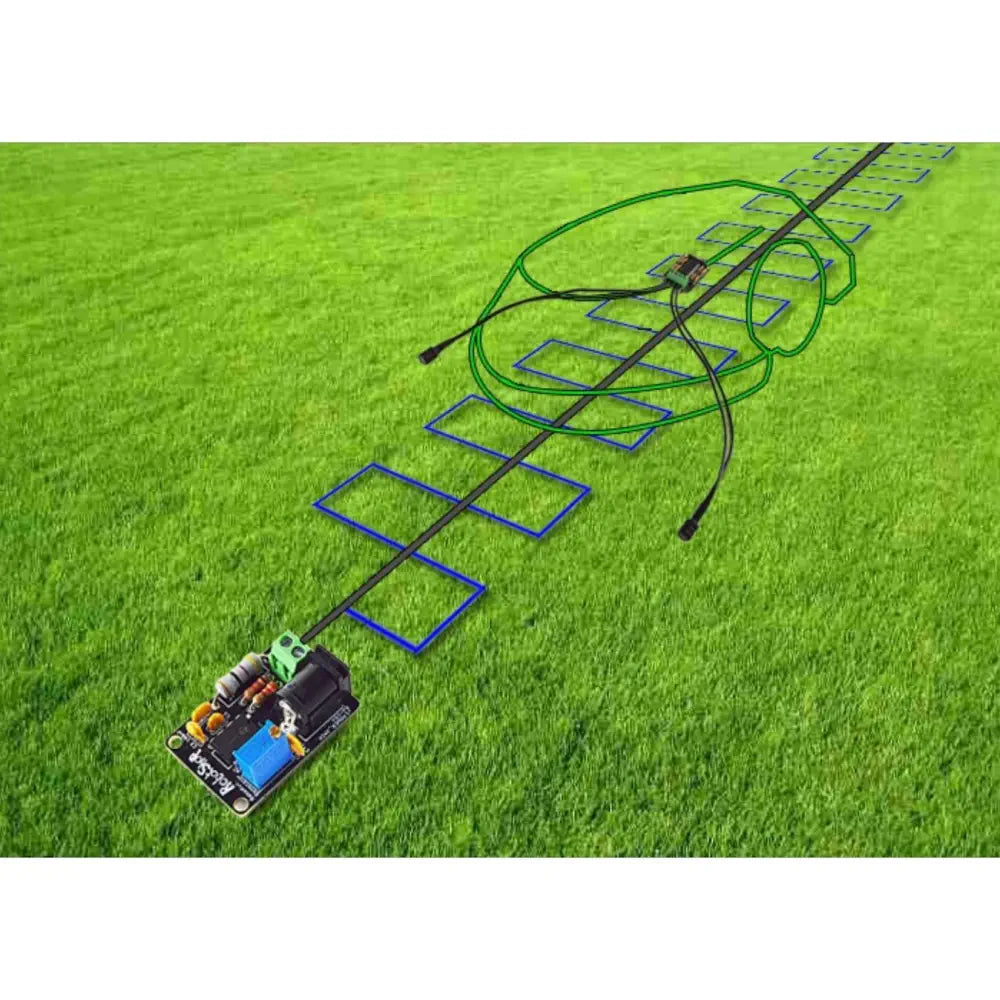

This is a nice soldering kit to build your own signal generator and sensor for an electrical perimeter wire. The generator board is based on the popular NE555 Timer and the sensor board is based on two LC (tank) amplified circuits. Can be used with DIY Robot Lawnmowers. A processing chain (amplification, filters, comparison) makes it possible to determine the position of the robot within to the wire. Note that the perimeter wire is not included, but it comes with the through-hole components.

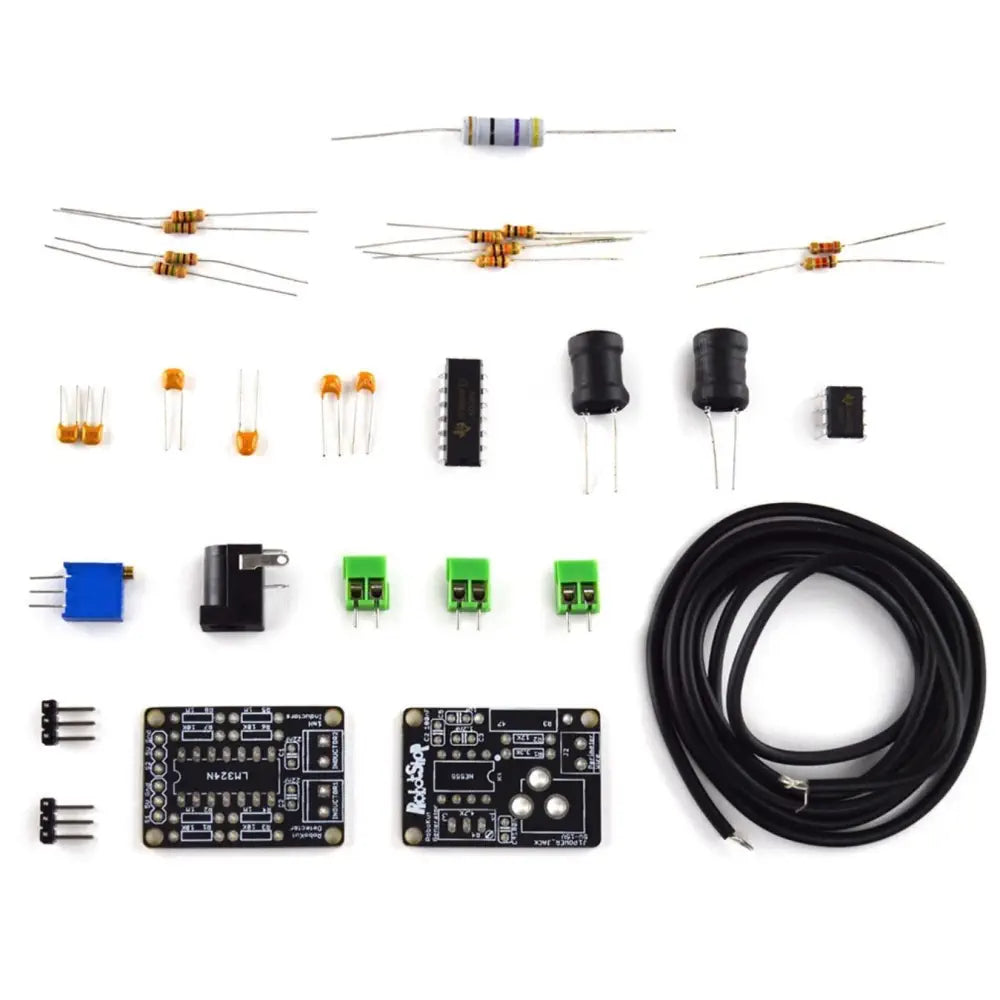

RobotShop Perimeter Wire Generator and Sensor Soldering Kit



  • 1 x Generator board PCB
  • 1 x Sensor board PCB
  • 1 x 3.3 KOhms resistor
  • 1 x 12 KOhms resistor
  • 1 x 47 Ohms resistor
  • 1 x 4.7KOhms potentiometer
  • 2 x 100nF capacitor
  • 1 x 1000pF capacitor
  • 1 x 1uF capacitor
  • 1 x 2.1x5.5mm barrel connector
  • 3 x 2 positions terminal connector
  • 1 x NE555P timer
  • 4 x 10 KOhms resistor
  • 4 x 1 MOhms resistor
  • 2 x 22nF capacitor
  • 1 x LM324N op-amp
  • 2 x 3 positions right angle pin header
  • 2 x 1mH inductance
  • 1 x 1meter 20AWG cable (for the inductances)

Customer Reviews

Based on 9 reviews
56%
(5)
22%
(2)
0%
(0)
0%
(0)
22%
(2)
V
Victor
Great kit

Works great. Made a diy mower. Could easily tell when it reached the border and which side arrived first so I could turn the best direction.

B
Benedikt
Doesnt work and incomplete kits

Unfortunately the kits I received were not complete. After receiving the replacement kits with the missing components (which were themselves again incomplete but I was only missing one of two capacitors each time so it was ok for me) the sensor wouldn't output any data at all except a steady changing value in the range of 780. Very disappointed. Comment RobotShop: We are very sorry to hear about the defective parts and our team will contact you regarding another kit!

T
Tony
Wish this kit came assembled

Wish it came assembled. I haven’t got to check it out but. Looks like it will work as long as assembly goes well.

T
Thomas
Doesn't work. Don't waste your money (but mostly time)

I've bought 4 of these kits. I've soldered them together all per the instructions. The receiver PCB does not work as advertised! I'm getting a steady voltage of 3.8V on the signal lines even with no sender PCB.

B
Boz
Effective and well-designed kit

This perimeter generator kit with its 2 sensors is well designed, simple to assemble, the plan provided is brief but sufficient... I tested with a small cable and an Arduino, it works well...now all that remains is to mount it on my robot mower prototype and test with a longer wire. In short, cheap, effective, I recommend!
