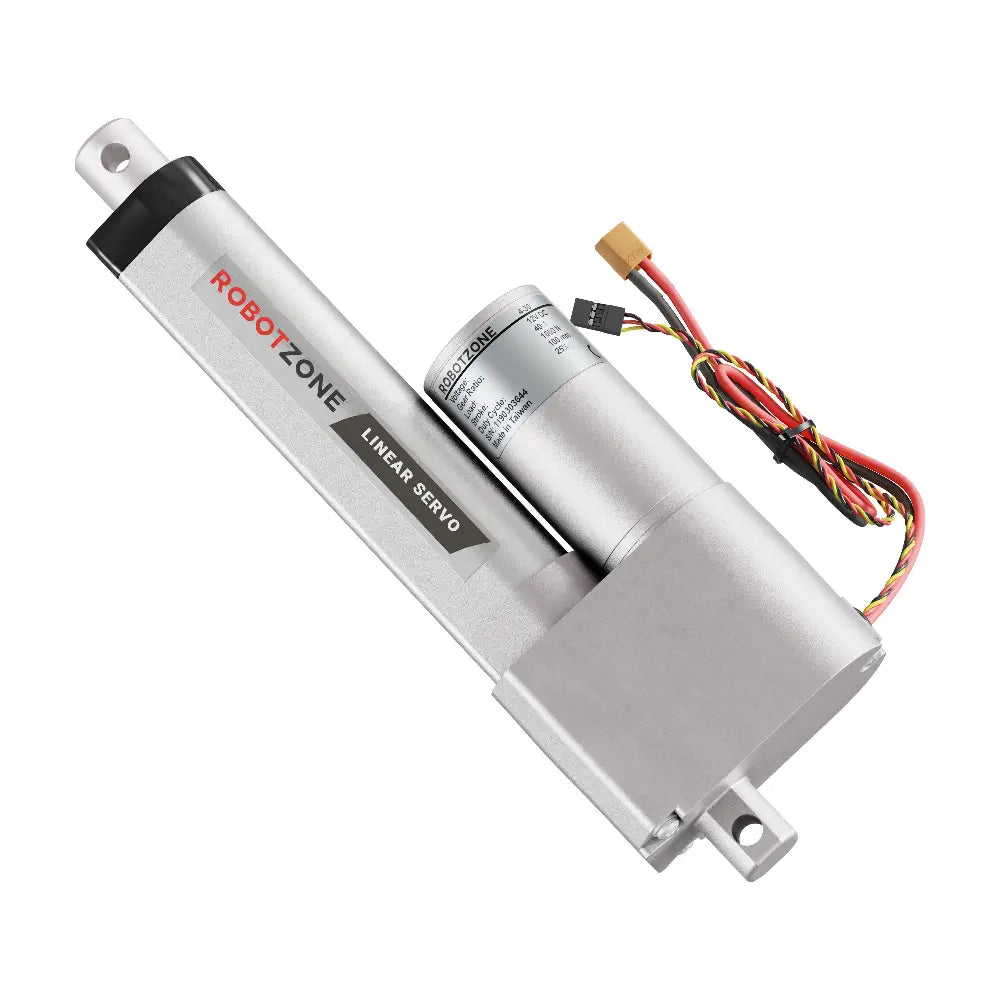

ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 225lb Thrust, 0.3"/sec, 4" Stroke)

ServoCitySKU: RB-Sct-1958
Manufacturer #: 3020-0040-0100

Price  :
Sale price $299.99

Shipping calculated at checkout

On Demand See due date

This is an On Demand item and is not normally stocked. We will order it for you along with our next purchase from the supplier.

* Delays depend on the order frequency from each supplier and the approximate arrival date is indicated in the due date. Returns are not accepted on On Demand and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 225lb Thrust, 0.3"/sec, 4" Stroke)
  • Offers 225 lbs dynamic thrust
  • Ensures precise position control
  • Operates on 12-24V power input
  • Constructed with durable metal gear
  • Functions with adjustable clevis

The ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 225lb Thrust, 0.3"/sec, 4" Stroke) is a sophisticated device engineered to respond to PWM signals, offering a seamless integration with various servo controllers without the need for additional tuning or wiring. This linear servo is equipped with an advanced internal circuit board that accepts PWM signals from a wide range of controllers, including wired and wireless systems, as well as microcontrollers like Arduino. The closed-loop feedback mechanism allows precise control over the position of the extension tube, ensuring accurate movement within its stroke range. The device is powered through a male XT30 connector, requiring a 12V input with a minimum of 5A, and it efficiently supplies 5V to the servo controller, enabling both components to operate from a single power source. Constructed with metal for enhanced durability, the linear servo is capable of handling significant static loads without being back-driven, even when power is removed. It can function in any orientation, providing equal force in both pulling and pushing directions. The mounting clevis near the motor is fixed, while the one on the extension tube can be rotated to accommodate different application requirements. This linear servo is an ideal replacement for pneumatic and hydraulic systems, offering reliable performance and robust construction.

  • 1x ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 225lb Thrust, 0.3"/sec, 4" Stroke)
  • Stroke: 4"
  • Retracted Length: 9.69"
  • Extended Length: 13.62"
  • Stroke: 4 inches
  • Pulse amplitude: 3-5 volts
  • Operating temperature: -20°C to +60°C
  • Deadband width: 8 microseconds
  • Motor type: 3-pole ferrite
  • Feedback style: 10KΩ potentiometer
  • Gear material: Metal gear train, nylon pinion
  • Wire length: Servo lead: 12 inches, Power input: 6 inches
  • Wire gauge: Servo lead: 22 AWG, Power input: 14 AWG
  • Voltage range (nominal): 12-24 volts
  • Voltage range (maximum): 11-30 volts
  • Speed (no load): 0.30 inches per second
  • Gearbox style: Straight cut spur
  • Connector type: Servo lead: Male servo connector, Power input: XT30 connector [FH-MC]
  • Gear ratio: 40:1
  • Speed (max load): 0.20 inches per second
  • Dynamic thrust: 225 pounds
  • Static load: 500 pounds
  • Current drain (no-load): 1 amp
  • Current drain (max load): 4.5 amps
  • Potentiometer tolerance: ± 5%
  • Feedback density: 2.5KΩ per inch
  • IP rating: IP53
  • Duty cycle: 25% on, 75% off
  • Lead screw type: 3mm pitch, single thread
  • Potentiometer linearity: ± 0.25%
  • PWM signal (fully retracted): 1900 microseconds
  • PWM signal (fully extended): 1100 microseconds
  • Current drain (idle): 25 milliamps
