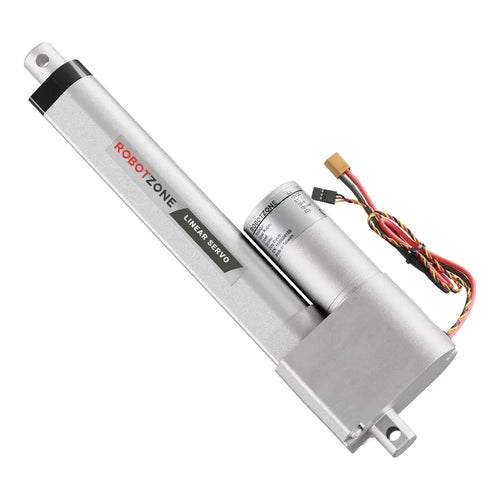

ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 33lb Thrust, 1.7"/sec, 6" Stroke)

ServoCitySKU: RB-Sct-1947
Manufacturer #: 3020-0005-0150

Price  :
Sale price $299.99

Shipping calculated at checkout

On Demand See due date

This is an On Demand item and is not normally stocked. We will order it for you along with our next purchase from the supplier.

* Delays depend on the order frequency from each supplier and the approximate arrival date is indicated in the due date. Returns are not accepted on On Demand and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 33lb Thrust, 1.7"/sec, 6" Stroke)
  • Handles static loads up to 500 lbs
  • Offers precise positioning via feedback
  • Operates on 12-24V with 33 lbs thrust
  • Accepts PWM from varied controllers
  • Constructed with durable metal parts

The ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 33lb Thrust, 1.7"/sec, 6" Stroke) is a sophisticated device engineered to respond to PWM signals, offering a seamless integration with various servo controllers without the need for additional tuning or wiring. This linear servo is equipped with an advanced internal circuit board capable of accepting PWM signals from a wide range of controllers, including wired servo controllers, wireless transmitters, and microcontrollers like Arduino. Its closed-loop feedback system ensures precise positioning within its stroke range by continuously monitoring the position through an internal potentiometer and adjusting the motor's power accordingly. The device is powered through a male XT30 connector requiring a 12V input with a minimum of 5A, and it efficiently shares power with the servo controller via a twisted lead. Constructed with metal, the linear servo is designed for durability and reliability, capable of handling significant static loads without back-driving, even when power is removed. It operates effectively in any orientation, providing equal force in both pulling and pushing directions. The servo's mounting clevises offer flexibility, with the one on the extension tube being rotatable to accommodate different application requirements. This linear servo serves as a robust alternative to pneumatic and hydraulic systems, driven by an ACME screw that ensures efficient linear thrust.

  • 1x ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 33lb Thrust, 1.7"/sec, 6" Stroke)
  • Stroke: 6"
  • Retracted Length: 11.69"
  • Extended Length: 17.59"
  • Stroke: 6 inches
  • Pulse amplitude: 3-5 volts
  • Operating temperature: -20°C to +60°C
  • Deadband width: 8 microseconds
  • Motor type: 3-pole ferrite
  • Feedback style: 10KΩ potentiometer
  • Gear material: Metal gear train, nylon pinion
  • Wire length: Servo lead: 12 inches, Power input: 6 inches
  • Wire gauge: Servo lead: 22 AWG, Power input: 14 AWG
  • Voltage range (nominal): 12 - 24 volts
  • Voltage range (maximum): 11 - 30 volts
  • Speed (no load): 1.70 inches per second
  • Gearbox style: Straight cut spur
  • Connector type: Servo lead: Male servo connector, Power input: XT30 connector [FH-MC]
  • Gear ratio: 5:1
  • Speed (max load): 1.37 inches per second
  • Dynamic thrust: 33 pounds
  • Static load: 500 pounds
  • Current drain (no-load): 1 amp
  • Current drain (max load): 4.5 amps
  • Potentiometer tolerance: ± 5%
  • Feedback density: 1.66KΩ per inch
  • IP rating: IP53
  • Duty cycle: 25% on, 75% off
  • Lead screw type: 3mm pitch, single thread
  • Potentiometer linearity: ± 0.25%
  • PWM signal (fully retracted): 1900 microseconds
  • PWM signal (fully extended): 1100 microseconds
  • Current drain (idle): 25 milliamps
