Xbee Arduino Shield

Sparkfun ElectronicsSKU: RB-Spa-448
Manufacturer #: WRL-12847

Price  :
Sale price $18.50

Shipping calculated at checkout

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Awesome way to add wireless capability to Arduino project
  • Shield form-factor mates directly with any dev board
  • 9x11 grid of 0.1" spaced prototyping holes
  • takes care of level shifting on the DIN and DOUT pins of the XBee

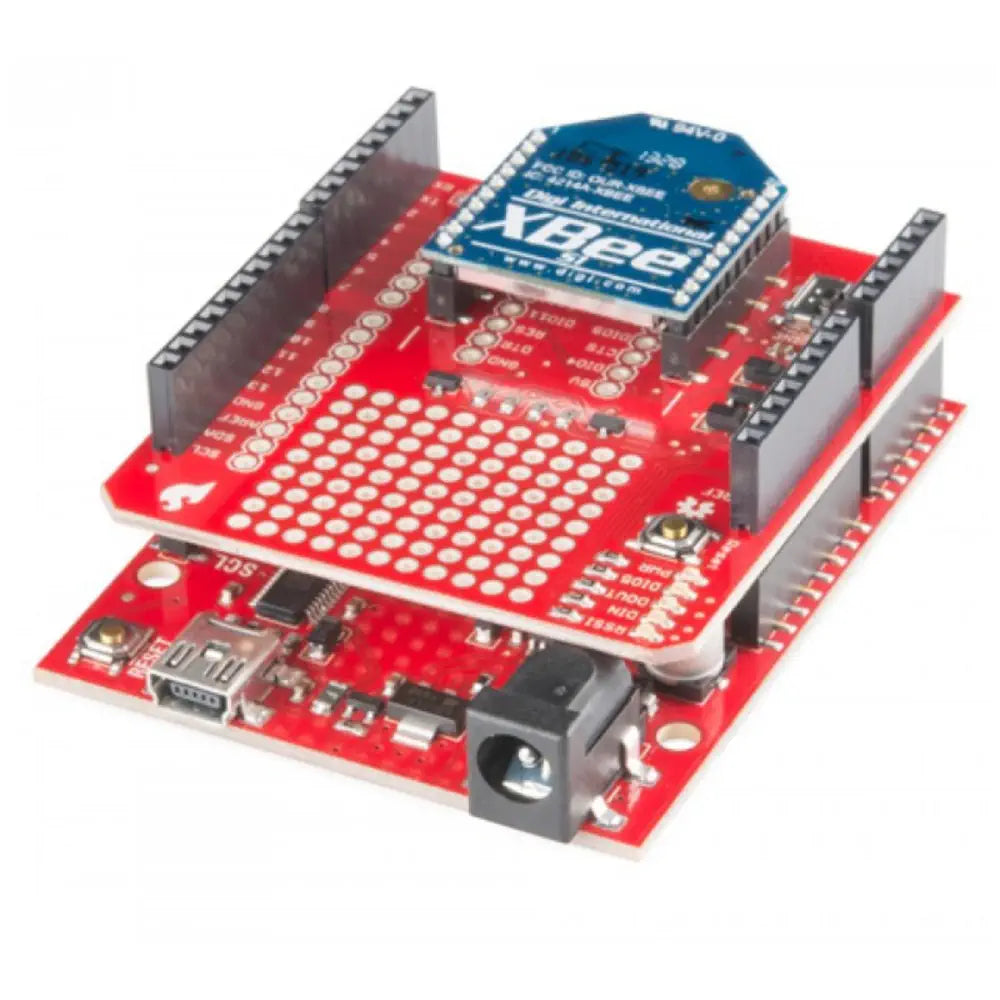

The Xbee Arduino Shield is an awesome way to add wireless capability to your Arduino project. The shield form-factor mates directly with any dev board that has an Arduino standard footprint and equips it with wireless communication capabilities using the popular XBee module. This unit works with all XBee modules including the Series 1 and 2, standard and Pro versions. The serial pins (DIN and DOUT) of the XBee are connected through an SPDT switch, which allows you to select a connection to either the UART pins (D0, D1) or any digital pins on the Arduino (D2 and D3 default). Power is taken from the 5V pin of the Arduino and regulated on-board to 3.3VDC before being supplied to the XBee.

Xbee Arduino Shield

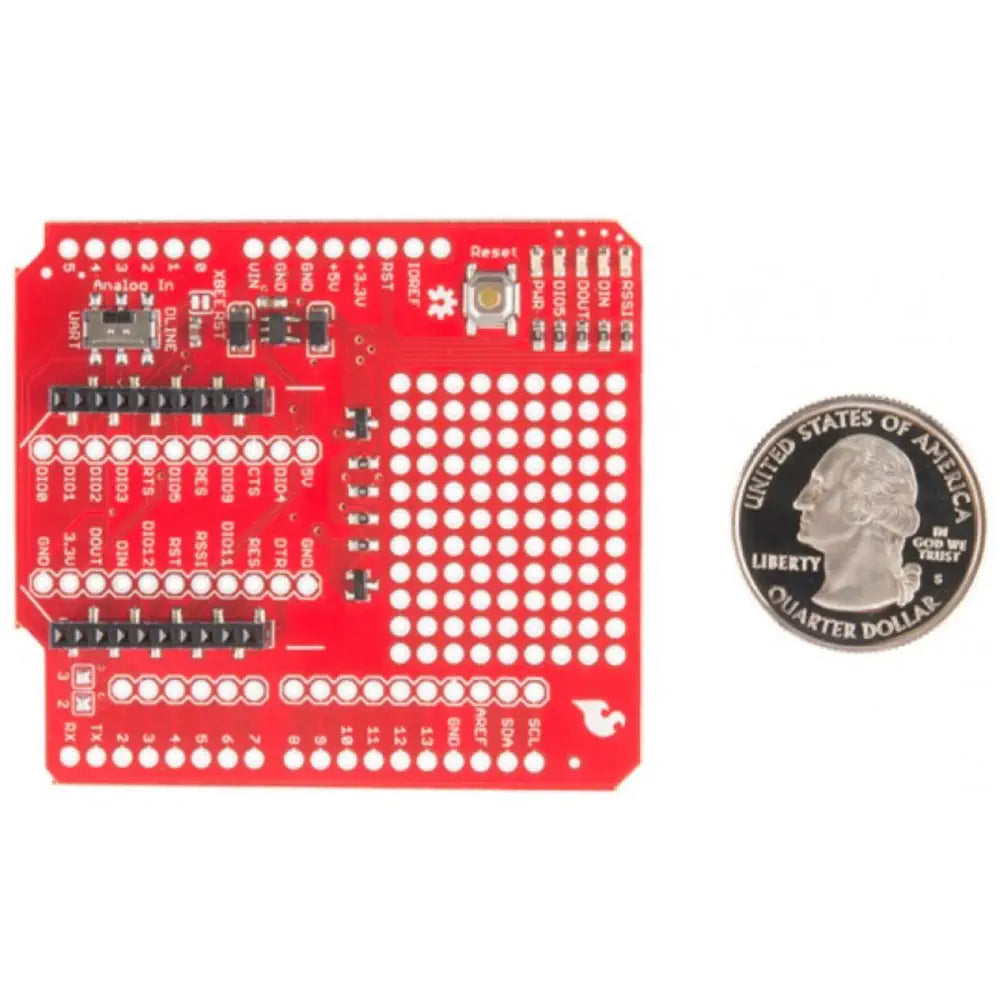

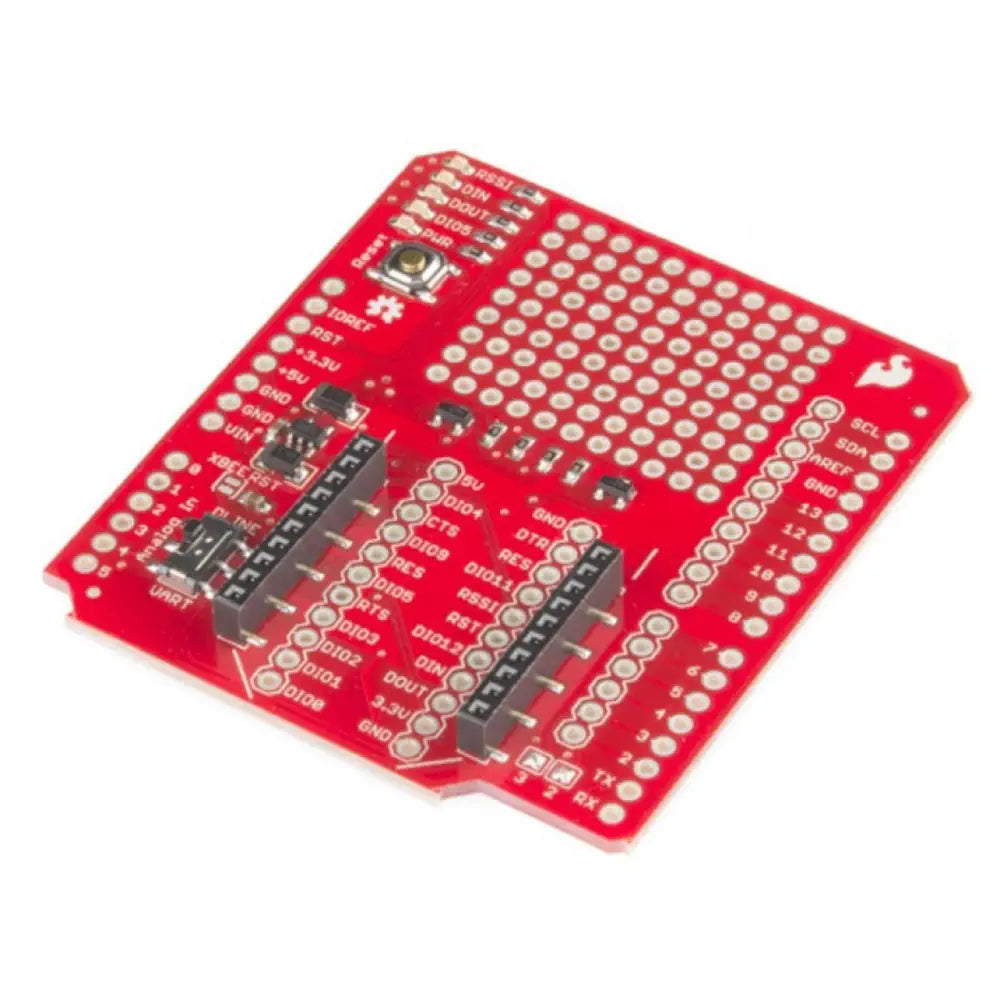

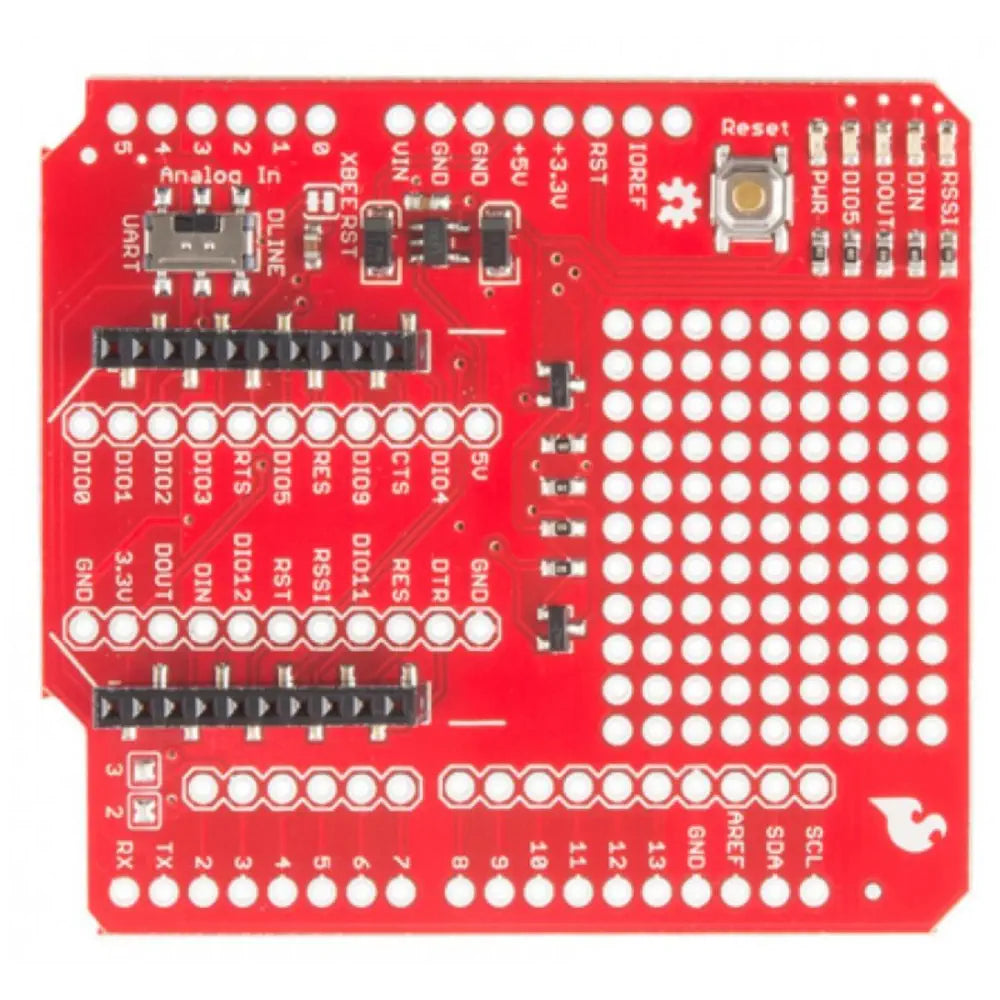

The shield also takes care of level shifting on the DIN and DOUT pins of the XBee. In the latest revision the diode level shifter is replaced with a more robust MOSFET level shifter. The board also includes LEDs to indicate power and activity on DIN, DOUT, RSSI, and DIO5 pins of the XBee. The Arduino’s reset button is brought out on the shield, and a 9x11 grid of 0.1" holes are available for prototyping.

Features

  • Mounts directly onto your Arduino
  • 3.3V power regulation and MOSFET level shifting on-board
  • Reset button brought out to shield
  • Power, DIN, DOUT, RSSI and DIO5 indicator LEDs
