Description

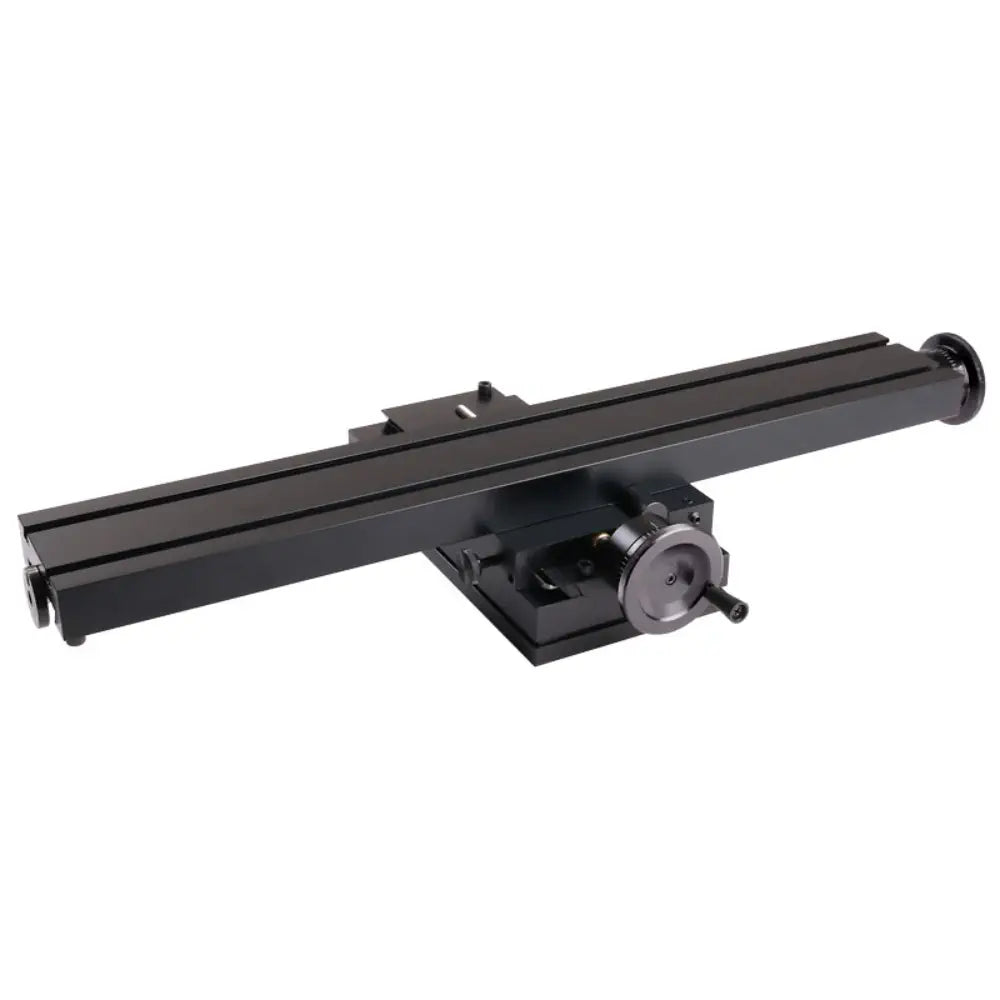

- 1x Sherline 2-Axis X/Y Manual Machine Slide 18"
- 4x 35580 Hold-down clamp
- 1x 40280 Thrust collar (18″ table only)
- 2x 40510 10-32 x 3/8″ Socket Head Cap Screw
- 5x 40520 10-32 x 3/16″ Cup Point Set Screw
- 1x 40530 5-40 X 3/8″ Socket Head Cap Screw (18″ table only)
- 1x 40550 5/32″ hex key
- 1x 40570 3/32″ hex key
- 2x 40600 10-32 X 1/4″ Flat Point Set Screw
- 1x 40690 10-32 x 3/4″ Socket Head Cap Screw
- 1x 40760 Thumbscrew
- 2x 40820 Gib Lock
- 1x 40890 (41890 Metric) X-axis Slide Screw Nut
- 2x 40890 Gib
- 1x 45070 Teflon® Lock
- 1x 50130 (51130 Metric) X-axis Anti-backlash Nut
- 1x 50140 (51140 Metric) Y-axis Anti-backlash Nut
- 2x 50150 Backlash Lock Star Gear
- 1x 50161 (51161 Metric) Y-axis Leadscrew
- 1x 50173 (51173 Metric) 18″ X-axis Leadscrew
- 1x 50190 Table Lock
- 1x 50200 (51200 Metric) Y-axis Slide Screw Nut
- 2x 50211 Button Head Socket Screw
- 1x 50910 Mill Saddle
- 1x 50920 Mill Saddle Oiler Body
- 1x 50930 Mill Saddle Oiler Cap
- 1x 54182 18″ Mill Table
- 1x 54183 18″ Table Leadscrew Bushing
- 1x 65401 Industrial X/Y Base
- 1x 67017 (670171 Metric) Y-axis 2″ Industrial Handwheel
- 1x 67018 (670181 Metric) X-axis 2″ Industrial Handwheel
- 2x 67019 Industrial Handwheel Thrust Collar
- 1x 67106 (67108 Metric) X-axis Preload Nut (RH)
- 1x 67107 (67109 Metric) Y-axis Preload Nut (LH)
- 4x 67111 8-32 x 3/4″ Socket Head Cap Screw
- 2x 67115 5-40 x 7/8″ Socket Head Cap Screw
- Table size: 18 x 2.75" (458 x 70 mm)
- Table height: 2.8" (71.1 mm)
- X-axis travel: 13.38" (340 mm)
- Y-axis travel: 4.1" (104 mm)
- Manufactured from 6061-T6 aluminum with a black anodized coating
- Available with inch or metric leadscrew
- Precision-rolled steel leadscrews
- Adjustable leadscrew backlash
- Dovetailed tables and saddles with adjustable gibs
- Handwheels graduated in .001″ increments on inch slides and .01 mm increments on metric slides
- Weight capacity approximately 10 lbs, depending on weight location
- Duty cycle of 2080 hours under heavy use
- Mounting provisions from the bottom with four 1/4-20 holes or from the top using four angle clamps
- Handwheel: 2″ laser-engraved aluminum with two pre-loaded ball bearings
- Hold-down provision: 2 T-slots
- Mounting provision: 4 holes 1/4-20 in the bottom of the base plus a slot for angle clamps
