Description

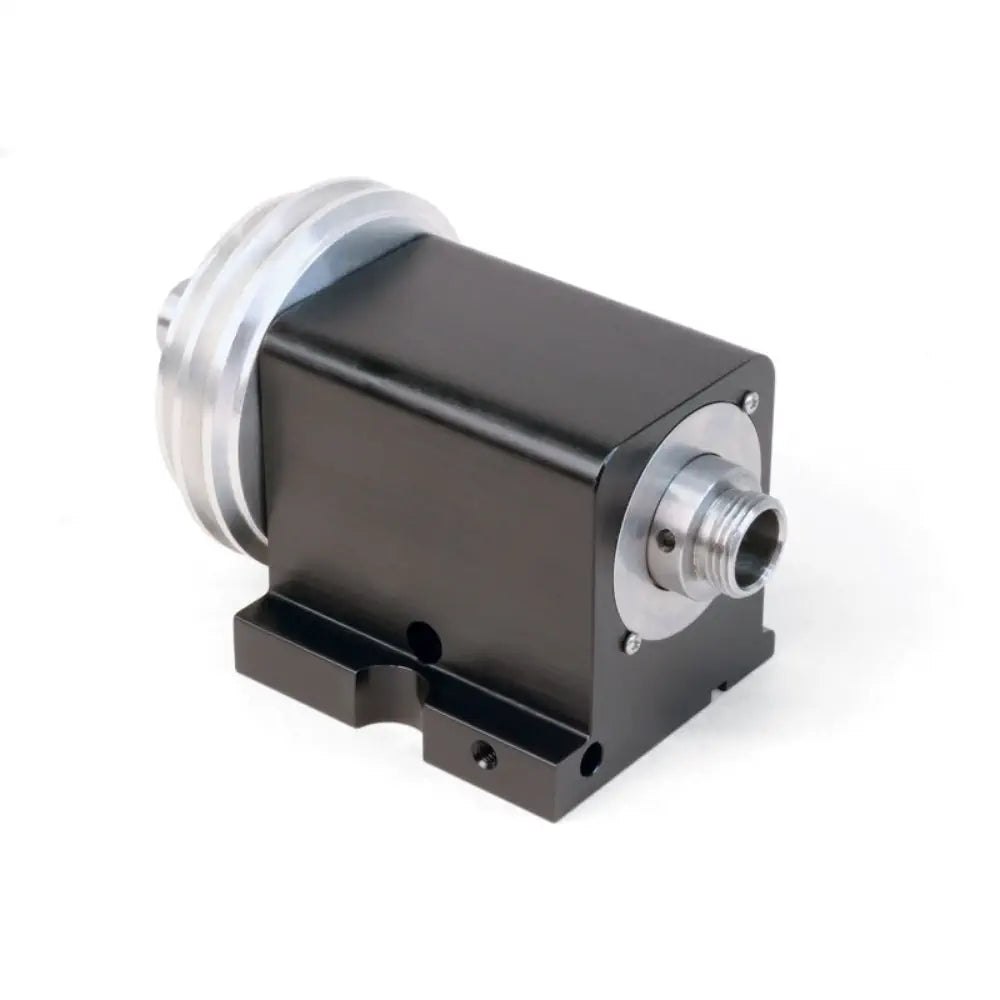

- 1x Sherline 9/16" Through-Hole Spindle Headstock
- 1x 10-32 X 3/8″ Set Screw
- 1x Headstock Casing
- 1x 9/16″ Preload Nut
- 1x 9/16″ Headstock Spindle
- 1x Precision Ground Head Key
- 1x Bearing Washer (SS)
- 1x 10-32 X 5/8″ Skt Hd Cap Screw
- 1x Headstock Class 3 Bearing
- 1x Headstock Class 5 Bearing
- 1x #2 X 1/4″ Pan Hd Sheet Metal Screw
- 1x 10-32 X 3/16 Cup Pt Set Screw
- 1x 5/16-18 X 3/4″ Cone Point Set Screw
- 1x 9/16″ Headstock Spindle Pulley
- 1x Motor Bracket
- 1x Drive Belt
- 1x DC Speed Control Assembly w/Belt Guard
- 1x Stepped Motor Pulley
- 1x Hill House DC Motor (2020)
- Spindle through-hole: 9/16″ (14.28 mm)
- Spindle external thread: 3/4 x 16
- Pulley groove side angle: 19°
- Maximum allowable spindle runout at spindle nose: 0.001″
- Spindle end play adjustable with preload nut, factory settings: 0.0002″
- Headstock bearings: 6004ZZ
- Bearing bore size: 20 mm (0.7874″)
- Bearing bore tolerance: 0.0004″
- Bearing outside diameter: 42 mm (1.6535″)
- Bearing outside diameter tolerance: 0.0005″
- Bearing width: 12 mm (0.4724″)
- Bearings: 9 balls, 1/4″ diameter
- Motor and speed control: Electric motor specifications from manufacturer
- Two-speed pulley RPM range: Normal belt position=70-2,800, high-torque, low RPM position=70-1,280
- Type of enclosure: Totally enclosed, non-vented
- Duty rating: Continuous–10 oz. in. at 6,100 RPM, 0.85 amperes; Intermittent–30 oz. in. at 5,500 RPM, 1.75 amperes (5 minutes on / 15 minutes off)
- Output horsepower: 0.06 KW (60 W) at 10 oz. in. / 6,100 RPM
- AC voltage (input): Normally 115 VAC, 60 Hz, single phase to rectifier
- DC voltage: 90V DC to motor (60 Hz)
- Speed in RPM: 6,100 RPM continuous
- Class of insulation: Class A, 105° C insulation system
- Normal full load current: 0.85 amperes
- Starting current: 1.7 amperes instantaneous starting current (<100 milliamperes)
- Type of motor: 3.00 inch (outer diameter) sub-fractional horsepower brush-type permanent magnet motor
- Temperature rise at ambient 50° C: Less than or equal to 45° C
- Motor frame size: 3 inches
- End use of motor: Drive unit for lathe or mill
