Description

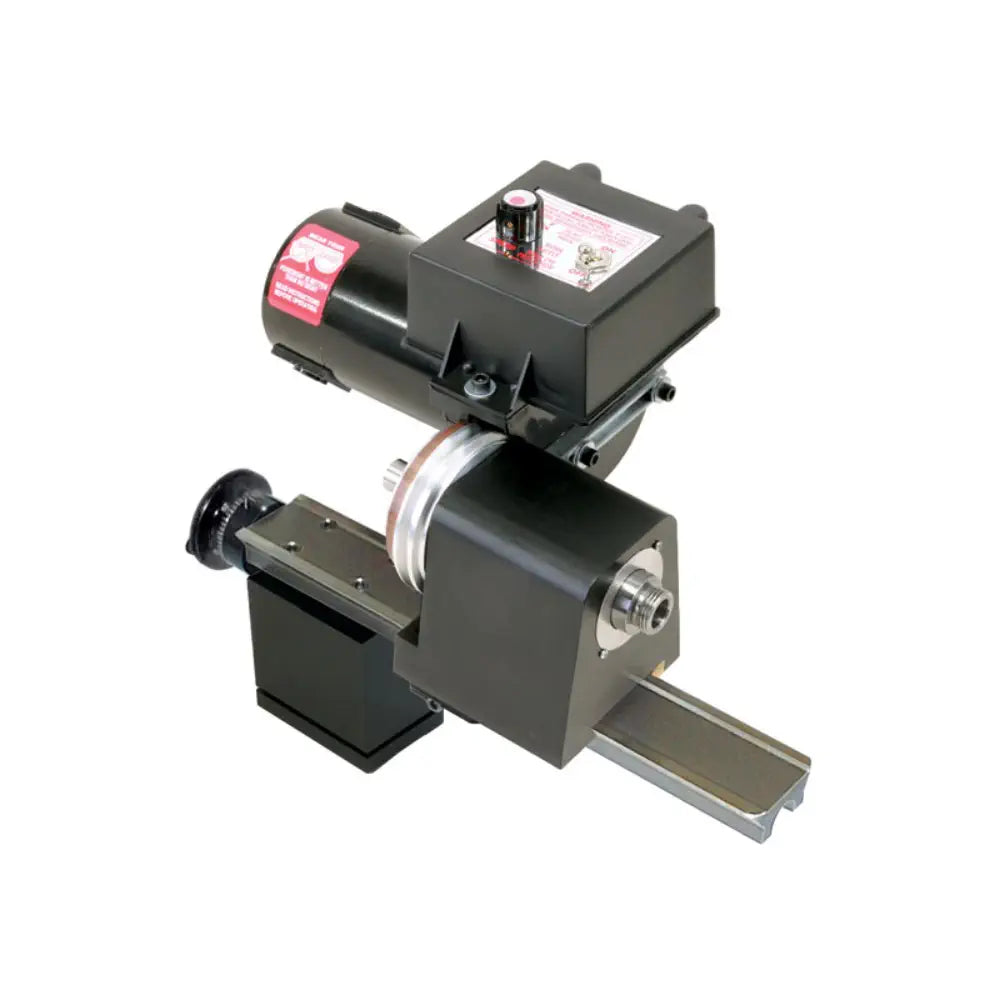

- 1x Sherline Single-Axis Machine Slide w/ Dovetailed Headstock & Motor, ER-16 - Inch
- 1x Dovetail-Base Headstock, ER-16 Spindle with 90-Volt DC Motor and Speed Control Unit
- 4x 10-32 x 7/8″ Socket Head Cap Screw
- 1x Saddle Nut
- 1x Saddle Nut Locking Lever
- 1x Bed
- 1x Base
- 1x Handwheel Collar
- 1x 2″ Industrial Handwheel
- 1x Leadscrew
- Height of top of bead above fixture: 95.3 mm (3.75")
- Height of spindle centerline above fixture: 150.6 mm (5.93")
- Spindle centerline height above bed: 55.4 mm (2.18")
- Headstock travel on machine slide: 117.5 mm (4.625")
- Length of headstock base and gib: 88.9 mm (3.5")
- Length of headstock case (at top): 76.3 mm (3.00")
- Hole through spindle: 10 mm (0.405")
- Steel bed on a raised base
- Adjustable leadscrew backlash
- 2-inch industrial handwheel graduated in 0.001-inch increments on inch slides
- Base mounting provisions: Two 1/4-20 holes in the base's bottom on 2-inch centers
- Headstocks made from extruded 6061-T6 aluminum with a black anodized finish
- Spindle options: 3/4-16 #1M taper or ER-16
- Spindle bearing dust cover washer
- ER-16 collet nut included with the ER-16 spindle headstocks
- Optional nickel/Teflon plating for rustproof spindles
- 90-volt DC motor with maximum torque at low RPM
- 1/2 HP 90-volt high-torque DC motor
- 2-step "V" belt pulley
- Variable speed electronic speed control: 70-2800 RPM
- Load compensating circuit maintains constant RPM
- Speed control accepts input from 100 VAC to 240 VAC, 50 or 60 Hz
- Eight-foot, three-wire power cord
- Spindle speed range: 70-2800 RPM
- Spindle bearings: Two 20 mm, class 5, lifetime lubricated ball bearings with adjustable preload
