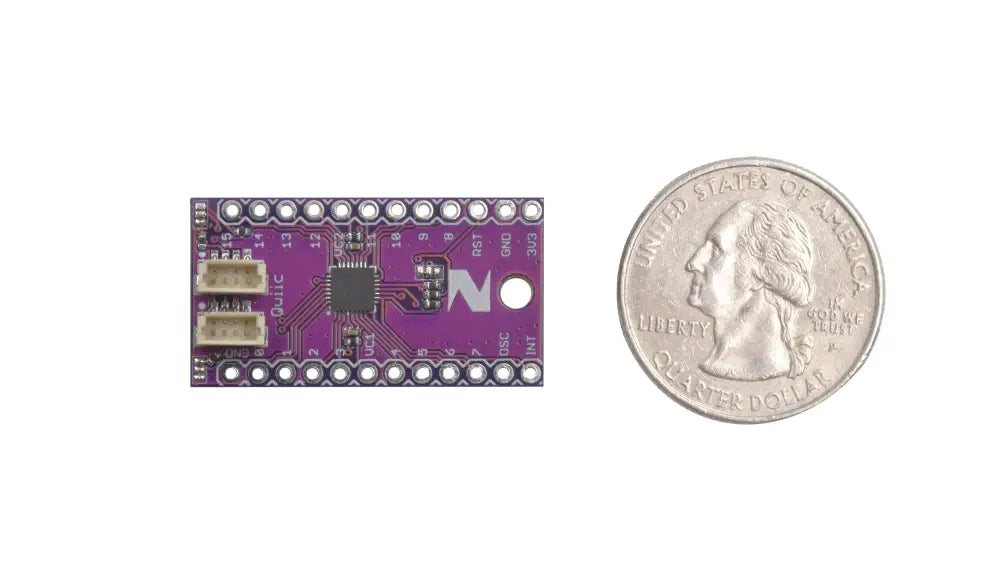

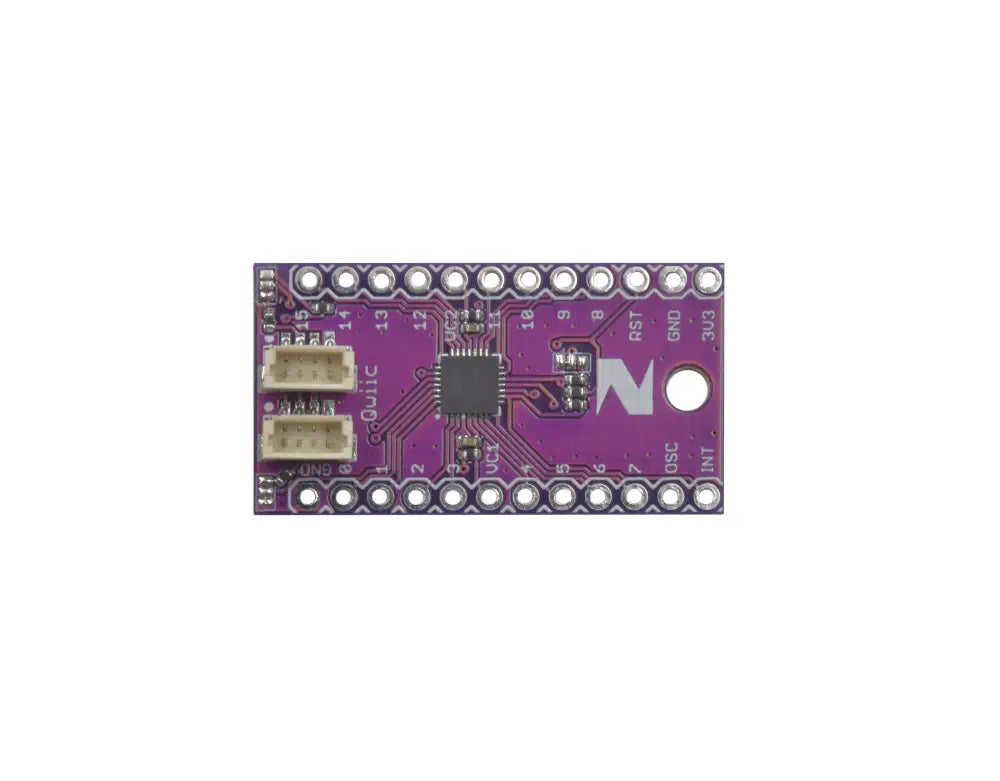

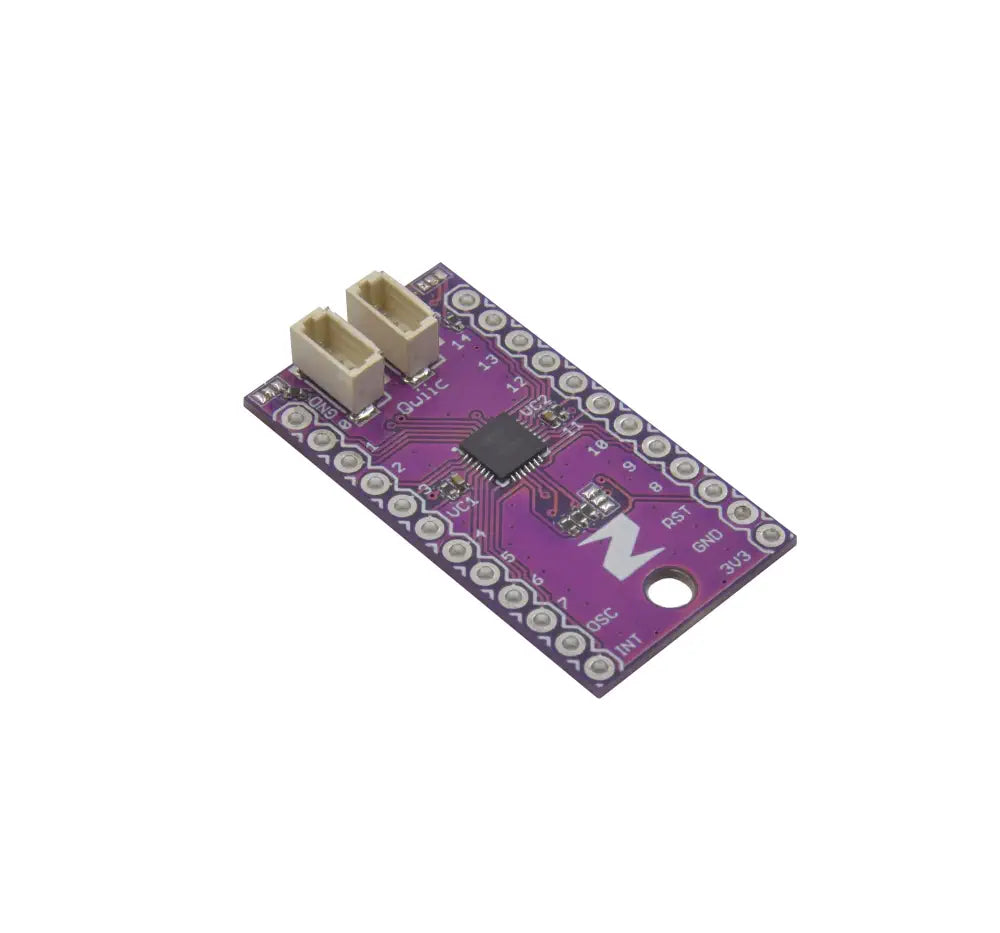

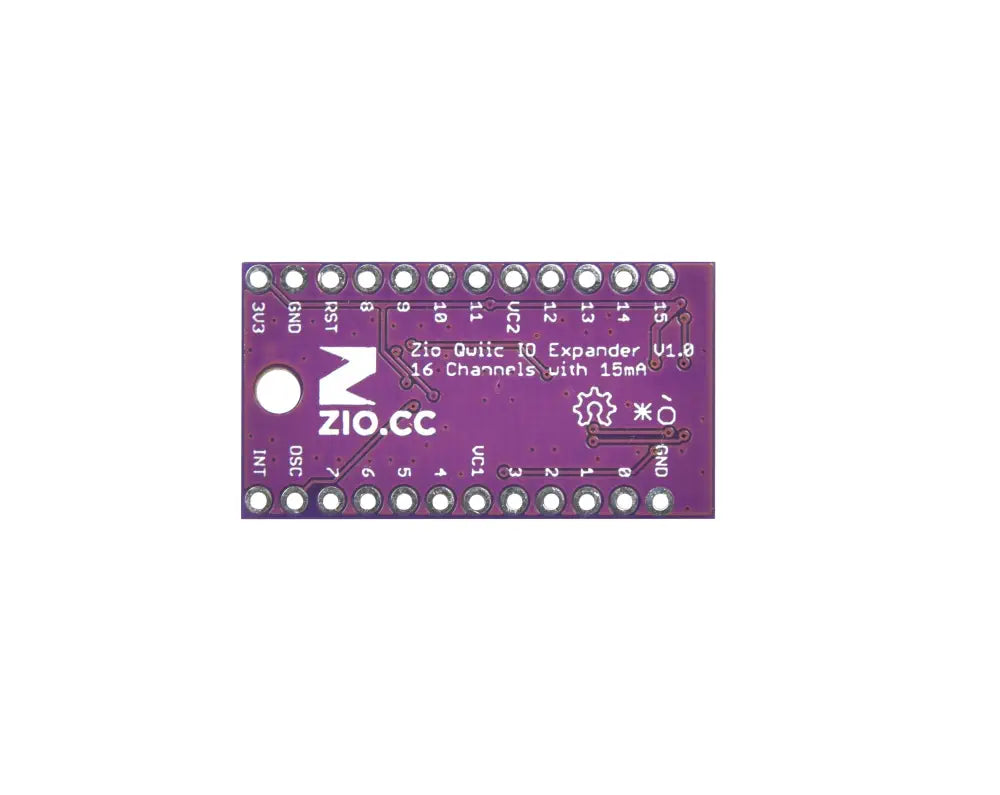

Zio Qwiic IO Expander, 16 Channels

Smart PrototypingSKU: RM-SMAR-00X
Manufacturer #: 101901

Price  :
Sale price $3.99

Shipping calculated at checkout

Stock  :
In stock (42 units), ready to be shipped

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Zio Qwiic IO Expander (16 Channels)
  • Add 16 extra, fully programmable GPIO pins with the Zio Qwiic I/O Expander

The Zio Qwiic IO Expander, 16 Channels adds 16 extra, fully programmable GPIO pins to the MCU controlling your Qwiic based project. It also produces PWM signals for the control of LEDs or any other PWM controllable device with a maximum 15mA output sink current. The board is laid out for easy soldering of components directly to it or for more flexible prototyping, it can be soldered with header pins and dropped into a breadboard.

All I/O pins are 5.5V tolerant, but it is recommended to use voltages between 1.2 and 3.6V for optimal operation. The board has a 400kHz I2C compatible slave interface that is fast enough for most high speed demanding projects and it features an on chip keypad scanning engine supporting up to 64 keys in an 8x8 matrix.

The I/O Expander also has two Qwiic connectors for quick and easy daisy chaining with other Qwiic compatible I2C boards. Its features include a Semtech SX1509, 16 I/O Channels, 1.2V to 3.6V low operating voltage, and 5.5V Tolerant I/O up to 15mA output sink current on all I/Os. It also has a PWM Intensity control (256 step PWM).

33 mm x 18 mm
Attached files

Ultra low current consumption of typically 1uA.

Operating temperature range of 40 degrees C to +85 degrees C.

I2C compatible slave interface with a frequency of 400kHz.

Blink and breathing control with 224 On/Off values for each.

Open drain active low interrupt output (NINT).

Direct level shifting between I/O banks and host controller.

IC: SX1509.

I2C address: 0x3E, 0x3F, 0x70, 0x71 (Default: 0x3E).

Dimensions (LxWxH): 33x18mm.

Weight: 1.5g (0.06oz).
