Zio Qwiic Level Translator PCA9306

Smart PrototypingSKU: RM-SMAR-005
Manufacturer #: 101925

Price  :
Sale price $4.99

Shipping calculated at checkout

Stock  :
In stock (50 units), ready to be shipped

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Zio Qwiic Level Translator (PCA9306)
  • Can be used to run two buses at different frequencies
  • Allowing bidirectional voltage translation

The Zio Qwiic Level Translator PCA9306 allows for bidirectional voltage translation from 1V to 3.6V and 1.8V to 5.5V on the high side. It is suitable for projects that require components with different voltages. It facilitates the translation of I2C signals from one voltage reference to another, translating both the high level and low level voltage thresholds. The board features a dual bidirectional I2C bus and SMBUS voltage level translator without the need for a direction pin. Additionally, it is capable of matching frequencies, allowing two buses to run at different frequencies; one at 400 kHz operating frequency and the other at 100 kHz.

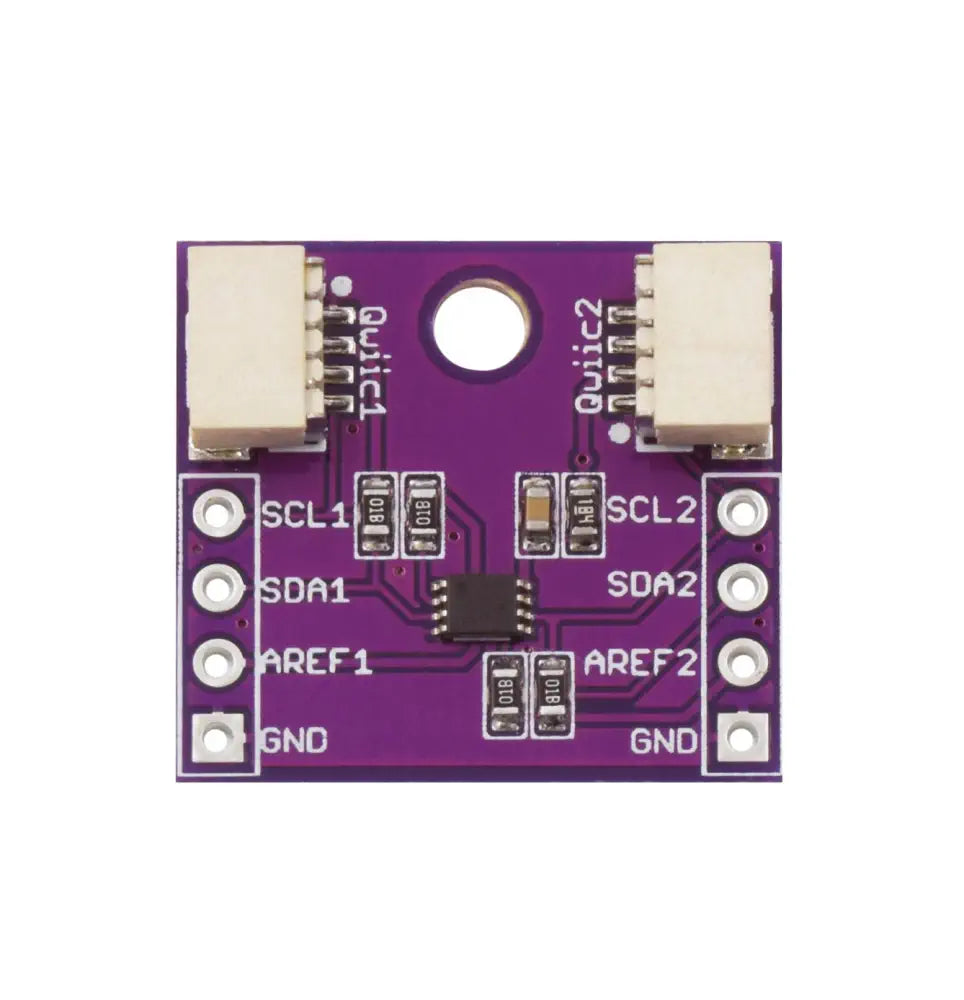

Connecting the lower voltage part to the connector next to SCL1, SDA1 and AREF1 and the higher voltage part to the opposite connector next to SCL2, SDA2 and ARED2 is all that is needed for setup. For those who wish to access the connections directly, the pinout is included.

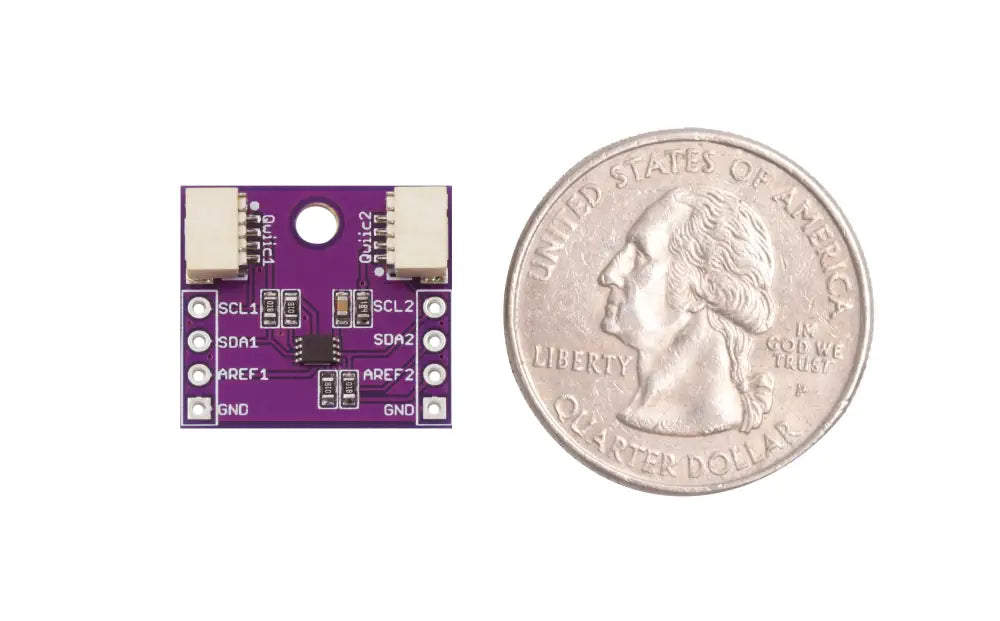

1.84 x 1.99 cm
Attached files

Interface: I2C

Allows voltage level translation between:

1.0 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias(ref)(2)

1.2 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias(ref)(2)

1.8 V Vref(1) and 3.3 V or 5 V Vbias(ref)(2)

2.5 V Vref(1) and 5 V Vbias(ref)(2)

3.3 V Vref(1) and 5 V Vbias(ref)(2)

Provides bidirectional voltage translation with no direction pin

Has a maximum propagation delay of less than 1.5 ns to accommodate Standard mode and Fast mode I2C bus devices and multiple masters

Low 3.5 ON state connection between input and output ports provides minimal signal distortion

Dimensions: 18.4 x 19.9mm

Weight: 1.2g.
