SparkFun Buck Regulator Breakout - 3.3V (AP3429A)

Save $0.67
Sparkfun ElectronicsSKU: RB-Spa-2203
Manufacturer #: COM-21337

Price  :
Sale price $5.28 Regular price $5.95

Shipping calculated at checkout

Stock  :
Only 1 unit left

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • SparkFun Buck Regulator Breakout - 3.3V (AP3429A)
  • Features a 2A step-down DC converter
  • Provides a regulated 3.3V output from a 3.9V to 5.5V input
  • Includes a copper pad for efficient heat management
  • Offers multiple power input/output options for flexibility

The SparkFun Buck Regulator Breakout - 3.3V (AP3429A) is a sophisticated device that features the AP3429A from Diodes Inc. This device is a 2 A step-down DC converter with an input voltage range of 2.7 V to 5.5 V.

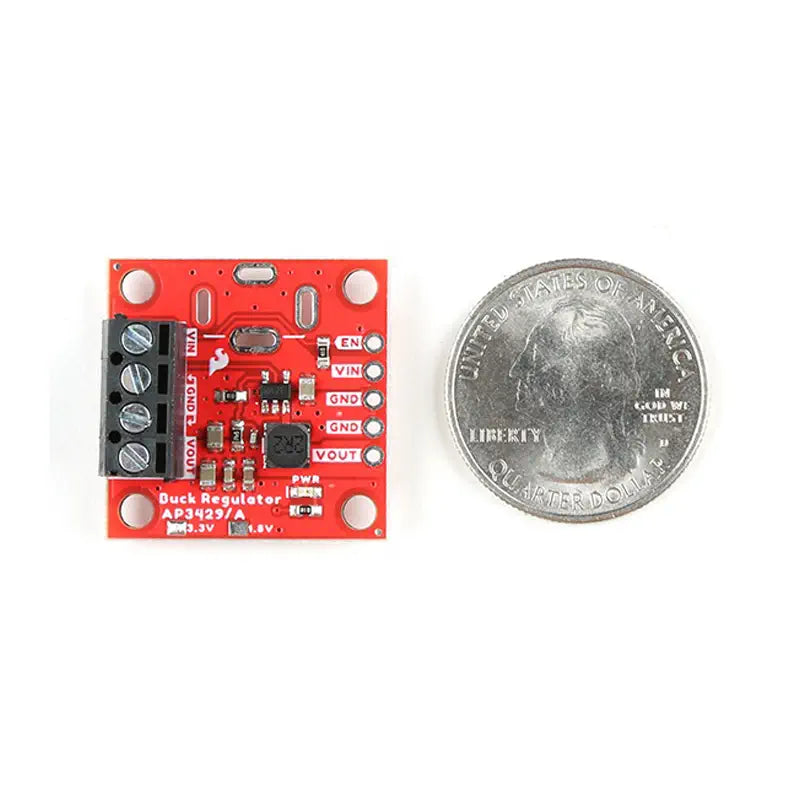

The full-size version of the buck regulator boards, measuring 1 inch by 1 inch, is designed to provide a regulated 3.3 V output. This output is derived from an input voltage range of 3.9 V to 5.5 V and is controlled by an EN (enable) pin.

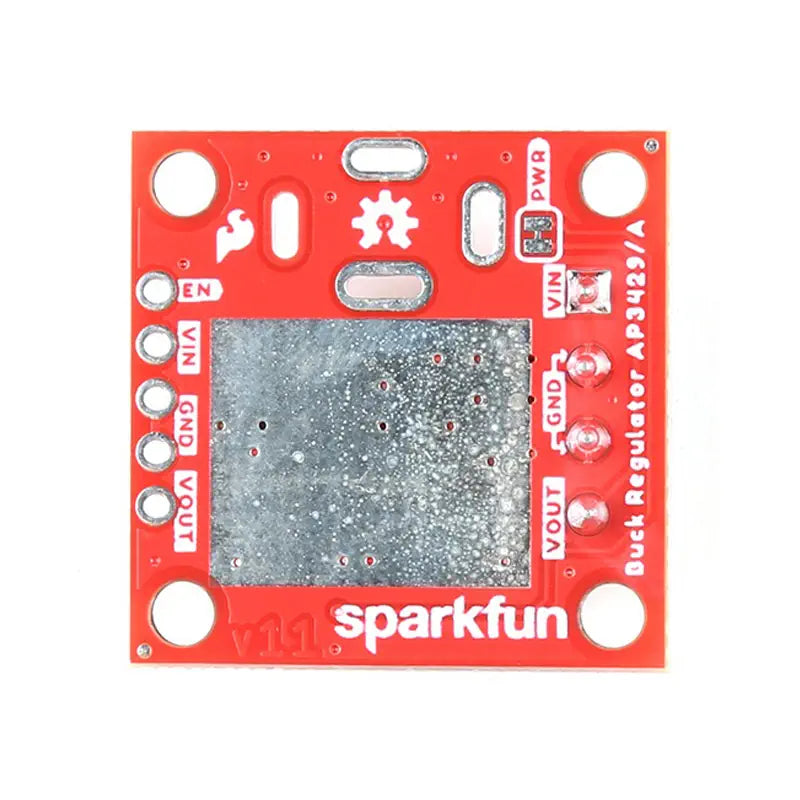

To manage excess heat, the device is equipped with a 0.6-inch by 0.5-inch copper pad. This pad is designed to facilitate the attachment of a heat sink to the bottom of the board.

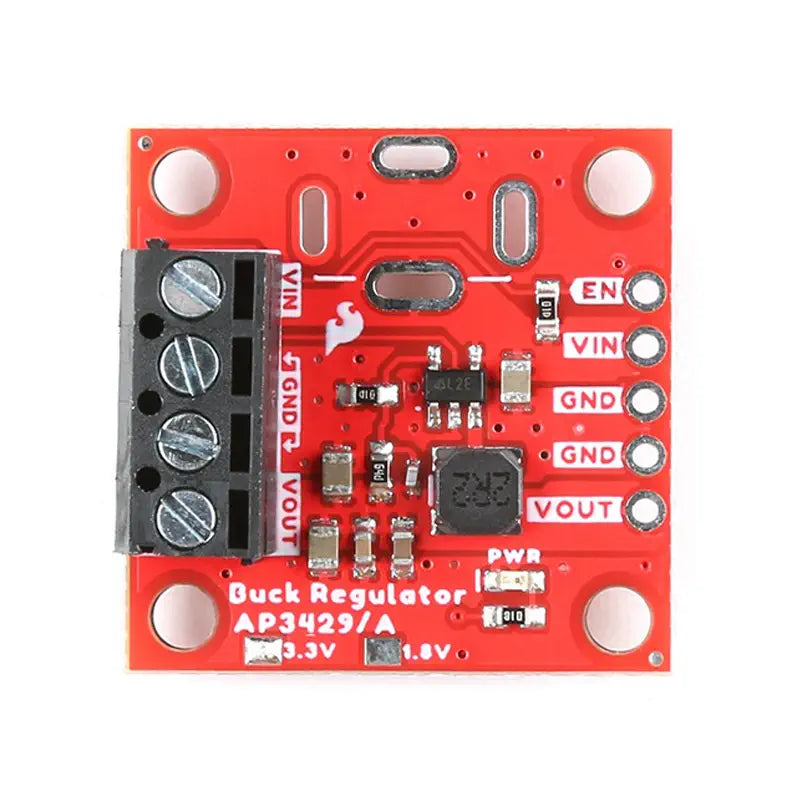

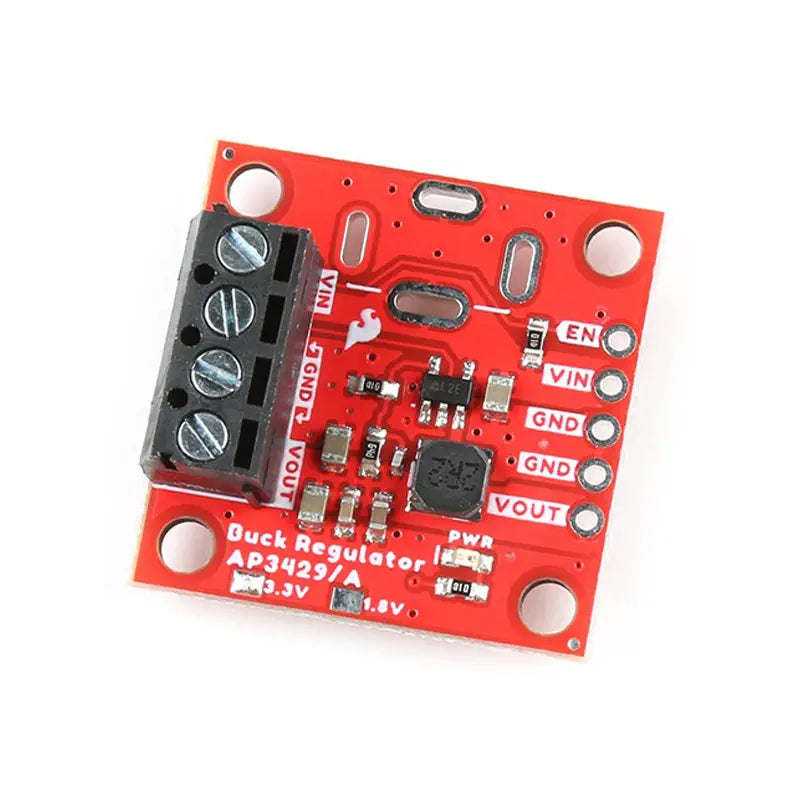

As a full-size buck regulator breakout, this device offers additional options for connecting input and output power. It includes a pre-assembled screw terminal for a non-permanent connection, the option to solder on a barrel jack for an external power supply, and five PTH pins to create a more permanent installation.

The device also includes a red power indication LED that illuminates when the power output is enabled. The board is designed with four mounting holes compatible with 4-40 hardware.

  • 1x SparkFun Buck Regulator Breakout - 3.3V (AP3429A)
  • 1 x 1 inch (L x W)

Buck Board

  • Three power input/output options:
    • Pre-assembled 4-pin screw terminal
    • Five 0.1 inch spaced PTH pins
    • Four plated slots for a DC barrel jack (input only)
  • Power connections:
    • VIN - Power In (3.9 V to 5.5 V)
    • GND - Common Ground
    • VOUT - Power Out (Regulated 3.3 V)
    • EN - Enable (Pull high to enable the power output)
  • Red, power LED indicator
  • 0.5 x 0.6 inch Plated copper pad (for heat sinks)

AP3429A

  • VIN: 2.7 V to 5.5 V
  • VOUT: 0.6 V to VIN
  • 2 A Continuous Output Current
  • 90µA No-Load Quiescent Current
  • 1 MHz Switching Frequency
  • Protection Circuitry
  • Undervoltage Lockout (UVLO)
  • Input Overvoltage Protection
  • Over Current Protection
  • Cycle-by-Cycle Peak Current Limit
  • Thermal Shutdown (160 °C / 320 °F)
