Description

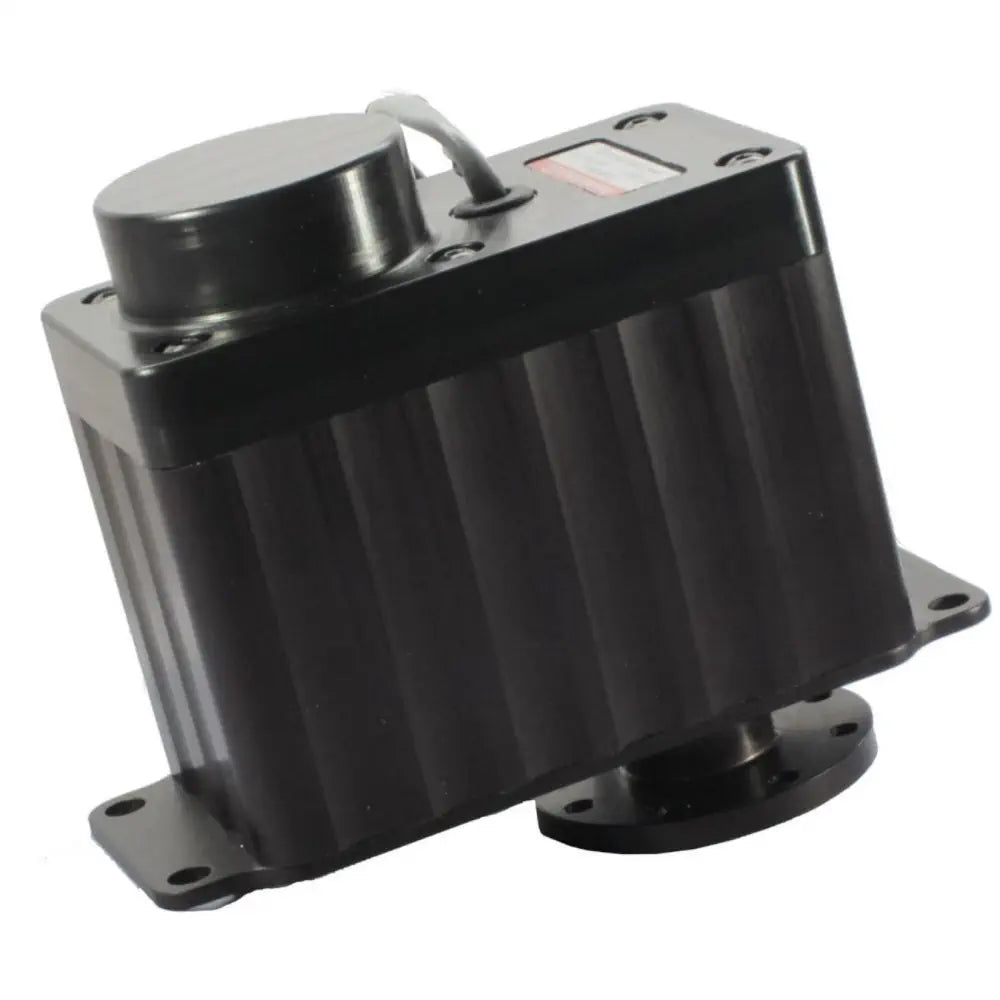

Industrial Series (Black Housing) Electrical Connection:
- Red wire is +12VDC
- Black wire is 12VDC ground
- White wire is 5VDC signal (pwm or analog depending on model)
- Green wire is signal ground
- Applying voltages higher than 5VDC to the signal cable will damage the unit as well
- 1500us = 0 degrees
- 500us = -90
- 2500us = +90
- 100us = -135 degrees
- 2900us = +135 degrees
