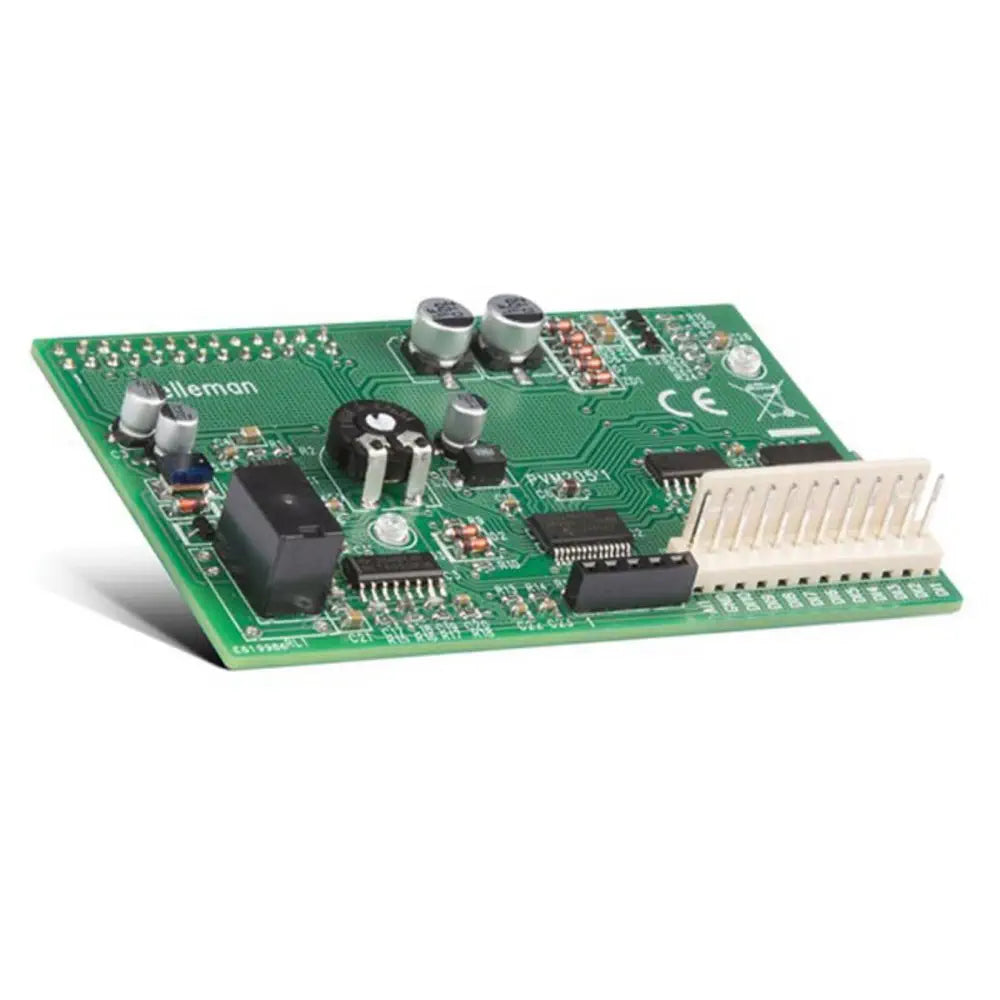

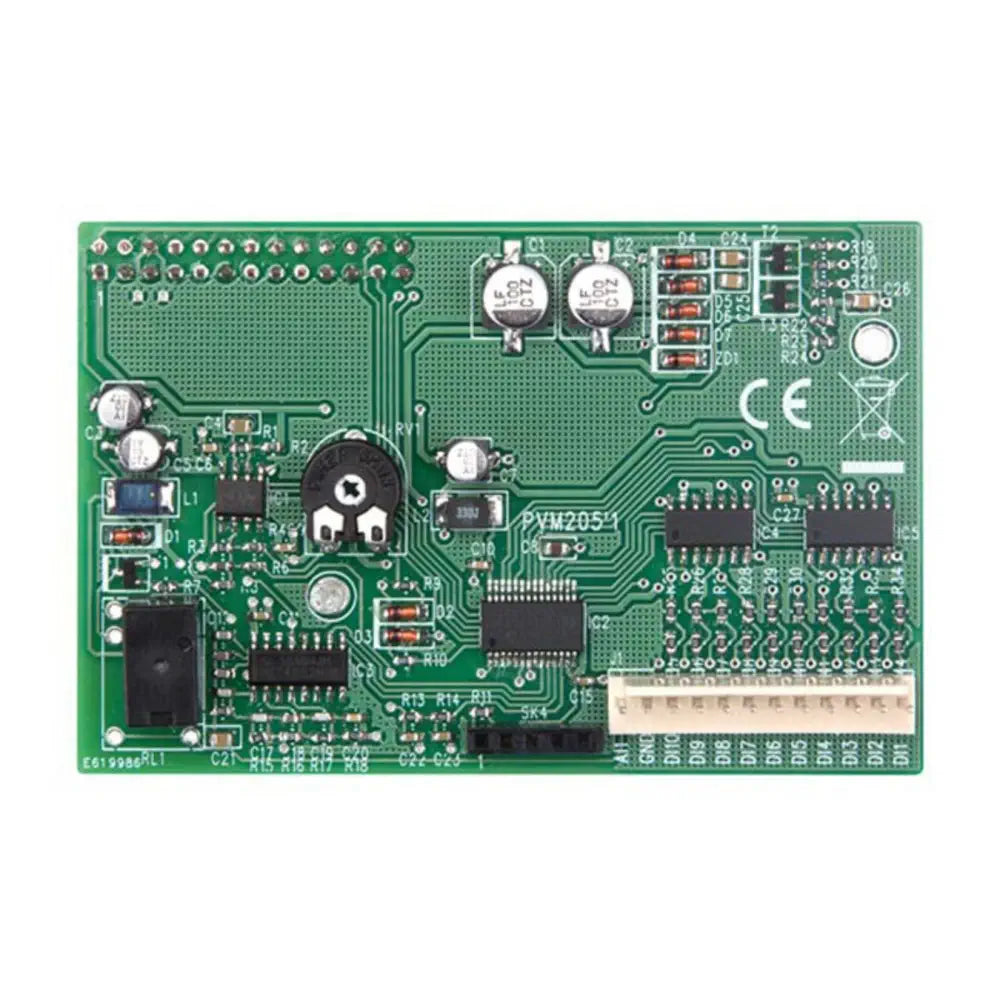

Velleman Oscilloscope & Logic Analyzer Shield for Raspberry Pi

WhaddaSKU: RB-Vel-355
Manufacturer #: WPSH206

Price  :
Sale price $44.10

Price includes Tariffs (in USA).  Shipping calculated at checkout.

Stock  :
Only 1 unit left

Description

  • Oscilloscope & Logic Analyzer Shield by Velleman

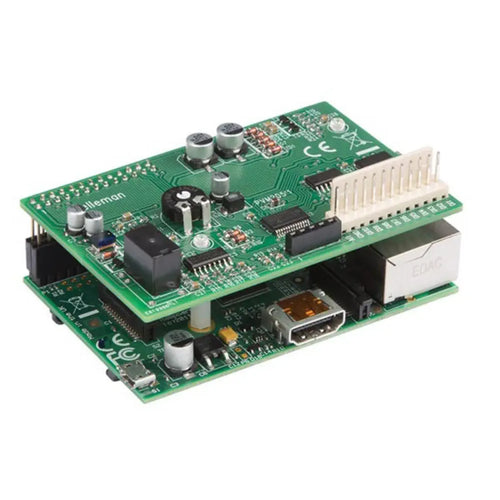

  • Designed for Raspberry Pi (Not Included)
  • Offers all standard oscilloscope features
  • Comes with the source code
  • Compatible with: 32-Bit Raspberry Pi OS
  • Run modes: Run, Single

The Velleman Oscilloscope & Logic Analyzer Shield for Raspberry Pi offers all standard oscilloscope features and comes with the source code, so you can develop your own applications. As a bonus, you also get a 10-channel logic analyzer, a great tool to monitor digital signals.

  • 1x Velleman Oscilloscope & Logic Analyzer Shield for Raspberry Pi

Oscilloscope

  • Maximum sample rate: 1 MS/s
  • Input amplifier bandwidth: 200 kHz (-3 dB)
  • Measurements can be performed up to: 100 kHz
  • Input impedance: 100 kohm // 20 pF
  • Maximum input voltage: 30 Vp (AC + DC)
  • Input coupling: AC + DC
  • AD resolution: 8 bit
  • Record length: 800 samples
  • Run modes: Run, Single
  • Trigger level adjustable: in 254 steps
  • Timebase range: in 15 steps 5 µs to 200 ms / division
  • Input sensitivity range: in 6 steps, 100 mV / division to 5 V / division
  • Input sensitivity: 3 mV display resolution

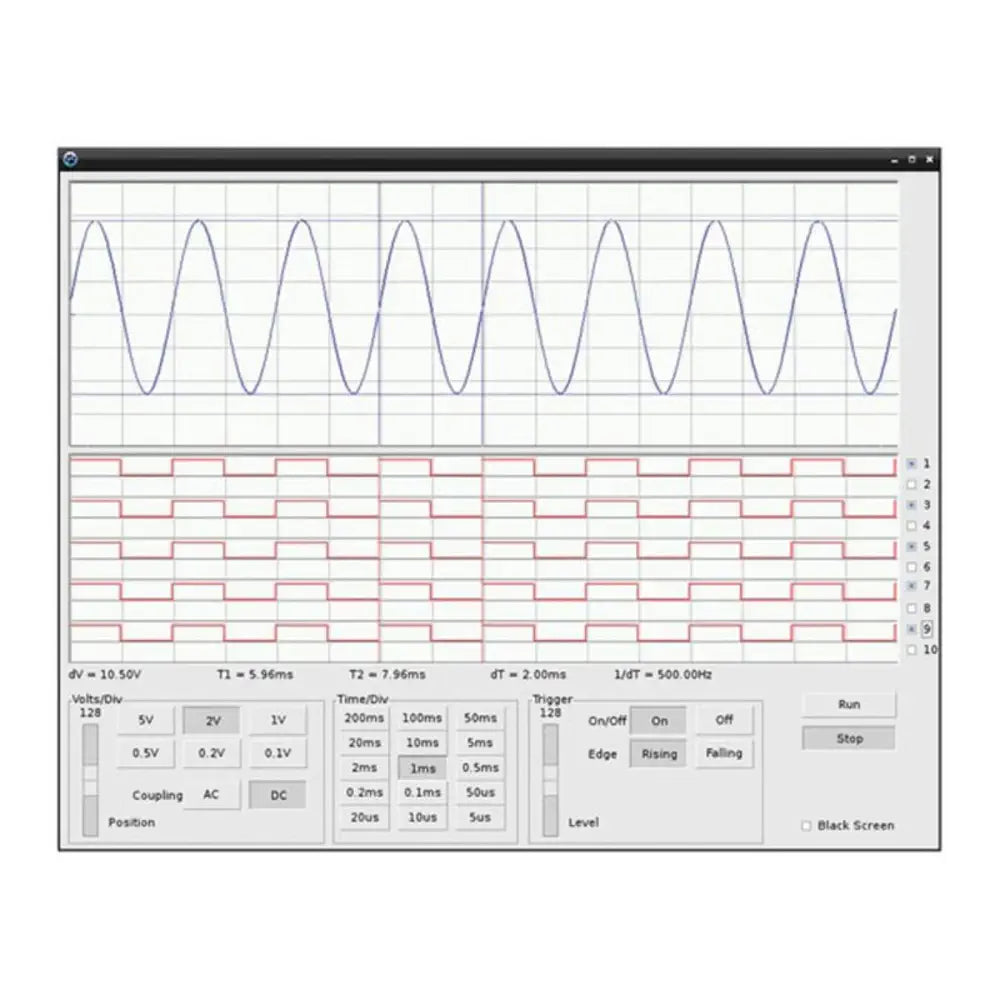

  • Time and Voltage markers readout
  • Frequency readout (through markers)

Logic Analyzer

  • Number of channels: 10
  • Record length: 10 x 800 samples
  • Maximum sample rate: 1 MS/s
  • Max. input voltage: 5 VDC
