Description

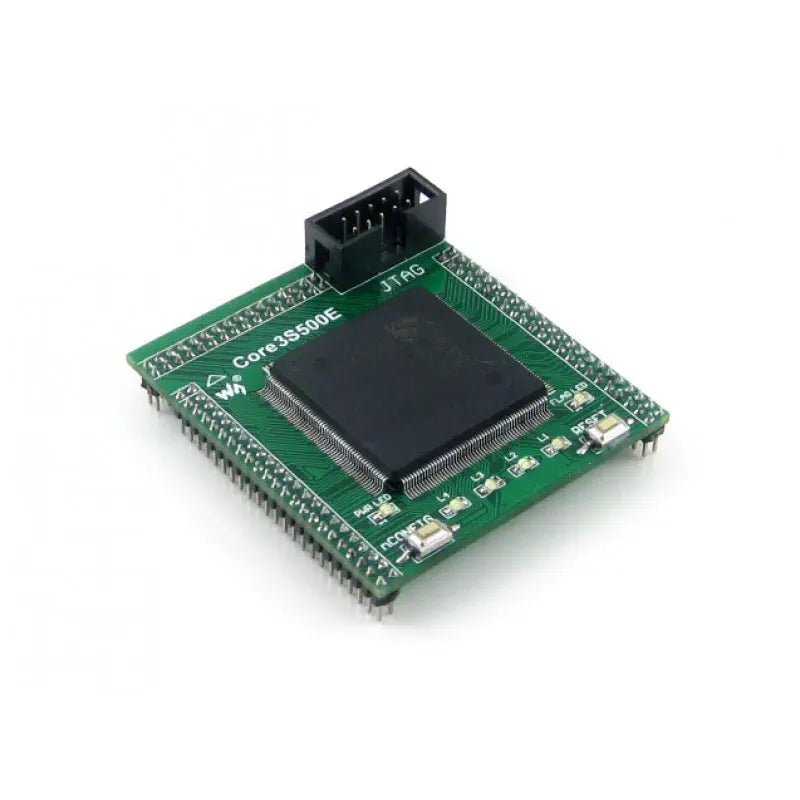

- 1x Waveshare Core3S500E XILINX FPGA Core Board
- Onboard 1 XCF04S chip
- Integrated FPGA basic circuit, including clock circuit
- Onboard nCONFIG button and RESET button
- Includes 4 LEDs
- All I/O ports accessible on pin headers
- Onboard JTAG debugging/programming interface
- 2.0mm header pitch design for application system integration
- Operating frequency: 50MHz
- Operating voltage: 1.15V to 3.3V
- Package type: QFP208
- Number of I/Os: 116
- Logic elements (LEs): 500K
- RAM: 360kb
- Digital Clock Managers (DCMs): 4
- Supports JTAG for debugging/programming

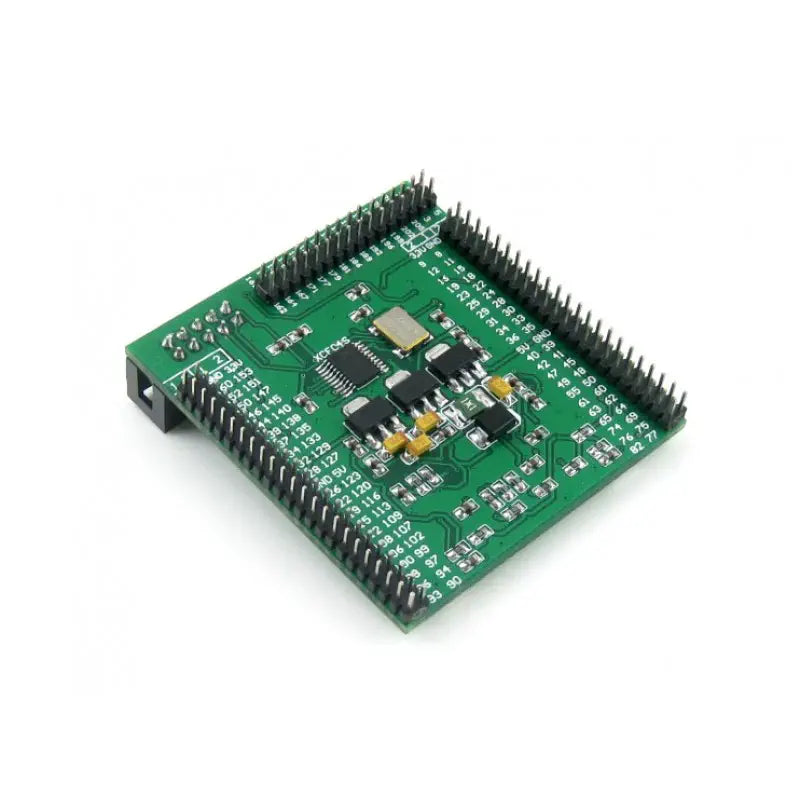

- Includes AMS1117-3.3V voltage regulator
- Includes AMS1117-2.5V voltage regulator
- Includes AMS1117-1.2V voltage regulator
- Onboard XCF04S serial FLASH memory for code storage
- Power indicator present
- FPGA initialization indicator present
- nCONFIG button for re-configuring the FPGA chip, equivalent to power resetting
- 50M active crystal oscillator included
- JTAG interface for debugging/programming
- FPGA pins expander with VCC, GND, and all I/O ports accessible on expansion connectors for further expansion
