Description

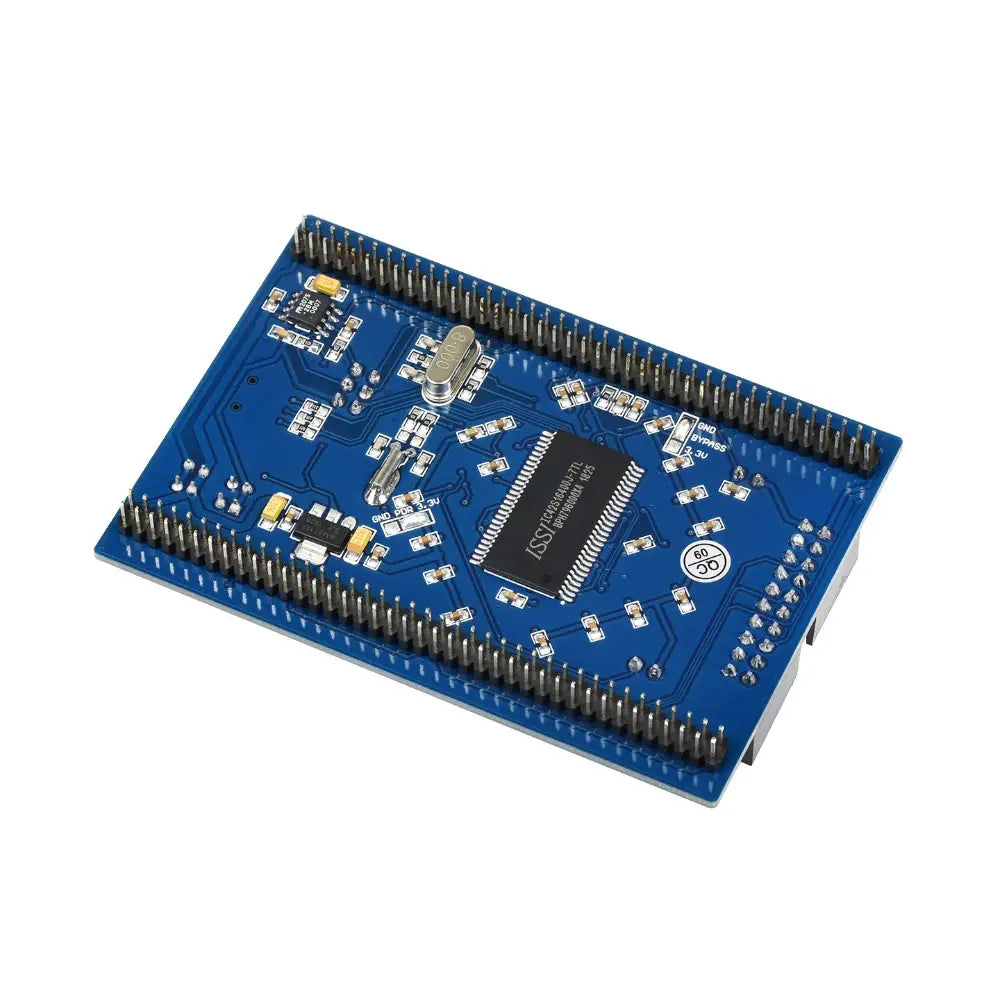

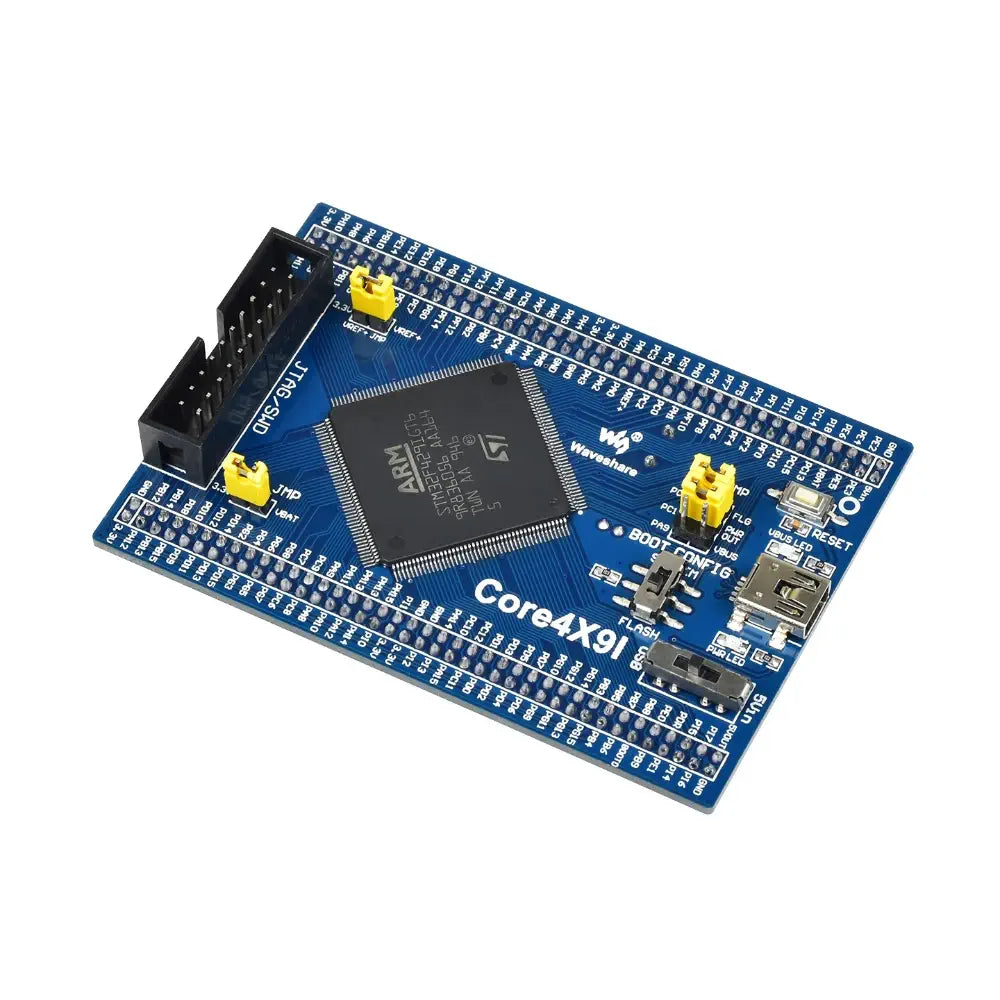

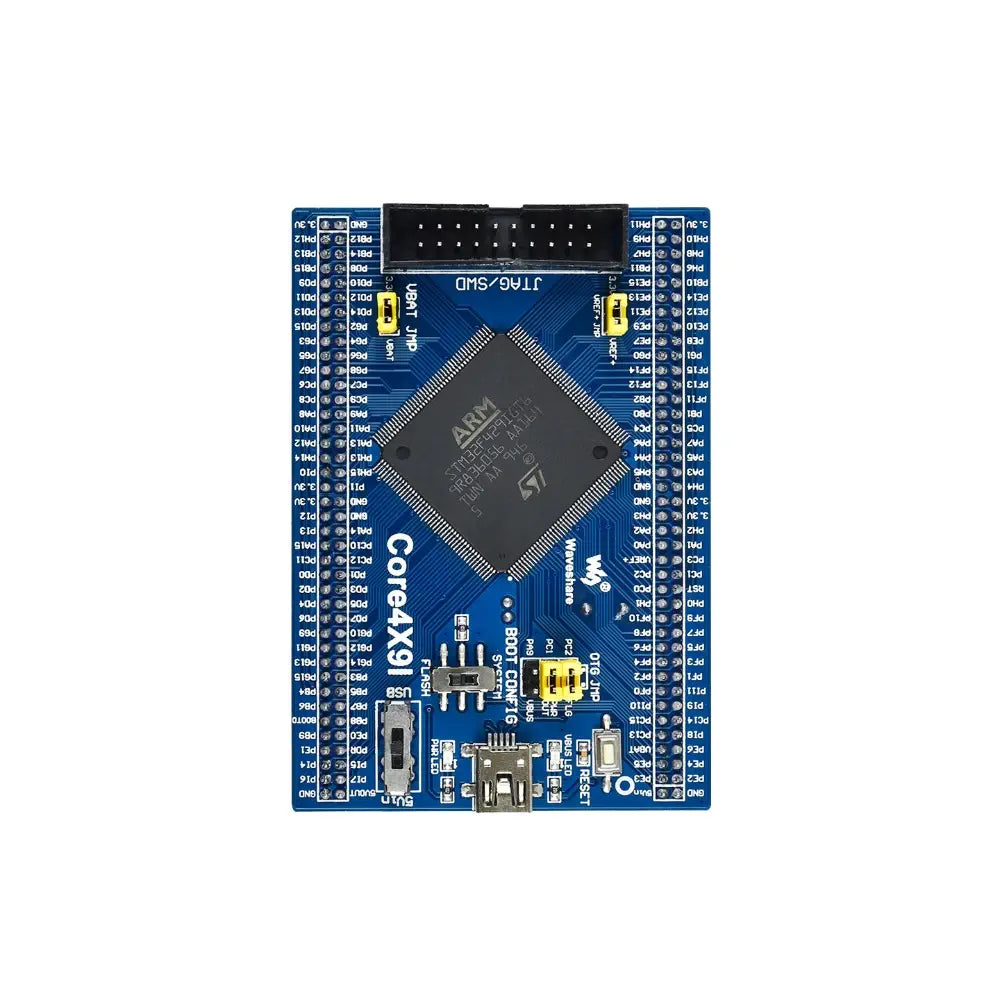

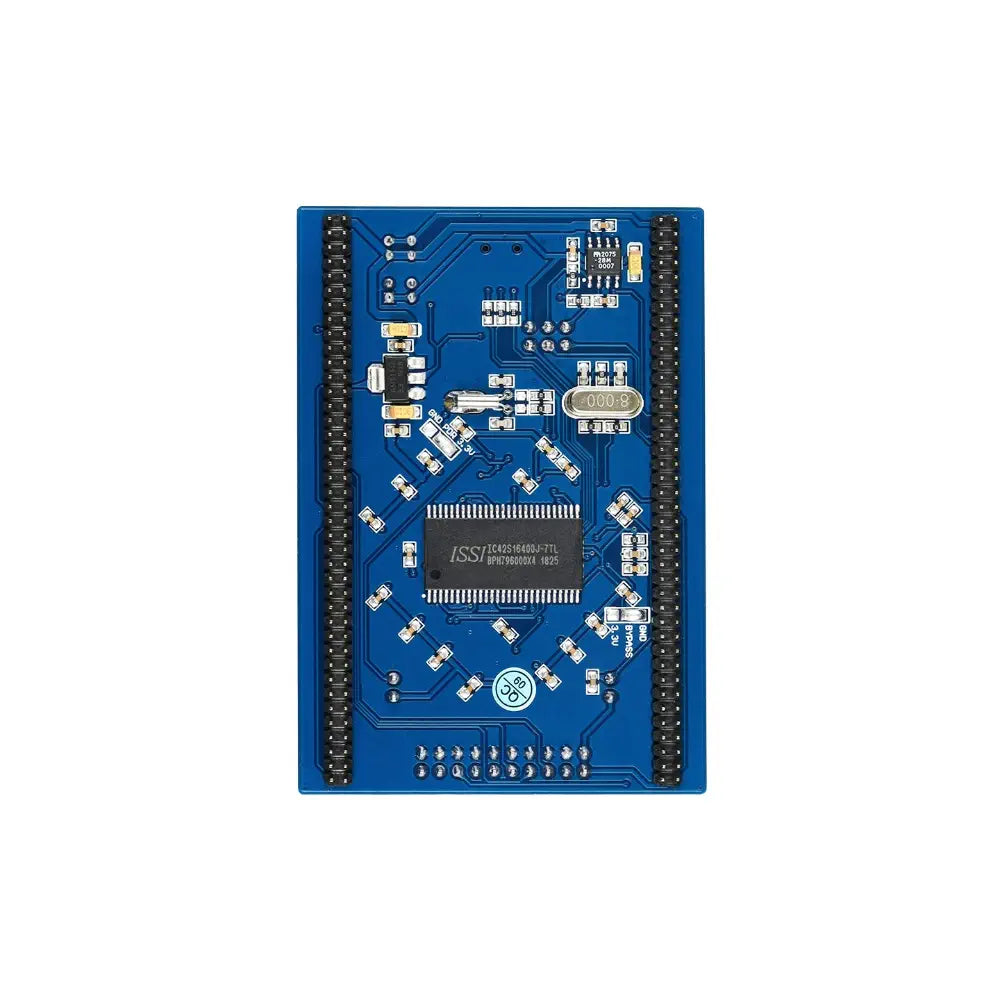

- 1x Waveshare Core429I STM32F4 Core Board
- 1x USB Type A to Mini-B Cable
- Weight: 0.105 kg
- STM32F429IGT6: High-performance STM32 MCU
- Core: Cortex-M4 32-bit RISC
- Feature: Single-cycle DSP instructions
- Operating Frequency: 180MHz, 225 DMIPS/1.25 DMIPS/MHz
- Operating Voltage: 1.8V-3.6V
- Package: LQFP176
- Memories: 1024kB Flash, 256+4kB SRAM
- MCU Communication Interfaces: 6 x SPI, 4 x USART, 4 x UART, 2 x I2S, 1 x SAI, 3 x I2C, 1 x FMC, 1 x SDIO, 2 x CAN, 1 x LCD-TFT, 1 x USB 2.0 HS/FS controller (with dedicated DMA), 1 x USB HS ULPI (external PHY required), 1 x 10/100 Ethernet MAC, 1 x 8 to 14-bit camera interface
- AD & DA Converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)
- Debugging/Programming: Supports JTAG/SWD interfaces, supports IAP
- IS42S16400J: SDRAM 1 Meg Bits x 16 Bits x 4 Banks (64-MBIT)
- AMS1117-3.3V Voltage Regulator
- MIC2075: Onboard USB power management device
- Power Supply Switch: Powered from 5Vin or USB connection
- Boot Mode Selection: For configuring BOOT0 pin
- Power Indicator
- VBUS LED
- Reset Button
- 8M Crystal
- 32.768K Crystal: For internal RTC with calibration
- JTAG/SWD Interface: For debugging/programming
- USB Connector: Supports Device and/or Host
- MCU Pins Expander: VCC, GND, and all the I/O pins are accessible on expansion connectors for further expansion
- 5Vin Pinheader: 5V power supply is required when using USB HOST/OTG
- USB OTG/HOST Jumper: Short the jumper when using USB OTG/HOST, open the jumper to disconnect from related I/O port
- VBAT Selection Jumper: Short the jumper to use system power supply, open the jumper to connect the VBAT to external power, such as a battery
- VREF Selection Jumper: Short the jumper to connect VREF+ to VCC, open the jumper to connect VREF+ to another custom pin via jumper wire
