Description

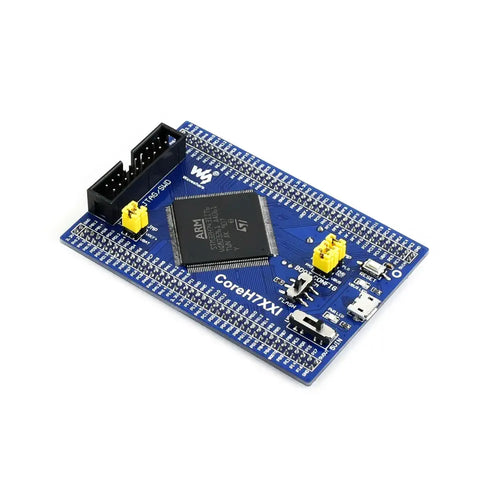

- 1x Waveshare CoreH743I STM32H743IIT6 MCU Core Board
- 1x USB Type A plug to Micro B plug cable
- Weight: 0.075 kg
- STM32H743IIT6: High-performance STM32 MCU
- Core: Cortex-M7 32-bit RISC with double-precision FPU and Chrom-ART graphic accelerator
- Feature: Single-cycle DSP instructions
- Operating Frequency: 480MHz, 1027 DMIPS / 2.14 DMIPS/MHz
- Operating Voltage: 1.62V-3.6V
- Package: LQFP176
- Memories: 2MB Flash, 1MB RAM (864KB User + 192KB TCM + 4KB Backup)
- MCU Communication Interfaces: 6 x SPI, 4 x USART, 4 x UART, 1 x LPUART, 3 x I2S, 4 x I2C, 2 x FDCAN, 1 x QUAD-SPI, 1 x DCMI, 4 x SAI, 1 x FMC, 2 x SDMMC, 10 x TIM, 5 x LPTIM, 1 x LTDC, 1 x SPDIFRX, 1 x HDMI-CEC, 1 x SWPMI, 2 x COMP, 2 x OPAMP, 1 x HRTIM, 1 x RNG, 1 x DM2D, 1 x MDIO, 1 x SysTick
- 1 x USB 2.0 OTG FS
- 1 x USB 2.0 OTG HS (supports external HS PHY through ULPI)
- 1 x 10/100 Ethernet MAC
- AD & DA Converters: 3 x AD (16-bit); 2 x DA (12-bit)
- Debugging/Programming: Supports JTAG/SWD interfaces, supports IAP
- IC42S16400J / IS42S16400J: SDRAM 1 Meg Bits x 16 Bits x 4 Banks (64-MBIT)
- STMPS2151STR: Onboard USB power management device
- AMS1117-3.3V Voltage Regulator
- 8M Crystal
- 32.768K Crystal for internal RTC with calibration
- Reset Button
- VBUS LED: USB port indicator
- PWR LED: Power indicator
- Power Supply Switch, powered from 5Vin or USB connection
- Boot Mode Selection for configuring BOOT0 pin
- JTAG/SWD Interface for debugging/programming
- USB Connector supports Device and/or Host
- MCU Pins Expander: VCC, GND, and all I/O pins accessible on expansion connectors
- POWER Jumper
- VBAT: Short the jumper to use system power supply, open it to connect external power
- VREF: Short the jumper to connect VREF+ to VCC, open it to connect VREF+ to other custom pin
- OTG Jumper: Short the jumper when using USB OTG/HOST, open the jumper to disconnect from related I/O port
