Description

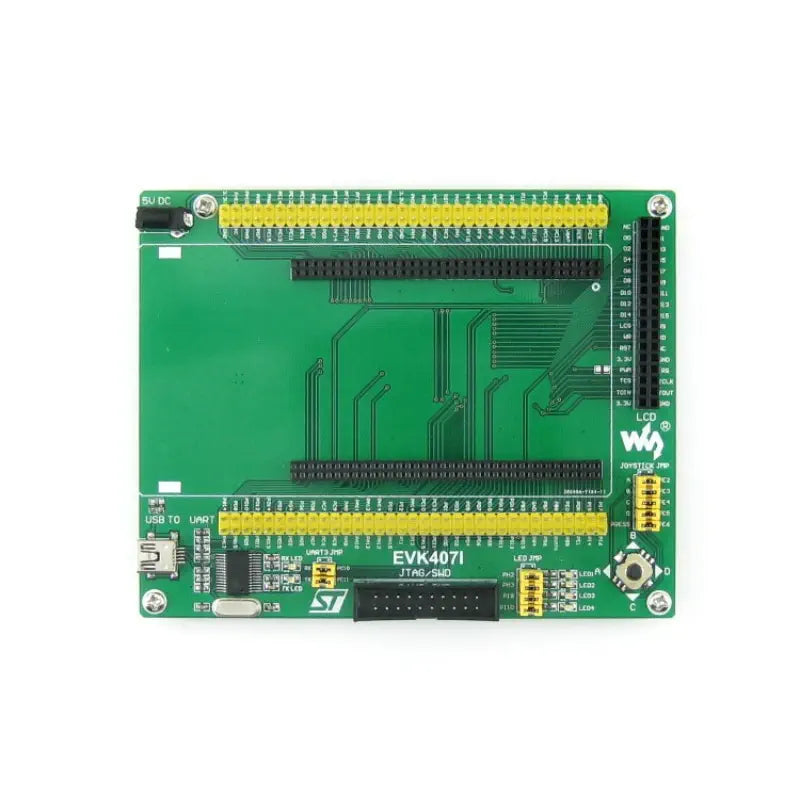

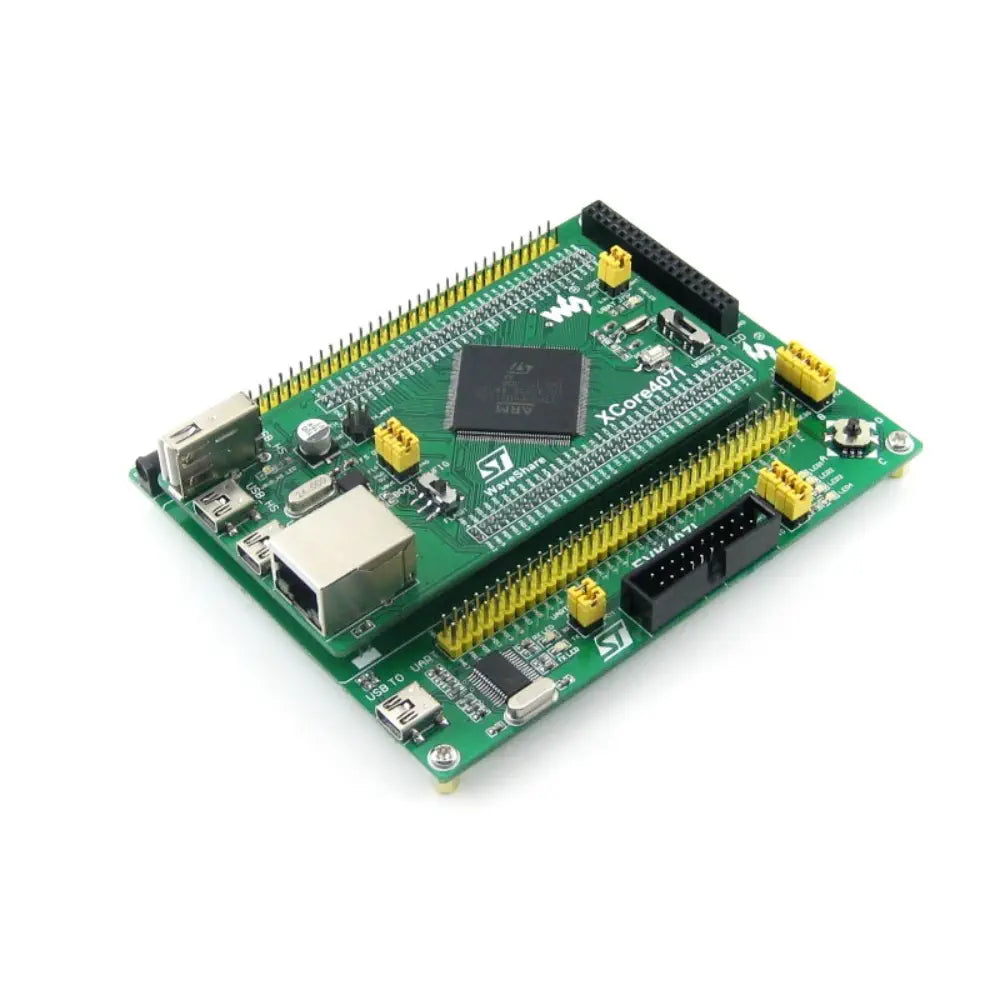

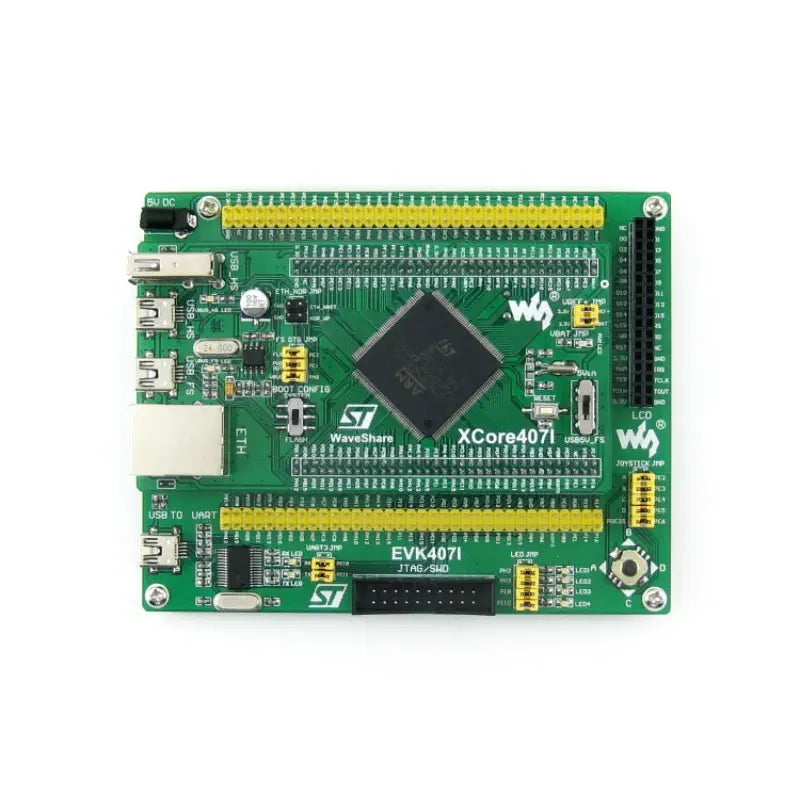

- 1x Waveshare EVK407I STM32F4 Development Board
- 1x 3.2-inch 320x240 touch LCD
- 1x USB type A plug to mini-B plug cable
- 1x USB type A receptacle to mini-B plug cable
- 2x 4-pin wire
- 1x USB power cable
- 1x Software CD
- STM32F407IGT6: High-performance STM32 microcontroller unit (MCU)
- Core: Cortex-M4 32-bit RISC
- Feature: Full set of single-cycle DSP instructions
- Operating Frequency: 168 MHz, 210 DMIPS/1.25 DMIPS/MHz
- Operating Voltage: 1.8V-3.6V
- Package: LQFP176
- Memories: 1024 kB Flash, 192+4 kB SRAM
- MCU Communication Interfaces: 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C, 1 x FSMC, 1 x SDIO, 2 x CAN
- USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI, and on-chip full-speed PHY
- 10/100 Ethernet MAC
- 8 to 14-bit parallel camera interface
- AD & DA converters: 3 x AD (12-bit, 1 μs, shares 24 channels); 2 x DA (12-bit)
- Debugging/Programming: Supports JTAG/SWD (serial wire debug) interfaces, supports IAP
- MIC2075-2, onboard USB FS power management device
- AMS1117-3.3V voltage regulator
- K9F1G08U0E, 1G Bit NandFlash
- DP83848, Ethernet PHY
- MIC2075-1, onboard USB HS power management device
- USB3300, USB HS PHY
- Power supply switch, powered from 5V input or USB connection
- Boot mode switch, for configuring BOOT0 pin
- Power indicator
- USB FS LED
- USB HS LED
- Reset button
- 8M crystal, MCU clock, enables the MCU to run at higher speed by frequency multiplication
- 24M crystal, USB3300 clock
- 50M crystal, DP83848 clock
- 32.768K crystal, for internal RTC with calibration
- Ethernet connector
- USB FS mini connector
- USB HS mini connector
- USB HS type A connector
- MCU pins expander, VCC, GND, and all the idle I/O ports are accessible on expansion connectors for further expansion
- USB OTG/HOST jumper
- VREF/VBAT jumper
- Ethernet I/O selection solder joint
- USB HS I/O selection solder joint
- PDR selection solder joint: 1.8-3.6V, -40 to 105°C or 1.7-3.6V, 0 to 70°C
