Waveshare Mini Base Board (A) for Raspberry Pi Compute Module 4

WaveshareSKU: RB-Wav-316
Manufacturer #: 19887

Price  :
Sale price $19.99

Shipping calculated at checkout

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Waveshare Mini Base Board (A) for Raspberry Pi Compute Module 4

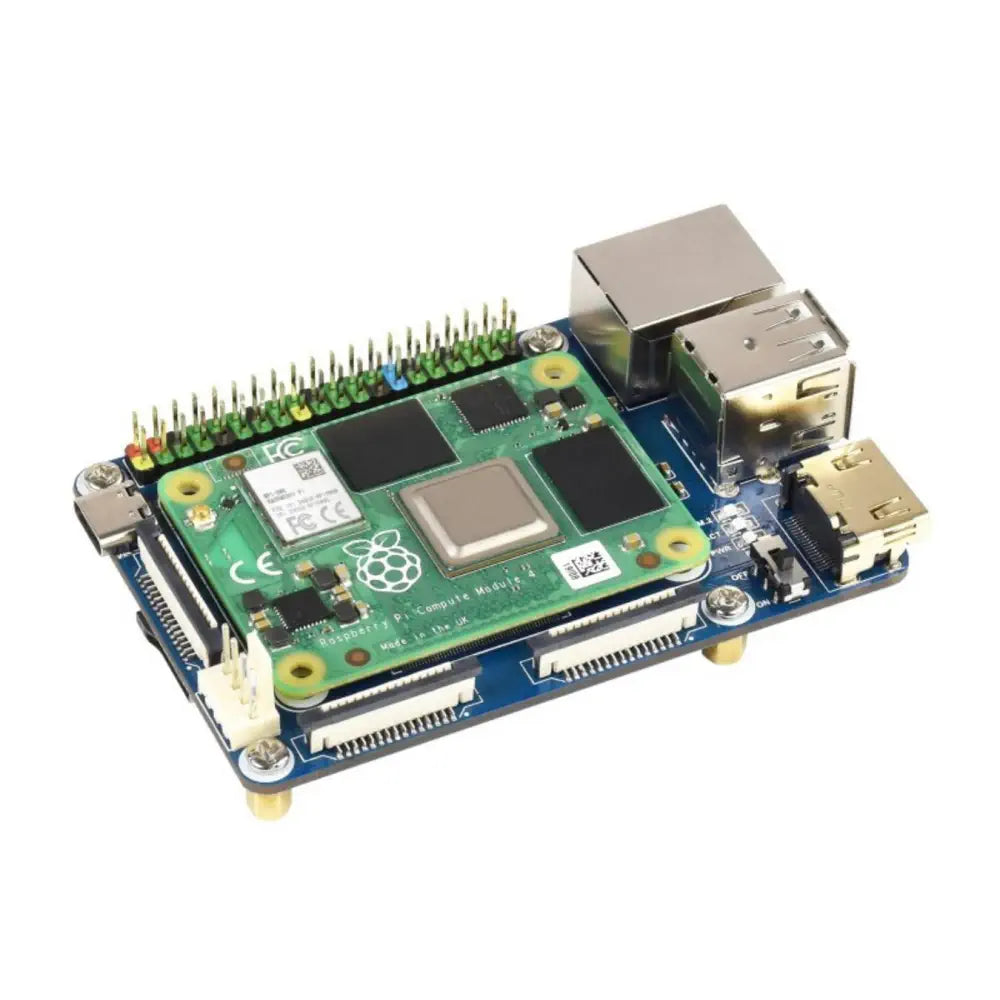

  • Designed for Raspberry Pi Compute Module 4 (Not Included)
  • Provides powerful functions in a credit card-sized body
  • Onboard multiple connectors
  • No RTC, fan controller, and battery holder
  • Suitable for evaluating the Raspberry Pi CM4

The Waveshare Mini Base Board (A) for Raspberry Pi Compute Module 4 is suitable for computing the Module 4 Lite/EMMC series module.

It provides powerful functions in a credit card-sized body. Onboard multiple connectors, No RTC, fan controller, and battery holder on version A, which is more cost-effective.

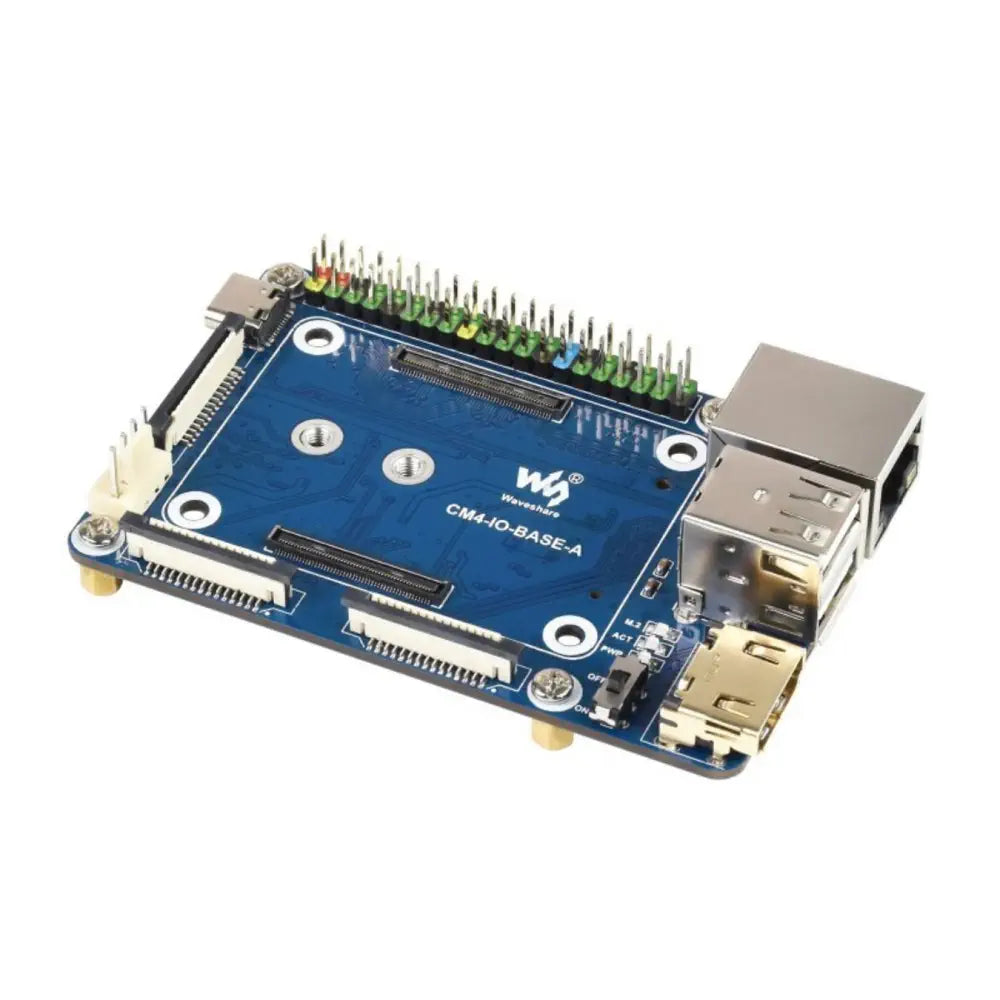

  • 1 x CM4-IO-BASE-A
  • 1 x SSD mounting screw

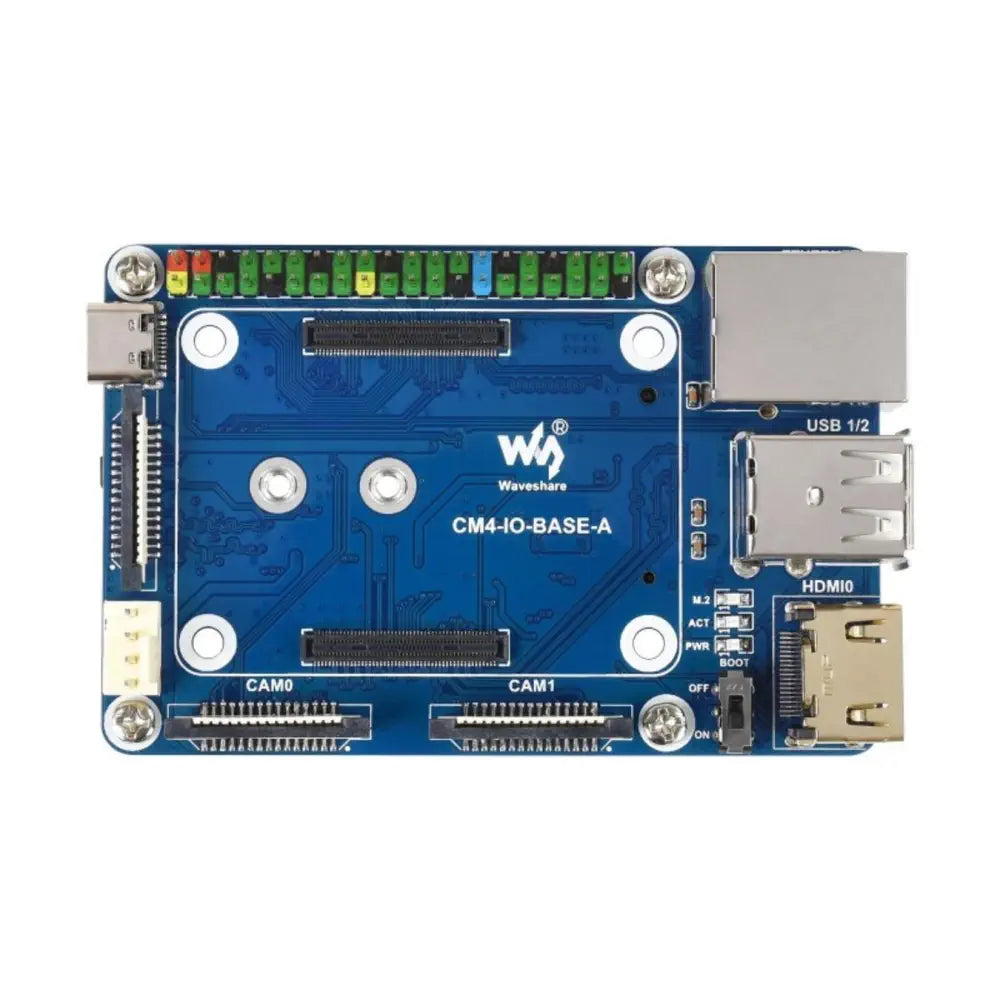

Waveshare Mini Base Board (A) for Raspberry Pi Compute Module 4 - Click to Enlarge

Size

  • 85 x 56 mm (L x W)
  • CM4 socket: suitable for all variants of Compute Module 4
  • Power input/Programming: 5  V / 2.5 A power supply, or used for eMMC burning
  • DISP: MIPI DSI display port
  • FAN: for connecting cooling fan, allows speed adjustment and measurement
  • CAM: 2x MIPI CSI camera ports
  • HDMI0 connector: HDMI0 port, supports 4K 30fps output
  • USB 2.0 ports: 2x USB 2.0 ports, for connecting sorts of USB devices
  • Gigabit Ethernet connector: Gigabit Ethernet RJ45 connector, with 10 / 100 / 1000M network support
  • M.2 indicator: indicating the operating status of the M.2 interface
  • ACT indicator: indicating the operating status of Raspberry Pi
  • PWR indicator: indicating the status of Raspberry Pi power supply
  • BOOT selection: ON: CM4 would be booted from USB-C interface | OFF: CM4 would be booted from eMMC or Micro SD card
  • 40 PIN GPIO header

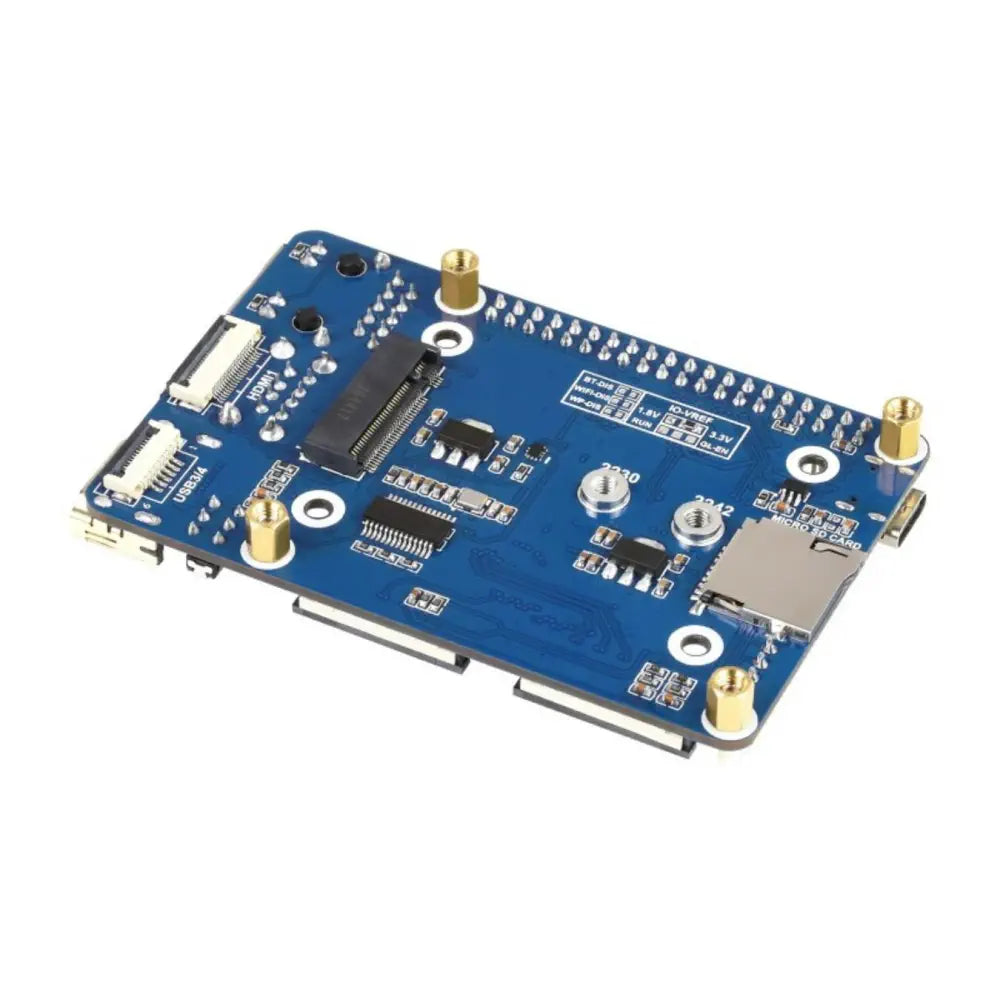

  • Micro SD card slot: for connecting a Micro SD card with a pre-burnt image (Lite variant ONLY)
  • HDMI1 FFC connector: HDMI1 port, supports 4K 30fps output
  • USB 2.0 FFC connector: can be connected through an adapter
  • FE1.1S: USB HUB chip, expanding one USB port to 4x ports

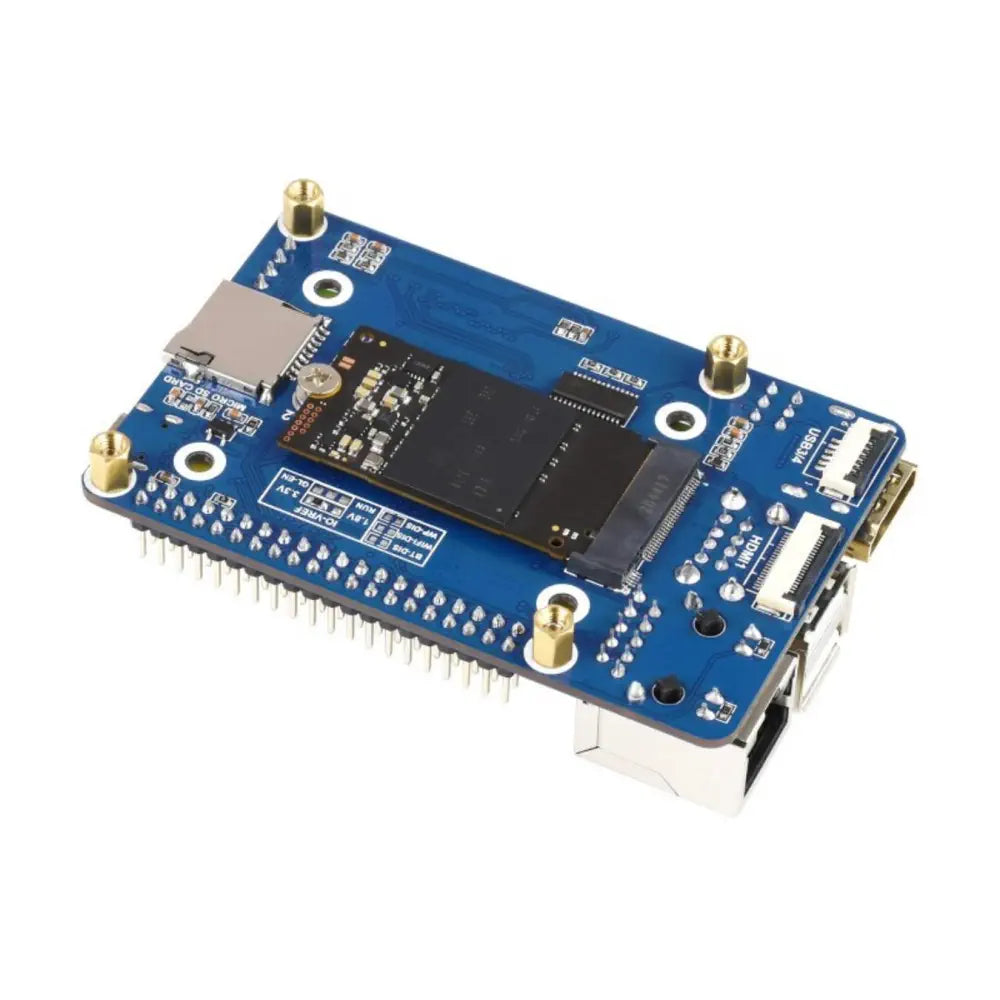

  • M.2 slot: supports sorts of NVME SSD or communication modules with PCI-E M.2 KEY-M interface
