Description

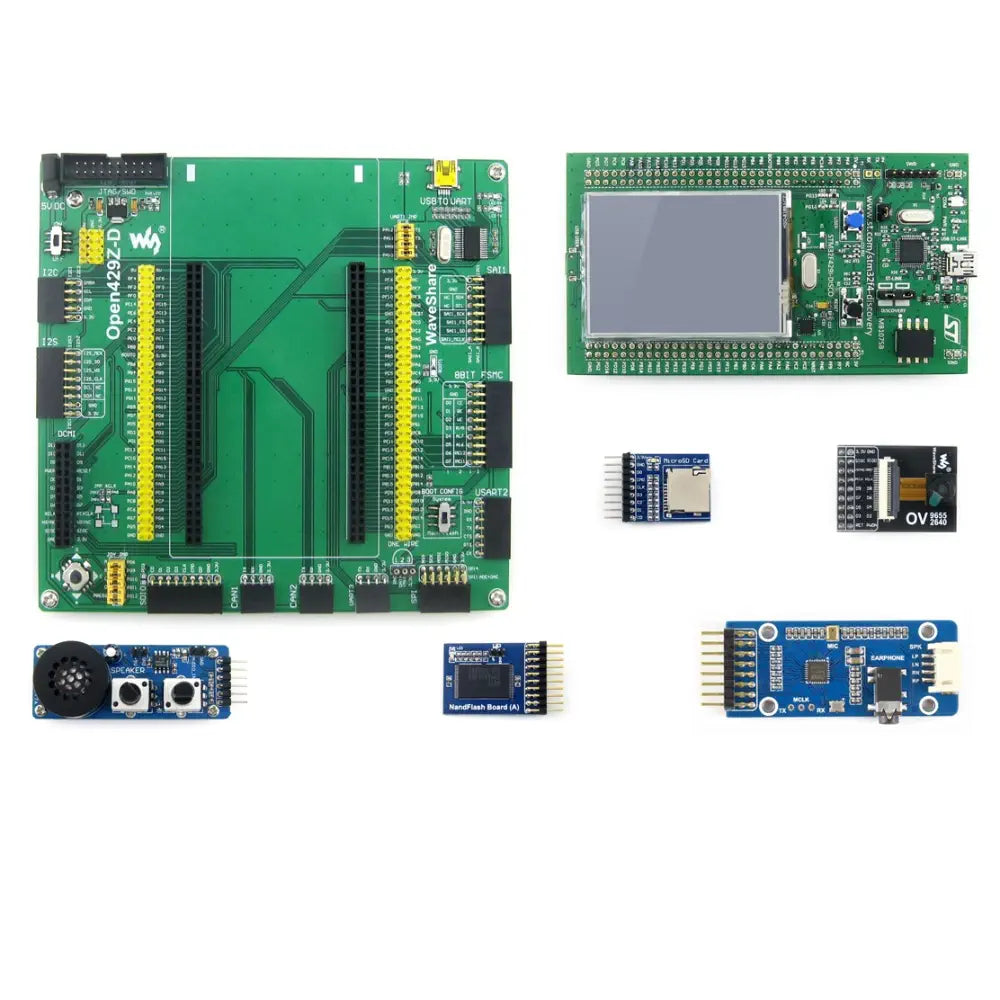

- 1x Waveshare Open429Z-D Package A, STM32F4 Development Board
- 1x Open429Z-D motherboard
- 1x 4-pin 2-pin wires pack
- 1x USB power cable
- 1x 32F429IDISCOVERY
- 1x WM8960 audio board
- 1x Analog test board
- 1x Micro SD storage board
- 1x OV2640 camera board
- 1x NandFlash board (A)
- 1x USB type A plug to mini-B plug cable
- 32F429IDISCOVERY socket for connecting the 32F429IDISCOVERY
- MCU pins connector: all MCU I/O ports accessible on expansion connectors
- USB connector: USB to UART via onboard converter PL2303
- I2C1/I2C2 interface: connects to I2C peripherals like I/O expander (PCF8574), FRAM (FM24CLxx)
- I2S2/I2S3/I2C1 interface: connects to I2S peripherals like audio modules
- DCMI interface: for connecting a camera
- SDIO interface: for connecting a Micro SD module with faster access speed than SPI
- CAN1 and CAN2 interfaces: communicate with accessory boards featuring the CAN device
- UART3 and UART2 interfaces: connect to RS232, RS485, USB TO 232
- SPI1/SPI4 + AD/DA interfaces: connect to SPI peripherals like DataFlash (AT45DBxx), SD card, MP3 module
- 8-bit FMC interface: connects to peripherals like NandFlash
- SAI1 interface: for connecting audio modules
- ONE-WIRE interface: connects to ONE-WIRE devices (TO-92 package) like temperature sensor (DS18B20), electronic registration number (DS2401)
- 5V DC jack
- 5V/3.3V power input/output: used as power output, common-grounding with other user boards
- JTAG/SWD interface: for debugging/programming
- Joystick jumper: short the jumper to connect the joystick to default I/Os used in example code
- Boot mode switch: for configuring BOOT0 pin
- AMS1117-3.3V voltage regulator
- PL2303: USB to UART converter
- 12MHz crystal
- 5V DC power switch
- Power indicator
- UART1 indicator
- Joystick: five positions
- STM32F429ZIT6 microcontroller with 2 Mbytes of Flash memory, 256 Kbytes of RAM in an LQFP144 package
- On-board ST-LINK/V2-B
- USB functions: debug port, virtual COM port, mass storage
- Board power supply: through USB bus or from an external 3 V or 5 V supply voltage
- 2.4" QVGA TFT LCD
- 64-Mbit SDRAM
- L3GD20, ST MEMS motion sensor 3-axis digital output gyroscope
- Six LEDs: LD1 (red/green) for USB communication, LD2 (red) for 3 V power-on, two user LEDs: LD3 (green), LD4 (red), two USB OTG LEDs: LD5 (green) VBUS and LD6 (red) OC (over-current)
- Two push-buttons (user and reset)
- USB OTG with micro-AB connector
- Extension header for LQFP144 I/Os for quick connection to the prototyping board and easy probing
- Comprehensive free software including various examples, part of STM32CubeF4 package or STSW-STM32138 for legacy standard libraries usage
