Description

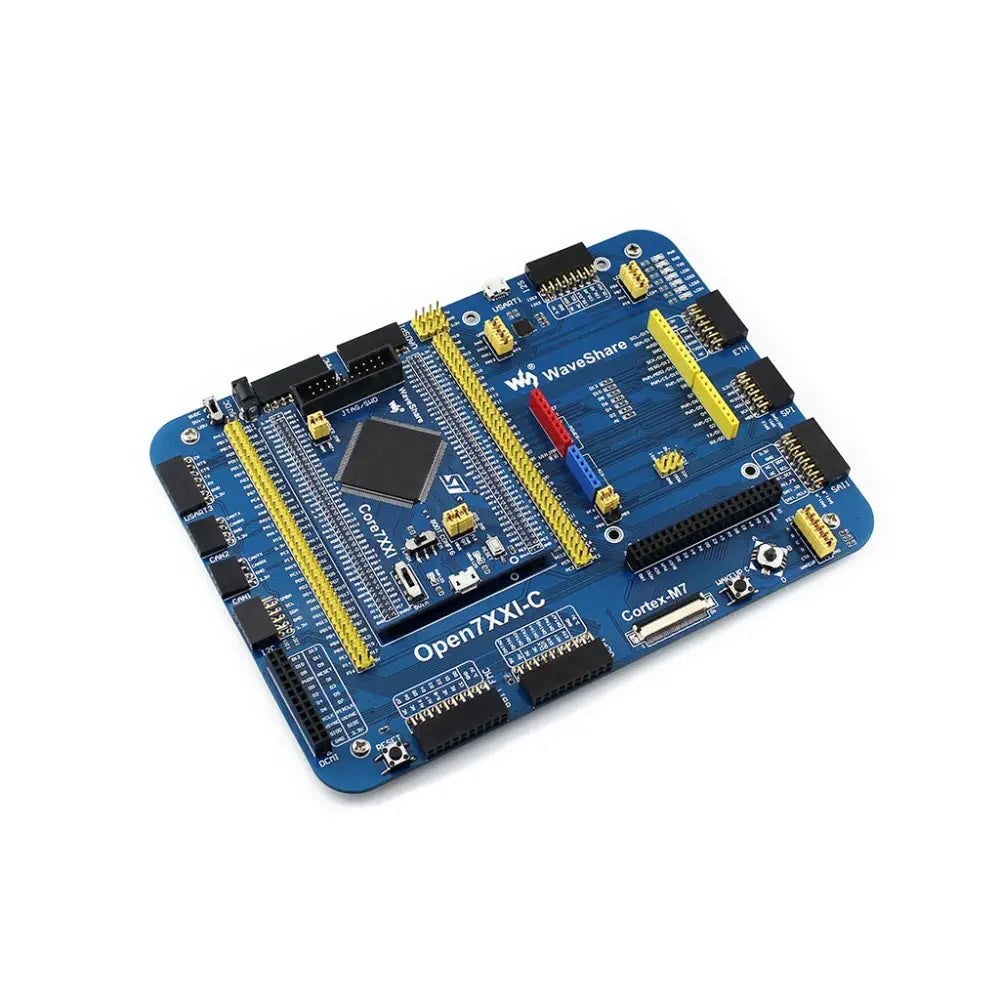

- 1x Waveshare Open746I-C STM32F7 Development Board
- 1x USB Type A plug to Micro B plug cable
- 1x USB Type A receptacle to Micro B plug cable
- 1x 4-pin 2-pin wires pack
- 1x 5V power adapter
- Core: Cortex-M7 32-bit RISC with FPU and Chrom-ART graphic accelerator
- Feature: Single-cycle DSP instructions
- Operating Frequency: 216 MHz, 462 DMIPS/2.14 DMIPS/MHz
- Operating Voltage: 1.7V-3.6V
- Package: LQFP176
- Memories: 1024 kB Flash, 320+16+4 kB SRAM
- MCU Communication Interfaces: 6 x SPI, 4 x USART, 4 x UART, 3 x I2S, 4 x I2C
- 2 x CAN, 1 x QUAD-SPI, 1 x DCMI, 2 x SAI
- 1 x FMC, 1 x SDMMC, 14 x TIM, 1 x LPTIM
- 1 x LCD-TFT, 1 x SPDIFRX, 1 x HDMI-CEC
- 1 x USB 2.0 OTG FS
- 1 x USB 2.0 OTG HS (supports external HS PHY through ULPI)
- 1 x 10/100 Ethernet MAC
- AD & DA Converters: 3 x AD (12-bit); 2 x DA (12-bit)
- Debugging/Programming: Supports JTAG/SWD interfaces, supports IAP
- IC42S16400J / IS42S16400J: SDRAM 1 Meg Bits x 16 Bits x 4 Banks (64-MBIT)
- MIC2075: Onboard USB power management device
- AMS1117-3.3V voltage regulator
- 8M crystal
- 32.768K crystal for internal RTC with calibration
- Reset button
- VBUS LED
- Power indicator
- Power supply switch, powered from 5V input or USB connection
- Boot mode selection for configuring BOOT0 pin
- JTAG/SWD interface for debugging/programming
- USB connector supports Device and/or Host
- MCU pins expander: VCC, GND, and all I/O pins accessible on expansion connectors for further expansion
- Power jumper
- VBAT: Short the jumper to use system power supply, open it to connect external power, such as a battery
- VREF: Short the jumper to connect VREF+ to VCC, open it to connect VREF+ to another custom pin via jumper wire
- OTG jumper
- Short the jumper when using USB OTG/Host
- Open the jumper to disconnect from related I/O port
