Description

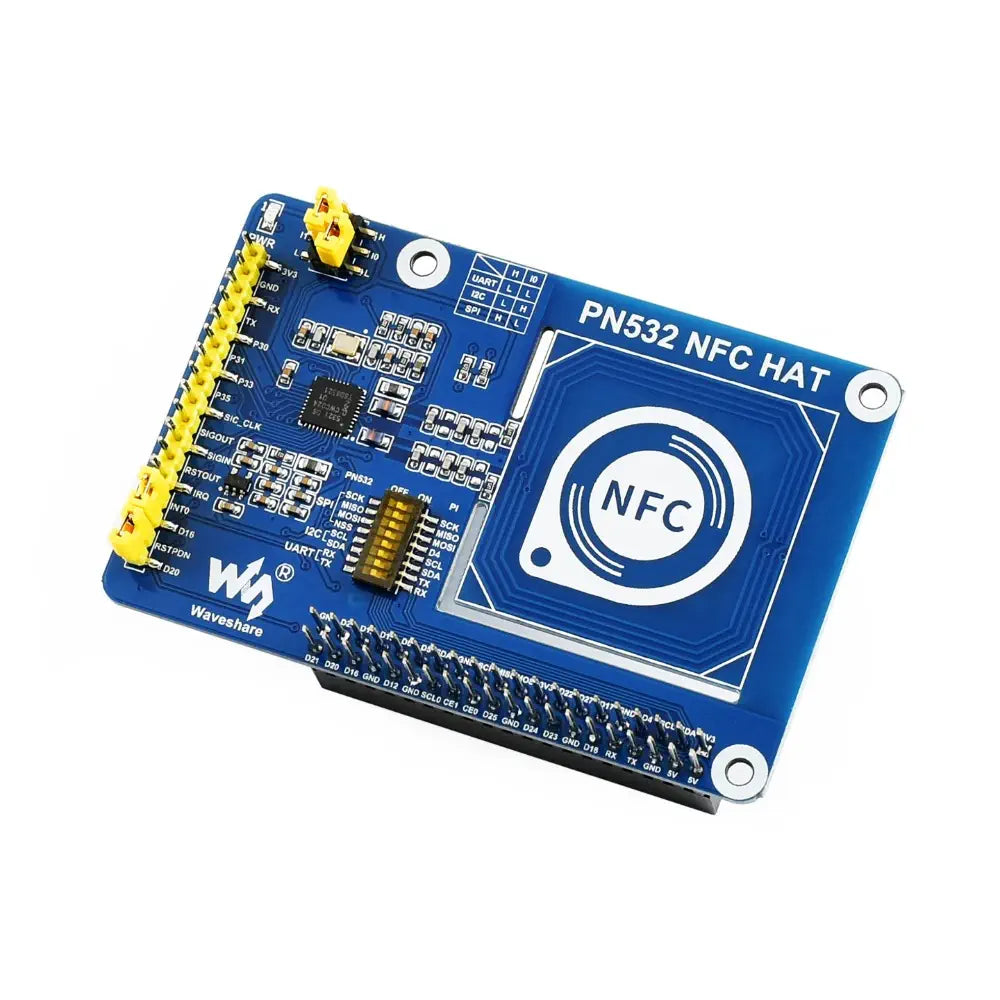

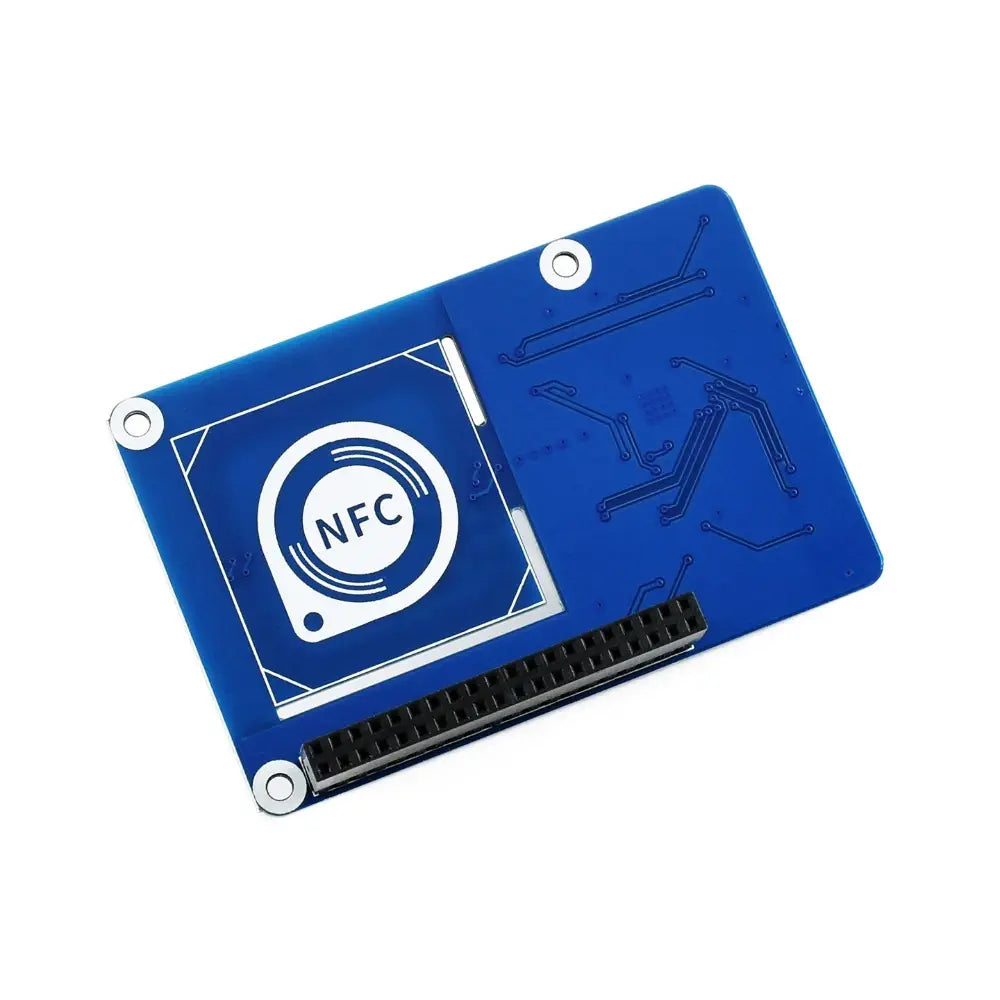

- 1x Waveshare PN532 NFC HAT for Raspberry Pi, I2C / SPI / UART
- 1x MIFARE Classic 1K card
- NFC controller: PN532
- Operating voltage: 3.3V/5V
- Operating frequency: 13.56MHz
- Communication interfaces: I2C, SPI, UART (default baud rate: 115200 bps)
- Operating modes:
- Reader/writer mode supporting ISO/IEC 14443A / MIFARE scheme
- Reader/writer mode supporting FeliCa scheme
- Reader/writer mode supporting ISO/IEC 14443B scheme
- Card operation mode supporting ISO 14443A / MIFARE scheme
- Card operation mode supporting FeliCa scheme
- Card operation mode supporting ISO/IEC18092, ECM340 point-to-point
- Standard Raspberry Pi 40-pin GPIO extension header, supports Raspberry Pi series boards
- Onboard PN532 chip, supports various NFC/RFID cards like MIFARE/NTAG2xx
- Three interface options: I2C, SPI, and UART, configured via jumpers and switches
- Breakout control pins for easy connection with host boards like STM32/Arduino
- Includes development resources and manual (examples for Raspberry Python/C, STM32, Arduino)
- Raspberry Pi GPIO connector for connecting with Raspberry Pi
- PN532 control pins for connecting with other host boards like STM32
- NFC induction coil
- Power indicator
- DIP switches for configuring the connection between PN532 and Raspberry Pi (only one of the I2C/SPI/UART can be connected at the same time)
- Mode selection:
- I0-L, I1-L: enable UART
- I0-H, I1-L: enable I2C
- I0-L, I1-H: enable SPI
- INT0 jumper: response signal, connects to Raspberry Pi D16
- RSTPDN jumper: reset signal, connects to Raspberry Pi D20
